Performance Test of 6KW Handheld Laser Welding Machine on Different Materials

Views: 0 Author: Site Editor Publish Time: 2025-10-10 Origin: Site

Inquire

1. Introduction

2. Test Purpose

3. Test Material Introduction

Introduction

Handheld laser welding is an emerging welding technology gaining widespread adoption across various industries due to its high efficiency and precision. Compared to traditional welding methods, laser welding offers higher welding speeds and a smaller heat-affected zone, making the welding process cleaner and more environmentally friendly. This technology demonstrates great potential in the automotive, aerospace, electronics, and metalworking industries, meeting the stringent demands of modern manufacturing for welding quality and efficiency.

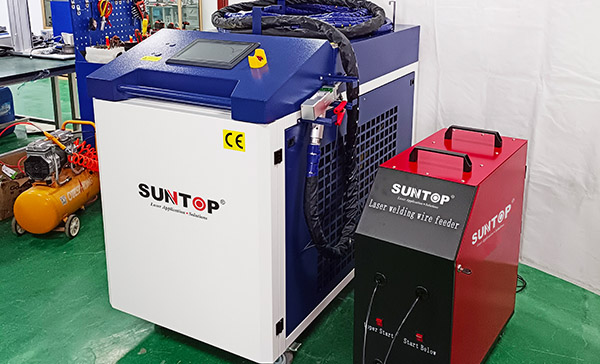

This test focused on a 6KW handheld laser welding machine, which represents the cutting edge of current laser welding technology. With its powerful 6KW laser output, this machine can effectively process a wide range of metal materials, including stainless steel, aluminum, carbon steel, and iron, ensuring flexibility and adaptability in welding production. The 6KW laser welding machine not only improves weld quality but also significantly reduces production cycle time, making it a vital tool in modern industrial manufacturing.

Test Purpose

The primary purpose of this test was to evaluate the performance of the 6KW handheld laser welder in welding different materials (stainless steel, aluminum, carbon steel, and iron).

1. Welding Performance Evaluation:

Welding experiments were conducted on various materials to determine the welding performance of the 6KW handheld laser welder on various materials. The focus was on the machine's stability, efficiency, and adaptability during the welding process to identify optimal welding parameter settings.

2. Comparison of Post-Weld Cut Surface Quality:

The post-weld cut surface quality was observed and compared to assess the weld uniformity, smoothness, and surface defects. This metric directly reflects the welding accuracy and quality control capabilities of laser welding on different materials.

3. Weld Strength Measurement:

Standardized strength tests were used to evaluate the tensile and shear strength of welded joints and analyze the durability and reliability of the joints. By comparing weld strength, we will understand the performance of different metal materials after laser welding.

Through these tests, we hope to gain a comprehensive understanding of the 6KW handheld laser welder's performance on a variety of metals, providing data support for future applications and technological improvements. This will provide an important basis for users to select appropriate welding tools and processes. Click here for more information

Test Material Introduction

1. Stainless Steel

Performance Characteristics: Stainless steel is renowned for its excellent corrosion resistance and mechanical properties, making it widely used in applications requiring high durability and aesthetics. Its excellent weldability makes it a popular choice in engineering and manufacturing, especially in environments subject to extreme conditions.

Application Examples: Stainless steel is widely used in industries such as food processing, chemical engineering, medical equipment, and architectural decoration. In these industries, stainless steel welding requires ensuring a secure joint to prevent material fatigue and wear.

2. Aluminum

Welding Difficulties: Aluminum is relatively difficult to weld, primarily due to its high thermal conductivity and low melting point, which can easily lead to deformation and porosity during welding. Furthermore, the oxide film on the aluminum surface can affect weld quality, so it must be removed before welding.

Comparative Advantages: Despite its greater welding difficulty, aluminum offers advantages over other materials, such as light weight, high strength, and excellent corrosion resistance. It is particularly well-suited for applications in industries such as aerospace, automotive manufacturing, and construction. In these applications, the use of aluminum can reduce overall weight and improve energy efficiency.

3. Carbon Steel

Welding Suitability: Carbon steel is a well-welded material, offering excellent weldability and enhanced strength. Its relatively low cost and wide availability make it a preferred material for many structural and manufacturing applications.

Common Applications: Carbon steel is widely used in building structures, mechanical manufacturing, and piping systems. In these applications, carbon steel welds must ensure strength and integrity to withstand the various stresses of the working environment.

4. Iron

Welding Characteristics: Iron welds well, but special attention must be paid to corrosion issues that may occur during welding. High-quality welding ensures the durability of iron components while reducing failures due to corrosion or wear.

Related Industries: Iron is widely used in construction, heavy industry, and infrastructure construction, often in the manufacture of brackets, frames, and other load-bearing structures. Good welding techniques can enhance the load-bearing capacity and service life of structures.

By introducing the characteristics of different materials and applying them in practical applications, this test will help you understand the suitability and performance of the 6kW handheld laser welding machine on these different materials. Click here for more information

Test Method

In this test, we used a 6000W handheld laser welder and set different welding parameters for each material to ensure optimal welding results. The specific parameter settings are as follows:

● Power: Depending on the characteristics of the material, the power setting ranged from 3kW to 6kW. For stainless steel and carbon steel, higher power was used to ensure thorough penetration; while aluminum, due to its higher thermal conductivity, required a lower power setting to prevent deformation.

● Welding Speed: The welding speed was adjusted based on the thickness and melting characteristics of each material. Typically, the welding speed for stainless steel and carbon steel was set between 1.5-3 m/min. Aluminum was welded at a faster speed of 3-5 m/min, while iron was welded at a moderate speed of approximately 2-4 m/min.

● Gas Shielding: During laser welding, argon was used as the shielding gas to prevent oxidation during welding. The gas flow rate was set between 10-15 L/min to ensure adequate shielding and avoid weld defects.

Through this series of scientific and standardized testing methods, the performance of the 6KW handheld laser welding machine on different materials can be comprehensively evaluated to ensure its stability and reliability in actual applications. Click here for more information

Test Results

1. Post-weld Cut Surface Quality Analysis

Post-weld cut surface quality analysis revealed that the 6KW laser welder achieved satisfactory welding results on stainless steel, aluminum, carbon steel, and iron. Detailed observation of the weld seams of each material revealed that the stainless steel cut surface was smooth and flat, with no visible pores or cracks, meeting high industry standards. While the aluminum weld surface was generally smooth, some areas showed fine pores, primarily due to aluminum's high thermal conductivity and the presence of an oxide film during welding. In contrast, the carbon steel and iron welded cut surfaces were uniform and flat, with moderate weld widths and no significant defects, demonstrating the superior performance of laser welding.

2. Post-weld Strength Testing

Strength testing of the welded joints further demonstrated the superior weld performance. In the tensile strength test of stainless steel, the joint strength exceeded the standard for the parent material.

The 6KW handheld laser welder achieved weld strengths that met acceptable industry standards for various materials and, in most cases, exceeded the original strength of the parent material, demonstrating the effectiveness and reliability of laser welding technology. Click here for more information

Conclusion

Welding performance tests of various materials, including stainless steel, aluminum, carbon steel, and iron, using the 6KW handheld laser welder demonstrated excellent quality and strength. Analysis of the cut surface quality after welding revealed that this laser welder excelled particularly well in stainless steel and carbon steel applications, resulting in smooth welds free of noticeable defects. Despite some porosity issues during aluminum welding, the overall weld quality remained acceptable, demonstrating the efficiency and stability of the equipment. Welding of iron also performed well, demonstrating the equipment's flexibility and wide applicability.

Overall, the 6KW handheld laser welder's adaptability to a wide range of metal materials makes it an ideal choice for modern industrial welding processes. This advanced welding technology not only improves production efficiency and reduces operation time, but also ensures reliable weld quality. Furthermore, with the increasing demand for high-efficiency and high-precision welding, this machine has broad potential applications in various fields, including automotive, aerospace, and heavy machinery, providing strong technical support for advancing the manufacturing industry.

Future Outlook

In the future development of laser welding technology, research will focus on intelligent and multifunctional welding systems. With advances in artificial intelligence and machine learning, future laser welding equipment will be equipped with intelligent sensing systems capable of real-time monitoring of the welding process and automatic parameter adjustments. This adaptive capability will significantly improve welding quality and efficiency, ensuring the strength and consistency of welded joints while reducing potential errors caused by human operation.

Furthermore, with the widespread application of new materials and composites, laser welding technology will face new challenges in joining dissimilar materials. Future research will focus on developing welding processes and materials suitable for different materials, enabling better bonding and higher weld strength. Furthermore, the integration of additive manufacturing and laser welding will open up new possibilities for the production and repair of complex structures, making the manufacturing process more flexible and efficient.

With the introduction of these new technologies, laser welding will significantly enhance welding quality, production efficiency, and ease of operation. With the growing demand for efficient, cost-effective, and sustainable welding solutions, laser welding technology will become a core component of modern manufacturing, laying a solid foundation for future industrial innovation and development.
