Introduction

SUNTOP 1500W handheld laser welder is a high-performance welding device that combines advanced laser technology with a portable design. It is widely used in a variety of fields, including metal processing, automotive manufacturing, aerospace, and art restoration. Its powerful laser output power and precise welding capabilities enable it to easily handle metals of varying thicknesses and materials, demonstrating exceptional performance particularly when welding stainless steel and aluminum.

This welding test aimed to verify the SUNTOP 1500W handheld laser welder's practical application in welding 4mm stainless steel and aluminum. By evaluating weld quality and performance, we hope to provide valuable data support, help potential customers understand the advantages and reliability of this device in industrial applications, and thereby promote the wider adoption of laser welding technology.

Test Background

Stainless steel and aluminum are widely used in the manufacturing industry due to their excellent mechanical properties and corrosion resistance. Both materials are extremely common in the construction, automotive, aerospace, and electronics industries. Stainless steel, due to its strength and durability, is often used in structural components and containers, while aluminum, due to its light weight and good thermal conductivity, is widely used in lightweight structures and precision parts. The ability to weld these two materials is crucial to ensuring product quality and processing efficiency.

Laser welding technology has rapidly gained popularity due to its unique advantages. First, laser welding is much faster than traditional welding methods, enabling rapid completion of large-scale welding operations and significantly improving production efficiency. Second, laser welding provides excellent temperature control and minimizes the heat-affected zone in the weld zone, thus ensuring weld quality and material integrity. Furthermore, laser welding can achieve precise welds and adapt to complex welding requirements, making it an ideal technology for applications requiring high precision and high-quality welding. Through this test, we aim to confirm the application capabilities of the SUNTOP 1500W handheld laser welder in these critical areas.

Test Equipment Description

1500W handheld laser welder is a powerful laser welding machine designed to meet the demands of modern manufacturing. Its core technical specifications are as follows:

※ Laser Power: 1500W, offering powerful output and suitable for welding a variety of materials.

※ Laser Type: Fiber laser, offering excellent beam quality, ensuring efficient welding and precise marking.

※ Welding Thickness Range: Capable of processing stainless steel and aluminum up to 4mm thick, meeting various industrial standards.

※ Welding Speed: High welding speed effectively improves production efficiency, making it suitable for high-volume production.

※ Cooling System: A built-in, efficient cooling system ensures stability and reliability even during long-term operation.

1500W handheld laser welder features portability and user-friendly design. Its lightweight design allows for easy movement and adjustment during operation. Its handheld design allows for flexible and comfortable welding operations, even in confined spaces, improving work efficiency. In addition, the device's control interface is simple and easy to use, allowing users to quickly set welding parameters through the intuitive operation panel, reducing the difficulty of operation. These design features make the 1500W handheld laser welding machine an efficient and reliable welding solution for various industries. Click here for more information

Material Preparation

For this test, 4mm stainless steel and aluminum were selected, with the following specifications:

● Stainless Steel:

Material Type: 304 stainless steel, offering excellent corrosion resistance and mechanical strength.

Thickness: 4mm, meeting standard laser welding test requirements.

● Aluminum:

Material Type: 6061 aluminum alloy, widely used in structural components due to its excellent weldability and mechanical properties.

Thickness: 4mm, ensuring consistent welding conditions.

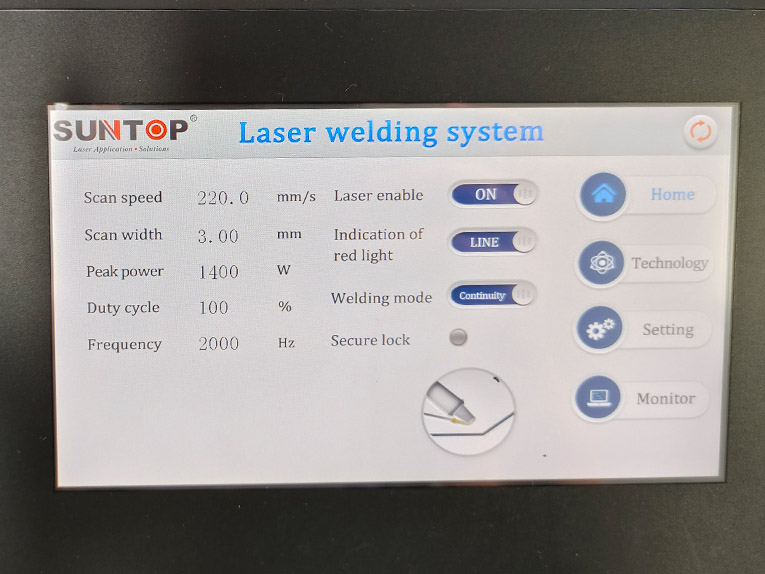

Testing the RECI 1500W Handheld Laser Welder on 4mm Stainless Steel and Aluminum-3

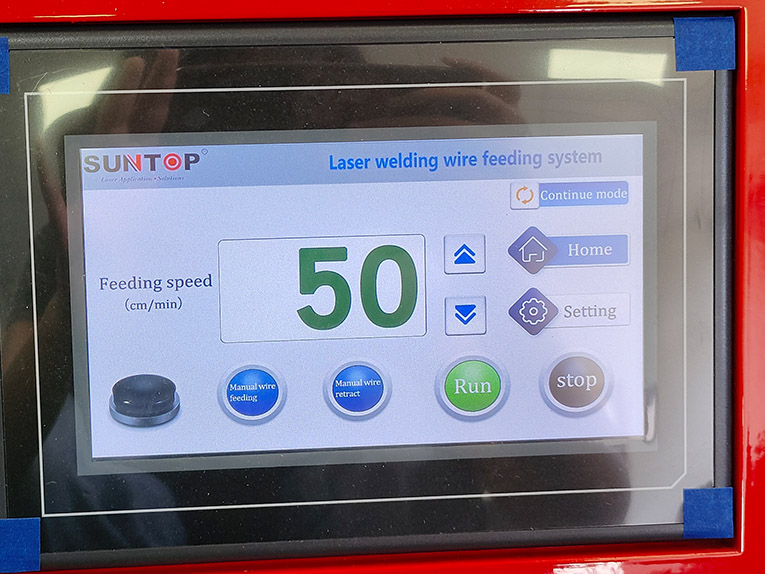

Testing the RECI 1500W Handheld Laser Welder on 4mm Stainless Steel and Aluminum-4

Precautions During Preparation

During material preparation, special attention should be paid to the following points to ensure welding quality and effectiveness:

● Cleaning:

All welding materials must be thoroughly cleaned before welding to remove surface contaminants such as grease, dust, and oxide layers to ensure effective laser penetration.

Alcohol or other specialized cleaning agents can be used to clean the surface and ensure no residue remains.

● Surface Preparation:

For aluminum, minimize the formation of an oxide layer before welding. Light grinding or polishing can improve weld quality.

● Material Inspection:

Before welding, the materials must be inspected to ensure they meet the specified specifications and standards. Inspections include material thickness, dimensions, and surface condition.

● Fixing and butting:

Secure the stainless steel and aluminum materials on the welding table to ensure stable positioning during welding to avoid weld deviation.

If overlapping welds are required, ensure good contact between the two materials to ensure continuity and uniformity of the weld leg.

These preparatory steps lay a solid foundation for subsequent welding tests, ensuring the weld achieves the desired results. Click here for more information

Testing Process

When conducting a welding test using the 1500W handheld laser welder, thorough preparation is required. This includes confirming that the 4mm stainless steel and aluminum materials used meet the required specifications and ensuring that their surfaces are clean and free of contamination. Furthermore, the operator must wear appropriate safety equipment, such as goggles and protective gloves, to ensure safety. Regarding equipment setup, after connecting the power and gas supply, adjust the welding parameters, including power, speed, and focal length, to suit the welding requirements of the different materials. Next, ensure that the material is securely fixed on the welding table to prevent movement during welding.

Once the welding operation begins, the operator must continuously monitor the welding process, ensuring that the laser beam remains focused on the weld point and maintains a steady movement speed. Furthermore, any abnormalities, such as uneven welding or overheating, require immediate suspension and parameter adjustments. After welding is completed, the welded parts are allowed to cool naturally, followed by a visual inspection to confirm the integrity of the weld. Recording relevant data and observations throughout the process is crucial for subsequent process evaluation and improvement. By strictly following these steps and precautions, you can ensure the smooth progress of welding tests and welding quality. Click here for more information

Test Results

Tests using the SUNTOP 1500W handheld laser welder on 4mm stainless steel and aluminum revealed excellent weld joint appearance and weld quality. The weld surface was smooth and flat, with no visible cracks, pores, or other defects. This demonstrates proper heat input control and a balanced power setting with the welding speed.

The welded joint exhibited excellent integration, with a tight interface between the stainless steel and aluminum, and no noticeable separation or defects. This high-quality weld not only met visual aesthetic requirements but also met expected mechanical properties, demonstrating excellent strength and toughness. Tensile testing of the weld showed that the tensile strength of the welded joint was comparable to that of the parent material, demonstrating that the welding process achieved a high-quality, integrated connection, laying a solid foundation for future industrial applications.

These results demonstrate that the 1500W handheld laser welder can effectively achieve high-quality welds on 4mm stainless steel and aluminum, demonstrating its promising application potential and market prospects. Click here for more information

Experience Summary

SUNTOP handheld laser welding machine demonstrated outstanding performance in welding tests on 4mm stainless steel and aluminum. The welds were not only visually smooth and flawless, but also achieved weld strength and toughness close to those of the parent metal. This demonstrates the equipment's wide adaptability and excellent processing capabilities for welding diverse materials.

Stainless steel welding requires more precise heat input control due to its high thermal conductivity and low weld pool fluidity. During this test, no noticeable deformation or stress concentration was observed, demonstrating that the 1500W achieved a good match between power regulation and welding speed settings, maintaining high weld quality.

On the other hand, aluminum welding requires particular attention due to its high thermal conductivity and increased susceptibility to oxidation. Test results show that, with appropriate shielding gas, the welded aluminum components also maintained good integrity and high quality at the weld joint. The welding performance of aluminum was similar to that of stainless steel, with a well-developed joint and no common defects such as porosity or cracks.

The Suntop 1500W handheld laser welder demonstrated strong applicability and efficient welding results when welding 4mm stainless steel and aluminum, providing a reliable solution for multiple industrial applications. This demonstrates that the device is not only suitable for typical metal welding needs, but can also achieve high-quality welding results across a wider range of materials and industries, demonstrating its promising market prospects.

Industry Impact

The Suntop handheld laser welder has vast potential for application across the industry, particularly in the rapidly evolving manufacturing and metalworking sectors. As demands for welding precision and efficiency continue to rise, traditional welding methods are increasingly unable to meet the demands of modern industry. Suntop's handheld laser welders, with their high welding speeds, excellent weld quality, and exceptional material compatibility, provide reliable solutions in a wide range of applications, including automotive manufacturing, aerospace, electronics, and art restoration. The Suntop equipment's advantages are particularly evident in applications requiring fast and accurate welding of complex or dissimilar joints.

In terms of market demand, the welding industry is expected to continue undergoing technological innovation and upgrades, driving growing demand for portable and efficient welding equipment. As global manufacturing shifts toward lightweighting and high precision, laser welding solutions capable of handling a wide range of materials will become the industry's preferred choice. Furthermore, environmental protection and sustainable development are becoming increasingly important considerations for businesses. The Suntop handheld laser welder, with its energy efficiency and low material consumption, aligns with green production concepts, further enhancing its market appeal.

In short, as welding technology develops towards intelligent and automated directions, the Suntop handheld laser welding machine not only meets the current industry's reliability needs, but also has the potential to remain competitive in the future market environment. Therefore, Suntop will become a key player in the development of welding technology and is expected to occupy a key position in the future welding field.
