Details Product Parameters Video
1. Use infrared positioning to verify the position of the welding head and verify the position during the welding process. The welding position is more accurate, the weld seam is smooth and beautiful, easy to grind and polish, and no post-welding treatment or only simple treatment is required.
2. Equipped with 10m imported optical fiber, it overcomes the limitation of workbench space, and can be used for outdoor welding and long-distance welding flexibly and conveniently.
3. Equipped with double protection function of water circuit and air circuit (patented technology), which effectively avoids the damage of laser lens or optical components caused by operator's misoperation, thus greatly reducing the failure rate of the machine and effectively prolonging the service life of the machine. The life of the consumables.
4. Self-developed handheld welding head, set a variety of safety alarms, easy and flexible operation.
5. The wire feeder adopts touch capacitive screen with high wire feeding accuracy. 220V drive, more powerful wire feeding, no wire jamming.
6. The laser welding depth is deep, the welding seam is firm, the width is small, the heat affected zone is small, the deformation is small, and the welding speed is fast. Complicated welding between some dissimilar materials can be achieved.
1. Laser welding head
Light weight only 0.8KG, flexible and convenient to weld any shape of metal parts, adjustable welding seam width, can be 10 meters long distance welding. Equipped with safety temperature monitoring system.
2. Operation interface
Multi-language intelligent control panel, flexible adjustment of welding parameters, multi-group welding parameter library, light output cumulative timing, etc.
3. Automatic wire feeding system
Touch screen design, automatic wire filling, fully digital design, support 0.8mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm diameter stainless steel and aluminum wire.
4. Laser Source
We use customized minimum 20um core diameter fiber for deeper penetration, laser life up to 100,000 hours, maintenance-free, with Bluetooth capability.
5. Water Chiller
Double cycle water cooling makes the laser source and welding head cooling better, temperature control sensor adopts imported brand.
6. Welding connection fiber optic
10 meters long fiber optic cable with built-in design effectively avoids damage to the fiber and problems caused by moisture, which greatly increases the service life of the laser components.
1. Fast welding speed, 5-10 times than the traditional argon arc welding, processing costs can be reduced by about 30%.
2. Easy to operate, no technical threshold requirements for operators, ordinary workers can be on duty after a short training, and can easily achieve high-quality welding results.
3. High weld quality, no porosity, can reduce and optimize impurities in the base material, and can refine the organization after welding. The strength of the weld, is at least equal to or even higher than the strength of the base material.
4. Good welding effect, the weld is beautiful and flat, firm, no need to polish.
5. A variety of welding methods, can achieve any angle welding: stack welding, butt welding, vertical welding, flat angle welding, internal angle welding, external angle welding, etc., can be a variety of complex welding seam of the workpiece, larger workpiece irregular shape welding.
6. easy to use and flexible, can be adjusted at any time, no need to fix the work station, free and flexible, suitable for a variety of work environment scenarios of welding.
Single side weld thickness
Maximum melting | 1500W | 2000W | 3000W |
Stainless steel (mm) | 0.5-4 | 0.5-5/6 | 0.5-7 |
Mild steel (mm) | 0.5-4 | 0.5-6 | 0.5-7/8 |
Aluminum (mm) | 0.5-3 | 0.5-4 | 0.5-6 |
Brass/copper (mm) | 0.5-1.5 | 0.5-2 | 0.5-3 |
Galvanized sheet (mm) | 0.5-3 | 0.5-4 | 0.5-6 |
Iron (mm) | 0.5-4 | 0.5-6 | 0.5-7/8 |
Remark: Double weld thickness can be achieved if the material is welded from both sides in two times

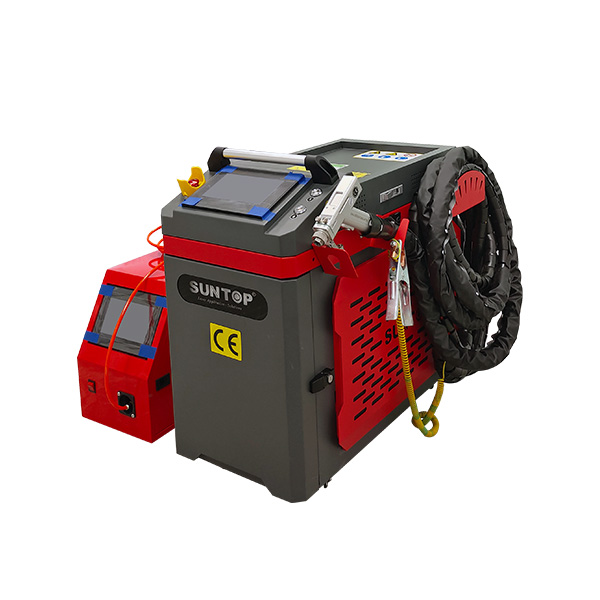

ST-FW1500H/2000H/3000H is a Class IV laser system and routine precautions are required for the safe operation of the equipment.
Built-in features include:
● Key switch control of laser source and Emergency-stop button ensure deliberate operation.
● Fiber laser interlock verifies integrity of laser delivery to the welding gun.
● Laser weld gun trigger, enable and then fire, for intentional operation.
● Part contact electrical interlock turns off the laser power if the welding head is not in contact with the welded parts.
Operators must wear all recommended personal protective equipment (PPE), including laser safety glasses, laser and heat resistant gloves, hats, leather aprons, etc., and other laser and heat resistant clothing.
Application materials
It can be used for welding stainless steel, carbon steel, copper, aluminum, gold, chromium, silver, titanium, nickel and other metals or alloys. It can also be used for various welding between different materials, including copper – brass, titanium-molybdenum, titanium- gold, nickel-copper, etc.
Application industry
Widely used in kitchen utensils and bathrooms, stair elevators, storage shelves, barbecue boxes, door and window lighting, power distribution cabinets, electronic appliances, hardware molds, auto parts, instruments and meters, mobile communications, medical equipment, aerospace and other industries.
Model | ST-FW1500H | ST-FW2000H | ST-FW3000H | ||
Max. output laser power (W) | 1500 | 2000 | 3000 | ||
Welding gun weight | 0.8 | 0.8 | 0.75 | ||
Max. welding thickness (mm) | ≤3 | ≤5 | ≤8 | ||
Max. welding seam width (mm) | 5 | 5 | 8 | ||
Laser type | Fiber laser (Suntop custom 20um welding exclusive) | ||||
Laser detection method | Bluetooth wireless connection, Mobile App Monitoring | ||||
Control panel language support | English, Spanish, German, French, Turkish, Italian, Russian, Vietnamese, Thai, Korean, Japanese, etc. | ||||
Laser wavelength (nm) | 1064+5 | ||||
Suitable welding materials | Carbon steel, stainless steel, aluminum, galvanized sheet metal, brass, iron and other metal materials | ||||
Adapted welding methods | Spot welding, overlap welding, splice welding, fillet welding, lap welding etc.. | ||||
Laser power adjustment range (%) | 10-100 | ||||
Cooling method | Advanced water-cooling, dual temperature control and automatic control | ||||
Welding aiming preview method | Built-in Red-Light pointer | ||||
Protection systems | Air pressure sensor and solenoid valve control | ||||
Length of fiber optic cable (meter) | Standard 10 (can be customized 15) | ||||
Welding shielding gas | Argon or nitrogen (air pressure approx. 6-8 bar) | ||||
Working environment | Temperature 5-45 °C /humidity 10-90% | ||||
Other optional support functions | Cleaning + cutting | Cleaning + cutting | Cleaning + cutting + weld bead cleaning | ||
Max. Cutting thickness (mm) | 1.2 | 1.5 | 2 | ||
Max. cleaning width (mm) | 40 | 40 | 120 | ||
Automatic wire feeder type (Universal with TIG wire) | Single wire feed | Single wire feed | Support both the double wire feed and single wire feed | ||
Solid wire type (SS, Iron, AL, Brass) | 0.8, 1.0, 1.2, 1.6 | 0.8, 1.0, 1.2, 1.6 | 0.8, 1.0, 1.2, 1.6, 2.0, 2.5 | ||
Temperature control monitoring alarm | Yes | Yes | Yes | ||
Main machine consumables | Laser protective lenes, welding nozzles, welding wires | ||||
Machine size (MM) | 686*425*611 | 750*1080*1000 | 750*1080*1000 | ||
Machine net weight (KG) | 110 | 220 | 240 | ||
Power supply requirement | 110V / 220V±10%, single phase | 380V±10%, three phase | |||
Total power consumption (Maximum) | 3500W | 4500W | 7000W |
