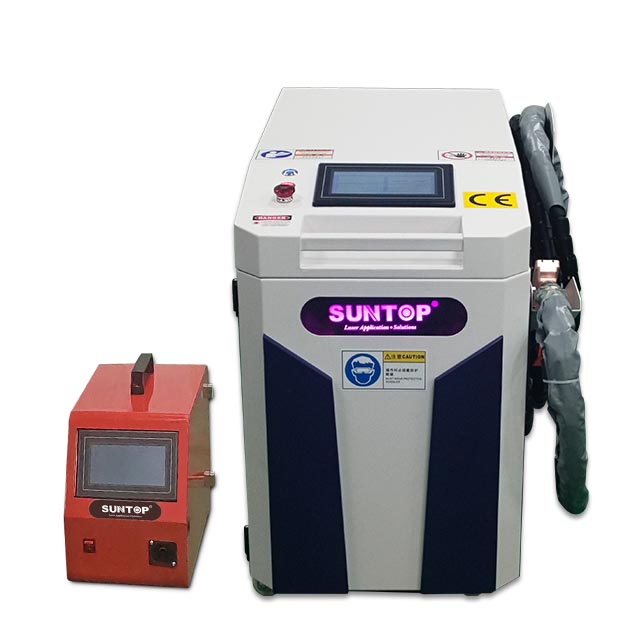

1500 W Laser Welding Machine

Handheld fiber laser welding machine, is a new type of welding, welding speed, small deformation, high precision, beautiful and solid welding seam, mainly for thin-walled materials, precision parts and other welding, can achieve spot welding, butt welding, stack welding, sealing welding, etc.. It is widely used in various welding of various metal materials and between different metal materials.
Product Model: ST-FW1500H/ST-FW2000H/ST-FW3000H
Laser power: 1500W/2000W/3000W
Single maximum welding thickness: 0.5-8mm
Availability:
Quantity:

Details       Product Parameters       Samples       Video

1500 w laser welding machine features-Suntop

Features of 1500 w laser welding machine

1. Use infrared positioning for welding position calibration and position verification in the welding process. The welding position is more accurate and the weld seam is more beautiful.

2. Equipped with 10m imported optical fiber, it can be very flexible and convenient for outdoor welding and long-distance welding.

3. Suntop's patented technology water circulation protection system and auxiliary gas detection effectively extends the life of the laser lens and prevents damage to optical components caused by Improper operation.

4. Hand-held torch, light and delicate, easy to operate, can achieve any angle welding.

5. Standard equipped with a variety of welding copper nozzles such as flat, inside and outside corners. According to different welding needs, different nozzles can be replaced to meet various welding needs.

6. Can achieve any angle welding, stack welding, butt welding, vertical welding, flat angle welding, internal angle welding, external angle welding, etc., can be welded to a variety of complex welding seams of the workpiece, the larger workpiece non-regular shape.


Details of 1500 w laser welding machine

1. Laser welding head

Light weight only 0.8KG, flexible and convenient to weld any shape of metal parts, adjustable welding seam width, can be 10 meters long distance welding. Equipped with safety temperature monitoring system.

2. Operation interface

Multi-language intelligent control panel, flexible adjustment of welding parameters, multi-group welding parameter library, light output cumulative timing, etc.

3. Automatic wire feeding system

Touch screen design, automatic wire filling, fully digital design, support 0.8mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm diameter stainless steel and aluminum wire.

4. Laser Source

We use customized minimum 20um core diameter fiber for deeper penetration, laser life up to 100,000 hours, maintenance-free, with Bluetooth capability.

5. Water Chiller

Double cycle water cooling makes the laser source and welding head cooling better, temperature control sensor adopts imported brand.

6. Welding connection fiber optic

10 meters long fiber optic cable with built-in design effectively avoids damage to the fiber and problems caused by moisture, which greatly increases the service life of the laser components.

1500 w laser welding machine details-Suntop


Advantages of 1500 w laser welding machine

1. The welding speed is fast and the efficiency is high, which is 5-10 times that of traditional argon arc welding, which saves labor and reduces the processing cost by about 30%.

2. Concentrated energy, small heat-affected area, no deformation, no blackening, large welding depth, firm welding, fine and beautiful welds without bubbles, no need for grinding.

3. Interactive human-machine interface, easy to operate, no need for professional welders, ordinary people can easily master it in half an hour.

4. It has the advantages of high anti-reflection ability, high efficiency of thin plate welding, deep penetration of thick plate without spatter, maintenance-free, wide operation and frequency modulation range, etc.

5. Emphasis on safety, non-direct radiation, low radiation, no harm to the body, only need protective glasses to filter strong light.

6. It is convenient and flexible to use, the station can be adjusted at any time, no fixed station is required, it is free and flexible, and is suitable for welding in various working environment scenarios.


Single side weld thickness

Maximum melting

1500W

2000W

3000W

Stainless steel (mm)

0.5-4

0.5-5/6

0.5-7

Mild steel (mm)

0.5-4

0.5-6

0.5-7/8

Aluminum (mm)

0.5-3

0.5-4

0.5-6

Brass/copper (mm)

0.5-1.5

0.5-2

0.5-3

Galvanized sheet (mm)

0.5-3

0.5-4

0.5-6

Iron (mm)

0.5-4

0.5-6

0.5-7/8

Remark: Double weld thickness can be achieved if the material is welded from both sides in two times


1500 w laser welding machine safety features

ST-FW1500H/2000H/3000H is a Class IV laser system and routine precautions are required for the safe operation of the equipment.

Built-in features include:

● Key switch control of laser source and Emergency-stop button ensure deliberate operation.

● Fiber laser interlock verifies integrity of laser delivery to the welding gun.

● Laser weld gun trigger, enable and then fire, for intentional operation.

● Part contact electrical interlock turns off the laser power if the welding head is not in contact with the welded parts.

Operators must wear all recommended personal protective equipment (PPE), including laser safety glasses, laser and heat resistant gloves, hats, leather aprons, etc., and other laser and heat resistant clothing.


Handheld laser welding and argon arc welding comparison

1. Energy consumption comparison: compared with traditional arc welding, handheld laser welding machine saves about 80% to 90% of electrical energy, and processing costs can be reduced by about 30%.

2. Comparison of welding effect: Laser handheld welding can complete the welding between metal and dissimilar metal. Fast speed, small deformation, small heat-affected zone. The welding seam is beautiful, flat, without/less porosity and no pollution. Handheld laser welding machine can perform tiny open parts and precision welding.

3. Comparison of subsequent processes: Handheld laser welding with low heat input and small deformation of the workpiece can result in a beautiful welded surface without or with only a brief treatment (depending on the welded surface effect requirements). Handheld laser welding machine can greatly reduce the huge polishing and leveling process consuming labor costs.

1500 w laser welding machine application

Application materials

Suitable for stainless steel, carbon steel, copper, aluminum, gold, silver, chromium, nickel, titanium and many other metals and alloys; also can be used for welding between a variety of dissimilar materials.


Application industry

Suitable for all kinds of sheet metal, moulds, chassis, power distribution cabinets, kitchen and bathroom products, all kinds of hardware lighting, advertising signs, door and window frames, handicrafts, household products, food machinery, medical equipment, auto parts and other industries.


Parameters of 1500 w laser welding machine

Model

ST-FW1500H

ST-FW2000H

ST-FW3000H

Max. output laser power (W)

1500

2000

3000

Welding gun weight

0.8

0.8

0.75

Max. welding thickness (mm)

≤3

≤5

≤8

Max. welding seam width (mm)

5

5

8

Laser type

Fiber laser (Suntop custom 20um welding exclusive)

Laser detection method

Bluetooth wireless connection, Mobile App Monitoring

Control panel language support

English, Spanish, German, French, Turkish, Italian, Russian, Vietnamese, Thai, Korean, Japanese, etc.

Laser wavelength (nm)

1064+5

Suitable welding materials

Carbon steel, stainless steel, aluminum, galvanized sheet metal, brass, iron and other metal materials

Adapted welding methods

Spot welding, overlap welding, splice welding, fillet welding, lap welding etc..

Laser power adjustment range (%)

10-100

Cooling method

Advanced water-cooling, dual temperature control and automatic control

Welding aiming preview method

Built-in Red-Light pointer

Protection systems

Air pressure sensor and solenoid valve control

Length of fiber optic cable (meter)

Standard 10 (can be customized 15)

Welding shielding gas

Argon or nitrogen (air pressure approx. 6-8 bar)

Working environment

Temperature 5-45 °C /humidity 10-90%

Other optional support functions

Cleaning + cutting

Cleaning + cutting

Cleaning + cutting + weld bead cleaning

Max. Cutting thickness (mm)

1.2

1.5

2

Max. cleaning width (mm)

40

40

120

Automatic wire feeder type

(Universal with TIG wire)

Single wire feed

Single wire feed

Support both the double wire feed and single wire feed

Solid wire type (SS, Iron, AL, Brass)

0.8, 1.0, 1.2, 1.6

0.8, 1.0, 1.2, 1.6

0.8, 1.0, 1.2, 1.6, 2.0, 2.5

Temperature control monitoring alarm

Yes

Yes

Yes

Main machine consumables

Laser protective lenes, welding nozzles, welding wires

Machine size (MM)

686*425*611

750*1080*1000

750*1080*1000

Machine net weight (KG)

110

220

240

Power supply requirement

110V / 220V±10%, single phase

380V±10%, three phase

Total power consumption (Maximum)

3500W

4500W

7000W


1500 w laser welding machine samples-Suntop
