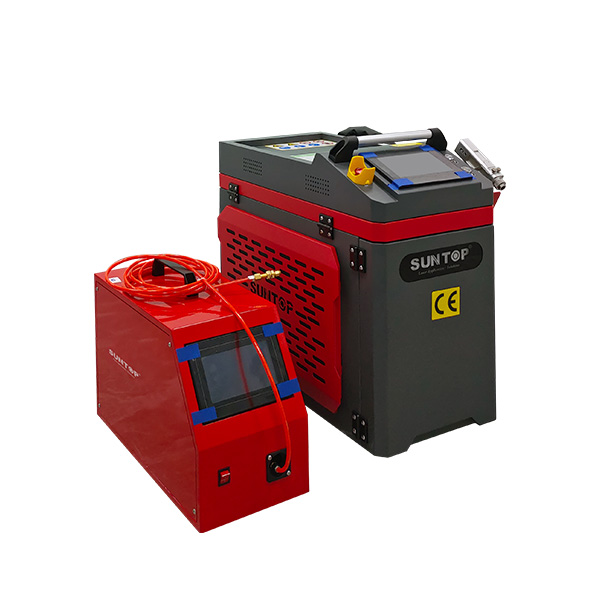

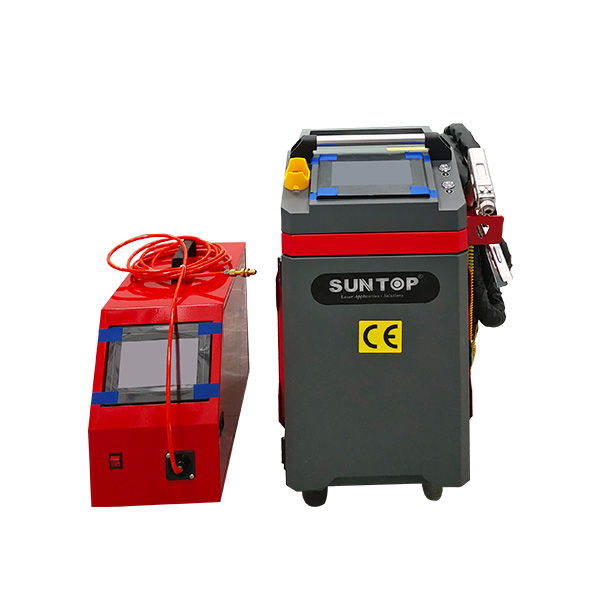

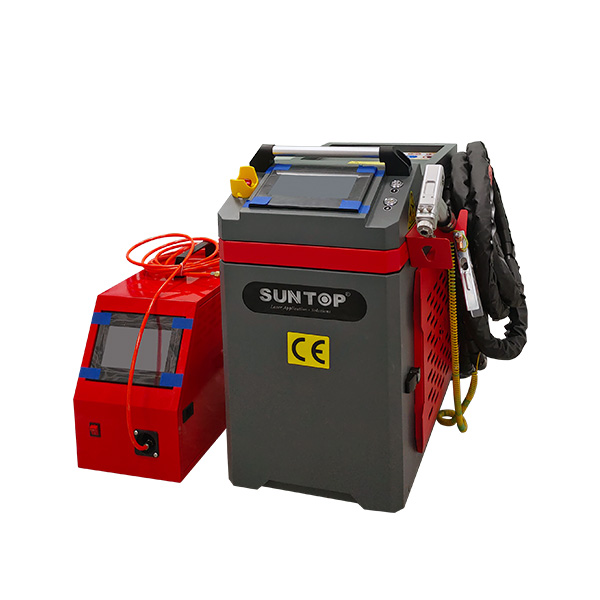

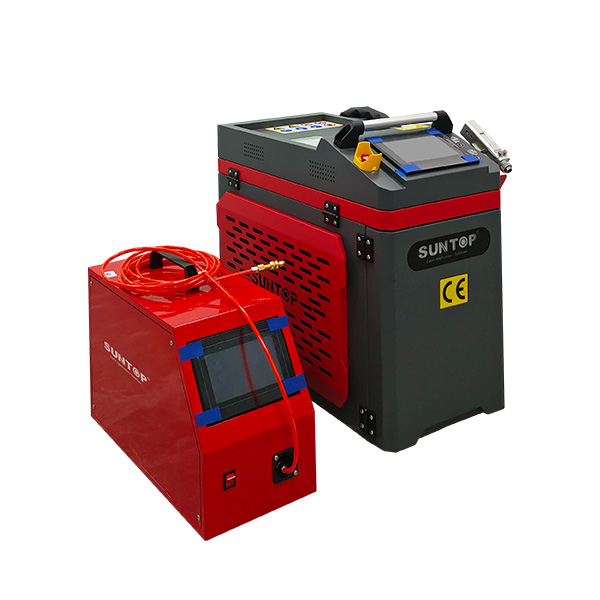

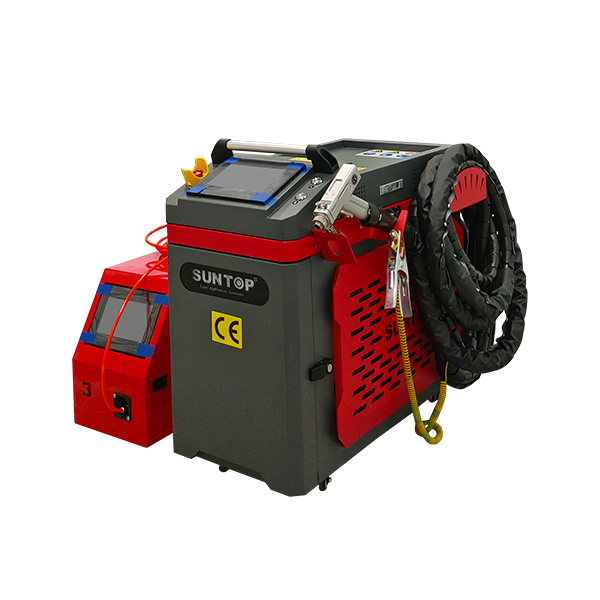

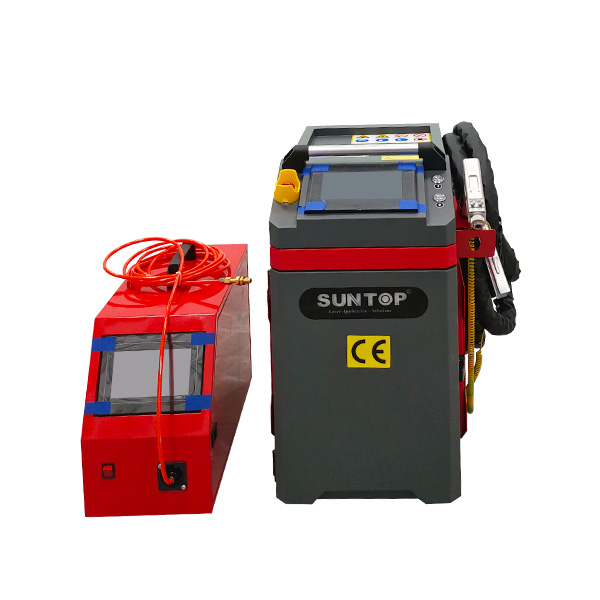

1500 Watt Laser Welding Machine

Adopting the new generation fiber laser generator, equipped with self-developed electric welding head, it has the advantages of high electro-optical conversion efficiency, anti-high reverse capability, high efficiency in thin plate welding, deep melting without spatter in thick plate, maintenance-free operation and wide range of frequency regulation. It can realize various welding methods such as spot welding, butt welding, stack welding and seal welding.
Product Model: ST-FW1500H/ST-FW2000H/ST-FW3000H
Laser power: 1500W/2000W/3000W
Single maximum welding thickness: 0.5-8mm
Availability:
Quantity:

Details       Product Parameters       Samples       Video

1500 watt laser welding machine features-Suntop

Features of 1500 watt laser welding machine

1. Use infrared positioning to verify the position of the welding head and verify the position of the welding process. More accurate welding position, smooth and beautiful weld seam, easy to grind and polish, no treatment or only simple treatment process after welding.

2. Self-developed handheld welding head with various safety alarm devices, easy and flexible operation.

3. Equipped with high precision wire feeder, touch capacitive screen, 220V drive, automatic wire feeding, more powerful wire feeding and no wire jamming.

4. Suntop's patented technology water circulation protection system and auxiliary gas detection effectively extends the life of the laser lens and prevents damage to optical components caused by Improper operation.


5. Equipped with 10m imported optical fiber, it overcomes the limitation of table space and can be flexibly and conveniently used for outdoor welding and long-distance welding.

6. Standardly equipped with a variety of welding copper nozzles such as flat, inside and outside angle. According to different welding needs, different nozzles can be replaced to meet various welding needs.


Details of 1500 watt laser welding machine

1. Laser welding head

Light weight only 0.8KG, flexible and convenient to weld any shape of metal parts, adjustable welding seam width, can carry out 10 meters long distance welding. Equipped with safety temperature monitoring system.

2. Operation interface

Multi-language intelligent control panel, flexible adjustment of welding parameters, multi-group welding parameter library, light output cumulative timing, etc.

3. Automatic wire feeding system

Touch screen design, automatic wire filling, fully digital design, supporting stainless steel and aluminum wire of 0.8mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm diameter.

4. Laser Source

We use customized fiber with minimum core diameter of 20um for deeper penetration, laser life up to 100,000 hours, maintenance-free, with Bluetooth capability.

5. Water Cooler

Double circulation water cooling makes the laser source and weld head cooler, temperature control sensor adopts imported brand.

6. Welding connection fiber

10 meters long fiber optic cable built-in design, effectively avoid damage to the fiber and the problems caused by moisture, greatly improving the service life of the laser device.

1500 watt laser welding machine details-Suntop


Advantages of 1500 watt laser welding machine

1. Fast welding speed, 5-10 times faster than the traditional argon arc welding, processing costs can be reduced by about 30%.

2. Easy to learn to operate, no technical threshold requirements, ordinary workers can operate after a short training, easy to achieve high-quality welding results.

3 easy to use and flexible, adjust the work station at any time, no need to fix the work station, free and flexible, suitable for a variety of work environment scenarios of welding.

4. Wide welding range, overcome the limitations of the workbench space, can achieve outdoor welding, long-distance welding.

5. multiple welding methods, can achieve any angle welding, stack welding, butt welding, vertical welding, flat angle welding, internal angle welding, external angle welding, etc., can be a variety of complex welding seam workpiece, larger workpiece non-regular shape welding.

6. Concentrated energy, small heat-affected area, no deformation, no blackening, large welding depth, fine and beautiful weld seam, solid welding, weld strength reaches or even exceeds the strength of the base material itself.


Single side weld thickness

Maximum melting

1500W

2000W

3000W

Stainless steel (mm)

0.5-4

0.5-5/6

0.5-7

Mild steel (mm)

0.5-4

0.5-6

0.5-7/8

Aluminum (mm)

0.5-3

0.5-4

0.5-6

Brass/copper (mm)

0.5-1.5

0.5-2

0.5-3

Galvanized sheet (mm)

0.5-3

0.5-4

0.5-6

Iron (mm)

0.5-4

0.5-6

0.5-7/8

Remark: Double weld thickness can be achieved if the material is welded from both sides in two times


1500 watt laser welding machine safety features

ST-FW1500H/2000H/3000H is a Class IV laser system and routine precautions are required for the safe operation of the equipment.

Built-in features include:

● Key switch control of laser source and Emergency-stop button ensure deliberate operation.

● Fiber laser interlock verifies integrity of laser delivery to the welding gun.

● Laser weld gun trigger, enable and then fire, for intentional operation.

● Part contact electrical interlock turns off the laser power if the welding head is not in contact with the welded parts.

Operators must wear all recommended personal protective equipment (PPE), including laser safety glasses, laser and heat resistant gloves, hats, leather aprons, etc., and other laser and heat resistant clothing.


Available options

● Metal cutting function

Simple cutting can be done, welding and cutting can be switched freely, just change the welding copper nozzle to cutting copper nozzle, very convenient.

● Surface cleaning function

By replacing the laser nozzle and cleaning lens, the material surface cleaning function can be realized to effectively remove rust spots, oxidation layer, oil stains, etc. from the material surface without damaging the surface characteristics.

1500 watt laser welding machine application

Application materials

It can be used for welding stainless steel, carbon steel, copper, aluminum, gold, chromium, silver, titanium, nickel and other metals or alloys. It can also be used for various welding between different materials, including copper – brass, titanium-molybdenum, titanium- gold, nickel-copper, etc.

1500 watt laser welding machine application

Application industry

Widely used in sheet metal processing, chassis, water tanks, distribution boxes and other cabinets, door and window guardrails, advertising signs, battery components, steel furniture, electronic appliances, metal molds, auto parts, instruments, mobile communications, medical equipment and other industries.


Parameters of 1500 watt laser welding machine

Model

ST-FW1500H

ST-FW2000H

ST-FW3000H

Max. output laser power (W)

1500

2000

3000

Welding gun weight

0.8

0.8

0.75

Max. welding thickness (mm)

≤3

≤5

≤8

Max. welding seam width (mm)

5

5

8

Laser type

Fiber laser (Suntop custom 20um welding exclusive)

Laser detection method

Bluetooth wireless connection, Mobile App Monitoring

Control panel language support

English, Spanish, German, French, Turkish, Italian, Russian, Vietnamese, Thai, Korean, Japanese, etc.

Laser wavelength (nm)

1064+5

Suitable welding materials

Carbon steel, stainless steel, aluminum, galvanized sheet metal, brass, iron and other metal materials

Adapted welding methods

Spot welding, overlap welding, splice welding, fillet welding, lap welding etc..

Laser power adjustment range (%)

10-100

Cooling method

Advanced water-cooling, dual temperature control and automatic control

Welding aiming preview method

Built-in Red-Light pointer

Protection systems

Air pressure sensor and solenoid valve control

Length of fiber optic cable (meter)

Standard 10 (can be customized 15)

Welding shielding gas

Argon or nitrogen (air pressure approx. 6-8 bar)

Working environment

Temperature 5-45 °C /humidity 10-90%

Other optional support functions

Cleaning + cutting

Cleaning + cutting

Cleaning + cutting + weld bead cleaning

Max. Cutting thickness (mm)

1.2

1.5

2

Max. cleaning width (mm)

40

40

120

Automatic wire feeder type

(Universal with TIG wire)

Single wire feed

Single wire feed

Support both the double wire feed and single wire feed

Solid wire type (SS, Iron, AL, Brass)

0.8, 1.0, 1.2, 1.6

0.8, 1.0, 1.2, 1.6

0.8, 1.0, 1.2, 1.6, 2.0, 2.5

Temperature control monitoring alarm

Yes

Yes

Yes

Main machine consumables

Laser protective lenes, welding nozzles, welding wires

Machine size (MM)

686*425*611

750*1080*1000

750*1080*1000

Machine net weight (KG)

110

220

240

Power supply requirement

110V / 220V±10%, single phase

380V±10%, three phase

Total power consumption (Maximum)

3500W

4500W

7000W


1500 watt laser welding machine samples-Suntop
