Hand Laser Welder

Suntop handheld laser welding machine adopts the latest generation of fiber laser and is equipped with a self-developed laser welding head, which fills the gap of handheld welding in the laser equipment industry. It has the advantages of simple operation, beautiful weld seam, and fast welding speed. It can perfectly replace traditional argon arc welding, electric welding and other processes.
Product Model: ST-FW1500H/ST-FW2000H/ST-FW3000H
Laser power: 1500W/2000W/3000W
Single maximum welding thickness: 0.5-8mm
Availability:
Quantity:

PDF Export

Details       Product Parameters       Video

hand laser welder features-Suntop

Features of hand laser welder

1. The operation is flexible and simple, and it can satisfy multi-angle and multi-position welding.

2. Equipped with 10m original imported optical fiber, it can be used for outdoor welding flexibly and conveniently.

3. Use infrared positioning to verify the position of the welding head and verify the position during the welding process. The welding position is more accurate, the weld seam is smooth and beautiful, easy to grind and polish, and no post-welding treatment or only simple treatment is required.

4. The laser welding depth is deep, the weld seam is firm, the width is small, the heat-affected zone is small, the deformation is small, and the welding speed is fast. Complicated welding between some dissimilar materials can be achieved.

5. The system can store a variety of different process parameters, which can be switched at any time through the touch screen according to processing needs, reducing the parameter debugging time.


Details of hand laser welder

1. Laser welding head

The light weight is only 0.8KG, flexible and convenient to weld metal parts of any shape, the weld width is adjustable, and it can perform long-distance welding with a length of 10 meters. With security temperature monitoring system.

2. Operation interface

Multi-language intelligent control panel, flexible adjustment of welding parameters, multi-group library of welding parameters and cumulative timing of light output etc.

3. Auto welding wire feeder system

Touch screen design, automatic wire filling, fully digital design, support 0.8mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm diameter stainless steel and aluminum wires.

4. Laser source

We used the customized the smallest 20um core diameter fiber from which can achieve more deeper penetration, laser lifetime up to 100,000 hours, maintenance free with blue teeth function.

5. Water chiller

Double circulating water cooling makes the laser source and welding head cool better, and the temperature control sensor adopts imported brands.

6. Solder connection fiber

The 10-meter-long fiber optic cable, built-in design, effectively avoids the damage of the fiber and the problems caused by moisture, and greatly increases the life of the laser components.

hand laser welder details-Suntop


Advantages of hand laser welder

1. The operation is easy to learn and quick to use, and there is no technical threshold for operators. Ordinary workers can work on the job after a short training, and can easily achieve high-quality welding results.

2. The welding area has little thermal influence, is not easy to deform, blacken, and has traces on the back. The welding depth is large, the melting is sufficient, firm and reliable, and the strength of the weld reaches or even exceeds the strength of the base metal itself.

3. Equipped with double protection function of water circuit and air circuit (patented technology), which effectively avoids the damage of laser lens or optical components caused by operator's misoperation, thus greatly reducing the failure rate of the machine and effectively prolonging the service life of the machine. The life of the consumables.

4. Hand-held oscillating welding method, up to 5mm extra weld width - increase capacity and create highly aesthetic seams, 3000W with dual wire feeder, max seam width 8mm.

5. After the laser beam is focused, a small spot can be obtained, which can be precisely positioned and used for group welding of small and small workpieces to achieve mass production.


Single side weld thickness

Maximum melting

1500W

2000W

3000W

Stainless steel (mm)

0.5-4

0.5-5/6

0.5-7

Mild steel (mm)

0.5-4

0.5-6

0.5-7/8

Aluminum (mm)

0.5-3

0.5-4

0.5-6

Brass/copper (mm)

0.5-1.5

0.5-2

0.5-3

Galvanized sheet (mm)

0.5-3

0.5-4

0.5-6

Iron (mm)

0.5-4

0.5-6

0.5-7/8

Remark: Double weld thickness can be achieved if the material is welded from both sides in two times


Handheld head

hand laser welder head-Suntop

● Independent research and development, set up multiple security alarms, simple and flexible operation.

● Visualize all parameters, monitor the status of the whole machine in real time, avoid problems in advance, facilitate troubleshooting and solve problems, and ensure the stable operation of the system.

● All process parameters can be set, and various process effects can be tested flexibly.


Automatic wire feeder

● Our wire feeder with touch capacitive screen, high precision wire feeder.

● 220V drive, more powerful wire feeding, no wire jamming.

Suntop wire feeder specifications

Wire feeding type

Automatic (also support the manual mode)

Length of wire feed tube

3m/5m optional (9.8ft/16.4ft)

Interface

Low voltage enable signal line

Wire feeding speed range

40-600 cm/min (15- 230 ipm)

Compatible wire diameter

0.8 mm (0.031 inch), 1.0 mm (0.039 inch), 1.2 mm (0.047 inch), 1.6 mm (0.063 inch), 1.8 mm (0.071 inch), 2.0 mm (0.079 inch)

Wire reel capacity

1 kg (2 lbs), 5 kg (10 lbs) or 10 kg (25 lbs) by shaft change

Compatible wire materials

Steel, stainless steel, aluminum (common to conventional MIG and TIG wires)

Power requirement

220V 50/60Hz

Wire feed unit weight

22 kg (48.4 lb)

Wire feeder unit dimensions (L*W*H)

560mm (22.0 inches) x 250mm (9.8 inches) x 360mm (14.2 inches)

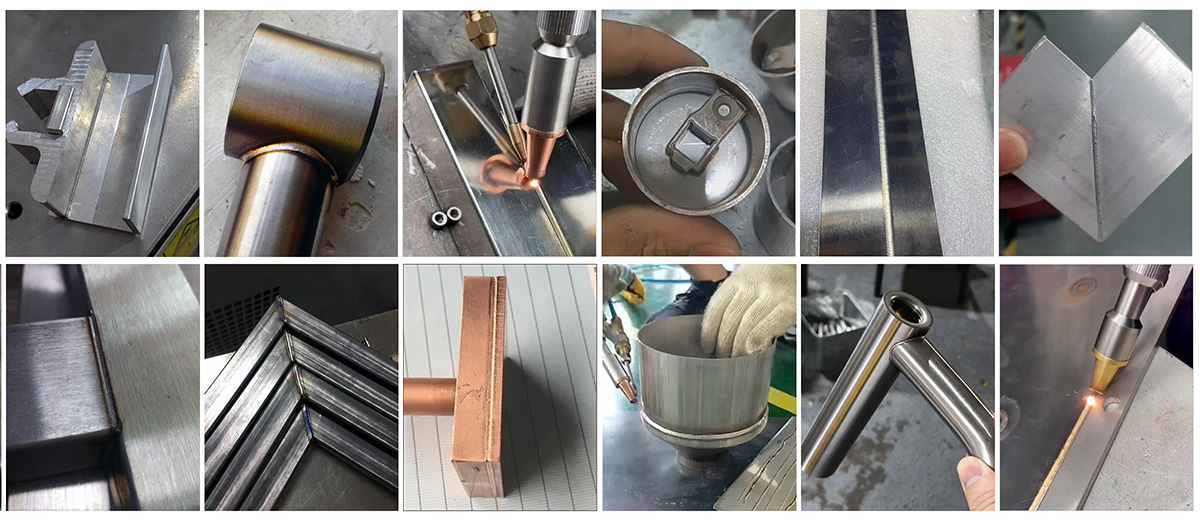

Hand laser welder application

Application materials

It can be used for welding stainless steel, carbon steel, copper, aluminum, gold, chromium, silver, titanium, nickel and other metals or alloys. It can also be used for various welding between different materials, including copper – brass, titanium-molybdenum, titanium- gold, nickel-copper, etc.


Application industry

Widely used in cabinet kitchen, staircase elevator, shelf, oven, stainless steel door and window guardrail, distribution box, stainless steel furnishings and other industries.


Parameters of hand laser welder

Model

ST-FW1500H

ST-FW2000H

ST-FW3000H

Max. output laser power (W)

1500

2000

3000

Welding gun weight

0.8

0.8

0.75

Max. welding thickness (mm)

≤3

≤5

≤8

Max. welding seam width (mm)

5

5

8

Laser type

Fiber laser (Suntop custom 20um welding exclusive)

Laser detection method

Bluetooth wireless connection, Mobile App Monitoring

Control panel language support

English, Spanish, German, French, Turkish, Italian, Russian, Vietnamese, Thai, Korean, Japanese, etc.

Laser wavelength (nm)

1064+5

Suitable welding materials

Carbon steel, stainless steel, aluminum, galvanized sheet metal, brass, iron and other metal materials

Adapted welding methods

Spot welding, overlap welding, splice welding, fillet welding, lap welding etc..

Laser power adjustment range (%)

10-100

Cooling method

Advanced water-cooling, dual temperature control and automatic control

Welding aiming preview method

Built-in Red-Light pointer

Protection systems

Air pressure sensor and solenoid valve control

Length of fiber optic cable (meter)

Standard 10 (can be customized 15)

Welding shielding gas

Argon or nitrogen (air pressure approx. 6-8 bar)

Working environment

Temperature 5-45 °C /humidity 10-90%

Other optional support functions

Cleaning + cutting

Cleaning + cutting

Cleaning + cutting + weld bead cleaning

Max. Cutting thickness (mm)

1.2

1.5

2

Max. cleaning width (mm)

40

40

120

Automatic wire feeder type

(Universal with TIG wire)

Single wire feed

Single wire feed

Support both the double wire feed and single wire feed

Solid wire type (SS, Iron, AL, Brass)

0.8, 1.0, 1.2, 1.6

0.8, 1.0, 1.2, 1.6

0.8, 1.0, 1.2, 1.6, 2.0, 2.5

Temperature control monitoring alarm

Yes

Yes

Yes

Main machine consumables

Laser protective lenes, welding nozzles, welding wires

Machine size (MM)

686*425*611

750*1080*1000

750*1080*1000

Machine net weight (KG)

110

220

240

Power supply requirement

110V / 220V±10%, single phase

380V±10%, three phase

Total power consumption (Maximum)

3500W

4500W

7000W
