How Does A Handheld Laser Welder Achieve Precise Welding?

In modern manufacturing, welding, as a key connection technology, is widely used in many industries such as automobiles, aviation, electronics, and construction. With the continuous improvement of production efficiency and product quality requirements, handheld laser welding machines, as emerging welding tools, are gradually replacing traditional welding methods and becoming an important technological innovation in the industrial field.

Handheld laser welding machine is a device that uses a high-energy laser beam for welding. Compared with traditional welding methods, laser welding has the advantages of high efficiency, high precision, and small heat-affected zone. This equipment is widely used for welding various materials due to its strong flexibility, simple operation, and good adaptability, especially in the connection of metal materials. The handheld laser welding machine can not only realize the welding of complex workpieces, but also operate in a small space, meeting the needs of modern manufacturing for diversified and personalized products.

The importance of precision welding cannot be ignored. In industrial production, welding quality directly affects the performance, service life, and reliability of the product. For example, in the aerospace and automobile manufacturing industries, the strength and durability of welded connection parts are crucial, and any minor welding defects may lead to serious safety hazards. In addition, with the advent of the Industrial 4.0 era, the application of automated and intelligent welding technology has become more and more common, and precision welding has become an important means to optimize production processes, reduce production costs and improve overall product quality.

In summary, as an innovative tool for achieving high-precision welding, handheld laser welding machines not only improve production efficiency and product quality, but also promote the advancement of industrial technology. Understanding its working principle and application background is of great significance to improving the level of welding technology and promoting industrial development. The following content will discuss in detail the working principle of handheld laser welding machines, key technologies for achieving precision welding, design features, and its actual application cases in various industries.

1. Working principle of laser welding

The working principle of laser welding is to locally heat the material to be welded through a high-energy-density laser beam. When the laser beam is focused on the surface of the material, its temperature is rapidly raised to the melting point to form a molten pool. As the molten pool cools, the liquid metal solidifies to form a strong weld joint. Laser welding has the advantages of fast welding speed, small heat-affected zone, and flexible operation, and is suitable for connecting a variety of materials.

2. Comparison with traditional welding technology

There are significant differences between handheld laser welding machines and traditional welding technologies (such as arc welding, gas welding, etc.). The following are the main points of comparison:

● Heat-affected zone:

Laser welding: The heat-affected zone is small, and the surrounding materials are not significantly affected by heat, and usually no deformation and dimensional changes occur.

Traditional welding: The heat-affected zone is large and the heat input is high, which may cause problems such as deformation or thermal cracking of the welded parts.

● Welding speed:

Laser welding: The welding speed is fast, suitable for large-scale production, and can improve production efficiency.

Traditional welding: Relatively slow, especially on thicker materials.

● Operational flexibility:

Laser welding: Handheld laser welding machines have higher flexibility and can weld in complex and narrow spaces, adapting to a variety of workpiece shapes.

Traditional welding: Usually requires a certain degree of fixity between the workbench and the workpiece, and is difficult to adapt to the welding of special-shaped or complex components.

● Welding quality and precision:

Laser welding: High welding quality, capable of high-precision welding, suitable for fields with high precision requirements such as electronics and aerospace.

Traditional welding: Welding quality may be affected by the welder's skills and operating environment, and welding defects may occur.

Handheld laser welding machines achieve high-efficiency and high-precision welding through high-energy laser beams, have a smaller heat-affected zone, and are widely applicable to a variety of materials. Compared with traditional welding technology, its strong flexibility, fast speed, and high welding quality make it increasingly popular in modern manufacturing. Click here for more information

1. Laser parameter adjustment

The accuracy of laser welding depends on the adjustment of laser parameters, including power, frequency and welding speed. The reasonable setting of these parameters directly affects the welding quality and efficiency.

Power: The size of the laser power determines the energy output of the laser beam. Appropriate power can ensure rapid melting of the material, while too high or too low power will lead to welding defects, such as weak welding or burn-through.

Frequency: The frequency of the laser pulse affects the formation and flow of the molten pool. The appropriate frequency can control the size and behavior of the molten pool, thereby improving the welding quality.

Welding speed: The welding speed determines the amount of heat input. Too fast may lead to insufficient welding, and too slow may cause overheating of the material. It needs to be optimized according to the material type and thickness.

2. Beam quality and focusing

The beam quality and focusing condition of laser welding are crucial to the welding effect.

Beam quality: The quality of the beam affects the concentration of energy. A high-quality beam can provide a smaller focus, thereby achieving more precise welding and reducing the heat-affected zone.

Focus: The reasonable focus position and focus size determine the energy distribution of the laser beam. The beam needs to be adjusted to ensure that it is suitable for a specific welding task.

3. Spot size selection

Choosing the right spot size is crucial for the welding effect.

Spot size: Small spots can achieve high energy density and are suitable for welding thin materials or complex structures; while larger spots are more suitable for welding thick materials and can ensure sufficient melting depth.

Best effect selection: According to factors such as material type, thickness, welding position, etc., select the best spot size to achieve the expected welding strength and quality.

4. Welding path and control system

The planning and control of the welding path directly affect the efficiency and quality of welding.

Path planning: Reasonable design of the welding path can increase the welding speed and reduce welding defects.

Control system: Modern welding systems usually integrate complex motion control technology, which can accurately control the movement trajectory of the laser welding machine.

5. The importance of motion control technology

Motion control technology is the key to achieving high-precision laser welding.

Precision and stability: High-precision motion control systems can reduce mechanical vibration, improve welding accuracy, and ensure that the relative position of the laser beam and the welding object remains stable.

Response time: Real-time fast response can improve welding efficiency and adapt to dynamically changing welding environments.

6. Sensors and real-time feedback systems

The application of sensors and real-time feedback systems has greatly improved the intelligence of welding.

Sensors: The use of high-precision sensors can monitor parameters such as temperature, molten pool state and welding speed during welding.

Real-time feedback: Combined with a closed-loop control system, the laser power, moving speed and welding path are adjusted through real-time feedback to ensure that any deviations in the welding process can be corrected immediately.

To achieve precise welding, it is necessary to comprehensively consider multiple technologies such as laser parameters, beam quality, welding path, motion control and real-time feedback. Through reasonable configuration and adjustment, the welding quality and efficiency can be significantly improved to meet the welding needs of different fields. Click here for more information

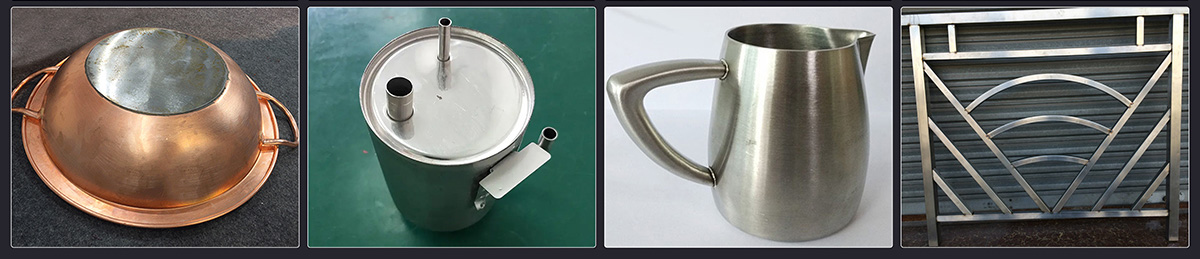

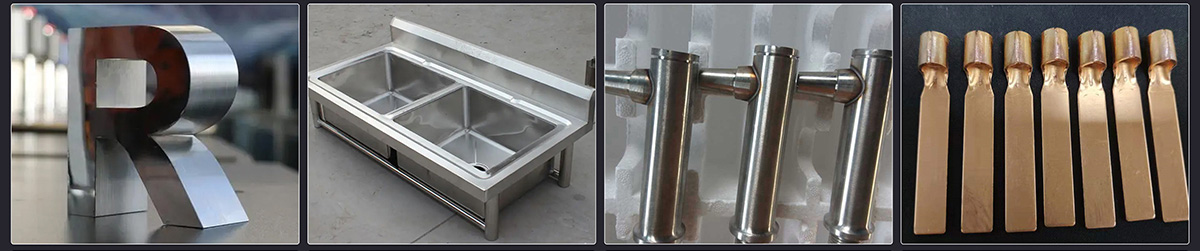

Handheld laser welding machines are increasingly used in various industries. Their flexibility and high precision make them the tool of choice for many welding operations.

1. Automobile manufacturing

Welding body parts: Handheld laser welding machines can be used to weld automobile shells, chassis and other structural parts. Due to its high precision, it can achieve welding of thinner materials without causing thermal deformation, which meets the requirements of modern automobile lightweight design.

Exhaust pipe welding: Laser welding can be applied to the connection of automobile exhaust pipes, which helps to improve welding strength and corrosion resistance and ensure the long-term reliability of the exhaust system.

Battery pack welding: In the production of electric vehicles, handheld laser welding machines are often used to weld multiple battery cells in battery packs to ensure the firmness and safety of the connection.

2. Electronic components

Circuit board welding: Handheld laser welding machines can be used for welding electronic components to circuit boards, providing precise welding of small areas and avoiding possible component damage in traditional welding methods.

Connectors and plugs: In the production of electronic products, connectors and plugs are sometimes required to be welded. Handheld laser welding machines can achieve high-density welding without generating too much heat and protect sensitive components.

LED lamp welding: In LED production, handheld laser welding machines are widely used to weld LED chips and metal substrates to ensure good thermal conductivity and electrical connection.

3. Metal crafts

Artwork production: Handheld laser welding machines are widely used in the production of metal crafts due to their high precision and beam control. They can achieve welding of complex shapes to meet the creative needs of artists.

Custom jewelry: In the jewelry making process, handheld laser welding machines can be used to weld small parts, such as welding metal chains, rings or earrings, etc., to ensure that the welding points are fine and strong.

Small metal parts: In a production environment, handheld laser welding machines can be used to weld and repair various small metal parts to meet the needs of personalized customization.

4. Aerospace

Aviation component welding: In the aviation manufacturing industry, handheld laser welding machines can be used to weld aircraft fuselages and internal structural parts to ensure reliability and strength under extreme conditions.

Engine components: Laser welding of metal parts in jet engines can achieve high-strength connections while minimizing the thermal impact on the welding area.

5. Medical devices

Medical equipment manufacturing: In the production of medical devices, handheld laser welding machines can be used to weld precision medical components, such as surgical instruments and implants, to ensure the safety and reliability of the connection.

Laboratory equipment: For the metal parts of laboratory equipment, laser welding technology can achieve high-standard welding requirements and avoid pollution and material damage.

6. Manufacturing

Warehousing and logistics equipment: In the production of some warehousing equipment, such as shelves and transport vehicles, handheld laser welding machines can be used to weld metal frames to improve assembly efficiency and structural strength.

Home appliance manufacturing: In the manufacture of home appliances, handheld laser welding machines are widely used in welding shells, liner, etc., which not only improves welding quality but also reduces production costs.

Handheld laser welding machines are widely used in many industries such as automobiles, electronics, metal crafts, aerospace, medical devices and manufacturing due to their high efficiency, precision and flexibility. Its diverse applications prove the importance of this technology in modern industrial production and continuously promote the innovation and development of processes in various industries. Click here for more information
