Does More Power in A CO2 Laser Cutter Mean Faster Cutting Speed?

Views: 89 Author: Site Editor Publish Time: 2025-07-11 Origin: Site

Inquire

1. Introduction

2. Power Analysis of CO2 Laser Cutting Machine

3. Definition and Influencing Factors of Cutting Speed

4. Relationship Between Power and Cutting Speed

5. Applicable Scenarios and Industries

6. Challenges and Cautions

7. Summarize

Introduction

CO2 laser cutting machine is a device that uses carbon dioxide gas laser to emit high-energy laser beam. This laser beam is focused by an optical system to generate high temperature, which can accurately cut and engrave various non-metallic materials, such as wood, plastic, paper, acrylic and cloth. Its efficient and fine cutting ability makes it widely used in many fields such as manufacturing, advertising, automobiles, aerospace and handicrafts. For the processing of complex shapes and intricate designs, CO2 laser cutting machine is undoubtedly an ideal choice because it can achieve high precision and flexibility.

However, many users may be curious: What is the relationship between the power and cutting speed of CO2 laser cutting machine? Generally speaking, the greater the power of the cutting machine, the faster the theoretical cutting speed can be achieved, but this relationship is not absolute. As the power of the laser increases, thicker materials can be processed and cutting efficiency can be improved. However, other factors such as material type, thickness, laser focus and feed speed will also have an important impact on the final cutting result. In this article, we will explore this relationship in depth to help readers better understand how to optimize the performance of CO2 laser cutting machine to meet different application requirements.

Power Analysis of CO2 Laser Cutting Machine

1. Power range and impact on equipment performance

● Low power (40W-100W):

Suitable for cutting thin materials (such as paper, cloth and thin acrylic), capable of precise small engraving and detailed cutting.

It has a faster cutting speed for thinner materials, but has limited effect on thicker materials, prone to uneven cutting or no cutting.

● Medium power (100W-200W):

It can cut a wider range of material thicknesses, including medium-thick wood (about 12-18mm), acrylic (about 15-20mm) and leather (about 15-20mm).

It has stronger cutting capabilities, suitable for general industrial applications and small batch production, and can achieve high cutting quality while maintaining high cutting speeds.

● High power (200W and above):

Suitable for cutting thicker materials, such as thick wood and acrylic (over 20mm).

Laser cutting machines of this power level can handle large and complex cutting tasks quickly and efficiently, and are widely used in heavy industry, automotive manufacturing, aerospace and other fields.

CO2 laser cutting and engraving machine pictures3-Suntop

CO2 laser cutting and engraving machine pictures2-Suntop

CO2 laser cutting and engraving machine pictures1-Suntop

2. Applicable materials and thicknesses for different power levels

Materials type	40W	60W	80W	100W	120W	150W	200W
Wood	3mm	7mm	10mm	12mm	13mm	15mm	18mm
Plywood	2mm	6mm	10mm	12mm	13mm	15mm	18mm
Leather	1mm	3mm	4mm	5mm	6mm	7mm	10mm
Acrylic	2mm	10mm	13mm	15mm	17mm	16mm	20mm
PVC	1mm	3mm	4mm	5mm	6mm	7mm	8mm
Plastic (easy to melt)	1mm	2mm	3mm	4mm	5mm	6mm	8mm
Rubber	2mm	3mm	4mm	5mm	6mm	7mm	10mm
Crystal/Jade/Stone/Marble/Medal	Only for engraving
Clothing（fabric，wool）	2mm	3mm	4mm	5mm	6mm	8mm	10mm
Bamboo Works	1mm	3mm	4mm	5mm	6mm	7mm	10mm

Choosing the right CO2 laser cutting machine power can not only increase the cutting speed, but also improve the cutting quality. Understanding the characteristics of different power levels and the applicable materials and thicknesses can help users choose the right laser cutting equipment according to their needs, thereby achieving the best production efficiency and effect. Click here for more information

Definition and Influencing Factors of Cutting Speed

Cutting speed refers to the speed at which a laser cutting machine cuts a material per unit time, usually expressed in length cut per minute (e.g., meters/minute). In the laser cutting process, cutting speed is a key parameter that directly affects the efficiency, quality, and appearance of the final product. Higher cutting speeds can improve production efficiency and reduce processing time, but may also result in a decrease in the quality of the cut edge. Therefore, in actual operation, it is crucial to find an ideal balance between cutting speed and material thickness and type.

There are several factors that affect cutting speed, the first of which is the type of material. Different materials have different thermal conductivities and melting points, resulting in differences in the way they interact with the laser. For example, metal materials usually have high thermal conductivity and require higher laser power and slower cutting speeds to ensure melting and removal. If the speed is too fast, uncut areas may be produced. For materials with lower thermal conductivity, such as wood and plastic, effective cutting can be achieved at higher speeds.

Secondly, material thickness is also an important factor affecting cutting speed. Generally, thicker materials require slower cutting speeds so that the laser beam can fully penetrate and melt the entire material. For low-power laser cutting machines, the speed needs to be slowed down when cutting thicker materials to ensure cutting quality and accuracy.

Another factor that affects the cutting speed is the laser focus. The focus of the laser beam affects the energy density of the cutting. The closer the focus position is to the surface of the material, the better the cutting effect. When the laser beam is optimally focused, a faster cutting speed can be achieved. If the focus is offset, the efficiency of laser cutting may decrease, resulting in a slower cutting speed.

Finally, the feed speed refers to the speed at which the material moves during the laser cutting process. The feed speed and the cutting speed complement each other. A too fast feed speed may cause the laser to not stay on the material for enough time to cut effectively, resulting in incomplete cutting; while a too slow feed speed may cause overheating, burning or excessive melting. Therefore, in actual operation, it is necessary to make comprehensive adjustments based on the material properties and laser parameters to optimize the cutting speed in order to obtain the best cutting effect and quality. Click here for more information

Relationship Between Power and Cutting Speed

The performance of laser cutting technology depends largely on the power of the laser. In theory, there is a positive correlation between laser power and cutting speed, but this relationship is affected by many factors. In practical applications, understanding how laser power affects cutting speed is the key to optimizing cutting efficiency and quality.

1. Theoretical Analysis

The working principle of laser cutting is to heat the material to the melting point through a laser beam to achieve cutting. In this process, the higher the power provided by the laser, the greater the energy input per unit time. Therefore, higher laser power can heat and melt more material in a shorter time, thereby increasing the cutting speed.

Specifically, the rate of laser cutting can be understood by the relationship between the energy input of the laser and the thermal properties of the material. The higher the energy density of the laser focus, the faster the cutting speed. When the laser power increases, the energy density will also increase accordingly, promoting more efficient heat transfer and thus improving the cutting effect. In theory, for every doubling of the laser power, the cutting speed may be increased several times, but this ideal state does not always hold true in practical applications.

CO2 laser marking machine Sample6-Suntop

CO2 laser marking machine Sample3-Suntop

CO2 laser marking machine samples4-Suntop

CO2 laser marking machine Sample5-Suntop

2. Performance in practical applications

In practical applications, the effect of laser power on cutting speed can be analyzed from cutting machines of different power levels:

● Low-power laser

Applicable materials: thin paper, acrylic, cloth, etc.

Cutting speed: usually up to 5-10 m/min

In this power range, the cutting speed is relatively fast, which is suitable for small and delicate work, such as art production and sample cutting. However, when facing thicker or harder materials, this power setting is difficult to guarantee the cutting quality, and the cutting effect is easily affected.

● Medium-power laser

Applicable materials: medium-thick wood, leather, etc.

Cutting speed: usually 1-3 m/min

In this power range, the equipment can effectively handle thicker materials. While increasing the power, the cutting speed has decreased, but the cutting quality and depth have been significantly improved, which is suitable for industrial production and more complex cutting needs.

● High-power laser

Applicable materials: thick wood, acrylic, etc.

Cutting speed: usually 0.5-2 m/min

This high-power equipment can cut thick metal materials quickly and efficiently. Although the speed is moderate, high power significantly improves cutting depth and efficiency, making it suitable for heavy industry and large-scale production.

3. Other factors affecting cutting speed optimization

Although laser power has a significant impact on cutting speed, in actual operation, factors such as material type, cutting thickness, laser focus position, and feed speed also play an important role. For example, in the metal cutting process, the thicker the material, the lower the required cutting speed is often required to ensure that the laser beam can completely melt the material. Therefore, the commissioning and operation of the laser cutting machine not only needs to pay attention to the power setting, but also needs to comprehensively consider all relevant parameters to achieve the best cutting effect.

There is a close relationship between laser power and cutting speed. Appropriate laser power setting can optimize cutting efficiency and improve product quality, and understanding the combined impact of these factors can help users make more reasonable choices in actual applications, thereby improving production efficiency. Click here for more information

Applicable Scenarios and Industries

CO2 laser cutting machines are widely used in multiple industries and fields due to their excellent cutting accuracy and versatility. The following are some of the main applicable scenarios and industries, as well as their specific application examples.

1. Advertising industry

CO2 laser cutting machines are very common in the advertising industry and are widely used to make various advertising signs, display stands, exhibition props, etc. It can efficiently and accurately cut materials such as acrylic, plastic, wood, cardboard, etc., and is especially suitable for complex graphics and text engraving. Through laser cutting, advertising producers can create personalized designs to meet customer needs.

2. Industrial manufacturing

In the field of industrial manufacturing, CO2 laser cutting machines are widely used to prepare parts, molds, and other structural components. It is capable of processing a variety of materials such as wood, plastic, and composite materials. Due to the high precision and fast speed of laser cutting, it is suitable for large-scale production and automated production lines.

CO2 laser cutting and engraving machine samples8-Suntop

CO2 laser cutting and engraving machine samples4-Suntop

CO2 laser cutting and engraving machine samples2-Suntop

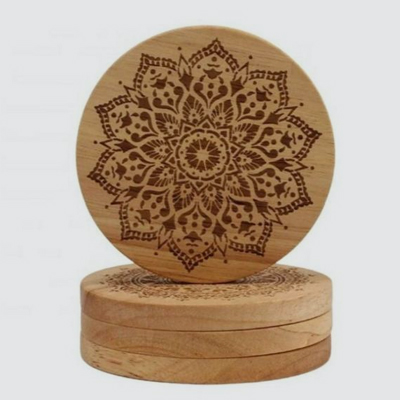

CO2 Laser Cutting And Engraving Machine samples5-Suntop

3. Furniture manufacturing

The furniture industry uses CO2 laser cutting machines to cut and engrave materials such as wood, composite boards, and acrylic, and can create a variety of furniture parts with complex shapes. This laser technology enables manufacturers to achieve efficient personalized customization while maintaining good cutting quality and meticulous craftsmanship.

4. Textile and Leather Industry

CO2 laser cutting machines are also widely used in textile and leather processing. Its efficient cutting ability can handle materials such as cloth and leather, and can accurately cut complex patterns and shapes. This is very important for making products such as clothing, shoes and handbags, and laser cutting reduces fabric waste.

5. Electronics and Electrical Industry

In the manufacture of electronic products, CO2 laser cutting machines are used to cut materials such as circuit boards, panels and plastic casings. In this industry, the precision and meticulousness of cutting are very high, and laser cutting can meet these requirements to ensure the quality and functionality of the final product.

6. Arts and Crafts

Artists and craftsmen use CO2 laser cutting machines to create customized artworks, figures and sculptures. Laser cutting technology can present complex and exquisite designs, helping artistic creations to be more expressive and personalized.

CO2 laser cutting machines play an important role in many industries due to their superior cutting accuracy, flexible material applicability and efficient production capacity. Its ability to handle a variety of materials and complex shapes makes it widely used in advertising, manufacturing, furniture, textiles, electronics and art. With the continuous development of technology, CO2 laser cutting machines will demonstrate their value in a wider range of scenarios and promote innovation and progress in various industries. Click here for more information

Challenges and Cautions

When using a CO2 laser cutting machine, although high-power lasers can improve cutting speed and efficiency, excessive laser power may also bring some adverse effects and risks. Understanding these challenges and taking appropriate measures can effectively improve cutting quality and extend the service life of the equipment.

1. Risks of excessive power

● Material damage: During the cutting process, if the laser power is too high, the material surface may overheat, even melt or burn. This phenomenon is especially obvious when processing thin materials (such as paper and thin plastics), and scorch marks may appear on the cutting edge, affecting the appearance quality of the finished product.

● Uneven cutting: Excessive power may cause the laser energy to be too concentrated, resulting in inconsistent cutting depth or rough cutting edges. Uneven cutting not only affects the appearance, but may also cause difficulties in subsequent processing.

● Material deformation: For some materials, rapid heating at high power may cause uneven heating of the material, causing deformation or warping, especially on larger or thinner parts.

2. Best Practice Recommendations

In order to maximize the effect of CO2 laser cutting, users should reasonably adjust the equipment parameters according to specific needs. Here are some best practice recommendations:

● Choose the power appropriately: Choose the laser power appropriately according to the type and thickness of the material being processed. The thicker the material, the higher the power required, but avoid unnecessary excess power.

● Adjust the cutting speed: Test the material cutting speed before test cutting. Properly reducing the cutting speed can ensure that the material is fully melted under the action of the laser and achieve a better cutting effect. At the same time, a stable cutting speed helps to reduce the heat-affected zone and improve the uniformity of cutting.

● Optimize the focus setting: Ensure that the laser beam is correctly focused to achieve the best energy density. For materials of different thicknesses and characteristics, the focal length may need to be adjusted to ensure that the laser cutting can achieve the most efficient effect.

● Regularly maintain the equipment: Keep the laser cutting machine clean, including regularly checking the laser lens and optical components to ensure that they are free of dirt or scratches to maintain cutting accuracy and efficiency.

● Experiment and record: Before starting mass production, conduct a small-scale trial cutting experiment to summarize the cutting parameters and settings to ensure consistency and efficiency in subsequent production.

By following these best practices, users can significantly reduce the risk of excessive power and improve the efficiency and cutting quality of CO2 laser cutting machines. At the same time, flexibly responding to different material and process requirements can help improve the economic benefits of production. Click here for more information

Summarize

There is a close relationship between the power of CO2 laser cutting machine and cutting speed. By increasing the laser power appropriately, the cutting speed can be significantly increased, especially when dealing with thick materials, the higher power can effectively overcome the melting point of the material, thus realizing fast cutting. However, this relationship is not simply linear, and cutting results are still influenced by a variety of factors such as material type, thickness, focus setting and feed rate. Therefore, understanding these influencing factors and making reasonable adjustments is the key to realizing efficient cutting.

In order to improve the efficiency and quality of laser cutting, it is crucial to choose the right equipment parameters. In practical application, enterprises need to accurately set the laser power and cutting speed according to the material characteristics and specific processing needs. Through small-scale trial cutting experiments, enterprises can find the best parameter settings to ensure the accuracy of cutting and surface quality. At the same time, regular maintenance and intelligent management of the equipment also provides an important guarantee for improving production efficiency.

Overall, the reasonable use and parameter optimization of CO2 laser cutting machine is the basis for realizing efficient and high-quality processing. With the continuous development of laser technology, manufacturers should remain flexible in responding to market demand and technological trends when selecting equipment and setting operating parameters in order to obtain the best production benefits.
