100W Aluminum Laser Cleaning Machine

Our pulsed laser cleaning system is a highly efficient and environmentally friendly cleaning solution specifically designed to remove a wide range of surface contaminants, such as oil, rust, and coatings. Utilizing pulsed laser technology, the system precisely controls energy output, ensuring no damage to the substrate or surrounding environment during the cleaning process. Its flexible application makes it ideal for a wide range of industries, including automotive, aerospace, machinery, and art restoration, improving production efficiency and cleaning quality.
Product model: ST-PLC50H/ST-PLC100H
Laser power: 50W/100W (other power can be customized)
Cleaning adjustable rang: 0-300*300mm

Availability:

Quantity:



Inquire PDF Export

Product Description

Details Product Parameters Samples Video

Product Introduction

The pulsed laser cleaning machine is an innovative cleaning device designed to provide an efficient and environmentally friendly surface cleaning solution. Utilizing pulsed laser technology, the machine precisely controls laser energy to effectively remove various surface contaminants (such as rust, oil, old coatings, and other impurities) without the use of chemical solvents or other traditional cleaning methods. This process significantly improves cleaning efficiency while reducing environmental and human hazards.

In terms of core functions, the pulsed laser cleaning machine features adjustable laser parameters, enabling it to adapt to the cleaning needs of different materials. The laser cleaning process minimizes thermal impact on the substrate, reducing the risk of material damage, making it ideal for industrial applications requiring high surface quality. Furthermore, its compact design and user-friendly interface make the machine easy to use and maintain, making it suitable for flexible operation in a variety of work environments.

Product Technical Features

Mini Backpack Pulse Handheld Laser Cleaning Machine is an innovative portable machine that utilizes pulsed laser technology for efficient cleaning and removal of a wide variety of surface dirt, coatings or oxides.

1. Extremely portable, A4 paper size, external lithium battery power supply can be connected, strong mobility.

2. The exclusive mini laser head weighs only 700g, which is flexible and convenient for long-lasting use.

3. The safety indicator light and the chassis handle are designed as one, which makes the use more convenient while ensuring high-quality safety protection measures.

4. The system is stable, easy to operate, long service life, cost-effective.

5. Six cleaning modes according to the needs of cleaning different workpieces and requirements.

6. Pulse cleaning grades up to SA2.5.

7. Uitable for working scenes such as urban graffiti cleaning, welding bead cleaning, high-altitude operations or precision workshops that cannot be connected to electricity.

Product Details

Backpack Laser Cleaning Machine Exclusive mini head-Suntop

Exclusive mini laser cleaning head

● Cigarette case size, long time handheld without getting tired, stable to withstand 300W without getting hot.

● Precise positioning and cleaning, weight only 0.7KG, easy to hand it.

● Non-contact material when cleaning that can protect the material.

● Effectively remove micron-sized particles.

● Environment friendly, no consumables.

Multiple core functions

Integrated handle and work light: realizes the integration of functions, makes it more convenient to work, and can monitor the status of the equipment at any time.

Backpack Laser Cleaning Machine Multiple core functions-Suntop

Backpack Laser Cleaning Machine Self-developed chassis-Suntop

Self-developed chassis

Aluminum alloy material: strong durability, increasing the life of the device.

Rounded design: humanized design improves the user's grip experience.

Unique backpack design

Portable: Designed with a backpack buckle, it is convenient for users on the move, freeing their hands to improve overall efficiency.

Backpack Laser Cleaning Machine Unique backpack design-Suntop

Backpack Laser Cleaning Machine Touch screen display-Suntop

Touch screen display

Intelligent operation: no need for a computer, setup and operation directly on the device, improving the ease of use.

Air cooling system

Strong heat dissipation: Equipped with large-displacement air outlets, effectively reduces the temperature of the device, prolongs its service life and ensures stability.

Backpack Laser Cleaning Machine Air cooling system-Suntop

Advantages of Laser Cleaning

1. High Efficiency: Pulsed laser cleaning machines can quickly remove a wide range of dirt and contaminants, significantly reducing cleaning time and improving efficiency. They are suitable for large-scale and high-frequency cleaning needs.

2. Environmentally Friendly: These machines require no chemical cleaning agents or solvents, relying solely on laser energy for cleaning, reducing environmental pollution and operator health risks.

3. Precise Control: Pulsed laser technology allows users to precisely adjust the laser power and frequency, enabling fine-tuning for different materials and cleaning requirements, ensuring effective cleaning without damaging the substrate.

4. Low Thermal Impact: Because the heat during laser cleaning is concentrated and limited in scope, thermal damage to surrounding materials is minimized, making it suitable for cleaning heat-sensitive materials.

5. Simple Maintenance: These machines are typically compact and easy to operate and maintain, enabling users to quickly get started, reducing training time and operating costs.

6. Improved Surface Quality: After laser cleaning, the surface is clean and residue-free, facilitating subsequent painting, welding, or other processing steps, improving the overall quality of the product.

7. Safety: Compared to traditional cleaning methods, pulsed laser cleaning machines offer fewer safety hazards, reducing accidents and safety risks associated with chemicals.

These advantages make pulsed laser cleaning machines an efficient and reliable cleaning option for modern industrial and maintenance applications, meeting diverse cleaning needs. Click here to contact Suntop Laser to learn more.

Six cleaning modes Selectable

Suntop pulse high precision cleaning machine, six cleaning modes can be selected, greater reduction of damage to the surface of the material, real high precision, high quality laser cleaning machine.

- Line

- Spirals

- Round

- Rectangular

- Round fill

- Rectangular fill

You can switch between these modes by clicking the "Scan Mode" option on the interface.

Six cleaning modes Selectable

Product Specification

Model	ST-PLC50H	ST-PLC100H
Max. Laser power (W)	50	100
Laser type	Nanosecond type pulse fiber laser
Laser wavelength (nm)	1064nm
Cleaning grade	SA2.5
Cleaning adjustable range	0-200*200mm	0-300*300mm
Power adjustment range (%)	10-100
Cooling method	Advanced built-in air cooling
Laser pulse frequency (kHz)	45-170	20-200
Pulse length (ns)	100	170
Maximum single pulse energy (mJ)	1.1	1.6
Conductive fiber length (M)	3
Number of cleaning mode	6 (flexible selection according to different cleaning requirements)
Machine size (MM)	280220122	280380150
Machine weight (KG)	8.5	11.5
Power consumption (whole machine)	350W	550W

What Materials Can be Cleaned?

Widely used for rapid rust removal and oxide removal on metal surfaces; removal of grease, resin, glue, dust, stains, production residues; roughening of metal surfaces; rust removal and degreasing before welding, as well as oxide and stain cleaning after welding, etc.

Backpack Laser Cleaning Machine samples1-Suntop

Backpack Laser Cleaning Machine samples2-Suntop

Backpack Laser Cleaning Machine samples3-Suntop

Backpack Laser Cleaning Machine samples4-Suntop

Backpack Laser Cleaning Machine samples5-Suntop

Backpack Laser Cleaning Machine samples6-Suntop

Backpack Laser Cleaning Machine samples7-Suntop

Backpack Laser Cleaning Machine samples8-Suntop

Backpack Laser Cleaning Machine samples9-Suntop

Backpack Laser Cleaning Machine samples10-Suntop

Backpack Laser Cleaning Machine samples11-Suntop

Backpack Laser Cleaning Machine samples12-Suntop

What is Laser Cleaning Used For?

Widely used in automobile manufacturing, mold, cultural relic restoration, aerospace, shipbuilding, 3C electronics, medical equipment, rail transit, steel manufacturing, military equipment, various steel, iron, aluminum materials and other high precision parts industries.

Portable Pulse Laser Cleaning Machine Aerospace-Suntop

Portable Pulse Laser Cleaning Machine Automotive industry-Suntop

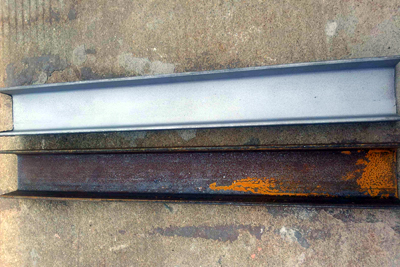

Portable Pulse Laser Cleaning Machine Buildings and infrastructure-Suntop

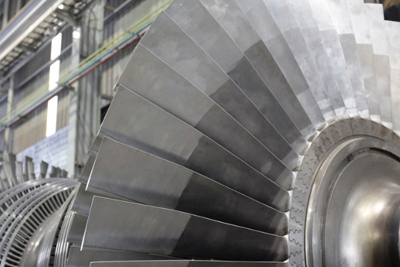

Portable Pulse Laser Cleaning Machine Energy industry-Suntop

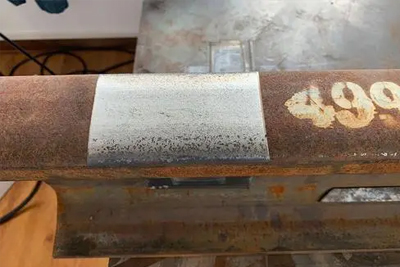

Portable Pulse Laser Cleaning Machine Ship and marine engineering-Suntop

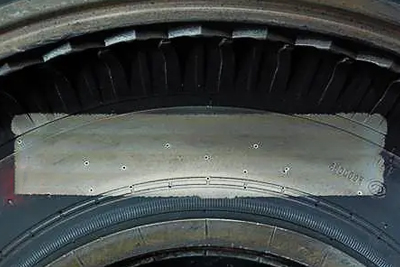

Portable Pulse Laser Cleaning Machine Military industry and defense-Suntop

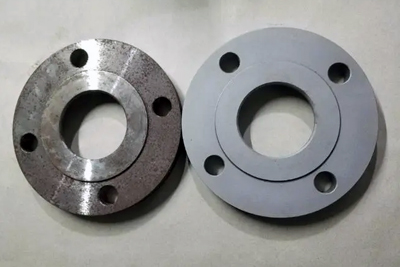

Portable Pulse Laser Cleaning Machine Manufacturing-Suntop

Portable Pulse Laser Cleaning Machine Public Facilities-Suntop

Laser Cleaning Video

FAQ

1. How can i place an order?

Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.

For further discussion, it is better to contact us with WhatsApp / WeChat / email / phone, in case of any delays.

2. What kind of display we provide?

We have laser marking machine / laser welding machine / laser cutting machine / laser cleaning / CO2 laser cutting and engraving machine / laser accessories for you choose.

3. How about the warranty?

We have 2 years warranty and lifelong maintenance.

4. What is your terms of delivery?

We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.

5. What types of contaminants are suitable for pulsed laser cleaning machines?

Pulsed laser cleaning machines can effectively remove a wide range of surface contaminants, including rust, oil, old coatings, dirt, and other impurities. They are suitable for applications in the industrial, automotive, aviation, and cultural relic restoration sectors.

6. Are chemical cleaning agents required during the cleaning process?

No. Pulsed laser cleaning machines rely solely on laser energy for cleaning, eliminating the need for chemicals and making them more environmentally friendly and safer.

7. Is this equipment difficult to operate?

Pulsed laser cleaning machines are designed to be user-friendly, with an intuitive interface that makes operation simple and easy, suitable for users of all skill levels.

8. Does laser cleaning cause thermal damage to the substrate?

The heat-affected zone during laser cleaning is very small, effectively reducing the risk of thermal damage and making it particularly suitable for cleaning heat-sensitive materials.

9. How efficient is the pulsed laser cleaning machine?

This machine offers high cleaning efficiency, enabling rapid completion of cleaning tasks and significantly improving production and maintenance efficiency.

10. Is the equipment customizable?

Yes, pulse laser cleaning machines typically support customizable parameters to accommodate different materials and cleaning conditions.

11. How can I get more information or request a demonstration?

Please visit our website or contact our sales team directly. We will provide detailed information and a demonstration to help you understand the advantages and applications of pulse laser cleaning machines.
