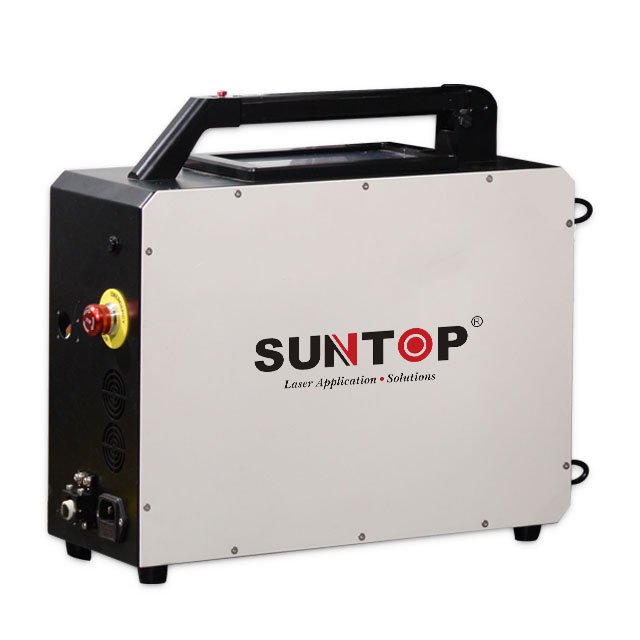

Mini Backpack Pulse Handheld Laser Cleaning Machine

Suntop laser is independently developed and has a unique backpack design. The whole machine weighs only about 10kg. Whether it is hand-held, shoulder-backed, or fixed on a workstation, it looks compact. We make the most extreme miniaturization under the premise of ensuring complete functions. We The innovative design of the safety indicator light and the handle of the chassis makes it more convenient to use while ensuring high-quality safety protection measures; this product can be connected to an external power battery, and customers can use it freely in places without power supply equipment; applicable. It is suitable for working scenes such as urban graffiti cleaning, welding bead cleaning, high-altitude operations or precision workshops that cannot be connected to electricity.
Product Model: ST-PLC50H / ST-PLC100H
Laser power: 50W /100W
Availability:
Quantity:

Details       Product Parameters       Samples       Video

Mini backpack laser cleaning machine features - Suntop

Features of mini backpack pulse laser cleaning machine

● Extremely portable, A4 paper size, external lithium battery power supply can be connected, strong mobility.

● The exclusive mini laser head weighs only 700g, which is flexible and convenient for long-lasting use.

● The safety indicator light and the chassis handle are designed as one, which makes the use more convenient while ensuring high-quality safety protection measures.

● The system is stable, easy to operate, long service life, cost-effective.

● It is suitable for working scenes such as urban graffiti cleaning, welding bead cleaning, high-altitude operations or precision workshops that cannot be connected to electricity.

● Six cleaning modes according to the needs of cleaning different workpieces and requirements.

● Pulse cleaning grades up to SA2.5.


Details of mini backpack laser cleaning machine

1. Multiple core functions

The handle and the work light are combined into one, one-button deformation, warning the working status and saving space

2. Self-developed mini case

The handle of the case is made of aluminum alloy material, which is good in texture, light and durable, and the arc design makes it easier to carry it. The mini case is only as big as a toolbox, light and convenient

3. Backpack unique and innovative design

The chassis is equipped with a strap buckle, which can be carried on the shoulder by hanging the strap, which frees your hands even if you carry it

4. Exclusive mini laser cleaning head

It is the size of a cigarette box and only weighs 10KG. It is not tiring to hold it for a long time, and it can withstand 300W stably without getting hot.

5. Touch screen

Small and intelligent, easy to operate and more humane.

6. Air cooling

Large-displacement air outlet, strong heat dissipation and novel appearance.

Mini backpack laser cleaning machine details - Suntop

Advantages of mini backpack laser cleaning machine

1. Handheld design, convenient and lightweight, easy to use.

2. The operation is flexible and convenient, and the workpiece can be cleaned from any angle. You can specify the position and size to clear.

3. Non-contact cleaning, no heat effect, no damage to the surface of the object, no damage to the substrate, no secondary pollution.

4. Cleaning waste is basically solid powder, small in size, easy to store, recyclable, no photochemical reaction, and no pollution.

5. One-time investment, long-term stable use and long service life.

6. Low operating cost, fast speed, high efficiency and time saving.

7, Can be used for cleaning high value-added precision parts, resulting in a uniform and stripe-free surface.


Mini laser cleaning head

Mini backpack laser cleaning head - Suntop

● The size of a cigarette box, it is not tiring to hold it for a long time, and it can withstand 300W stably without getting hot.

● Precise positioning and cleaning, weight only 700g, easy to hand it.

● Non-contact material when cleaning that can protect the material.

● Effectively remove micron-sized particles.

● Environment friendly, no consumables.


Application materials

Suitable for removing resin, paint, oil stains, stains, dirt, rust, coatings, etc. from the surface of objects.


Application industry

Widely used in automobile manufacturing, mould, cultural relic restoration, aerospace, shipbuilding, 3C electronics, medical equipment, rail transit, steel manufacturing, military equipment, various steel, iron, aluminum materials and other high precision parts industries.


Main Parameters of handheld pulse laser cleaning machine

Model

ST-PLC50H

ST-PLC100H

Max. Laser power (W)

50

100

Laser type

Nanosecond type pulse fiber laser

Laser wavelength (nm)

1064+5

Cleaning grade

SA2.5

Cleaning adjustable range

0 - 200*200mm

0 - 300*300mm

Power adjustment range (%)

10-100

Cooling method

Advanced built-in air cooling

Laser pulse frequency (kHz)

45-170

20-200

Pulse length (ns)

100

170

Maximum single pulse energy (mJ)

1.1

1.6

Conductive fiber length (M)

3

Number of cleaning mode

6 (flexible selection according to different cleaning requirements)

Machine size (MM)

280*220*122

280*380*150

Machine weight (KG)

8.5

11.5

Power consumption (whole machine)

350W

550W


Mini backpack laser cleaning machine sample - Suntop
