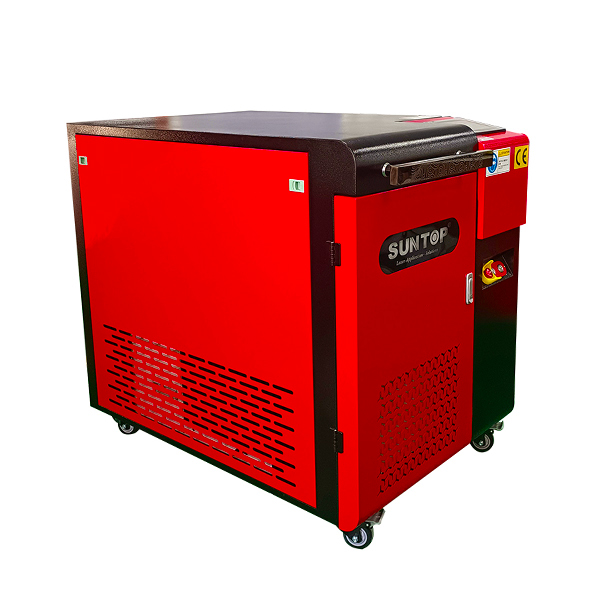

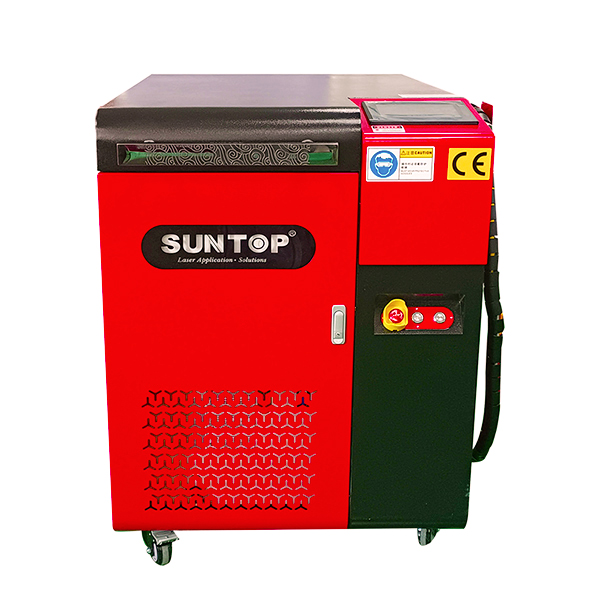

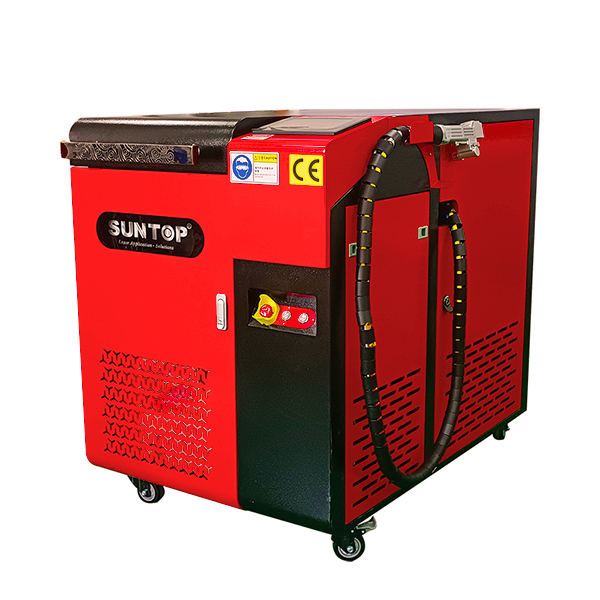

Portable Laser Cleaning Machine

Portable laser cleaning machine, with the advantages of high efficiency, fast, low cost, the heat load and mechanical load generated on the substrate is small, cleaning for non-damage; waste can be recycled, no environmental pollution; safe and reliable, does not damage the health of the operator; can remove a variety of different thicknesses, different ingredients of the coating; cleaning process is easy to achieve automatic control, to achieve remote control of cleaning from a distance, etc.
Product Model: ST-FC1000H/ST-FC1500H/ST-FC2000H
Laser power: 1000W/1500W/2000W
Working area: 170*170mm/250*250mm/300*300mm
Availability:
Quantity:

PDF Export

Details       Product Parameters       Samples       Video

Portable laser cleaning machine features-Suntop

Features of portable laser cleaning machine

1. Integrated design, reasonable structure, dustproof, good heat dissipation, effectively prolong the service life of the machine parts.

2. Non-contact cleaning, cleaning precision, can achieve precise position, precise size selective operation.

3. The cleaning head is designed to be lightweight, easy to handle, and can be handheld for a long time. 5.

4. Visual instrument, water injection port, the use of the process at any time to observe, while the use of touch screen control panel, modify the process parameters, more intuitive and convenient. 6.

5. The system can store a variety of different process parameters, according to the processing needs, through the touch screen can be switched at any time, reducing the parameter debugging time.

6. Can be equipped with automated mechanisms to achieve automated cleaning.


Details of portable laser cleaning machine

1. Laser cleaning head

Light weight only 0.7KG, flexible and convenient to clean metal parts of any shape, with a wide cleaning width, up to 300mm. Equipped with a safety monitoring system.

2. Operation interface

Advanced resistive touch screen with higher sensitivity, intelligent control, supports multiple languages (English, Spanish, German, Italian, French, Russian, Turkish, etc.)

3. Laser source

We use a customized 45um core diameter cleaning fiber laser with a lifespan of 100,000 hours and maintenance-free.

4. Water chiller

Double circulating water cooling makes the laser source and cleaning head cool better, and the temperature control sensor adopts imported brands.

5. Cleaning connection fiber

The cable distance from the laser cleaning head to the machine is 10 meters, and there is no need to move the machine when laser welding the workpiece.

6. Wide range of cleaning

The maximum cleaning area is 300*300mm, and the efficiency is high.

Portable laser cleaning machine details-Suntop


Advantages of portable laser cleaning machine

1. Good cleaning effect, no abrasive and non-contact, no thermal effect, no mechanical force on the object to be cleaned, no damage to the surface of the object to be cleaned.

2. The eliminated waste is solid powder, small in size, easy to store, and basically does not pollute the environment.

3. Can remove various types of pollutants on the surface of various materials and achieve a cleanliness that cannot be achieved by conventional cleaning. It can selectively clean the pollutants on the material surface without damaging the material surface. 4.

4. Stable performance, service life up to 10 years, low operating cost, fast speed, high efficiency, time and labor saving.

5. Can be adjusted at any time, no need to fix the work station, free and flexible, suitable for a variety of work environment scenarios of cleaning.


Cleaning ability (only for reference)

Cleaning surface

1000W

1500W

2000W

Floating embroidery (20um)

10m³/h

15m³/h

20m³/h

Paint (120um)

4m³/h

6m³/h

8m³/h

Rusting (100um)

2.5m³/h

4m³/h

5m³/h

Portable laser cleaning machine application

Application materials

Suitable for removing resin, paint, oil stains, stains, dirt, rust, coatings, etc. from the surface of objects.


Application industry

Widely used in automobile manufacturing, mould, cultural relic restoration, aerospace, shipbuilding, 3C electronics, medical equipment, rail transit, steel manufacturing, military equipment, various steel, iron, aluminum materials and other industries.


Parameters of portable laser cleaning machine

Model

ST-FC1000H

ST-FC1500H

ST-FC2000H

Power

1000W

1500W

2000W

Power consumption

3000W

4500W

6000W

Max. cleaning width

170*170mm

250*250mm

300*300mm

Laser wavelength

1064nm

Operation mode

Handheld

Power adjustment range (%)

10-100 (Gradient adjustable)

Cleaning head weight

0.7Kg

Delivery cable length

10M (can be customized)

Input power

220V±10% 50-60HZ

Cooling system

Water Cooled with automatic pumping function

Machine weight

220KG

230KG

280KG

Machine size

935*720*1248mm

1500*880*1160mm


Portable laser cleaning machine samples-Suntop
