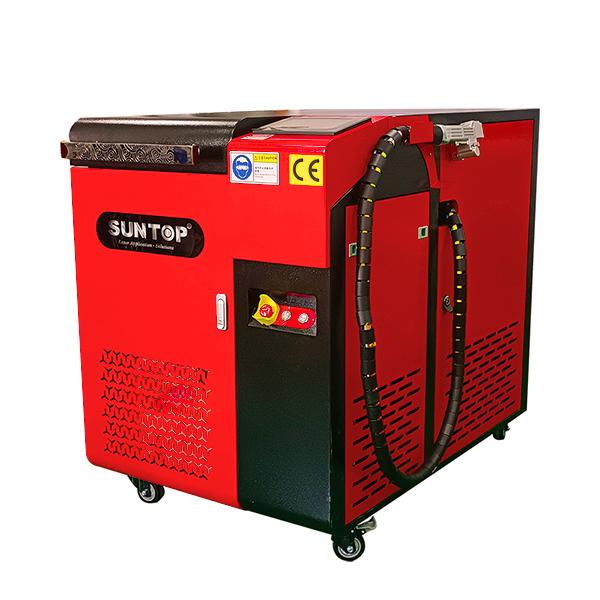

The high-quality laser beam of this equipment can easily meet various high-precision cleaning needs. Easy to install, operate and automate. Plug in the socket, turn on the device, and you can perform chemical-free, medium-free, dust-free, and water-free cleaning. It is widely used in various handheld cleaning scenarios. ※ Product Model: ST-FC1500H/ST-FC2000H/ST-FC3000H ※ Laser power: 1500W/2000W/3000W ※ Working area: 0-300*300mm
1. Integrated design, reasonable structure, dustproof, good heat dissipation, effectively prolong the service life of machine parts.
2. 10 meters original fiber optic cable, mobile operation, can clean the parts that are not easy to reach.
3. Lightweight design of cleaning head, weighing only 0.7kg, light in hand and easy to use.
4. Long focal depth technology, with mature high tolerance and beam hooking rectification technology, can achieve uniform surface cleaning.
5. Cleaning various contaminants on the surface of various materials, such as small space metal cleaning and complex parts of the structure that are difficult to reach by traditional methods.
Details of laser rust removing machine
1. Laser cleaning head
Weighing only 0.7kg, it is compact and convenient to clean any shape of metal parts with a wide cleaning width of up to 300mm and equipped with a safety monitoring system.
2.Intelligent operation interface
Advanced resistive touch screen with higher sensitivity and intelligent control, supporting multiple languages (English, Spanish, German, Italian, French, Russian, Turkish, etc.)
3. Laser source
We use a custom 45UM core diameter clean fiber laser with a lifetime of 100,000 hours and no maintenance included.
4. Water Cooler
Double circulation water cooling can make the laser source and cleaning head more cool, temperature control sensor using imported brands.
5. Cleaning connection fiber
The cable distance from the laser cleaning head to the machine is 10 meters, so there is no need to move the machine when laser welding workpiece.
6.Large cleaning area
The maximum cleaning area is 300*300mm with high efficiency.
Advantages of laser rust removing machine
1. The operation is simple and easy to learn to get started quickly, no technical requirements, ordinary workers can hand in half an hour, can easily achieve high-quality cleaning effect.
2. Cleaning waste is basically solid powder, small size, easy to store, recyclable, no photochemical reaction, no pollution.
3. Long-term stable use, low running cost, fast speed, high efficiency, time saving, long-term cost is lower than traditional cleaning methods.
4. Can be adjusted at any time, no need to fix the work station, free and flexible, suitable for a variety of work environment scenarios of cleaning.
5. The system supports English, Turkish, Italian, Spanish, German, French, Russian.
Cleaning ability (only for reference)
Cleaning surface
1000W
1500W
2000W
Floating embroidery (20um)
10m³/h
15m³/h
20m³/h
Paint (120um)
4m³/h
6m³/h
8m³/h
Rusting (100um)
2.5m³/h
4m³/h
5m³/h
Laser rust removing machine safety features
ST-FC1000H/1500H/2000H is a Class IV laser system and routine precautions are required for the safe operation of the equipment.
Built-in features include:
● Key switch control of laser source and Emergency-stop button ensure deliberate operation.
● Fiber laser interlock verifies integrity of laser delivery to the cleaning gun.
● Laser clean gun trigger, enable and then fire, for intentional operation(Double pulling the trigger before the light comes out).
Laser rust removing machine application
Application materials
Suitable for removing resin, paint, oil stains, stains, dirt, rust, coatings, etc. from the surface of objects.
Application industry
It is widely used in various industries such as the ship industry, automobile accessories, precision parts, molds, high -end machine tools, military equipment, building exterior walls, cultural relics protection, track, environmental protection industry and other industries.
1. Integrated design, reasonable structure, dustproof, good heat dissipation, effectively prolong the service life of machine parts.
2. 10 meters original fiber optic cable, mobile operation, can clean the parts that are not easy to reach.
3. Lightweight design of cleaning head, weighing only 0.7kg, light in hand and easy to use.
4. Long focal depth technology, with mature high tolerance and beam hooking rectification technology, can achieve uniform surface cleaning.
5. Cleaning various contaminants on the surface of various materials, such as small space metal cleaning and complex parts of the structure that are difficult to reach by traditional methods.
Details of laser rust removing machine
1. Laser cleaning head
Weighing only 0.7kg, it is compact and convenient to clean any shape of metal parts with a wide cleaning width of up to 300mm and equipped with a safety monitoring system.
2.Intelligent operation interface
Advanced resistive touch screen with higher sensitivity and intelligent control, supporting multiple languages (English, Spanish, German, Italian, French, Russian, Turkish, etc.)
3. Laser source
We use a custom 45UM core diameter clean fiber laser with a lifetime of 100,000 hours and no maintenance included.
4. Water Cooler
Double circulation water cooling can make the laser source and cleaning head more cool, temperature control sensor using imported brands.
5. Cleaning connection fiber
The cable distance from the laser cleaning head to the machine is 10 meters, so there is no need to move the machine when laser welding workpiece.
6.Large cleaning area
The maximum cleaning area is 300*300mm with high efficiency.
Advantages of laser rust removing machine
1. The operation is simple and easy to learn to get started quickly, no technical requirements, ordinary workers can hand in half an hour, can easily achieve high-quality cleaning effect.
2. Cleaning waste is basically solid powder, small size, easy to store, recyclable, no photochemical reaction, no pollution.
3. Long-term stable use, low running cost, fast speed, high efficiency, time saving, long-term cost is lower than traditional cleaning methods.
4. Can be adjusted at any time, no need to fix the work station, free and flexible, suitable for a variety of work environment scenarios of cleaning.
5. The system supports English, Turkish, Italian, Spanish, German, French, Russian.
Cleaning ability (only for reference)
Cleaning surface
1000W
1500W
2000W
Floating embroidery (20um)
10m³/h
15m³/h
20m³/h
Paint (120um)
4m³/h
6m³/h
8m³/h
Rusting (100um)
2.5m³/h
4m³/h
5m³/h
Laser rust removing machine safety features
ST-FC1000H/1500H/2000H is a Class IV laser system and routine precautions are required for the safe operation of the equipment.
Built-in features include:
● Key switch control of laser source and Emergency-stop button ensure deliberate operation.
● Fiber laser interlock verifies integrity of laser delivery to the cleaning gun.
● Laser clean gun trigger, enable and then fire, for intentional operation(Double pulling the trigger before the light comes out).
Laser rust removing machine application
Application materials
Suitable for removing resin, paint, oil stains, stains, dirt, rust, coatings, etc. from the surface of objects.
Application industry
It is widely used in various industries such as the ship industry, automobile accessories, precision parts, molds, high -end machine tools, military equipment, building exterior walls, cultural relics protection, track, environmental protection industry and other industries.
