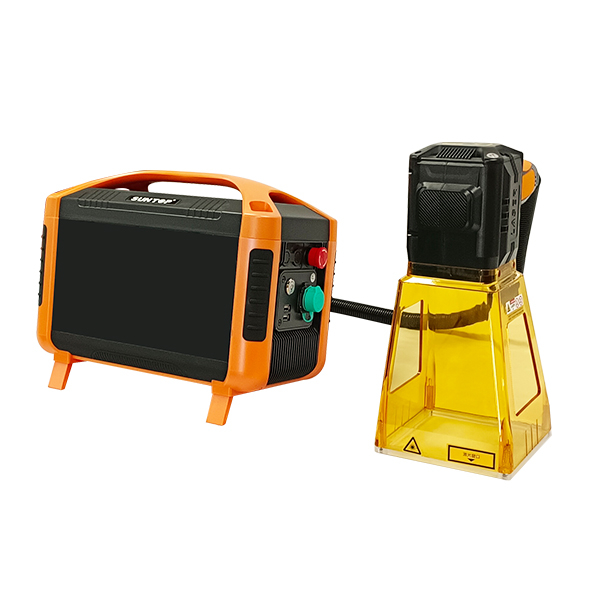

Suntop's self-developed mini handheld laser marking head with touch screen operation interface, no computer required. Long service life, compact size, no need for huge water cooling system, just simple air cooling. It can work normally under the harsh environment such as certain impact, vibration, higher temperature or with dust. ※ Product Model: ST-RFL20H ※ Laser power: 20W/30W ※ Working area: 70*70mm/110*110mm (optional)
1. The whole machine adopts an integrated structure, which is small in size, light in weight and easy to carry.
2. Built-in touch screen display, more convenient operation, no computer required.
3. The self-designed handle weighs only 0.9 kg, which can be moved freely for marking without space restrictions, and can be easily marked under various working conditions.
4. Adopt high-precision famous brand wavelength F-theta lens, which can realize high-speed and high-precision laser marking, and the text and image will not be distorted after long-term use.
5. Built-in double red lights, easy to locate.

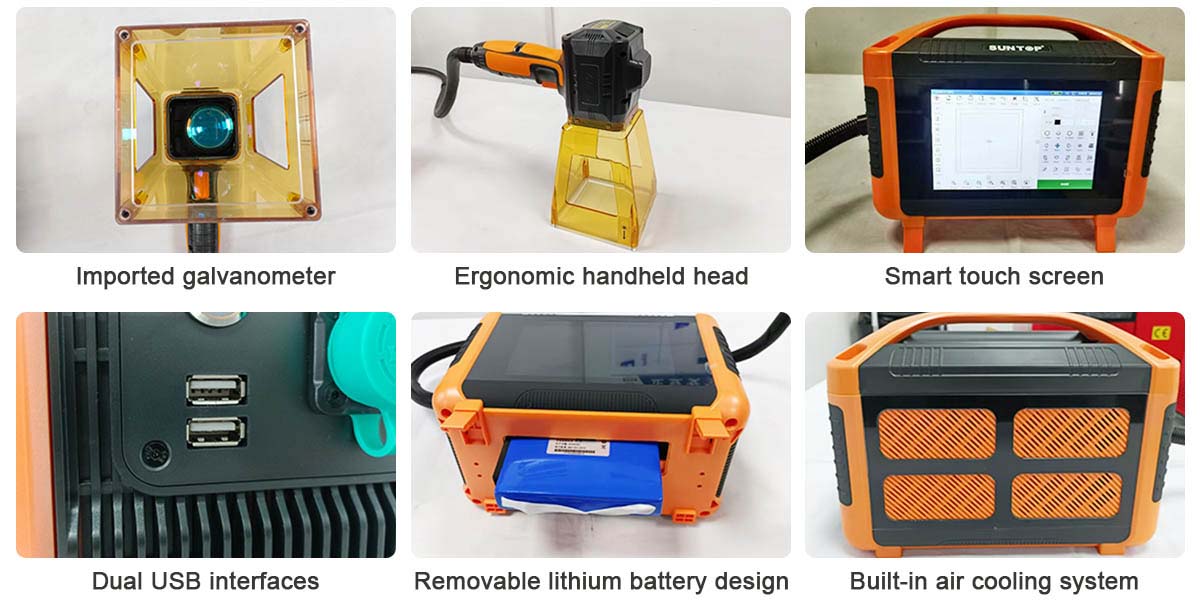

Details of handheld laser engraver
1. Imported galvanometer
Utilizing imported motors for marking, this machine offers high precision, fast speed, and a good marking effec.
2. Ergonomic handheld head
Adopts ergonomic design, rubberized and anti-slip technology, weighs only 0.8kg, compact and light.
3. Smart touch screen
No need for a computer, you can edit the marking content on the touch screen, which is very convenient to use.
4. Dual USB interfaces
Supports multiple file formats, import and read.
5. Removable lithium battery design
Battery/plug-in dual-use scenarios with no limitations.
6. Built-in air cooling system
Better heat dissipation performance, effectively extending the life of optical components.
Advantages of handheld laser engraver
1. The marking speed is fast, and the characters and patterns are clear, uniform and durable.
2. The laser beam is thin, the processing material consumption is small, and the processing heat-affected zone is small
3. The electro-optic conversion efficiency is very high, cooled by cold air, the output beam quality is good, and the service life is long.
4. Stable output power, can work continuously for 24 hours, low cost of use, no consumables, and adopts plug and play design.
5. There are many processing materials, suitable for almost all metal materials and some plastics.
6. Save operating costs, maintenance-free, no consumables, save you later maintenance costs.
Core Configuration

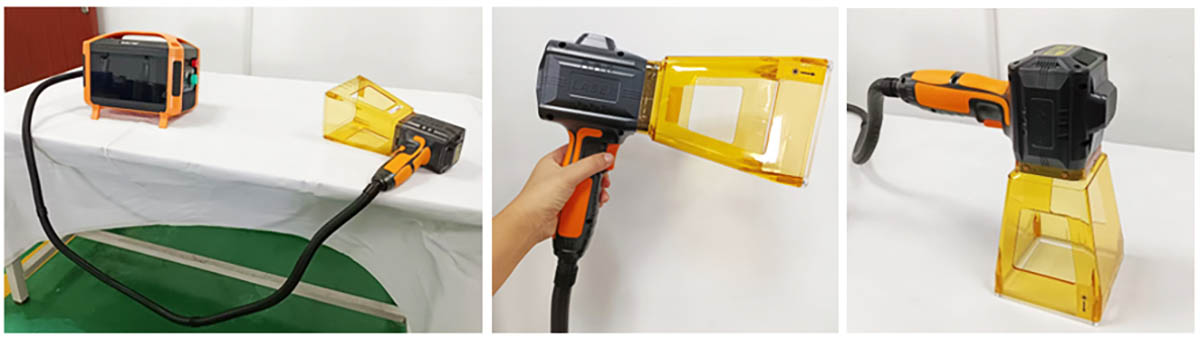

Handheld marking head
● High-quality galvanometer, field mirror and imported laser marking head, which greatly improves the beam quality, making the marking effect better and the quality higher.
● Equipped with intelligent red light positioning system, double insurance, hard-core positioning, stable performance.
● One-button trigger marking, the handle is equipped with a marking button, which can be moved anytime and anywhere, saving time and effort.
● Original optical cable overcomes the limitation of workbench space, and can realize outdoor marking and long-distance marking; adjust the position at any time, free and flexible, suitable for marking in various working environment scenes.

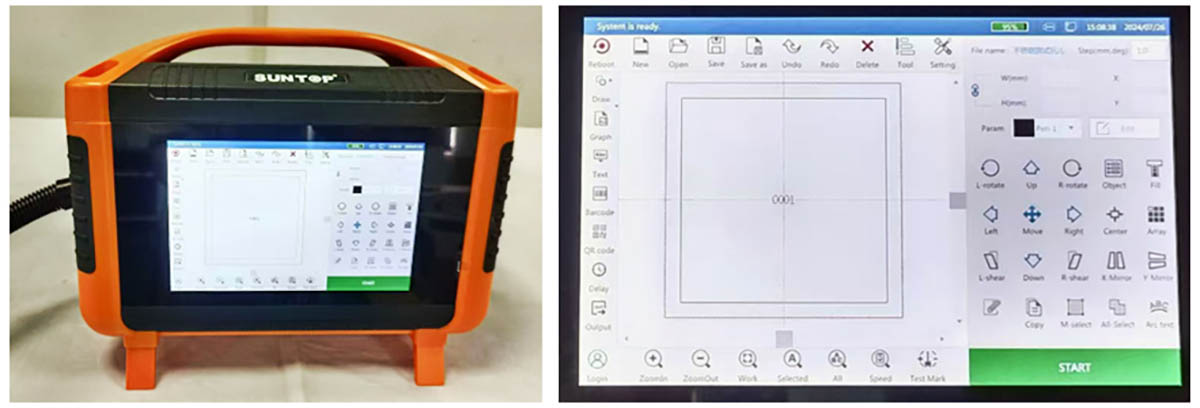

Independent dedicated control system
● Linux system
Equipped with 8-core processor, high security level; stable performance and fast response.
● Large color touch screen
8-inch fully laminated LCD screen, one-button trigger; one machine can be used for multiple purposes, and hardware diversification is compatible.
Multimodal working mode
Battery with removable design, with 2 batteries, easy unlimited battery life
15000mA high capacity battery
Get rid of the socket, offline marking
Marking and charging at the same time
Direct power cord use, charging while marking
Fast power change
Supports swap mode, battery removed for charging
Plug and Play
Plug in and use immediately
Handheld laser engraver application
Application materials
Suitable for working with most metal marking applications such as Gold, Silver, Stainless Steel, Brass, Aluminium, Steel, Iron Titanium etc, and can also mark on many nonmetal materials,such as ABS, Nylon, PES, PVC etc.
Application industry
Metals, alloy, oxide, ABS, epoxy resin, printing ink, etc, which are widely applying for electronics, jewelry, automobiles, communication products, phone keys, plastic translucent keys, jewelry products, key chain, electronic components, integrated circuits (IC), electrical appliances, buckles cookware, stainless steel products and other industries.
Parameters of handheld laser engraver
Laser
Fiber laser generator
Positioning method
Red light positioning
Output power
20W / 30W
Number of lines of engraved characters
Any line within the effective marking range
Marking range
70×70mm / 100×100mm (optional)
Printing speed
800 characters (related to material and printing content)
Deflection mirror
High-precision 3D scanning system
Font
Chinese, English, numbers, traditional Chinese and other standard fonts
