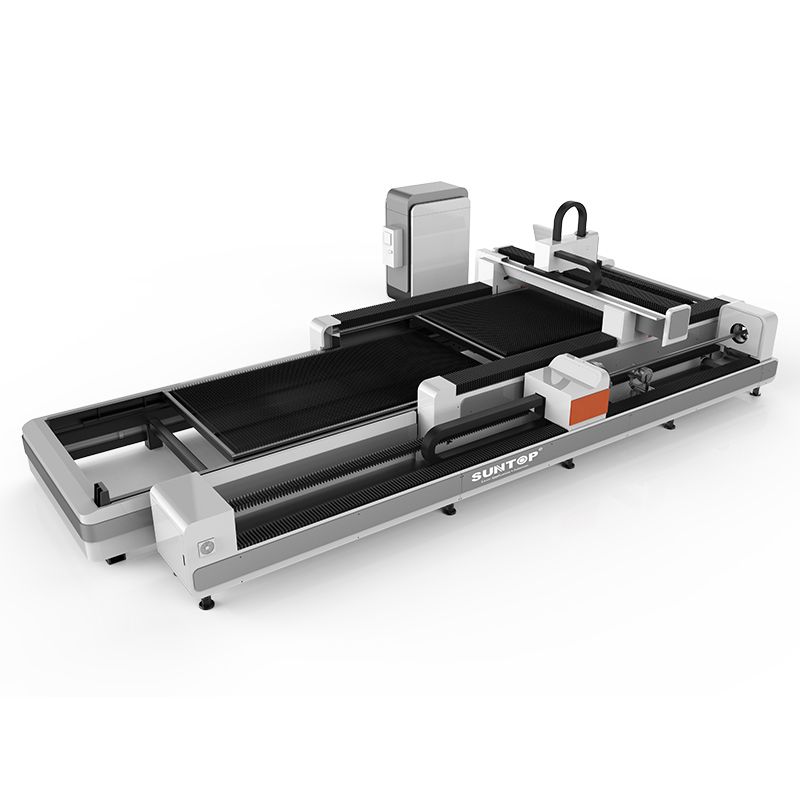

Tube Laser Cutting Machine

Dual exchange platform with tube cutting realizes fully automatic production, breaks through the limitations of cutting, realizes integrated cutting of tube and sheet, greatly saves costs for customers, high-quality profile cutting, and cutting of plates of different thicknesses. It is very suitable for users who have two-way requirements for cutting pipes and plates.
Product Model: ST-FC3015CR/ST-FC4020CR/ST-FC6015CR/ST-FC6020CR
Laser power: 1000W-20KW
Working area: 1500*3000mm (4000*2000mm, 6000*1500mm, 6000*2000mm)
Availability:
Quantity:

PDF Export

Details       Product Parameters       Samples       Video

tube laser cutting machine features-Suntop


Features of tube laser cutting machine

1. Adopt parallel exchange platform, double-sided drive with sprocket chain. It has the characteristics of stability, good rigidity and fast speed

2. The front and rear chucks and drill bits of this machine are all driven by servo motors, cutting without shaking, with high precision and good synchronization.

3. One machine with two cutting functions, not only can cut plates, but also can cut different types of metal pipes. It can save more than 50% space and effectively improve the work efficiency of end users.

4. Automatic tracking, automatic search, automatic nesting, double the efficiency, and achieve a smooth and beautiful cutting surface.

5. Famous brand Raycus, IPG, MAX fiber lasers, stable performance, service life can reach 100,000 hours, and the overall quality of the equipment is guaranteed.


Details of tube laser cutting machine

1. Heavy duty machine tool

The whole machine is made of thick carbon steel structure, and the weight of single machine tool is up to 4 tons. The hollow structure of the high-power machine effectively reduces the heat area during the laser cutting process. The machine tool will not be deformed in long-term use, and also ensures good cutting accuracy, which greatly improves the stability of the machine. At least 20 years of use will not be deformed.

2. 3rd Generation Aviation Aluminum Gantry

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

3. Suntop patented design universal shaft drive exchange platform

Good synchronization performance, high exchange torque, strong overload resistance, long-term reliable operation without failure. Equipped with high power mid-mounted 3KW motor with brake system and hardened gear reducer, large torque output, symmetrical 80mm diameter universal shaft torque transmission, double 16mm chains to drag the table.

4. France Schneider original MCB relay

Independent control of each control circuit, using multiple Schneider air circuit breakers, not subject to strong electrical interference. Industrial grade industrial control host, software system runs stable and smooth without crashing.

5. Suntop laser cutting head lift (Z-axis)

Adopt closed module, fully sealed and protected, effectively prevent cutting dust and smoke from entering the module, avoid and reduce malfunction. Internal integration of ball screw and linear guide, etc., with high integration, small size and high operating accuracy.


Advantages of tube laser cutting machine

1. The whole laser cutting machine adopts servo motor and precision guide rail, which makes the cutting precision high, stable and has a longer service life.

2. High-speed parallel exchange platform, double worktables can be exchanged at the same time, the transmission mode is stable and reliable, and the exchange time is shortened.

3. It has a large working width and is equipped with a pipe cutting device. It can cut both flat plates and round pipes. It has stronger applicability and can save the drilling process. It is suitable for mass production, with high efficiency and high stability.

4. The perfect numerical control system and professional auxiliary control software make the work flexible and efficient, and the machine operation is simple and convenient.

5. The cutting speed is fast, the quality is good, the kerf is small, the deformation is small, the cutting surface is smooth and beautiful, and no follow-up treatment is required.


Tube laser cutting machine application

Application materials

Mainly cutting a variety of metal plates and tubes, suitable for fast cutting of stainless steel, carbon steel, manganese steel, galvanized sheet, various alloy plates, rare metals and other materials.


Application industry

Steel metals processing, advertising sings production, high and low voltage electrical cabinet production, mechanical parts, kitchen utensils, automobile, machinery, metal products, saw blades, electrical parts, optical industry, spring, metal board, kettles, medical microelectronics, hardware, knife measuring tools, petroleum and pipe material, fitness equipment and other pipe material mainly mechanical processing, automotive manufacturing, machine cabinet and other board materials mainly mechanical processing, etc.  and other metal and tubes processing industry.


Parameters of tube laser cutting machine

Model

ST-FC3015CR/ST-FC4020CR/ST-FC6015CR/ST-FC6020CR

Laser power

1000W-20KW

Table Max. cutting size

1500*3000mm (4000*2000mm, 6000*1500mm, 6000*2000mm)

Laser wavelength

1064nm

Transmission system

Double rack & pinion and servo drive

Transmission

High precision screw guide transmission

Maximum speed

120m/min

Repeat positioning accuracy

±0.02mm

Tube cutting standard range

20mm≤Round tube≤220mm,
20mm≤Square tube≤150mm
Other size can be customized

Tube cutting standard length

3000mm/6000mm (other length can be   customized)

Power consumption

<10KW (based on laser power 1000W)

Voltage and frequency

Three phase 380V/50Hz or 60Hz

Machine weight

9000KG

Machine dimension

5050*2480*1830mm (L*W*H)
