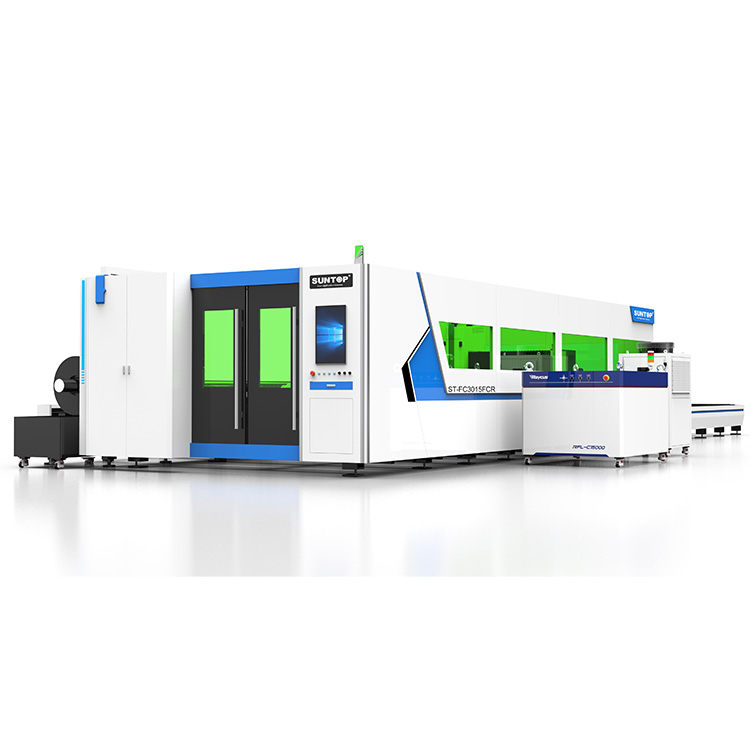

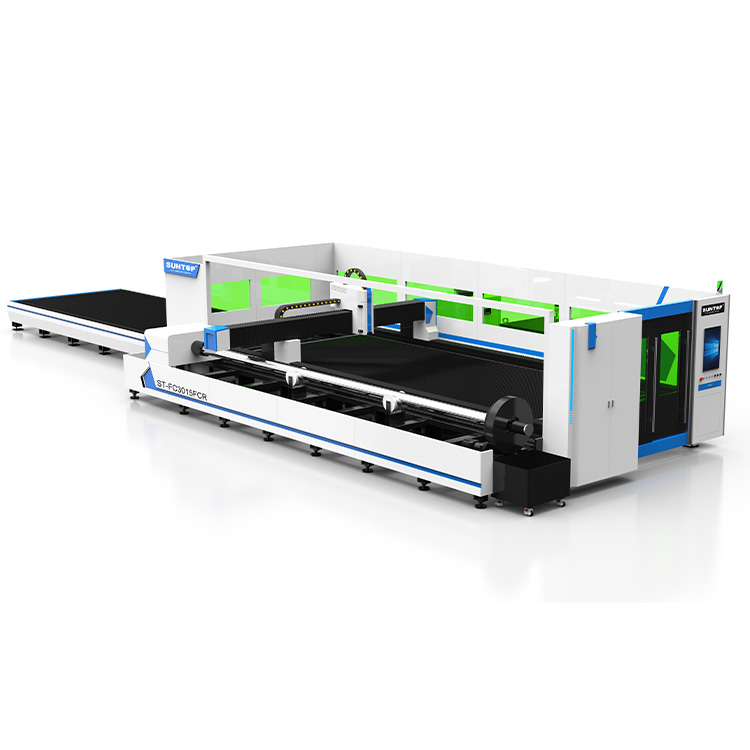

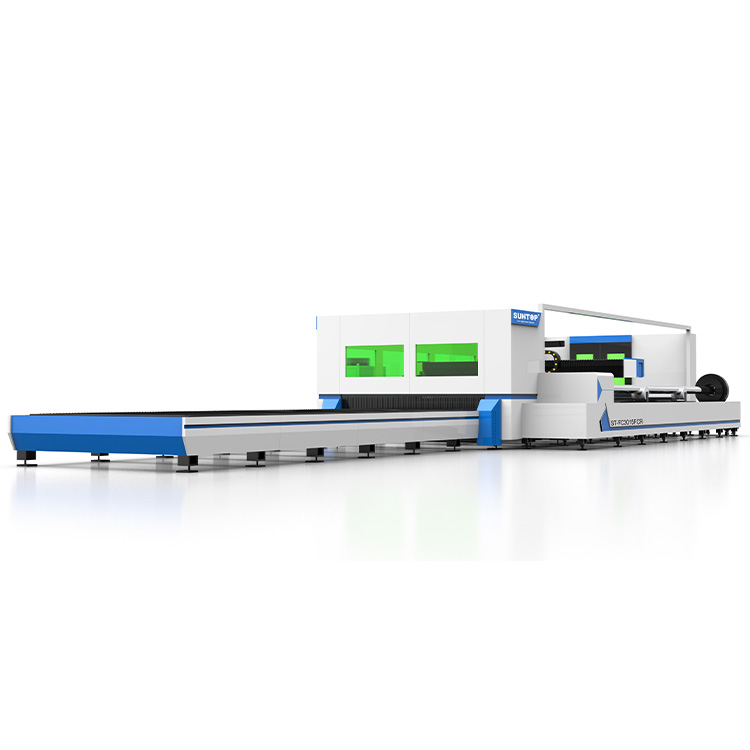

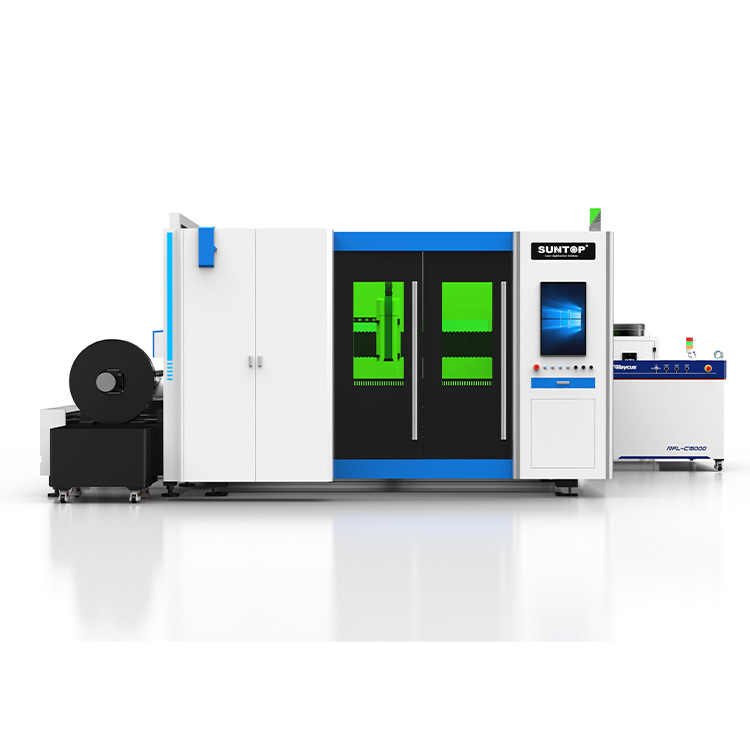

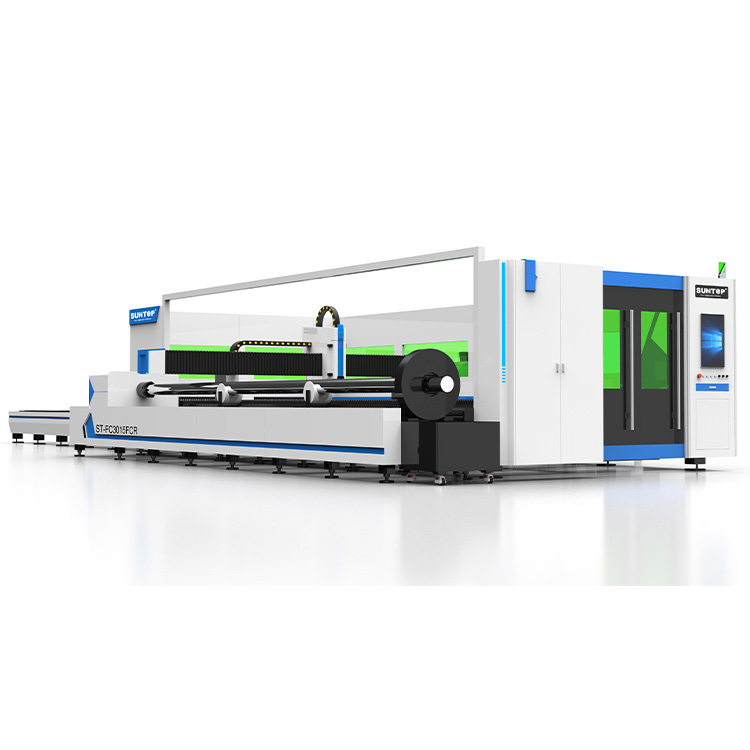

Dual Exchange Platform with Tube Laser Cutting Machine

One machine can be used for both pipe and plate cutting. The machine is equipped with an exchange table structure, so that loading and unloading of plates and cutting can be done simultaneously, which greatly improves the work efficiency. It can cut round, rectangular and shaped pipes and plates at high speed and high quality.
Product Model: ST-FC3015CR/ST-FC4020CR/ST-FC6015CR/ST-FC6020CR
Laser power: 1000W-20KW
Working area: 1500*3000mm (4000*2000mm, 6000*1500mm, 6000*2000mm)

Details       Product Parameters       Samples       Video

Dual exchange platform without enclosed laser cutting machine features-Suntop

Features of dual exchange platform with tube laser cutting machine

1. This machine adopts a parallel exchange structure, the size of the workbench and the length of the pipe can be customized, and the machine can be fully enclosed according to customer requirements.

2. The machine is equipped with pneumatic rotary axes for cutting square, round, rectangular and channel steel tubes, with automatic clamping, pushing and positioning of the central power for true intelligence.

3. The converter is responsible for controlling the exchanging motor, the machine is able to finish the platform exchanging within 15s.

4. Simultaneous loading, unloading and cutting of sheet metal plates from which greatly increases work efficiency.

5. Automatic following system, can realize a calibrating, automatics following for wave surface sheet metal.

6. Heavy-duty machine structure with cross-welded steel plates to support later laser power upgrades.

Details of dual exchange platform with tube laser cutting machine

1. Heavy duty machine tool

The whole machine is made of thick carbon steel structure, and the weight of single machine tool is up to 4 tons. The hollow structure of the high-power machine effectively reduces the heat area during the laser cutting process. The machine tool will not be deformed in long-term use, and also ensures good cutting accuracy, which greatly improves the stability of the machine. At least 20 years of use will not be deformed.

Dual exchange platform without enclosed laser cutting machine tool-Suntop

2. 3rd Generation Aviation Aluminum Gantry

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

Dual exchange platform without enclosed laser cutting machine beam-Suntop

3. Suntop patented design universal shaft drive exchange platform

Good synchronization performance, high exchange torque, strong overload resistance, long-term reliable operation without failure. Equipped with high power mid-mounted 3KW motor with brake system and hardened gear reducer, large torque output, symmetrical 80mm diameter universal shaft torque transmission, double 16mm chains to drag the table.

4. Imported original fiber laser source

Famous brand Raycus, IPG, MAX fiber laser, stable performance, service life can reach 100,000 hours, the overall quality of the equipment is guaranteed.

Dual exchange platform without enclosed laser cutting machine laser source-Suntop

5. France Schneider original MCB relay

Independent control of each control circuit, using multiple Schneider air circuit breakers, not subject to strong electrical interference. Industrial grade industrial control host, software system runs stable and smooth without crashing.

6. Suntop laser cutting head lift (Z-axis)

Adopt closed module, fully sealed and protected, effectively prevent cutting dust and smoke from entering the module, avoid and reduce malfunction. Internal integration of ball screw and linear guide, etc., with high integration, small size and high operating accuracy.

7. Stainless steel protective organ cover

It can effectively prevent the cutting sparks from burning the organ cover and fully and effectively protect the guide rack from mechanical dust and foreign objects.

Advantages of dual exchange platform with tube laser cutting machine

1. One machine is multi-purpose, which can not only meet the customer's cutting requirements for flat plates, but also meet the cutting requirements of round pipes and special-shaped pipes (square steel, flat iron, channel steel, square pipe), with high cost performance.

2. High cutting precision, fast speed, narrow cutting kerf, smooth and burr-free cutting surface, which improves product quality.

3. Various cutting shapes, no mold, not affected by cutting shapes.

4. Imported rack and pinion, guide rail, motor, higher stability.

5. Special software can design or process graphics or text in real time. Flexible and easy to operate.

6. High material utilization rate, one-key processing of any piece of material, programming to form the best nesting method, realizing clean material cutting and improving plate utilization rate.

Dual exchange platform with tube laser cutting machine application

Application materials

Mainly cutting a variety of metal plates and tubes, suitable for fast cutting of stainless steel, carbon steel, manganese steel, galvanized sheet, various alloy plates, rare metals and other materials.

Application industry

Sheet metal processing, advertising signs production, high and low voltage electrical cabinet production, mechanical parts kitchen utensils, automobile, machinery, metal products, saw blades, electrical parts, optical industry, spring, board, kettle, medical microelectronics, hardware, knife measuring tools and other metal processing industrial.

Parameters of dual exchange platform with tube laser cutting machine



Laser power


Table Max. cutting size

1500*3000mm (4000*2000mm, 6000*1500mm, 6000*2000mm)

Laser wavelength


Transmission system

Double rack & pinion and servo drive


High precision screw guide transmission

Maximum speed


Repeat positioning accuracy


Tube cutting standard range

20mm≤Round tube≤220mm,
20mm≤Square tube≤150mm
Other size can be customized

Tube cutting standard length

3000mm/6000mm (other length can be   customized)

Power consumption

<10KW (based on laser power 1000W)

Voltage and frequency

Three phase 380V/50Hz or 60Hz

Machine weight


Machine dimension

5050*2480*1830mm (L*W*H)
