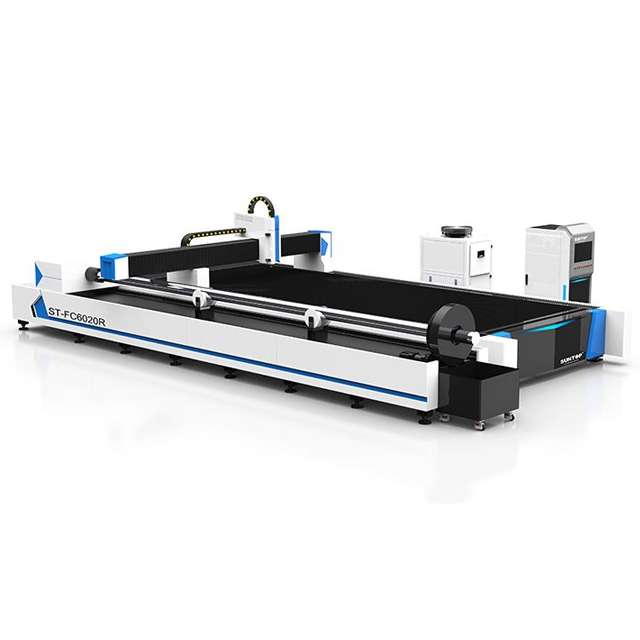

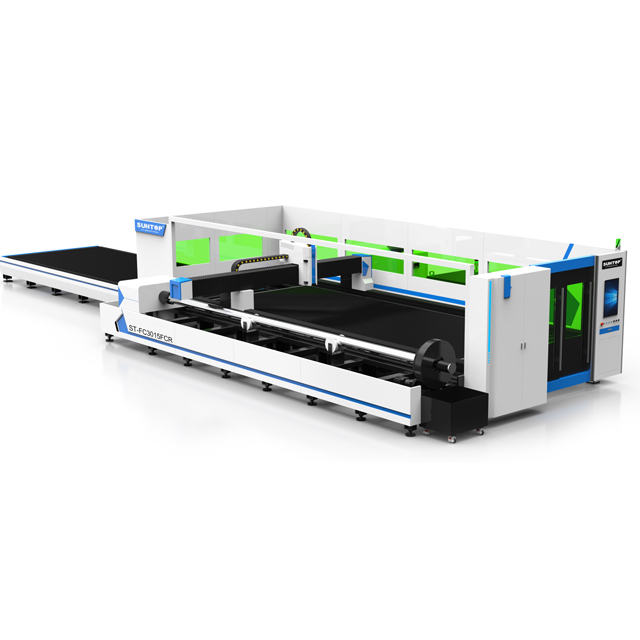

Sheet Metal Laser Cutting

Adopt advanced brand fiber laser and electronic components to ensure the stability of the equipment, cutting pipe device, and provide double cutting function of plates and pipes. It is suitable for cutting square tubes and oblate tubes. It can punch holes, cut graphics, and cut intersecting lines (at any angle), reducing investment costs. It is an ideal choice for users who need double cutting of plates and pipes.
Product Model: ST-FC3015R/ST-FC6015R/ST-FC6020R/ST-FC4020R
Laser power: 1000W-20KW
Working area: 1500*3000mm (6000*1500mm, 6000*2000mm, 4000*2000mm)
Availability:
Quantity:

Details        Product Parameters        Samples       Video

sheet metal laser cutting features-Suntop


Features of sheet metal laser cutting

1. The front and rear chucks and drill bits of this machine are all driven by servo motors, cutting without shaking, with high precision and good synchronization.

2. High-quality guide rail and rack and pinion transmission, high rigidity, smooth operation, low noise, smooth operation, and reduced impact and vibration.

3. Electric self-centering chuck, without manual adjustment, any material with a diameter of 20-150mm does not need to be centered.

4. Auto-following system for calibrating and auto-following the wavy metal plate.

5. It has an automatic alarm function for the abnormal working state of the equipment, and pushes it to the operation interface through the control center, which improves the efficiency of equipment abnormal troubleshooting, reduces potential safety hazards, and reduces maintenance costs.

6. With professional software operating system, you can design various graphics or text at will, which is convenient for editing and modifying the cutting path. Scientific man-machine interface, flexible processing, simple operation and high efficiency.


Details of sheet metal laser cutting

1. Cast aluminum beam

Manufactured by aerospace standards, the beam has high density, high rigidity, and light weight, which can obtain higher dynamic response and improve processing efficiency.

2. Machine tools

A high-power machine tool with a hollow structure is welded with thick steel plates, and the weight of a single machine tool reaches 4 tons. Effectively reduce the heated area during laser cutting. Long-term use of the machine tool will not deform, but also ensure good cutting accuracy, greatly improving the stability of the machine. It will not be deformed after at least 20 years of use.

3. Auto focus laser head

Automatic control of various focal lengths, the focus will be automatically adjusted during the cutting process to achieve better cutting effects for metal pipes of different thicknesses.

4. Electric Chuck

Fully automatic torque control electric chuck, claw DC motor drive, adjustable current, stable performance, wide clamping range, greater clamping force, and can process larger diameter pipes.

5. Fractional automatic support installation

The intelligent pipe support design is adopted to solve the deformation problem during the cutting process of long pipes.

6. Automatic lubrication system

The automatic lubrication system provides lubricating oil regularly and quantitatively for the equipment to ensure the high-speed operation of the equipment, and has abnormal alarm and liquid level alarm functions. This system greatly improves the cutting precision and effectively prolongs the service life of the transmission mechanism.

7. Intelligent alarm system

Intelligent travel protection, automatic monitoring of the working range of components, installation of international machine tool standard limit springs, built-in capacitor height adjustment function of laser cutting head, anti-collision stop, improve equipment safety performance and life safety protection, reduce accidents, and improve cutting efficiency.


Advantages of sheet metal laser cutting

1. Equipped with double platforms for cutting tubes, which can realize the function of double cutting of plates and tubes. One piece of equipment completes multiple processes, which not only reduces the area of the equipment, but also reduces the cost investment of the equipment.

2. Using a unified fixture tool, the entire machining process is completed by programming software. The cutting precision is high, the cutting surface is smooth and beautiful, the kerf is small, and the finished workpiece has no deformation, and can directly enter the next process.

3. Support bevel cutting, double chuck clamping, suitable for all kinds of irregular pipe fittings.

4. The double sprocket structure has a longer service life, and the flexible track has strong deformation adaptability to rough steel pipes.

5. It can process various pipe materials such as round pipe, oval pipe, square pipe and rectangular pipe.

6. Fully intelligent numerical control system, man-machine exchange operation interface, easy to operate.


Sheet metal laser cutting application

Application materials

Mainly cutting a variety of metal plates and tubes, suitable for fast cutting of stainless steel, carbon steel, manganese steel, galvanized sheet, various alloy plates, rare metals and other materials.


Application industry

Widely used in sheet metal processing, round and square pipes, advertising signs production, high and low voltage electrical cabinet production, mechanical parts kitchen utensils, automobiles, machinery, metal products, saw blades, electrical parts, optical industry, spring, board, kettle, medical microelectronics, hardware, knife measuring tools and other metal processing industries.


Parameters of sheet metal laser cutting

Model

ST-FC3015R/ST-FC6015R/ST-FC6020R/ST-FC4020R

Laser power

1000W-20KW

Table Max. cutting size

1500*3000mm (6000*1500mm, 6000*2000mm, 4000*2000mm)

Laser wavelength

1064nm

Repeat positioning accuracy

±0.02mm

Maximum speed

120meter/min

Transmission system

Double rack & pinion and servo drive

Tubes cutting capacity (standard)

Square tubes: 20-150mm (can be customized)
Round tubes: 20-220mm (can be customized)

Tubes length

3 meters or 6 meters

Chuck type

Manual type or pneumatic self-centering chuck

Maximum acceleration

1.5G

Power consumption

6KW (based on laser power 1KW)

Power supply

Three phase 380V/50Hz or 60Hz

Machine weight

7250Kg

Overall size

5050*2480*1830mm (L*W*H)
