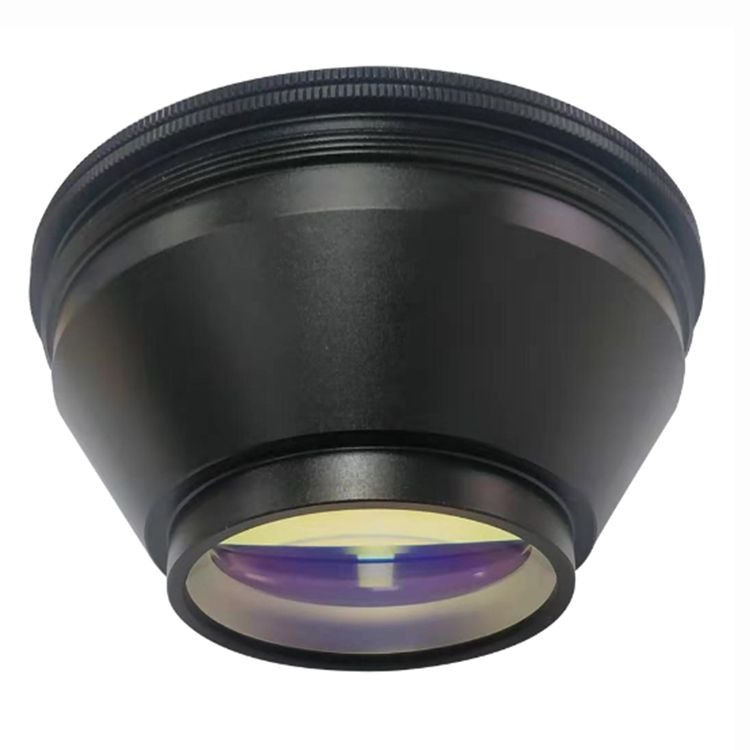

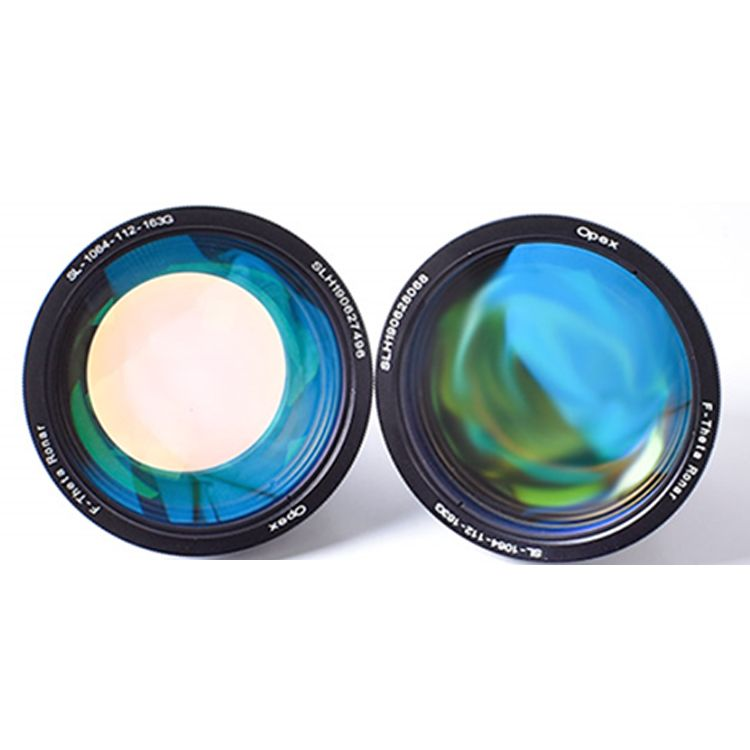

The 1064nm laser F-THETA field lens provided by Suntop adopts high-quality optical design and modern manufacturing technology. Widely used in laser engraving, laser marking industry. F-THETA field lens can obtain high-quality flat-field effect and minimum geometric distortion under the premise of ensuring that the spot reaches the diffraction limit. Suntop laser provides a variety of product models and customer customization options.
• Focusing the collimated laser beam on a smaller area of the focal point increases the energy density of the laser beam and improves the capability and efficiency of laser processing.
• Converts the change of laser beam direction by the oscillator into the change of focal point on the position of the processed material, thus realizing high-speed and precise laser processing machining.
Features of f theta lens
1. 1064 nm design wavelength for Nd:YAG laser system.
2. Flat image plane.
3. Large scanning range: 70 mm x 70 mm to 300 mm x 300 mm.
4. F-Theta distortion less than 0.1% or 1.3%.
5. Optional M85 x 1.0M39 x 1.0 thread version.
6. Air gap design.
7. All optical elements are coated with transparency-enhancing film.
Hot specifications of f theta lens
Model
Focal Length (mm)
Scan Field (mm)
Thread
FL-1064-50-80
80
50*50
M85*1
FL-1064-70-100
100
70*70
M85*1
FL-1064-110-160
160
110*110
M85*1
FL-1064-150-210
210
150*150
M85*1
FL-1064-175-254
254
175*175
M85*1
FL-1064-200-290
290
200*200
M85*1
FL-1064-220-330
330
220*220
M85*1
FL-1064-270-380
380
270*270
M85*1
FL-1064-300-420
420
300*300
M85*1
We can provide field mirrors with different scanning ranges according to customer requirements, and support customization.
Common applications of f theta lens
• Perforating and precision cutting of metal or pottery (e.g. micro holes in PCBs)
• Plastic welding (e.g. fusing plastics without filler material)
Shaping and piercing of metal or non-metallic materials (e.g. openings/vents)
• Cleaning of industrial products (e.g. lenses) or restoration applications (e.g. monuments, etc.)
Parameters of cleaning laser lenses
Product Name
F-Theta Scan Lens
Wavelength
1064nm/355nm/532nm/10.6um/1550nm
Specification
50x50F=63MM~600X600F=900mm
Application Video
The role of f theta lens
• Focusing the collimated laser beam on a smaller area of the focal point increases the energy density of the laser beam and improves the capability and efficiency of laser processing.
• Converts the change of laser beam direction by the oscillator into the change of focal point on the position of the processed material, thus realizing high-speed and precise laser processing machining.
Features of f theta lens
1. 1064 nm design wavelength for Nd:YAG laser system.
2. Flat image plane.
3. Large scanning range: 70 mm x 70 mm to 300 mm x 300 mm.
4. F-Theta distortion less than 0.1% or 1.3%.
5. Optional M85 x 1.0M39 x 1.0 thread version.
6. Air gap design.
7. All optical elements are coated with transparency-enhancing film.
Hot specifications of f theta lens
Model
Focal Length (mm)
Scan Field (mm)
Thread
FL-1064-50-80
80
50*50
M85*1
FL-1064-70-100
100
70*70
M85*1
FL-1064-110-160
160
110*110
M85*1
FL-1064-150-210
210
150*150
M85*1
FL-1064-175-254
254
175*175
M85*1
FL-1064-200-290
290
200*200
M85*1
FL-1064-220-330
330
220*220
M85*1
FL-1064-270-380
380
270*270
M85*1
FL-1064-300-420
420
300*300
M85*1
We can provide field mirrors with different scanning ranges according to customer requirements, and support customization.
Common applications of f theta lens
• Perforating and precision cutting of metal or pottery (e.g. micro holes in PCBs)
• Plastic welding (e.g. fusing plastics without filler material)
Shaping and piercing of metal or non-metallic materials (e.g. openings/vents)
