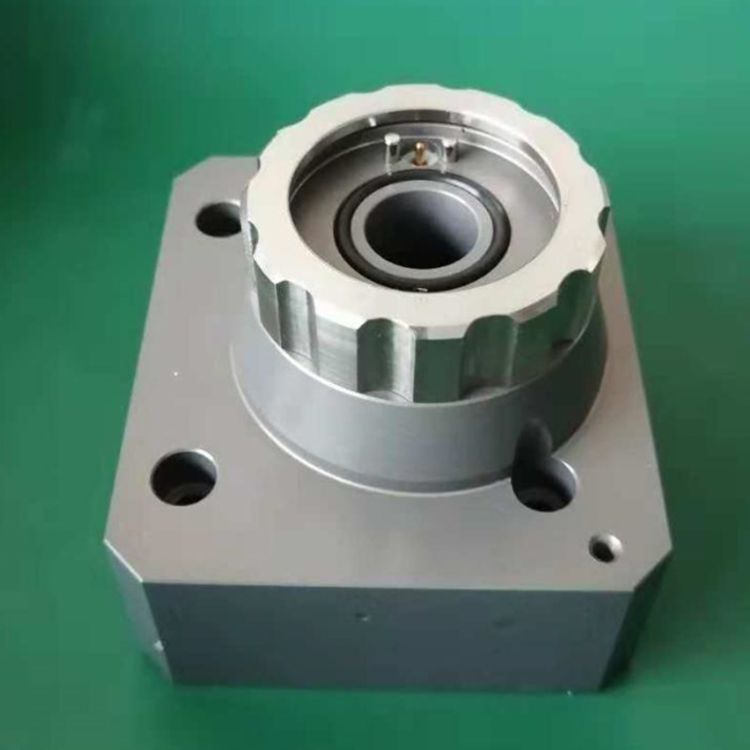

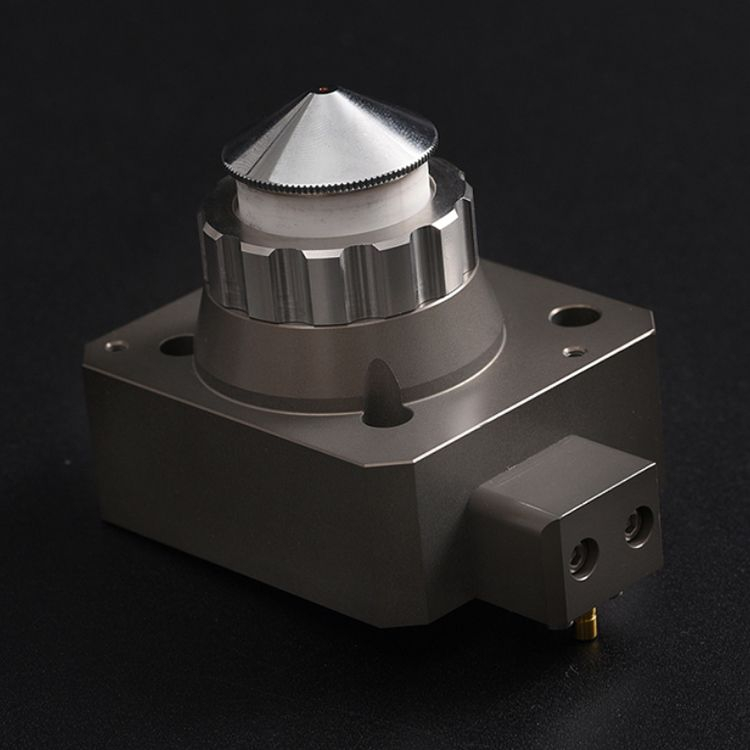

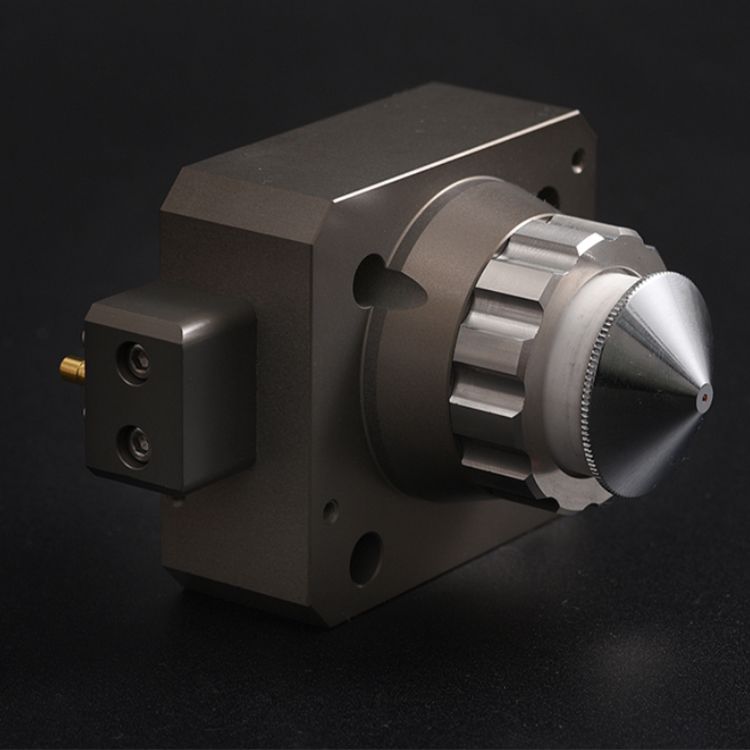

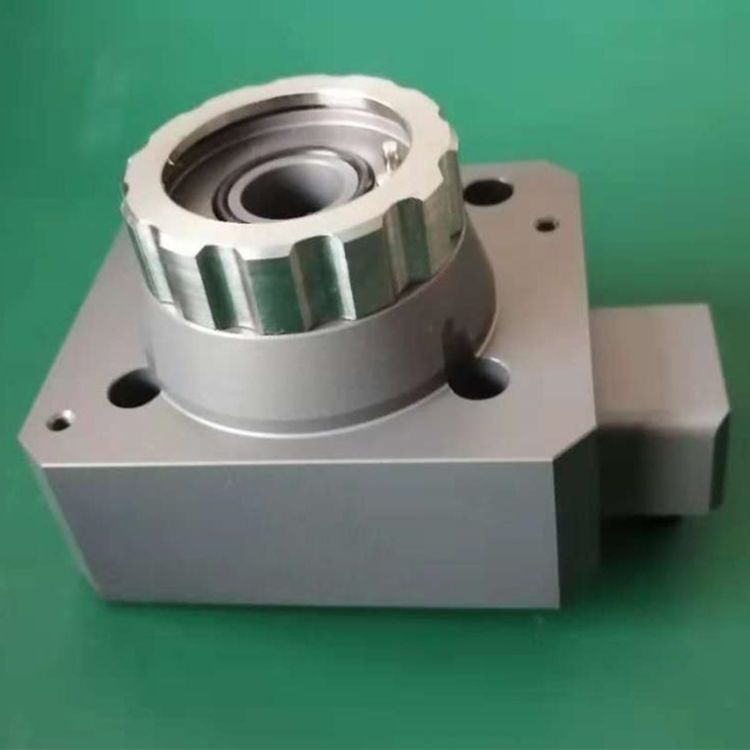

Laser Cutting Head Connector

Efficient, reliable and versatile connectors are widely used in fiber cutting machines, welding machines and other equipment.
Availability:
Quantity:

PDF Export

What is a laser cutting head connector?

The laser cutting head connector is a specially designed mechanical and electrical connection component located between the laser source and the cutting head of the laser cutting machine. Its main function is to transmit the laser beam while ensuring that the cutting head obtains the required power and control signals. The quality and design of the connector directly affect the overall performance, cutting quality and work efficiency of the laser cutting machine.


How laser cutting works

During the laser cutting process, the laser transmits the laser beam to the cutting head through an optical fiber or lens. The cutting head connector ensures that the laser beam reaches the laser cutting head accurately and efficiently, and maintains the stability of the laser optical path during the process. In addition, the cutting head connector is also responsible for mechanical fixation and electrical connection to optimize the laser cutting process.


Components of laser cutting head connector

The laser cutting head connector usually consists of the following key parts:

Laser inlet: Receives the laser beam from the laser source.

Fiber or lens system: Used to guide and focus the laser beam to ensure the intensity and quality of the laser beam.

Mechanical fixing fixture: Maintains the stability of the cutting head to prevent displacement during the cutting process.

Electrical connection interface: supports the transmission of power and control signals, enabling the cutting head to respond quickly to control commands.

Cooling channel: maintains the temperature of the cutting head during high-intensity cutting to avoid overheating damage.


Product features

1. Quick locking and positioning: Through the two-step locking mechanism, the fiber optic connector, cutting head and welding head can be quickly locked and positioned to ensure the stability and reliability of the connection.

2. Quick disassembly: Disassemble the fiber optic connector, cutting head and welding head conveniently and quickly to improve work efficiency.

3. High precision: It has a high-precision positioning surface and locking mechanism to ensure the accuracy and stability of the connection.

4. Anti-vibration: Using anti-vibration design, it can resist vibration during work and improve the stability and service life of the equipment.

5. Versatility: Suitable for various types and specifications of optical fiber connectors, cutting heads and welding heads, with wide applicability.


Importance of product design

The design of the connector is critical to the overall performance of laser cutting. Design considerations include:

Optical alignment accuracy: ensures that the laser beam remains consistent during transmission, thereby improving cutting quality.

Material selection: use high-temperature and corrosion-resistant materials to increase the service life of the product and reduce maintenance frequency.

Sealed design: dustproof and waterproof to ensure that internal components are not affected by the outside world, thereby ensuring long-term stable working performance.

Compatibility: The design is suitable for a variety of brands and models of laser cutting equipment to meet market demand.


Performance impact

The performance of the connector will directly affect the following aspects:

Cutting accuracy: high-quality connectors can ensure stable transmission of the laser beam and reduce cutting errors.

Work efficiency: reasonable design and materials enable the connector to work efficiently during laser cutting and extend the operating time of the equipment.

Equipment durability: good material selection and design help reduce the risk of component aging and damage, thereby ensuring the long-term use of laser equipment.


Market demand and development prospects

With the rapid development of industrial automation and high-precision manufacturing technology, the popularity of laser cutting equipment continues to increase, which directly drives the market demand for laser cutting head connectors. Efficiency optimization, cost reduction and quality improvement in the industrial chain have made the application scope of laser cutting technology increasingly extensive, including automotive manufacturing, aerospace, electronic devices, building materials and other fields.


Laser cutting head connector is one of the important components of laser cutting technology. Its design and performance have a direct impact on cutting quality, efficiency and equipment durability. With the continuous growth of market demand for laser cutting technology, laser cutting head connectors will also play an increasingly important role in promoting the development of the entire laser cutting industry.
