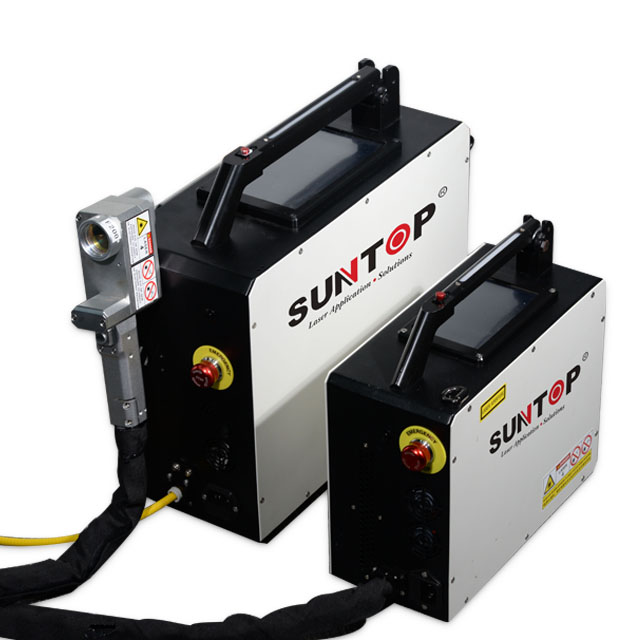

Mini Laser Cleaning Machine

It is composed of laser, laser optical system and control system to realize handheld laser cleaning. The equipment is easy to install, control and automate. It is simple to operate. Just turn on the power and turn on the device to perform cleaning without chemical reagents, media, dust, and water. It can automatically focus, clean on curved surfaces, and has high cleaning surface cleanliness. It can remove resin and oil stains on the surface of objects. , stains, dirt, rust, coatings, plating, paint.
Product Model: ST-FW1500H/ST-FW2000H/ST-FW3000H
Laser power: 1500W/2000W/3000W
Single maximum welding thickness: 0.5-8mm
Availability:
Quantity:

Details        Product Parameters        Samples       Video

mini laser cleaning machine features-Suntop


Features of mini laser cleaning machine


1. The machine has an integrated design and a reasonable structure, making it dustproof and providing good heat dissipation. This effectively prolongs the service life of machine parts.

2. The laser cleaning head is handheld, making it light and easy to operate. It can work for extended periods of time.

3. The intelligent control system has a clear and concise interface, making it easy to operate. It allows for the setting of various parameters to control the laser.

4. The machine comes with a 10-meter original optical cable and universal big casters. This allows for left and right movement, making it convenient to clean objects that are difficult to move.

5. The machine has a built-in cold water design, which eliminates the need for wire bondage. It can adapt to various working conditions and places, providing a good dustproof and anti-condensation effect.

6. The machine is equipped with multiple safety alarm functions, ensuring high security and the absolute safety of the operator during work.


Details of mini laser cleaning machine


1. Multiple core functions

The handle and work light are combined into one, with one-button transformation to indicate the working status and save space.

2. Independently developed mini chassis

The chassis handle is made of aluminum alloy material, with good texture, lightweight and durable, and the curved design makes it more convenient to carry. The mini package is only the size of a toolbox, lightweight and convenient.

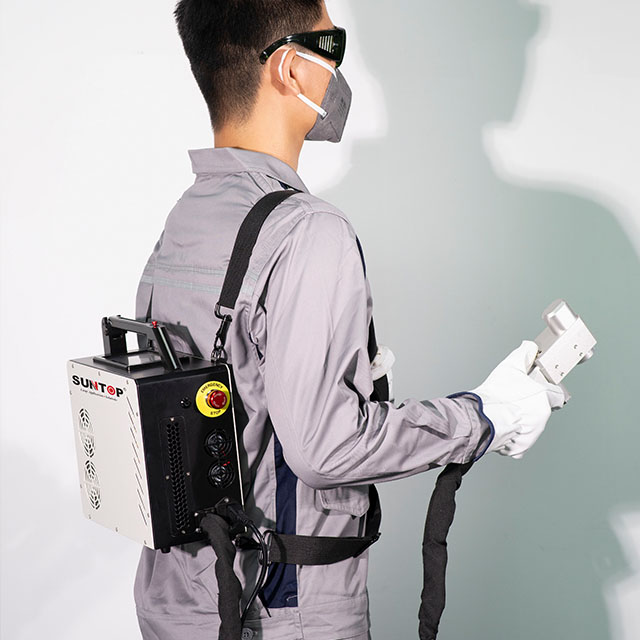

3. Unique and innovative backpack design

The chassis is equipped with backpack strap buckles, which can be carried on the shoulders by hanging the backpack straps, and even if carried, it can free up both hands.

4. Exclusive mini laser cleaning head

It is only the size of a cigarette box, weighing only 700 grams. It can be held for a long time without fatigue, and can stably withstand 300W without heating up.

5. Touch screen

Small and intelligent, easy to operate, more user-friendly.

6. Air cooling

Large displacement air outlet, strong heat dissipation, and novel appearance.

mini laser cleaning machine details-Suntop


Advantages of mini laser cleaning machine


1. Non-contact cleaning, causing no damage to the workpiece.

2. Precise positioning allows for selective cleaning, targeting specific areas on the workpiece.

3. No need for chemical cleaning agents or consumables, ensuring safety and environmental protection.

4. Easy to operate, can be used as a portable device or equipped with an automatic cleaning robot.

5. Offers high cleaning efficiency, saving time and effort.

6. The laser cleaning system is stable and requires no maintenance.


Cleaning ability (only for reference)


Power/W

Material

Cleaning speed

Effective beam/cleaning range

Depth of cleaning

Cleaning efficiency (cu.m./H)

1500

floating rust

50mm/S

150mm

20um

15

Paint

50mm/S

150mm

100um

6

Rusting

50mm/S

150mm

120um

4

2000

floating rust

50mm/S

300mm

20um

20

Paint

50mm/S

300mm

100um

8

Rusting

50mm/S

300mm

120um

5

3000

floating rust

50mm/S

300mm

20um

30

Paint

50mm/S

300mm

100um

14

Rusting

50mm/S

300mm

120um

9


Handheld cleaning head

mini laser cleaning machine head-Suntop


● High cleaning cleanliness, big welding width up to 300mm.

● Precise positioning and cleaning, weight only 0.7KG, easy to hand it.

● Non-contact material when cleaning that can protect the material.

● Effectively remove micron-sized particles.

● Environment friendly, no consumables.


Application materials


Suitable for removing resin, paint, oil stains, stains, dirt, rust, coatings, etc. from the surface of objects.


Application industry


Widely used in mold industry, automobile manufacturing, shipbuilding, food processing, sewage treatment, rubber tires, petrochemical industries, aerospace, electronic products, automobile manufacturing, track facilities, high-end machine tools, mold industry, food processing, shipbuilding, Military industry, medical treatment, cultural relics, etc.


Parameters of mini laser cleaning machine


Model

ST-FLC1500H

ST-FLC2000H

ST-FLC3000H

Power

1500W

2000W

3000W

Laser wavelength

1064nm

Operation mode

Handheld

Power adjustment range (%)

10-100 (Gradient adjustable)

Cleaning head weight

0.7Kg

Delivery cable length

10M (can be customized)

Cooling system

Water Cooled with automatic pumping function

Input power

220V±10% 50-60HZ

380V±10% 50-60HZ

Power consumption

4500W

6000W

8000W

Max. cleaning width

200*200mm

250*250mm

300*300mm

Machine weight

120KG

200KG

220KG

Machine size

935*720*1248mm

1500*880*1160mm



mini laser cleaning machine samples-Suntop
