Ss Engravers

Details             Product Parameters             Samples            Video

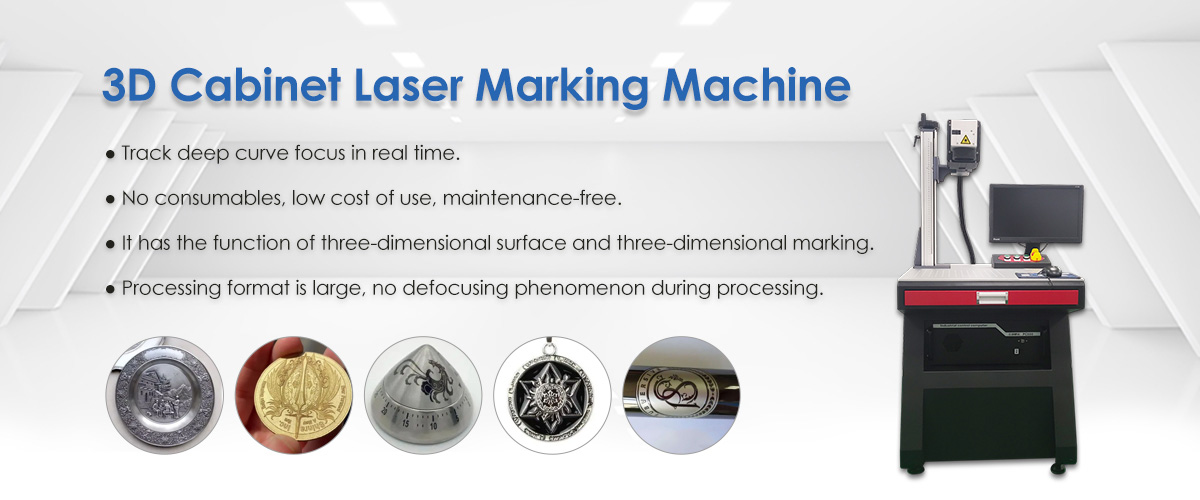

Features of ss engravers

● Subvert the traditional two-dimensional marking mode, to achieve all-round marking, can be engraved bevel, cylinder, cone, sphere and other different 3D shapes.

● Automatically calculate the arc and automatically adjust the focus, can be multi-level large format, three-dimensional surface marking.

● Adopting 3D fine marking system software, it can meet various manual engraving needs, such as relief pattern, deep engraving, negative engraving, etc., which improves the three-dimensional beauty of details.

● Can import mainstream 3D software graphics, and simple editing of graphics, easy to operate.

● Adopt multi-axis dynamic zoom technology, real-time tracking deep curve focus.

● With 3D surface three-dimensional marking function, can focus the fine light point within the relative height standard of 0~60mm size tolerance, symmetrical marking. No need to zoom to mark curved surfaces, beveled surfaces, steps, spheres, cylinders, cones and other irregular products.

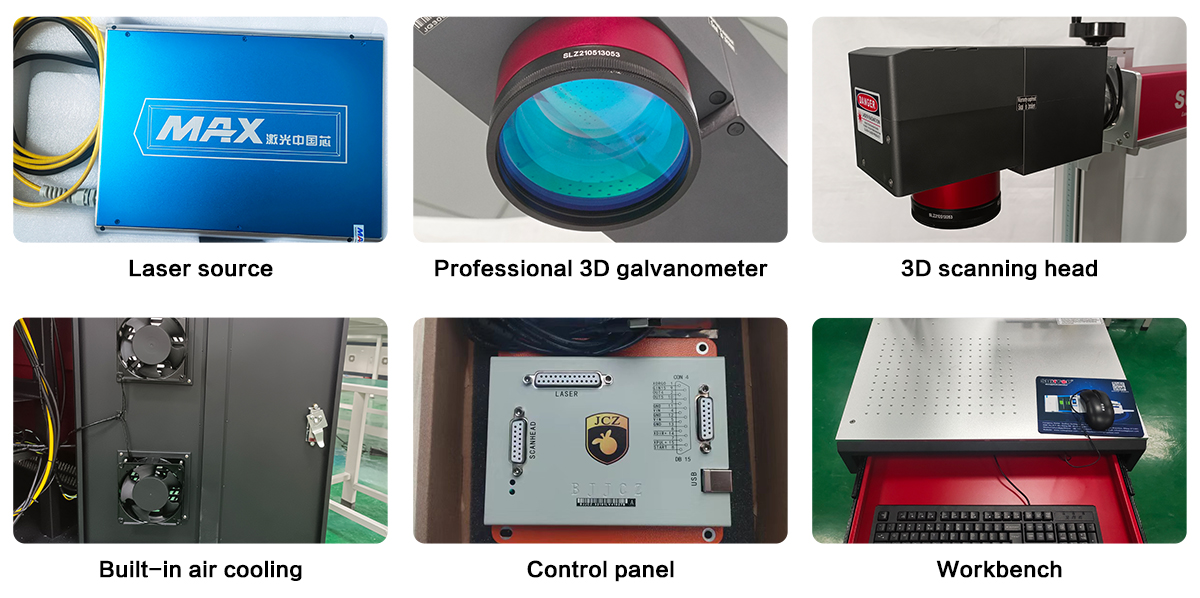

Details of ss engravers

1. Laser source

Adopt famous brand Raycus / JPT / MAX / IPG laser, with excellent beam quality, stable light output, fine spot and strong focusing effect.

2. 3D digital scanning head

Adopt famous brand SINO-GALVO scanning head, high marking speed and high precision. x, y, z-axis, irregular/surface marking, z-axis can move flexibly and automatically.

3. Professional 3D vibrating mirror

Variable focal length, precise control of focal position, ensure focal size and spot quality to realize the engraving of irregular products.

4. Control card

EZCAD control system, hardware processing data fast and high precision, support high speed and high precision marking function.

Advantages of ss engravers

● High precision: Laser engraving technology can achieve very fine engraving effects, with clear outlines and rich details.

● High efficiency: Laser engraving is fast and highly automated, and can quickly complete a large number of engraving tasks.

● Non-contact processing: Laser engraving is a non-contact processing technology that does not leave marks or deformation on the material surface. It is suitable for occasions with high requirements on the surface of the workpiece.

● Flexible design: personalized design can be carried out according to customer needs to achieve diversified patterns, text or image engravings.

● Material saving: Laser engraving is a processing method that does not require contact with the tool, which can minimize the waste of materials.

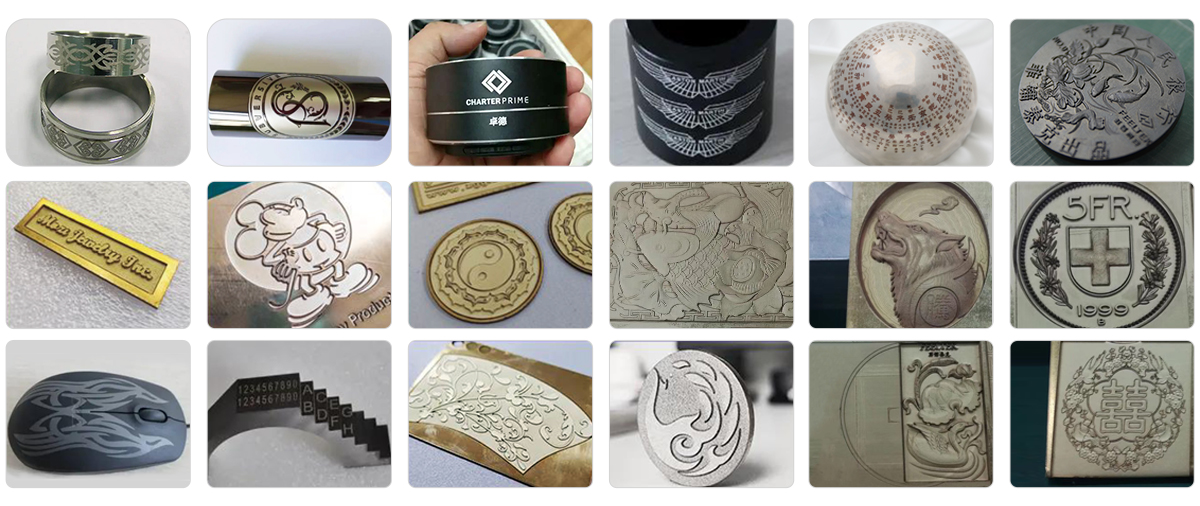

Application materials of ss engravers

Suitable for working with most metal marking applications such as Gold, Silver, Stainless Steel, Brass, Aluminium, Steel, Iron Titanium etc, and can also mark on many nonmetal materials,such as ABS, Nylon, PES, PVC etc.

Application industry of ss engravers

Widely used in integrated circuit chips, computer accessories, industrial bearings, clocks and watches, electronic and communication products, aerospace devices, various auto parts, home appliances, hardware tools, molds, wires and cables, food packaging, jewelry, tobacco and military affairs, etc. Marking of graphics and text in the field, as well as mass production line operations.

Parameters of ss engravers
