Self-centering Mold Fixture

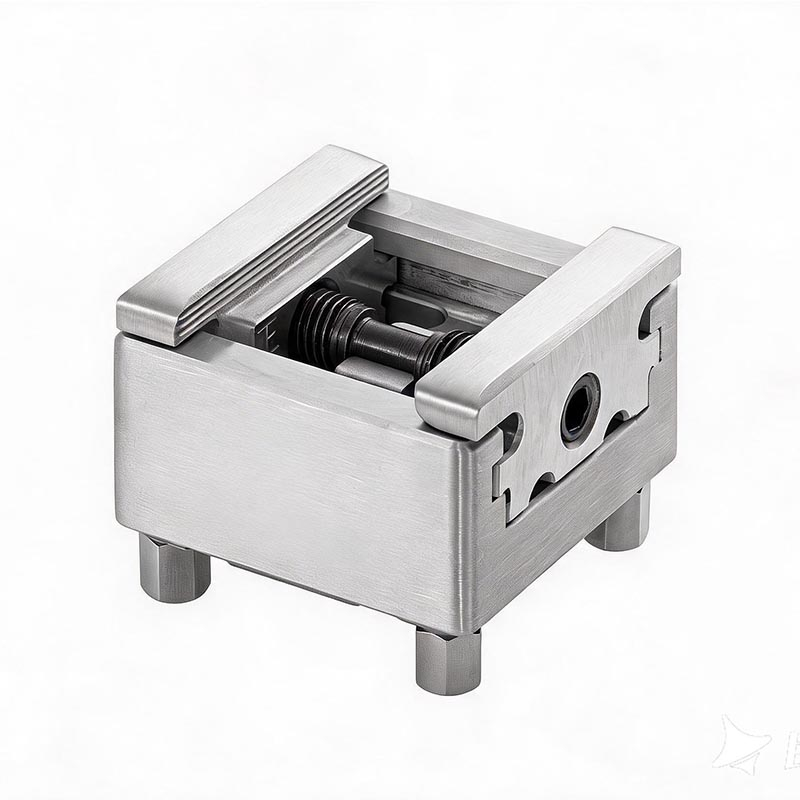

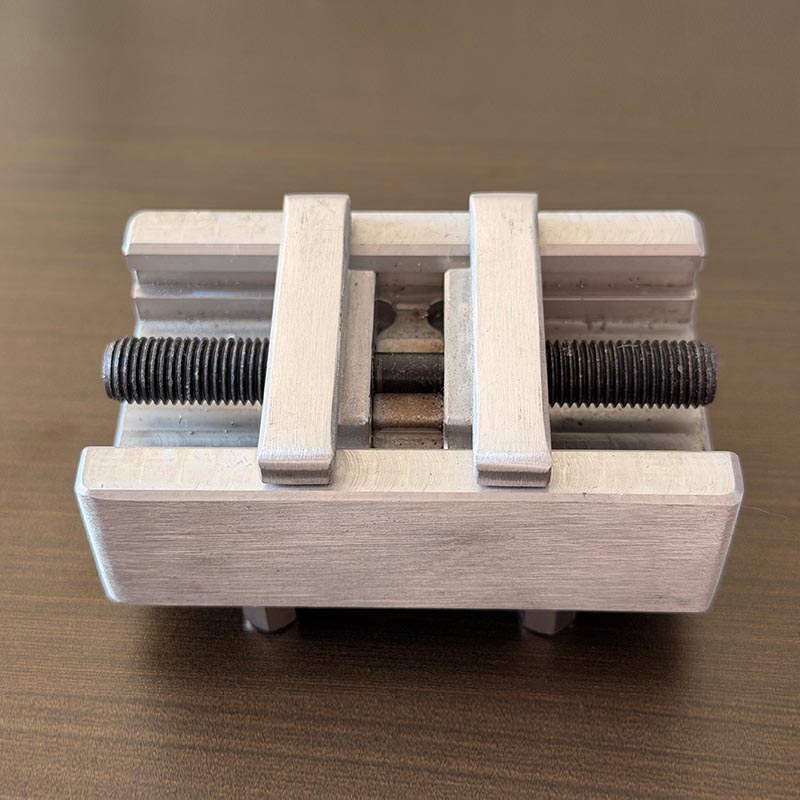

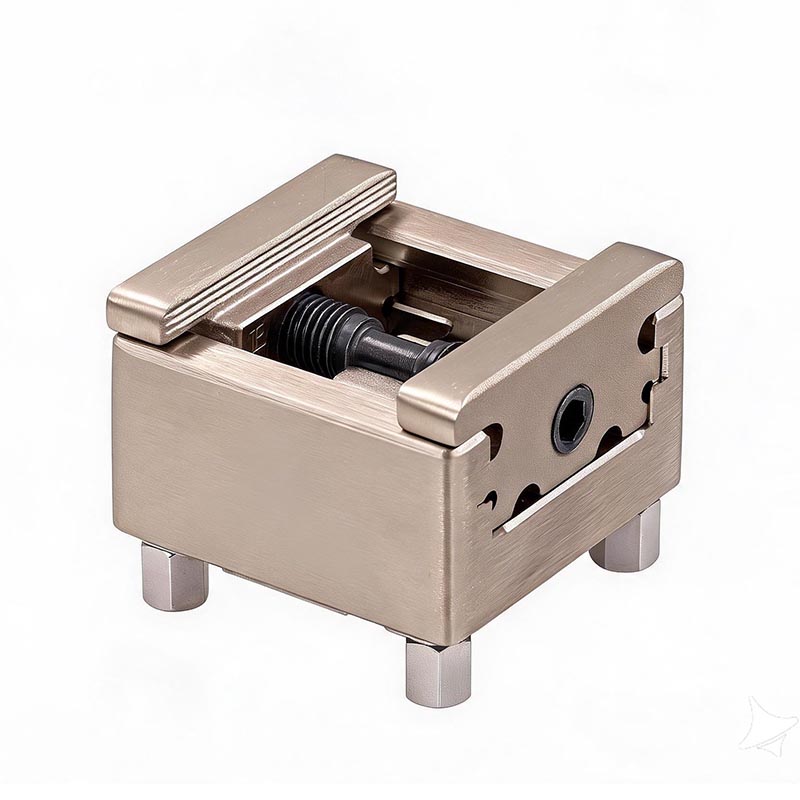

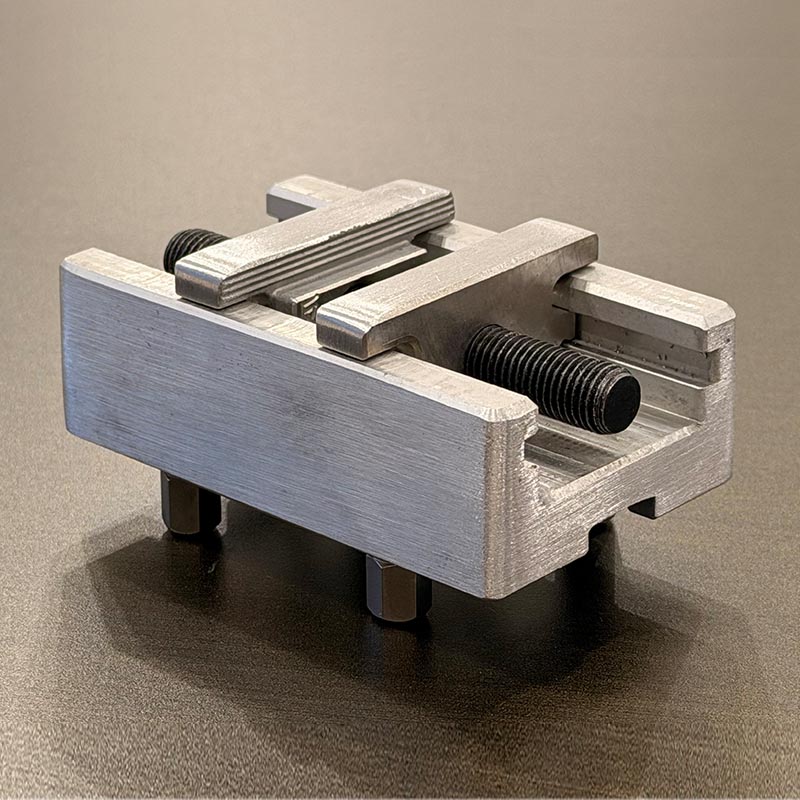

This upgraded self-centering mold positioning fixture is a high-precision tooling accessory designed to overcome the shortcomings of traditional U-slot and legacy electrode fixtures.

It eliminates the need for manual centering operations by incorporating an intelligent automatic centering mechanism that adapts to various electrode sizes, making it perfectly suited for mold CNC and EDM machining environments. Compared to traditional fixtures, it boosts overall clamping efficiency by 4.5 times and effectively resolves industry pain points such as significant eccentricity errors, complex specifications, cumbersome operation, and labor-intensive processes. It serves as a highly efficient, precise, and versatile positioning tool for mold machining workshops.

1. Automatic centering design: Eliminates the need for manual centering calibration; clamping is completed in a single step, preventing positioning errors caused by manual handling.

2. Excellent compatibility: Supports adjustment for multiple electrode sizes; a single unit meets diverse machining needs without requiring fixture changes.

3. Stable positioning accuracy: Completely resolves issues with severe eccentricity and inaccurate positioning common in traditional U-slot fixtures, ensuring machining consistency.

4. Robust and durable structure: Offers high stability and resistance to deformation during long-term, high-frequency use, making it ideal for batch production in workshops.

5. Simple and convenient operation: Easy to use with no steep learning curve; significantly simplifies the clamping process and lowers technical requirements for operators.

1. Significant efficiency boost: Increases overall clamping efficiency by 4.5 times compared to traditional U-slot fixtures, drastically reducing setup and calibration time while minimizing equipment idle time.

2. Labor cost savings: Eliminates tedious manual centering steps and the need for dedicated personnel to repeatedly calibrate positioning, effectively reducing labor input and the risk of human error.

3. Enhanced versatility: Replaces a wide variety of complex legacy electrode fixtures, eliminating the hassle of stocking and changing multiple specifications, thereby reducing procurement and storage costs.

4. Superior machining quality: Ensures precise positioning via automatic centering with zero eccentricity error, effectively improving machining accuracy for molds and electrodes while reducing workpiece scrap and rework. 5. Offers broader compatibility, ensuring long-term, stable performance across various mold finishing applications; highly durable, delivering superior overall cost-effectiveness compared to traditional fixtures.
