Details Product Parameters Samples Video

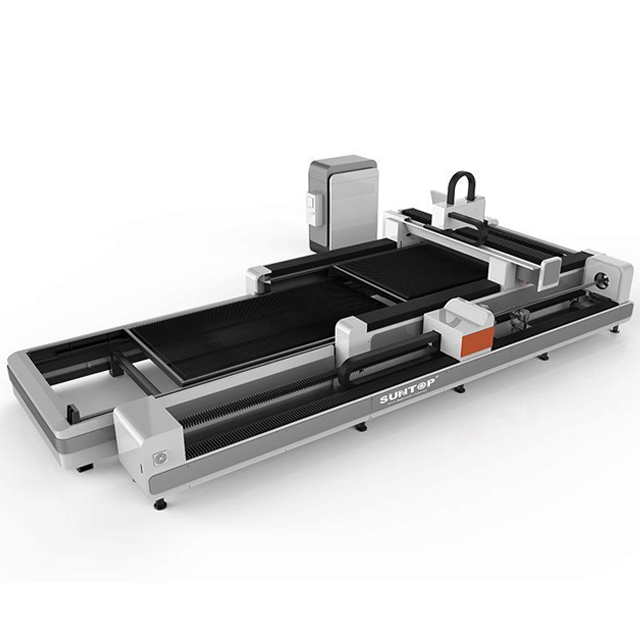

1. Dual-platform fast exchange system, using well-known guide rails, racks, motors, reducers, etc. as transmission mechanism components, high-speed parallel exchange platform design, can complete the exchange within 10s.
2. Front and rear chucks and drills are driven by servo motors, cutting without vibration, high precision and good synchronization.
3. Gantry double-drive structure, the beam is extruded from high-strength aluminum alloy, which effectively improves the dynamic performance of the machine tool.
4. Automatic tracking system for calibration and automatic tracking of corrugated metal plates.
5. It has an automatic alarm function for equipment abnormality status, and pushes it to the operation interface through the control center, which improves the efficiency of equipment abnormality troubleshooting, reduces safety hazards, and reduces maintenance costs.
1. Fully automatic pneumatic chuck
Pneumatic clamping, the air pressure remains constant after clamping, the clamping force is large and constant, and the pipe does not loosen or slip. It can realize the fast clamping of special-shaped tubes such as rectangular tubes and elliptical tubes, and the jaws need to be customized for special tube types.
2. Third generation aviation aluminum door frame
It is manufactured by aerospace standard and extruded by 4300 tons press. After aging treatment, its strength can reach 6061 T6, which is the highest strength among all gantries. Aviation aluminum has the advantages of good toughness, light weight, corrosion resistance, oxidation resistance and low density, which greatly improves the processing speed.
3. Segmented rectangular tube welding machine
The internal structure of the bed adopts aircraft metal honeycomb structure, which is welded by multiple rectangular tubes. The tube is equipped with reinforcement bars, which increases the strength and tensile strength of the bed, and also increases the resistance and stability of the guide rail, effectively avoiding the deformation of the bed. High strength, stability, tensile strength, to ensure the use of 20 years without deformation
4. Auto-focus laser head
The focus scale can be flexibly adjusted, no need to manually focus, easy to operate. Control the vertical height, automatic focus, quickly complete the high-speed piercing of thick plates and automatically cut materials of different thicknesses.
1. Parallel exchange platform, bilateral drive with sprocket chain. It has the advantages of stability, good rigidity and fast speed.
2. One machine with two functions, saving cost. Cutting metal sheets and pipes, with a wide range of uses, can save more than 50% of the space, and effectively improve production efficiency.
3. High-performance, imported original fiber laser with stable performance and a lifespan of more than 100,000 hours.
4. High cutting precision, fast speed, good quality, small kerf, small deformation, smooth and beautiful cutting surface, no need for subsequent processing.
5. With professional software operating system, you can design various graphics or text at will, which is convenient for editing and modifying the cutting path. Scientific man-machine interface, flexible processing, simple operation and high efficiency.
Application materials
Mainly cutting a variety of metal plates and tubes, suitable for fast cutting of stainless steel, carbon steel, manganese steel, galvanized sheet, various alloy plates, rare metals and other materials.
Application industry
Widely used in national key industrial fields such as aviation, metallurgy, shipbuilding, and equipment, as well as manufacturing industries such as automobiles, machinery, sheet metal, packaging, agricultural equipment, kitchen utensils, medical equipment, sports equipment, environmental protection equipment, elevator equipment, and advertising signs.

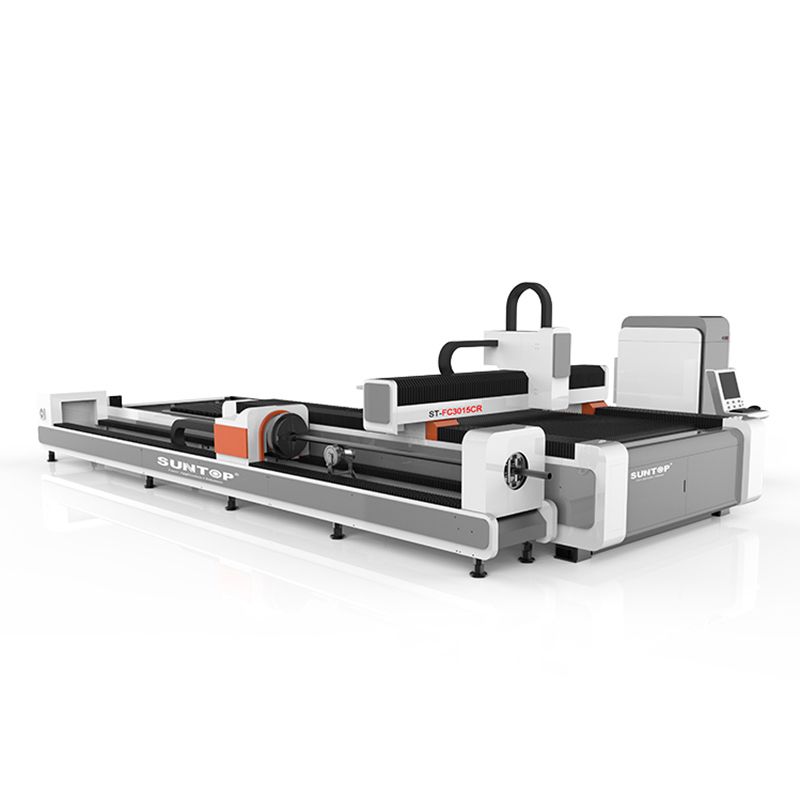

Model | ST-FC3015CR/ST-FC4020CR/ST-FC6015CR/ST-FC6020CR |
Laser power | 1000W-20KW |
Table Max. cutting size | 1500*3000mm (4000*2000mm, 6000*1500mm, 6000*2000mm) |
Laser wavelength | 1064nm |
Transmission system | Double rack & pinion and servo drive |
Transmission | High precision screw guide transmission |
Maximum speed | 120m/min |
Repeat positioning accuracy | ±0.02mm |
Tube cutting standard range | 20mm≤Round tube≤220mm, |
Tube cutting standard length | 3000mm/6000mm (other length can be customized) |
Power consumption | <10KW (based on laser power 1000W) |
Voltage and frequency | Three phase 380V/50Hz or 60Hz |
Machine weight | 9000KG |
Machine dimension | 5050*2480*1830mm (L*W*H) |
