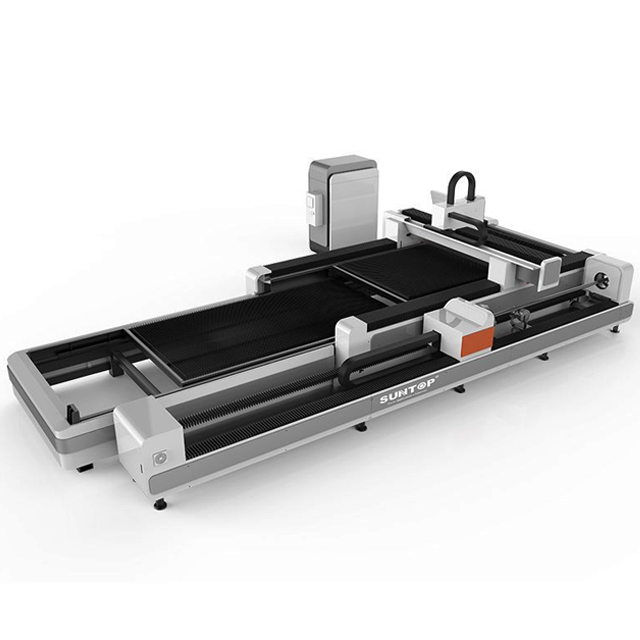

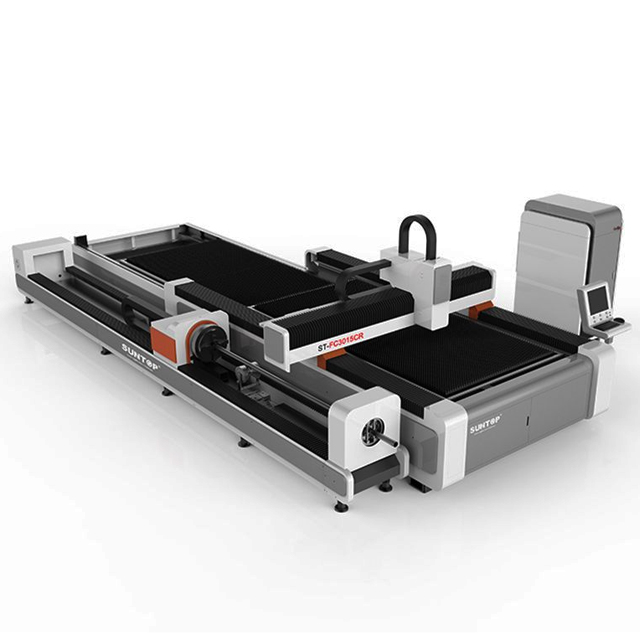

Laser Key Cutting Machine

The exchangeable workbench structure, one machine with dual functions, rich equipment functions, solves the cutting plan of various types of workpieces, can not only cut metal sheets, but also cut metal pipes, which is economical and brings higher production efficiency.
Product Model: ST-FC3015CR/ST-FC4020CR/ST-FC6015CR/ST-FC6020CR
Laser power: 1000W-20KW
Working area: 1500*3000/4000*2000/6000*1500/6000*2000mm (Customizable)

Availability:

Quantity:



Inquire PDF Export

Product Description

Details Product Parameters Samples Video

Product Introduction

Since the advent of laser cutting technology in the 1960s, with the continuous development and progress of science and technology, it has become an indispensable and important processing method in modern manufacturing. Laser cutting is widely used in the cutting and processing of various materials such as metal, plastic, wood, etc. due to its high precision, high speed and non-contact processing. Especially in the field of metal processing, laser cutting technology has gained the favor of more and more manufacturers by improving production efficiency and reducing production costs.

With the increasing diversification of market demand, especially in modern manufacturing, the requirements for the shape, size and processing accuracy of cutting parts are constantly increasing, and traditional cutting methods can no longer meet these requirements. Therefore, tube-sheet integrated cutting technology came into being. This technology greatly improves the flexibility and efficiency of the production line by integrating the cutting functions of tubes and sheets on the same equipment. Especially in application scenarios where tubes and sheets need to be processed at the same time, such as steel structure, machinery manufacturing and construction industries, tube-sheet integrated cutting machines have shown irreplaceable advantages.

The market demand for tube-sheet integrated laser cutting machines is increasing. According to relevant market research, with the advancement of intelligent manufacturing and Industry 4.0, more and more companies are seeking integrated, efficient and multi-functional production equipment to cope with rapidly changing market demands and fierce competition. Therefore, the emergence of the large-surround exchange table tube sheet integrated laser cutting machine just meets this market trend and becomes an ideal choice for enterprises to achieve production efficiency improvement and cost optimization.

The rapid development of laser cutting technology and the market's urgent demand for cutting accuracy and flexibility have led to the widespread application of tube sheet integrated cutting equipment, injecting new vitality and innovative power into the modern manufacturing industry.

Product Technical Features

Dual exchange platform with tube laser cutting machine has become a powerful tool in the field of metal processing due to its high efficiency, precision, intelligent operation and cost saving.

Features of sheet metal and tubes laser cutting machine

1. This machine adopts a parallel exchange structure, the size of the workbench and the length of the pipe can be customized, and the machine can be fully enclosed according to customer requirements.

2. The machine is equipped with pneumatic rotary axes for cutting square, round, rectangular and channel steel tubes, with automatic clamping, pushing and positioning of the central power for true intelligence.

3. The converter is responsible for controlling the exchanging motor, the machine is able to finish the platform exchanging within 15s.

4. Simultaneous loading, unloading and cutting of sheet metal plates from which greatly increases work efficiency.

5. Automatic following system, can realize a calibrating, automatics following for wave surface sheet metal.

6. Heavy-duty machine structure with cross-welded steel plates to support later laser power upgrades.

Product Details

1. Machine frame, our machine tool is used integrated welding after annealing to eliminate stress, the process of cutting welding stress relief annealing—roughing—VSR—semi-finished-VSR-Finishing, a better solution due to welding and the stress arising from the processing, which greatly improve the stability of the machine, the common thickness range of structure metal profiles from 12-15mm which at least 20 years no deformation.

1000 Watt Laser Cutting Capacity tool-Suntop

2. The mechanical transmission part has been tested and calibrated with laser interferometer for many times to ensure the our machine good and stable accuracy even after a few years of use, which is VERY important for end users.

1000 Watt Laser Cutting Capacity beam-Suntop

3. Configure with HIWIN linear rail for all axis, to ensure durable and high precision for long time processing.

4. XY axis configure with high accuracy grinding type and rack, Japan Shimpo reducer, high speed and precision can be ensured, Z axis area are transmitting by high accuracy rolling ball screw.

1000 Watt Laser Cutting Capacity rack-Suntop

5. Adopt France Schneider AC servo system, large power, stronger torque force, working speed is more stable and faster.

6. Adopt professional Swiss Raytools laser cutting head, imported optical lens, focus spot smaller, cutting lines more precise, higher efficiency and better processing quality can ensured. Configure with non-contact auto follow function, ensure the best focal length and cutting effect.

1000 Watt Laser Cutting Capacity cutting head-Suntop

7. Fiber laser transmitting with famous laser Generator, flexible processing, realized high accuracy cutting on every point.

1000 Watt Laser Cutting Capacity laser source-Suntop

8. Professional laser cutting CNC controlling system, connected with computer, simple operation and France Schneider AC servo system, large power, stronger torque force, working speed is more stable and faster.

9. Configure professional industrial HANLI or TEYU chiller with double temperature control molds, high cooling efficiency and high transferring ratio of laser. Japan SMC intelligent gas group, dual gas control, automatic adjustment for gas type and gas software.

10. Compatible with multiple software, can design and graphic and letters as you like, operating simple, flexible and easy.

Advantages of Laser Cutting

1. High efficiency

Quick switching: The large-surround exchange table design makes the replacement of cutting materials and the movement of the cutting head faster, greatly reducing the idling time of the machine.

Simultaneous processing: It can cut pipes and plates at the same time. This versatility makes the production process more efficient and reduces the complexity of equipment investment and management.

2. High precision

Superior cutting quality: Laser cutting technology itself has high precision and smooth cutting edges, which is suitable for the production of high-precision parts.

Intelligent control system: Equipped with advanced control system, it can accurately control the movement trajectory of the laser beam to ensure the stability and consistency of the cutting effect.

3. Flexibility and versatility

Processing a variety of materials: It can cut plates and pipes of different materials, including carbon steel, stainless steel, aluminum alloy, etc., providing manufacturers with a larger material selection space.

Adapt to different workpiece shapes: Whether it is complex geometric shapes or simple lines, it can be flexibly responded to meet diverse production needs.

4. Save space and cost

Integrated design: The pipe and plate cutting functions are concentrated on one machine, saving equipment investment and factory space.

Reduce labor costs: The automated cutting process reduces the need for manpower and improves the economic efficiency of overall production.

5. Reduce waste

Optimized cutting path: Advanced cutting software can perform intelligent optimization, reduce material waste, and improve material utilization.

Environmental effect: The laser cutting process generates less waste and is more environmentally friendly.

6. User-friendly operation

Modern interface: Equipped with a user-friendly operating interface and software, it is easy to operate and helps reduce training time.

Real-time monitoring and fault diagnosis: The intelligent system can monitor the equipment status in real time, alarm and handle faults in time to ensure the efficient operation of the equipment.

7. Long-term stability and reliability

Durable materials and structure: High-quality manufacturing materials and a stable frame design enable the equipment to remain efficient and stable during long-term operation.

Lower maintenance requirements: Laser cutting machines have less wear and tear than other cutting equipment, and the maintenance cost is relatively low.

8. Strong adaptability

Software upgrades and customization: Software upgrades and function expansions can be performed according to the specific needs of users to ensure that the equipment can adapt to market changes and user personalized requirements.

The large-surround exchange table tube plate integrated laser cutting machine meets the growing needs of modern manufacturing industry through its high efficiency, high precision and versatility, and shows its great potential in improving production capacity and reducing costs. Click here for more information

Product Specification

Model	ST-FC3015CR/4020CR/6015CR/6020CR
Laser power	1500W-20KW
Table Max. cutting size	5003000/60001500/60002000/40002000mm (other sizes can be customized)
Laser wavelength	1064nm
Repeat positioning accuracy	±0.02mm
Maximum speed	120 meter/min
Transmission system	Double rack & pinion and servo drive
Tubes cutting capacity (standard)	Square tubes: 20-220mm (can be customized) Round tubes: 20-220mm (can be customized)
Tubes length	3 meters or 6 meters
Power consumption	10KW (based on laser power 1KW)
Power supply	Three phase 380V/50Hz or 60Hz
Machine weight	11000Kg
Overall size	505024801830mm (LWH)

What Materials Can be Cut?
