UV rotary laser marking is a process that uses ultraviolet laser technology and a rotating device to mark and engrave workpieces in all directions. UV laser is usually used for high-precision and high-definition marking of specific materials, such as plastics, glass, ceramics, etc. Combining UV laser technology with a rotating device enables all-round marking of cylindrical, spherical or other unconventional shaped workpieces. ※ Product model: ST-UV03P/ST-UV05P ※ Laser power: 3W/5W ※ Working area: 110*110mm/150*150mm
● Integrated design, compact structure, small size and light weight.
● Built-in laser diode technology, to avoid the effect of fiber jitter on the output laser.
● Output wavelength of 355nm, beautiful marking effect, good sense of touch, high anti-counterfeiting effect.
● Extremely small heat-affected zone, avoiding deformation, damage or burning of processed materials, high yield.
● It is a cooling laser, marking effect on heat-sensitive plastic materials is very good and smooth, and will not cause any damage to the material surface.
● Suntop fiber laser marking machine has passed strict aging test before leaving the factory, and the laser beam is continuously output for 24 hours to ensure 100% stability of the machine.

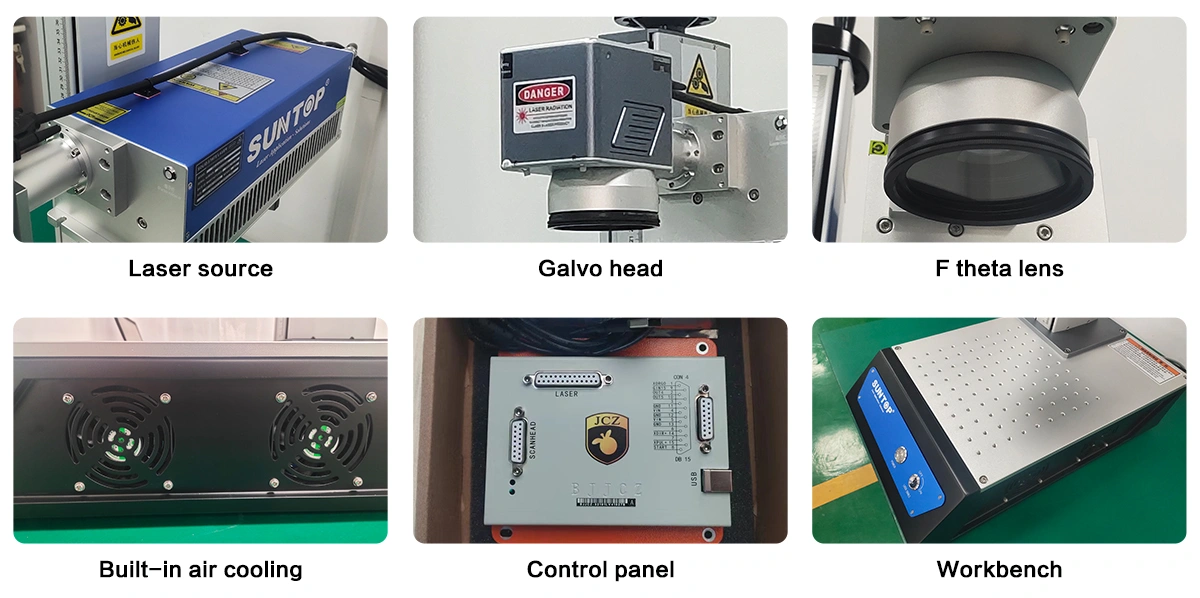

Details of rotary marking machine
● Digital galvanometer
355 high-precision galvanometer and imported quartz lens, clearly engraving 1mm Chinese characters, and clear color marking on various plastic materials.
● Scanning lens
The lens made of quartz material has a service life of more than 5 years, ensuring uniform distribution of high-quality light spots.
●Lifting shaft
Linear guide rail lifting platform, the base can be rotated 360° with smooth lifting and lowering.
● Industrial UV laser
The integrated structural design has strong anti-interference ability and improves stability. The water-cooled design is suitable for dealing with extreme environments.
● Workbench
Aluminum alloy workbench, hole spacing 25/50 mm, with right-angle positioning strips, optional two-dimensional workbench, easy to adjust the marking position front and back.
●Safety socket
Using an independent safety plug, the connection is simple, fast and firm. The output signal is accurately transmitted with low and stable impedance.
Advantages of rotary marking machine
● Omni-directional marking: Through the cooperation of the rotating device, it can realize 360-degree omni-directional marking on the surface of the workpiece, which ensures complete and accurate marking.
● High efficiency: Compared with the traditional single-side marking, multiple surfaces can be processed at the same time, improving productivity and processing speed.
● High Precision: Laser beam control and rotary device collaborate to achieve high-precision, clear marking and engraving effects, suitable for marking tasks that require a high degree of fineness.
● Flexibility: The rotation angle and marking content can be adjusted according to the shape and size of different products to meet different production needs.
● Non-destructive processing: UV laser is a non-contact processing method, which will not cause damage to the surface of the workpiece and ensure product quality.
● Automated production: it can be integrated with automated production lines to realize batch marking and automated processing, and improve production efficiency.

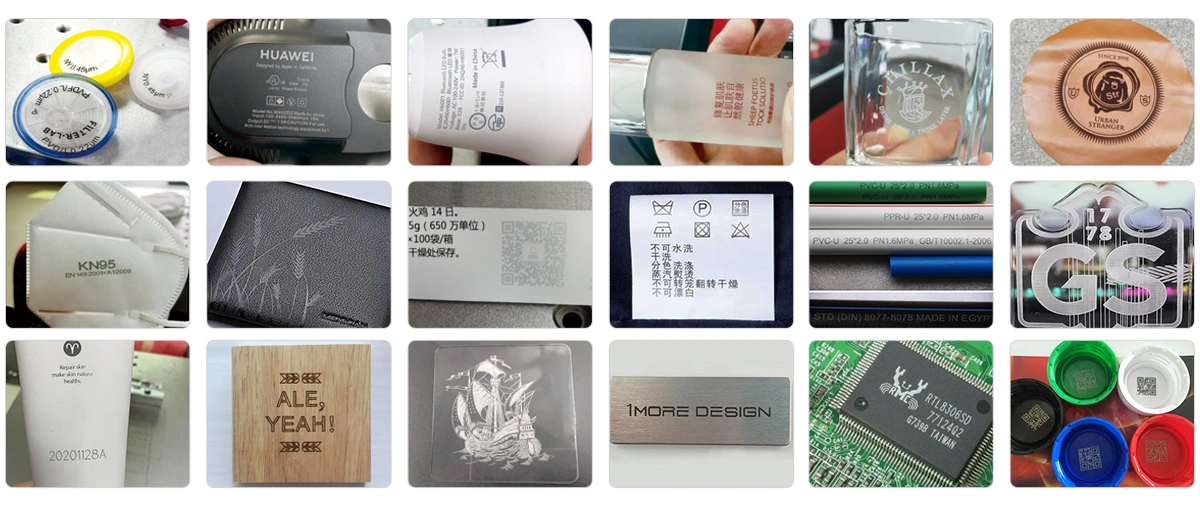

Application materials of rotary marking machine
It is suitable for almost all materials. Widely used in metal (all metals such as iron, copper, aluminum, magnesium, zinc, etc.), glass, crystal, PCB, plastic, fiber, paper, paint, silicon wafer, LCD, polyamide, wire, plug and other polymer materials.
Application industry of rotary marking machine
Especially suitable for the high-end market of ultra-fine processing, skin care cosmetics, medical drugs, food, silicon wafer micro-hole, blind hole processing, glass products, metal products, plastic buttons, electronic components, gifts, communication equipment, building materials, etc.
Parameters of rotary marking machine
Model
ST-UV03P
ST-UV05P
Laser Power
3W
5W
Max. marking range
110*110mm
150*150mm
Output power
>3W@30KHZ
>5W@40KHZ
Maximum pulse energy
0.1MJ@30KHZ
0.12MJ@40KHZ
Pulse duration
<15NS@30KHZ
<18NS@40KHZ
1/e2 beam diameter at output
0.7mm
0.8mm
Laser Type
UV laser
Laser source
GAIN （JPT and other brand optional）
Control Software
EZCAD
Cooling Mode
Water Cooling
Beam diameter
≤ 10mm
Working Accuracy
±0.002MM
Marking Speed
1-12000mm/s
Repetition Frequency
20-100KHz
Laser Wavelength
355nm
Minimum Font for Marking
0.01mm
Working Voltage
220V+10% 50/60 Hz
Graphic Format Supported
AI, PLT, DXF, BMP, DST, DWG, DXP
Applicable Material
all metal material and all non metal material
Spare Parts Come with the Machine
Protective glasses, Metal business card, Foot switch, Hex socket wrench, Power cord
