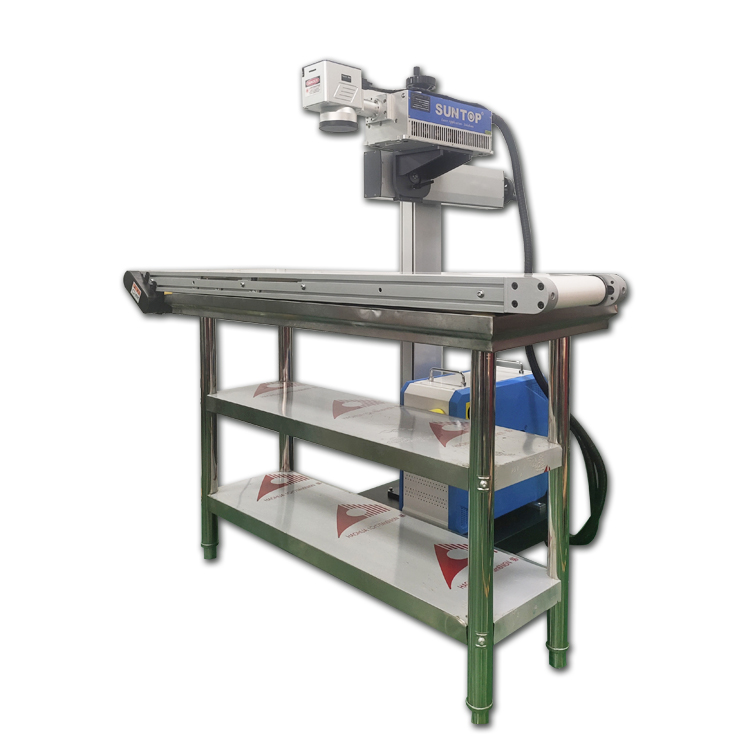

UV Flying Laser Marking Machine

Our portable laser marking machine is small in size, easy to carry, low in cost of use, high in precision of marking effect, high in definition, uniform, beautiful in appearance, stable in performance, and has a long service life of the laser, which can be used for more than 10 years.
Product Model: ST-UV03F/ST-UV05F/ST-UV08F
Laser power: 3W/5W/8W
Working area: 110*110mm/150*150mm/180*180mm
Availability:
Quantity:

PDF Export

Details        Product Parameters        Samples        Video

UV flying laser marking machine features-Suntop

Features of UV flying laser marking machine

1. The structure is flexible, the floor space is small, and the professional branch is cooled by constant temperature water, which can work efficiently and stably even under high ambient temperature.

2. Can be installed on the assembly line, easy to adjust.

3. Compatible with a variety of focusing lenses, and can adjust a variety of light output directions to meet the needs of different application scenarios.

4. The stable and light main beam lifting mechanism can adjust the main beam up and down, front and back within a certain range.

5. High elector-optical conversion efficiency, low power consumption, long life, saving a lot of processing costs for customers.

6. Professional industrial laser source, faster marking speed, good marking consistency, high reliability, 24 hours of continuous work, to meet the needs of large-scale processing and production.


Details of UV flying laser marking machine

1. Laser source

Good beam quality, stable performance, long service life, maintenance-free. RAYCUS, MAX, JPT, IPG lasers are optional.

2. UV 355nm field lens

High-precision UV 355nm field mirror = 160mm / F = 210mm / F = 254mm Optional high-speed, high-precision scanning head.

3. Rotate the manual switch

The laser path can be rotated 180°, and the optical path can move back and forth, with scale indication.

4. Ventilation

Large cooling holes can effectively cool the machine and improve working time and efficiency.

5. Control panel

BJJCZ brand original EZCAD control system has the characteristics of high stability, easy operation and good performance.

6. Lifting wheel

The manual lifting wheel can be rotated to adjust the height of the lens to achieve the ideal marking focal length and effect.

UV flying laser marking machine details-Suntop


Advantages of UV flying laser marking machine

1. The beam quality is good, the focused spot is extremely small, and it can be marked on special materials to achieve ultra-fine marking

2. The heating area is small, so it is not easy to produce thermal reaction and the problem of material scorching.

3. Fast marking speed, high efficiency, stable performance of the whole machine, environmental protection and no consumables.

4. Stable performance, no consumables, low cost of use, and maintenance-free.

5. Easy to operate, equipped with humanized operating software, the mark will never fade.

6. The materials suitable for processing are more extensive, especially suitable for the high-end market of ultra-fine processing.

UV flying laser marking machine application

Application materials

It is suitable for almost all materials. Widely used in metal (all metals such as iron, copper, aluminum, magnesium, zinc, etc.), glass, crystal, PCB, plastic, fiber, paper, paint, silicon wafer, LCD, polyamide, wire, plug and other polymer materials.


Application industry

Widely used in integrated circuit chips, computer accessories, industrial bearings, clocks, electronics and communication products, aerospace devices, various auto parts, home appliances, hardware tools, molds, wires and cables, food packaging, jewelry, tobacco and military, automotive Accessories, hydraulic pump valves, hardware tools, mold processing. Petroleum pipe fittings, hardware products, integrated circuits, IT electronic products, instrumentation, precision instruments, medical equipment, tobacco industry, pharmaceutical industry, food industry, aerospace, military electronics, craft gifts and many other metal and non-metal fields and mass production lines Operation.


Parameters of UV flying laser marking machine

Model

ST-UV03F

ST-UV05F

ST-UV08F

Laser Power

3W

5W

8W

Max. marking range

110*110mm

150*150mm

180*180mm

Output power

>3W@30KHZ

>5W@40KHZ

>8W@40KHZ

Maximum pulse energy

0.1MJ@30KHZ

0.12MJ@40KHZ

0.14MJ@40KHZ

Pulse duration

<15NS@30KHZ

<18NS@40KHZ

<21NS@40KHZ

1/e2 beam diameter at output

0.7mm

0.8mm

0.9mm

Laser Type

UV laser

Laser source

GAIN(JPT and other brand optional)

Control Software

EZCAD

Cooling Mode

Air Cooling

Beam diameter

≤ 10mm

Working Accuracy

±0.002MM

Marking Speed

1-12000mm/s

Repetition Frequency

20-100KHz

Laser Wavelength

355nm

Minimum Font for Marking

0.01mm

Working Voltage

220V+10%  50/60 Hz

Graphic Format Supported

AI, PLT, DXF, BMP, DST, DWG, DXP

Applicable Material

all metal material and all non metal material

Spare Parts Come with the Machine

Protective glasses, Metal business card, Foot switch, Hex socket wrench, Power cord

Optional Accessories to Purchase

D80 Rotating Shaft/ D57 Small Chuck/2D Table (X.Y direction)/ Cutting Fixture

Net Weight (KG)/ Gross Weight

150KG / 180KG

Machine size

510*660*1470mm (L*W*H)


UV flying laser marking machine samples-Suntop
