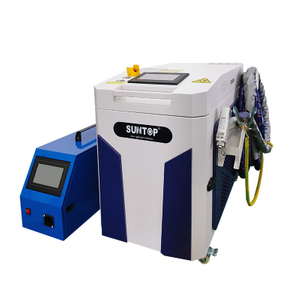

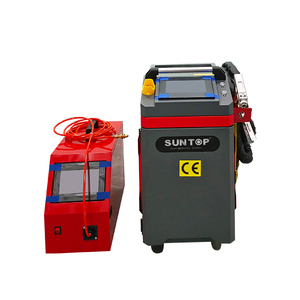

Laser Soldering Stainless Steel Price

Handheld laser welding machine, handheld torch instead of the traditional fixed optical path, flexible and convenient, to overcome the limitations of the workbench space, the workpiece size is not uniform can not be automatically welded. Welding heat-affected area is small, deformation is small, and welding depth is large, solid welding, can be welded difficult to access parts, has great flexibility. Mainly for large workpieces, fixed positions such as internal right angle, external right angle, plane welding.
Product Model: ST-FW1500H/ST-FW2000H/ST-FW3000H
Laser power: 1500W/2000W/3000W
Single maximum welding thickness: 0.5-8mm
Availability:
Quantity:

Details        Product Parameters        Samples       Video

laser soldering stainless steel price teatures-Suntop


Features of laser soldering stainless steel price


1. Use infrared positioning for welding position calibration and position verification during welding. The welding position is more accurate, and the welding seam is more beautiful.

2. Equipped with 10 meters of imported optical fiber, it overcomes the limitation of workbench space and can realize outdoor welding and long-distance welding.

3. Equipped with high-precision wire feeder, equipped with touch capacitive screen, 220V drive, automatic wire feeding, more powerful wire feeding, no wire jamming.

4. Self-developed hand-held welding head with various safety alarm devices, light and delicate, easy to operate, and can realize welding at any angle.

5. There are a variety of welding copper nozzles to choose from, which are suitable for various needs such as external welding, internal welding, right-angle welding, narrow edge welding, and large spot welding. Different welded copper nozzles are available.

6. The system can store a variety of different process parameters, which can be switched at any time through the touch screen according to processing needs, reducing the time for parameter debugging.


Details of laser soldering stainless steel price


1. Laser welding head

Light weight only 0.8KG, flexible and convenient to weld any shape of metal parts, adjustable welding seam width, can be 10 meters long distance welding. Equipped with safety temperature monitoring system.

2. Operation interface

Multi-language intelligent control panel, flexible adjustment of welding parameters, multi-group welding parameter library, light output cumulative timing, etc.

3. Automatic wire feeding system

Touch screen design, automatic wire filling, fully digital design, support 0.8mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm diameter stainless steel and aluminum wire.

4. Laser Source

We use customized minimum 20um core diameter fiber for deeper penetration, laser life up to 100,000 hours, maintenance-free, with Bluetooth capability.

5. Water Chiller

Double cycle water cooling makes the laser source and welding head cooling better, temperature control sensor adopts imported brand.

6. Welding connection fiber optic

10 meters long fiber optic cable with built-in design effectively avoids damage to the fiber and problems caused by moisture, which greatly increases the service life of the laser components.


Advantages of laser soldering stainless steel price

1. Handheld welding gun to replace the previous fixed optical path, more flexible and convenient, to achieve long-distance laser welding, to overcome the limitations of the table travel space.
2. Handheld welding head is light and flexible, easy to operate, to meet a variety of angles, a variety of positions of the welding.
3. Adopting infrared positioning for welding head position calibration and position verification during welding to ensure more beautiful welds.
4. The laser welding depth is large, and the welding is firm.
5. Not easy to deform, easy to grind and polish, to solve the use of argon arc welding appeared welding through, welding tumor, welding quality and other issues.
6, also applies to a variety of complex weld, a variety of devices spot welding.

laser soldering stainless steel price detail-Suntop


Single side weld thickness


Maximum melting

1500W

2000W

3000W

Stainless steel   (mm)

0.5-4

0.5-5/6

0.5-6/7

Mild steel (mm)

0.5-4

0.5-6

0.5-7/8

Aluminum (mm)

0.5-3

0.5-4

0.5-5

Brass/copper (mm)

0.5-2

0.5-2.5

0.5-3

Galvanized sheet   (mm)

0.5-4

0.5-5/6

0.5-6/7

Iron (mm)

0.5-4

0.5-6

0.5-7/8

Remark: Double weld thickness can be achieved if the material is welded from both sides in two times.


Other optional functions


Cutting: Welding and cutting are often inseparable. Laser welding machines combine the functions of the two. Laser welding machines can be used to laser cut metal materials, such as copper plates, aluminum plates, stainless steel plates, carbon steel plates, galvanized plates, etc. Meet the cutting needs of conventional thin plates.

laser soldering stainless steel price cutting-Suntop


Cleaning: Cleaning with a laser welding machine is easy and flexible, and can remove rust, oxides, grease, dirt, etc. on the surface of various workpieces. When using a handheld laser welding machine for cleaning, it is necessary to avoid harm to the human body caused by the laser beam.

laser soldering stainless steel price cleaning-Suntop


Weld bead cleaning: It can effectively remove oxides, welding slag, oil, dust and other impurities produced during the welding process, making the weld surface clean. This not only helps improve the quality of the weld, but also enhances its strength and appearance. Laser cleaning is highly precise and controllable, thoroughly cleaning the weld surface without damaging the base material.

laser soldering stainless steel price welding seam cleaning-Suntop


Welding method


There are various welding methods to choose from, allowing for welding at any angle, including overlay welding, butt welding, vertical welding, fillet welding, inside corner welding, outside corner welding, etc. These methods can be used for welding various workpieces, including complex welds and irregularly shaped workpieces, especially larger ones.

laser soldering stainless steel price welding method-Suntop


Handheld laser welding and argon arc welding comparison


1. Energy consumption comparison: compared with traditional arc welding, handheld laser welding machine saves about 80% to 90% of electrical energy, and processing costs can be reduced by about 30%.

2. Comparison of welding effect: Laser handheld welding can complete the welding between metal and dissimilar metal. Fast speed, small deformation, small heat-affected zone. The welding seam is beautiful, flat, without/less porosity and no pollution. Handheld laser welding machine can perform tiny open parts and precision welding.

3. Comparison of subsequent processes: Handheld laser welding with low heat input and small deformation of the workpiece can result in a beautiful welded surface without or with only a brief treatment (depending on the welded surface effect requirements). Handheld laser welding machine can greatly reduce the huge polishing and leveling process consuming labor costs.


Application materials


Suitable for stainless steel, carbon steel, copper, aluminum, gold, silver, chromium, nickel, titanium and many other metals and alloys; also can be used for welding between a variety of dissimilar materials.


Application industry


Suitable for all kinds of sheet metal, moulds, chassis, power distribution cabinets, kitchen and bathroom products, all kinds of hardware lighting, advertising signs, door and window frames, handicrafts, household products, food machinery, medical equipment, auto parts and other industries.


Parameters of laser soldering stainless steel price


Model

ST-FW1500H

ST-FW2000H

ST-FW300H

Power

1500W

2000W

3000W

Welding   gun weight

0.8

0.8

0.75

Max.   welding thickness (mm)

≤3

≤5

≤8

Max.   welding seam width (mm)

5

5

8

Laser type

Fiber laser   (Suntop custom 20um welding exclusive)

Laser detection method

Bluetooth wireless   connection, Mobile App Monitoring

Control panel language support

English,   Spanish, German, French, Turkish, Italian, Russian,

Vietnamese, Thai, Korean, Japanese, etc.

Laser wavelength (nm)

1064+5

Suitable welding materials

Carbon   steel, stainless steel, aluminum, galvanized sheet metal,

brass, iron and other metal materials

Adapted welding methods

Spot   welding, overlap welding, splice welding, fillet welding,

lap welding etc.

Laser power adjustment range (%)

10-100

Cooling method

Advanced   water-cooling, dual temperature control and automatic

control

Welding aiming preview method

Built-in Red-Light pointer

Protection systems

Air pressure sensor and solenoid valve   control

Length of fiber optic cable (meter)

Standard 10 (can be customized 15)

Welding shielding gas

Argon or nitrogen (air pressure approx. 6-8   bar)

Working environment

Temperature 5-45 °C /humidity 10-90%

Other   optional support functions

Cleaning   + cutting

Cleaning   + cutting

Cleaning   + cutting + weld bead cleaning

Max.   Cutting thickness (mm)

1.2

1.5

2

Max. cleaning width (mm)

40

40

120

Automatic wire   feeder type

(Universal   with TIG wire)


Single wire feed

Single wire feed

Support both the double wire feed and single wire feed

Solid wire type (SS, Iron, AL, Brass)

0.8, 1.0, 1.2, 1.6

0.8, 1.0, 1.2, 1.6

0.8, 1.0, 1.2, 1.6, 2.0, 2.5

Temperature control monitoring alarm

Yes

Yes

Yes

Main machine consumables

Laser protective lenes, welding nozzles, welding wires

Machine size (MM)

686*425*611

750*1080*1000

750*1080*1000

Machine net weight (KG)

110

220

240

Power supply requirement

110V / 220V±10%, single phase

380V±10%, three phase

Total power consumption (Maximum)

3500W

4500W

7000W



laser soldering stainless steel price samples-Suntop
