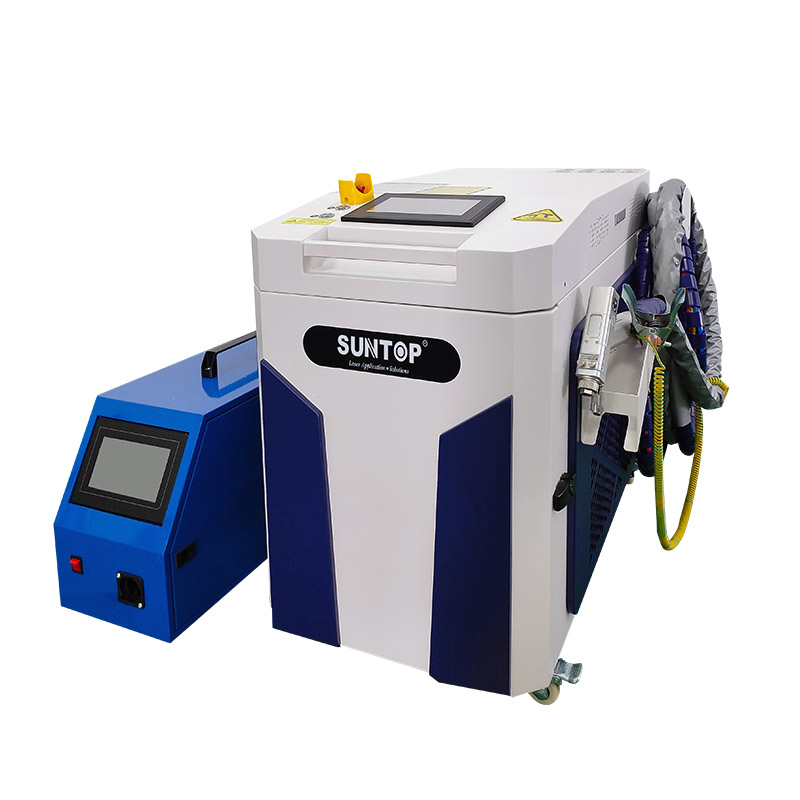

2000W Small Cabinet Laser Welding Machine

Share to:

2000W Small Cabinet Laser Welding Machine

2000W small cabinet laser welding machine is an efficient and precise welding equipment designed to meet various welding needs. The equipment uses advanced laser technology to achieve high-quality welding results. It is suitable for welding thin materials and complex parts and is widely used in industries such as automobiles, electronics and metal processing. Its compact cabinet design saves space, and it has a friendly operating interface and intelligent control system to ensure easy operation and stability. It is an ideal choice for professional welding and small-scale workshops.
※ Product model: ST-FC1500H/ST-FC2000H/ST-FC3000H
※ Laser power: 1500W/2000W/3000W
※ Working area: 0-300*300mm

Availability:

Quantity:



Inquire PDF Export

Product Description

Details Product Parameters Samples Video

Product Introduction

Suntop Laser has launched a new 2000W small cabinet laser welding machine, which aims to provide more efficient and precise welding solutions for all walks of life. With its advanced technology and design, this equipment helps improve the welding process and meet the growing needs of the market.

Innovative technology and efficient welding

This 2000W laser welding machine adopts the latest laser generator technology to provide stable and powerful laser output to ensure efficiency and precision during the welding process. Its welding speed is 3-5 times faster than traditional life-saving welding methods, which greatly shortens the production cycle. In addition, the product can effectively focus the laser beam through the optimized optical system to achieve delicate welding, which is suitable for metal welding of different thicknesses and materials, further improving operational flexibility.

User-friendly design and intelligent operation

Suntop Laser also pays attention to user experience in product design. This laser welding machine is equipped with an intelligent operation interface, which is simple and clear, allowing operators to quickly master the use method and reduce the learning curve. At the same time, the equipment adopts an automatic fault detection system to provide timely feedback on the equipment status, ensure the long-term stable operation of the machine, and reduce equipment maintenance and downtime. Such user-friendly design not only improves work efficiency, but also saves costs for enterprises.

Through this new 2000W small cabinet laser welding machine, Suntop Laser hopes to lead the welding industry to a more efficient and intelligent development stage, meet the growing production needs of customers, and welcome a brighter future with all walks of life.

True 4-in-1 Function

● Welding

Laser welding has fast speed, small weld width and depth, small thermal shock area, small deformation, smooth and beautiful weld, high welding quality, no pores, accurate control, stable welding quality, no need for treatment or simple treatment after welding.

It can realize welding at any angle, suitable for welding of planes, straight lines, arcs and any shapes, and can complete welding well in various complex environments. It has high production efficiency and has more obvious advantages than traditional argon arc welding, electric welding and other processes.

● Cleaning

By replacing the laser nozzle and cleaning lens, the material surface cleaning function can be realized, and the rust, oxide layer, oil stains, etc. on the surface of the material can be effectively removed without destroying the surface characteristics. It has the characteristics of non-contact, does not require cleaning fluid, and can replace professional cleaning equipment.

● Cutting

Simple cutting can be performed, welding and cutting can be switched freely, just change the welding copper nozzle to the cutting copper nozzle, which is very convenient.

It can cut stainless steel, carbon steel, aluminum, aluminum alloy, iron and other metal sheets, with a maximum cutting thickness of about 2mm.

● Weld cleaning

It can effectively remove impurities such as oxides, welding slag, oil, dust, etc. generated during welding, making the weld surface clean. This not only helps to improve the quality of the weld, but also enhances the strength and appearance of the weld. Laser cleaning has high precision and controllability, and can thoroughly clean the weld surface without damaging the parent material.

Product Technical Features

1. One machine with four functions: rapid switching between four modes: cleaning, welding, cutting and weld cleaning.

2. The handheld welding gun replaces the previous fixed light path, which is more flexible and convenient, enables long-distance laser welding, and overcomes the limitations of the workbench travel space.

3. The handheld welding head is light and flexible, easy to operate, and can meet welding at various angles and positions.

4. Use infrared positioning for welding head position calibration and position verification during welding to ensure a more beautiful weld.

5. It has the dual protection function of water path and air path (patented technology), which effectively avoids damage to the laser lens or optical components due to operator misoperation, thus greatly reducing the machine failure rate and effectively extending the service life of the machine. The life of consumables.

6. Use infrared positioning to verify the position of the welding head during the welding process. The welding position is more accurate, the welding seam is smooth and beautiful, and it is easy to grind and polish. No post-welding treatment is required or only simple processing is required.

7. Suntop Laser Cleaning Machine is subjected to strict tests and continuous 24-hour laser beam output before leaving our factory to ensure 100% machine stability.

Product Details

|

Laser sources

Features:

- Customized 45um core diameter welding version fiber laser with a service life of 100,000 hours.

- No maintenance required, can weld all types of metals.

- It has the advantages of compactness, easy integration and high energy efficiency, and is suitable for high-precision, high-speed laser welding tasks.

|

Self-developed Wobble Welding Head

Features:

- Self-developed control system and structural design, to adapt to a variety of welding needs within 3000W, set up a number of safety alarms and status indicators, the abnormal state of instantaneous response.

- Weighing only 0.7kg, it is compact and ergonomically designed, flexible operation, easy to use.

- Visualize all parameters and monitor the status of the entire machine in real-time to prevent issues, facilitate troubleshooting, ensure stable system operation.

- All process parameters can be set and various process effects can be tested flexibly.

|

User-Friendly of Operation Interface

Features:

- Advanced resistive touch screen with higher sensitivity, intelligent control.

- Multi-language intelligent control panel, flexible adjustment of welding parameters, multi-group library of welding parameters and cumulative timing of light output etc.

- Support multiple languages (English, Spanish, German, Italian, French, Russian, Turkish, etc.)

|

Auto Welding Wire Feeder System (single/double feeder optional)

Features:

- Depending on the specific welding needs, the double wire feed can increase the width of the weld seam up to 8 mm, allowing for a high stacking effect on thicker sheet metal.

- Touch screen design, automatic wire filler, and fully digital design support stainless steel and aluminum wires with diameters of 0.8mm, 1.0mm, 1.2mm, 1.6mm, and 2.0mm.

- 220V power supply drive provides more powerful wire feeding, preventing wire jamming and resulting in more consistent welding quality.

|

Operator Safety Features

Features:

ST-FW1500H/2000H/3000H is a Class IV laser system and routine precautions are required for the safe operation of the equipment.

Built-in features include:

- Key switch control of the laser source and an Emergency-stop button for deliberate operation.

- Fiber laser interlock to verify the integrity of laser delivery to the welding gun.

- Laser weld gun trigger for intentional operation.

- Part contact electrical interlock that turns off the laser power if the welding head is not in contact with the welded parts.

|

Cooling System

Features:

-Industrial chiller

Ensures heat dissipation of core optical path components, dual-circulation water cooling, better cooling of laser source and welding head.

-Cooling fan and temperature sensor

Add cooling fan and temperature sensor, when the temperature reaches the set temperature, the cooling fan will automatically turn on.

|

Soldering connection fiber

Features:

- By using a 10-meter original long fiber optic cable and an integrated devices, the machine becomes more compact for storage or transportation.

- - Adjust the workstation at any time, no fixed workstation required, free and flexible, suitable for welding in various working environment scenarios.

Overcome the limitations of the workbench space and realize outdoor welding and long-distance welding.

Advantages of Laser Welding Machine

1. High-efficiency welding

The high-power laser source significantly increases the welding speed, and can complete a wider range of welding work in a short time, greatly shortening the production cycle and improving overall work efficiency.

2. Precision welding

The equipment has a high laser focusing ability, which can achieve delicate and accurate welding, ensure the strength and appearance quality of the welded joint, and minimize rework and material waste.

3. Diversified applications

The laser welding machine is suitable for welding a variety of metal materials, such as aluminum alloy, stainless steel and copper. This versatility makes it widely used in many industries such as automobiles, electronics, aviation and medical.

4. User-friendly design

The equipment is equipped with an intelligent operation interface, which is simple and easy to use, so that even beginners can quickly master the use method. In addition, the automatic fault detection and alarm system ensures long-term stable operation and reduces maintenance costs.

5. Compact design

The small cabinet design not only saves space, but also facilitates deployment in various production environments, making the use of the equipment more flexible and efficient.

6. Environmentally friendly and efficient

The laser welding process has a smaller heat-affected zone on the material, which can effectively reduce the deformation and loss of the material. Compared with traditional welding methods, it reduces the emission of pollutants and is more environmentally friendly.

7. Cost-effectiveness

Although the initial investment may be high, the high efficiency and low maintenance cost of the equipment make the cost-effectiveness in long-term use very competitive, bringing higher returns to users.

8. Customized service

Suntop Laser can provide customized solutions according to the specific needs of customers to ensure that every customer can get the best welding effect and experience.

This 2000W small cabinet laser welding machine has obvious advantages in performance, ease of operation and economy, which can help enterprises achieve innovation and leadership in competition. Click here to contact Suntop Laser now for more information on laser welding.

Welding Capacity (Material/Thickness)

Single side weld thickness

Maximum melting	1500W	2000W	3000W
Stainless steel (mm)	0.5-4	0.5-5/6	0.5-7
Mild steel (mm)	0.5-4	0.5-6	0.5-7/8
Aluminum (mm)	0.5-3	0.5-4	0.5-6
Brass/copper (mm)	0.5-1.5	0.5-2	0.5-3
Galvanized sheet (mm)	0.5-3	0.5-4	0.5-6
Iron (mm)	0.5-4	0.5-6	0.5-7/8

Remark: Double weld thickness can be achieved if the material is welded from both sides in two times

Product Specification

Model	ST-FW1500H	ST-FW2000H	ST-FW300H
Power	1500W	2000W	3000W
Welding gun weight	0.8	0.8	0.75
Max. welding thickness (mm)	≤3	≤5	≤8
Max. welding seam width (mm)	5	5	8
Laser type	Fiber laser (Suntop custom 20um welding exclusive)
Laser detection method	Bluetooth wireless connection, Mobile App Monitoring
Control panel language support	English, Spanish, German, French, Turkish, Italian, Russian, Vietnamese, Thai, Korean, Japanese, etc.
Laser wavelength (nm)	1064+5
Suitable welding materials	Carbon steel, stainless steel, aluminum, galvanized sheet metal, brass, iron and other metal materials
Adapted welding methods	Spot welding, overlap welding, splice welding, fillet welding, lap welding etc.
Laser power adjustment range (%)	10-100
Cooling method	Advanced water-cooling, dual temperature control and automatic control
Welding aiming preview method	Built-in Red-Light pointer
Protection systems	Air pressure sensor and solenoid valve control
Length of fiber optic cable (meter)	Standard 10 (can be customized 15)
Welding shielding gas	Argon or nitrogen (air pressure approx. 6-8 bar)
Working environment	Temperature 5-45 °C /humidity 10-90%
Other optional support functions	Cleaning + cutting	Cleaning + cutting	Cleaning + cutting + weld bead cleaning
Max. Cutting thickness (mm)	1.2	1.5	2
Max. cleaning width (mm)	40	40	120
Automatic wire feeder type (Universal with TIG wire)	Single wire feed	Single wire feed	Support both the double wire feed and single wire feed
Solid wire type (SS, Iron, AL, Brass)	0.8, 1.0, 1.2, 1.6	0.8, 1.0, 1.2, 1.6	0.8, 1.0, 1.2, 1.6, 2.0, 2.5
Temperature control monitoring alarm	Yes	Yes	Yes
Main machine consumables	Laser protective lenes, welding nozzles, welding wires
Machine size (MM)	686425611	75010801000	75010801000
Machine net weight (KG)	110	220	240
Power supply requirement	110V / 220V±10%, single phase		380V±10%, three phase
Total power consumption (Maximum)	3500W	4500W	7000W

What Materials Can be Welded?

It can be used for welding stainless steel, carbon steel, copper, aluminum, gold, chromium, silver, titanium, nickel and other metals or alloys. It can also be used for various welding between different materials, including copper – brass, titanium-molybdenum, titanium- gold, nickel-copper, etc.

4-in-1 Handheld Metal Laser Welding Machine samples2-Suntop

4-in-1 Handheld Metal Laser Welding Machine samples4-Suntop

4-in-1 Handheld Metal Laser Welding Machine samples5-Suntop

4-in-1 Handheld Metal Laser Welding Machine samples6-Suntop

4-in-1 Handheld Metal Laser Welding Machine sample7-Suntop

4-in-1 Handheld Metal Laser Welding Machine samples1-Suntop

4-in-1 Handheld Metal Laser Welding Machine samples3-Suntop

4-in-1 Handheld Metal Laser Welding Machine samples8-Suntop

4-in-1 Handheld Metal Laser Welding Machine samples9-Suntop

4-in-1 Handheld Metal Laser Welding Machine samples10-Suntop

What is Laser Welder Used For?

Laser welding technology has been widely used in many industries due to its high efficiency, high precision and wide material adaptability. Here are some of the main industry applications:

Automotive industry

Body welding: Laser welding is used for welding structural parts of automobile bodies to improve the strength and durability of welded joints.

Battery pack assembly: In electric vehicles, laser welding is used for welding battery cells and battery packs to improve safety and energy transmission efficiency.

Electronics industry

Electronic component connection: Laser welding can be used to weld microelectronic components such as chips, sensors and connectors, ensuring high precision and low thermal impact of welding.

Circuit board welding: Used for the assembly of printed circuit boards (PCBs), including welding complex electrical connections.

Medical devices

Surgical instruments: Laser welding technology is widely used in the manufacture of high-demand medical devices such as scalpels, implants and monitoring equipment to ensure the hygiene and reliability of welding.

Medical device housing: When welding medical device housings, laser welding provides high-quality seams that meet strict hygiene standards.

Aerospace

Structural components: In the manufacture of aircraft and spacecraft, laser welding is used for precision welding of high-strength materials to ensure the safety and reliability of components in harsh environments.

Fuel system: Used to weld fuel system components in aircraft to maintain their sealing performance and corrosion resistance.

Energy industry

Batteries and integrated circuits: In the field of renewable energy (such as solar and wind energy), laser welding is used in the manufacture of battery components and energy storage devices.

Power generation equipment: Applied to the welding of components of power generation devices, such as turbines and generators, to improve their performance and life.

Mechanical processing

Equipment manufacturing: Laser welding is used to manufacture various parts of mechanical equipment, such as gears, bearings and housings, to improve the strength and wear resistance of products.

Metal processing: In the metal processing industry, laser welding can be used to weld connections of different metal types and is suitable for various complex geometries.

Kitchenware and home appliances

Kitchenware welding: In the manufacture of stainless steel kitchenware and home appliances, laser welding is used to improve product appearance and durability.

Rail transit

Track and Vehicle Components: Used to weld rail and train components to meet safety and durability requirements.

Arts and crafts

Customized Crafts: In jewelry making and artwork manufacturing, laser welding is used to achieve complex artistic effects and tight seams.

Through the above applications, it can be seen that laser welding technology has become an indispensable welding solution in many industries with its unique advantages, promoting technological progress and product quality improvement in various fields. Click here to contact Suntop Laser now for a free laser welding test.

Laser Welding Video

Why Choose Suntop Laser?

There may be multiple reasons to choose Suntop Laser as a supplier of laser welding equipment. Here are some of the possible advantages and features that make it a worthwhile option:

Technological Innovation

Suntop Laser is usually committed to technological innovation and has advanced laser welding technology and equipment to meet the needs of different industrial applications.

Product Quality

Suntop Laser's products are usually subject to strict quality control and high standard manufacturing process to ensure the reliability and stability of the laser welding machines under various conditions.

High Performance

The company's laser welding equipment is usually characterized by high power, high efficiency and high precision, which enables fast and precise welding and enhances production efficiency.

Versatile equipment

Suntop Laser offers a wide range of laser welding machines, which can meet the welding needs of different materials, thicknesses and applications with strong flexibility.

Good after-sales service

Suntop Laser usually provides customers with good after-sales support, including technical training, equipment maintenance and spare parts supply, etc., to ensure a smooth experience for customers.

User-friendly operation interface

Many of Suntop Laser's equipment has a user-friendly design that is easy to operate and maintain, helping to reduce the learning curve and increase productivity.

Competitive Price

Compared with some high-end brands, the prices offered by Suntop Laser are usually relatively competitive, providing customers with good value for money.

Industry experience

Suntop Laser usually has rich industry experience and is able to adjust its products and services according to market demand and technology development.

Customized solutions

If customers have specific requirements, Suntop Laser may provide customized laser welding solutions to meet various specific application needs and challenges.

Choosing Suntop Laser as a supplier of laser welding machines may bring you high-quality, high-performance equipment, rich industry experience and good technical support. Considering your specific needs and budget, Suntop Laser may be an option worth considering.

FAQ

1. How can i place an order?

Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.

For further discussion, it is better to contact us with WhatsApp / WeChat / email / phone, in case of any delays.

2. What kind of display we provide?

We have laser marking machine / laser welding machine / laser cutting machine / laser cleaning / CO2 laser cutting and engraving machine / laser accessories for you choose.

3. How about the warranty?

We have 2 years warranty and lifelong maintenance.

4. What is your terms of delivery?

We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.

5. What is a metal laser welding machine?

Metal laser welding machine is a device that uses a high-energy laser beam to weld metal materials. By focusing the laser on the metal surface, the high temperature of the laser can quickly melt the local metal and form a strong weld joint.

6. What are the advantages and disadvantages of laser welding compared to traditional welding methods?

Compared with traditional welding methods, laser welding has higher welding speeds, finer welds, and smaller heat-affected zones, while traditional welding may have more advantages in cost and equipment investment, especially in large-scale production.

7. How difficult is it to maintain a laser welding machine?

The maintenance of a laser welding machine is relatively simple, mainly including regular inspection of the laser light path, cleaning of the laser and protective glasses, and following the maintenance manual provided by the manufacturer. Regular maintenance can ensure long-term and stable operation of the equipment.

8. How safe is laser welding?

Laser welding needs to follow safe operating procedures, and operators should wear appropriate protective equipment, such as laser protective glasses. Ensure a good working environment to avoid laser damage to personnel and equipment.
