Newly Upgraded Distance Sensing Handheld Laser Marker

Share to:

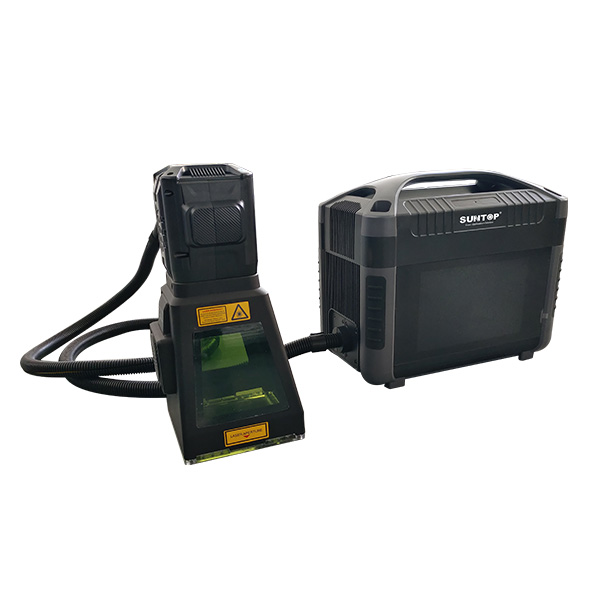

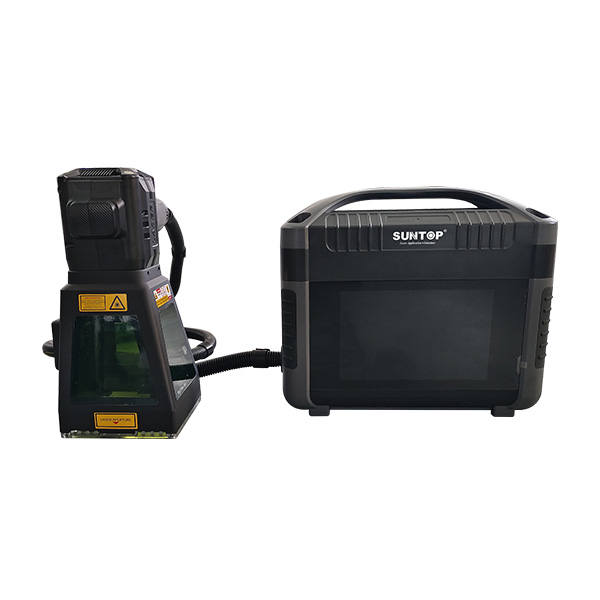

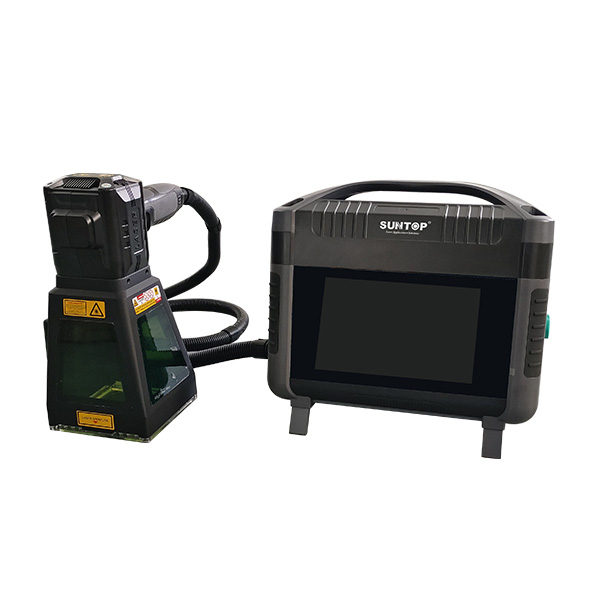

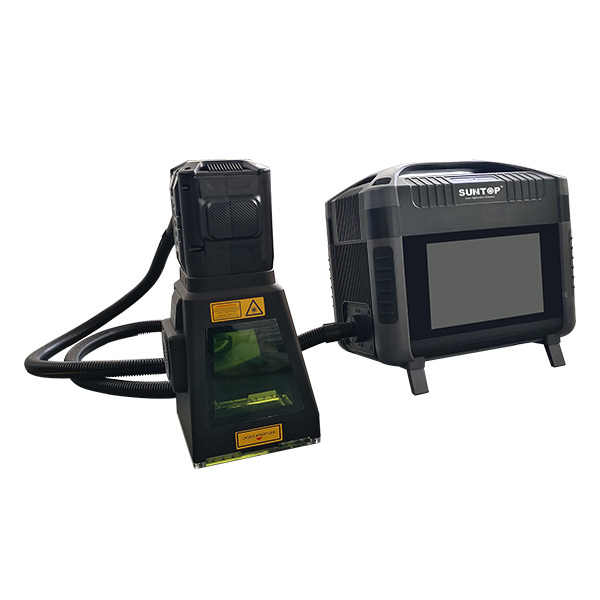

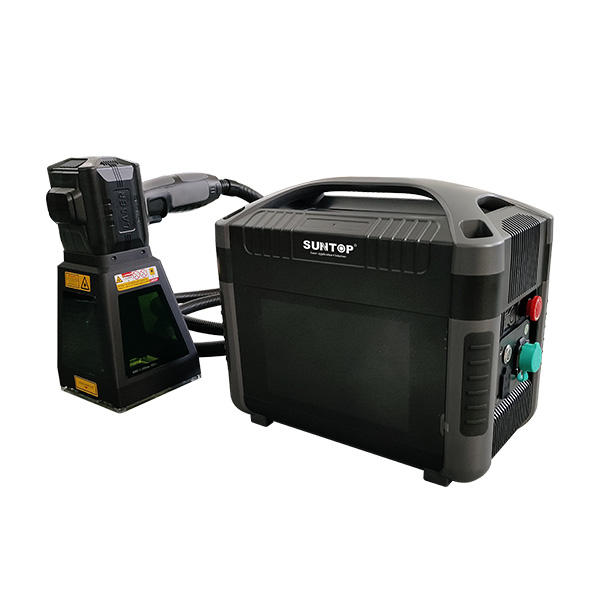

Newly Upgraded Distance Sensing Handheld Laser Marker

This rechargeable handheld laser marking machine is a portable marking solution integrated with distance sensing, auxiliary fan lighting and full safety protective cover. It supports both battery and plug-in operation with 6-8 hours long endurance, and allows simple computer-free operation via touch screen. Delivering clear, uniform and permanent marking results, it ensures safe, flexible and efficient marking for various metal and non-metal materials in diverse industrial scenarios.
※ Product Model: ST-FL20H/ST-FL30H/ST-FL50H
※ Laser power: 20W/30W/50W
※ Working area: 70*70mm/110*110mm (optional)

Availability:

Quantity:



Inquire PDF Export

The newly upgraded distance sensing handheld laser marker is a portable, laser marking solution optimized for modern industrial mobile marking scenarios. Upgraded with intelligent distance sensing technology, the device automatically identifies the optimal focusing distance, effectively solving marking blurriness and deviation caused by uneven surfaces or manual jitter. Integrated with auxiliary fan lighting and a full safety protective cover, it realizes safer, more precise and more convenient operation compared with traditional handheld laser markers.

Equipped with a high-capacity lithium battery, the machine supports 6–8 hours of continuous working time and features dual rechargeable and plug-in power modes, allowing charging while working to ensure uninterrupted production. Adopting standalone touch screen control, it requires no computer connection for pattern editing and parameter setting, greatly lowering operational barriers. Even novice operators can quickly master the operation and achieve stable and consistent marking results.

This multifunctional laser marker delivers clear, uniform and permanent marking on various metals and partial non-metal materials. Its lightweight handheld and wireless design breaks the restrictions of fixed workstations, perfectly adapting to large workpieces, curved surfaces and outdoor on-site marking. With low maintenance, high accuracy and strong environmental adaptability, it is widely applied in hardware, furniture, auto parts, electronics and custom engraving industries.

Product Features

Concealed Field Lens Design

Concealed Field Lens Design

It features protection against accidental contact to safeguard the field lens.

Handheld head

Adopts ergonomic design, rubberized and anti-slip technology, weighs only 0.8kg, compact and light.

Handheld head

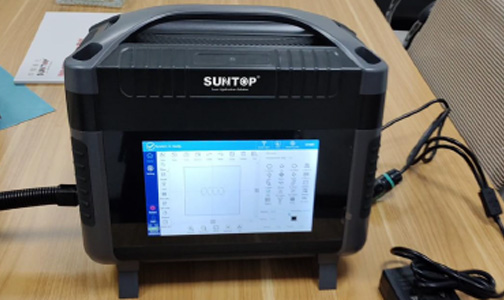

Smart Touch Screen

Smart Touch Screen

No need for a computer, you can edit the marking content on the touch screen.

External Dual USB Port

Supports the import and reading of various file formats, facilitating the editing of marking content.

External Dual USB Port

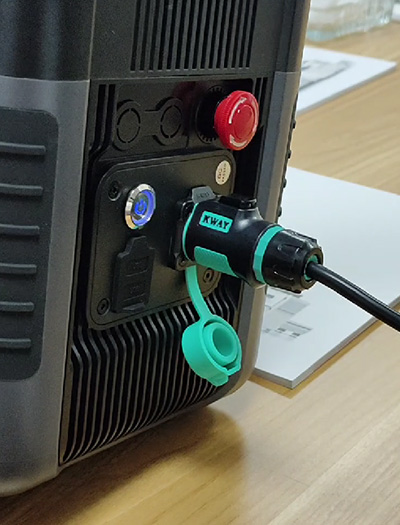

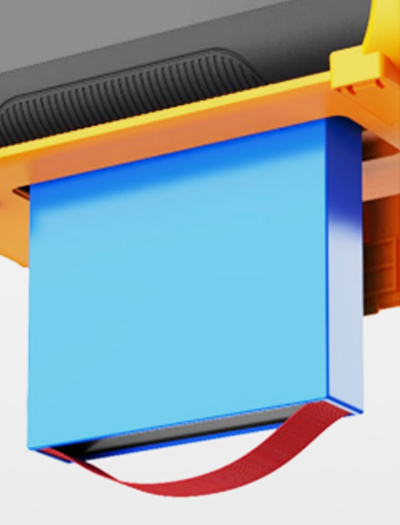

Dual Power System

Dual Power System

Built-in high-capacity battery, can be used directly by plugging in a power cord.

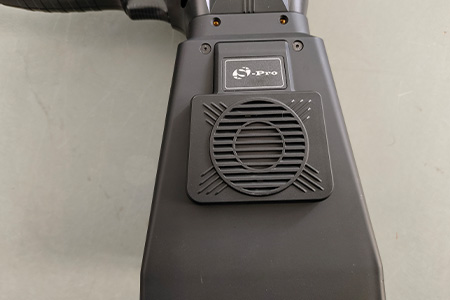

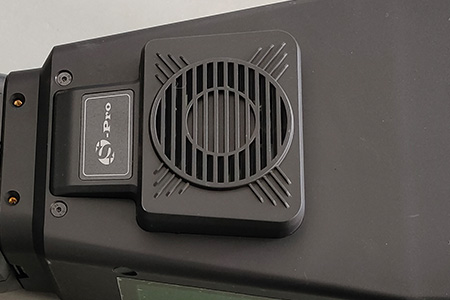

Built-in air cooling

Better heat dissipation performance, effectively extending the life of optical components.

Built-in air cooling

Advantages of Handheld Laser Marking

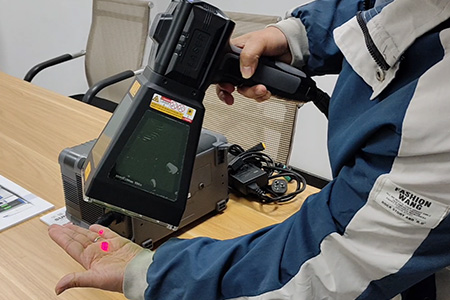

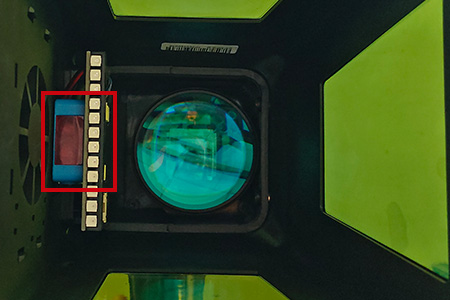

Intelligent Distance Sensing Marking:

Automatic induction of focusing distance, effectively avoiding blurry and offset marks caused by manual shaking or uneven curved surfaces, ensuring consistent and precise marking results.

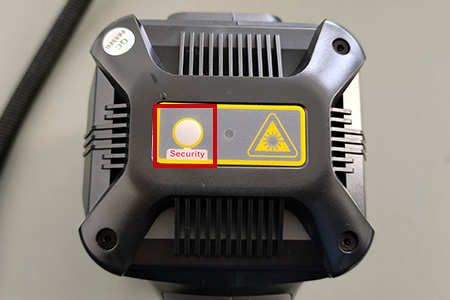

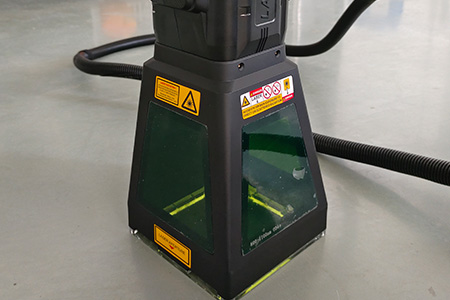

Three-round Safety Protection:

Equipped with a protective cover to block laser radiation and dust, greatly reducing operational risks and meeting industrial safety operation standards.

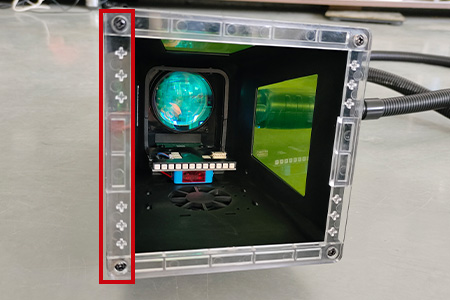

Dark Environment Adaptability:

Built-in fan lighting provides clear field of vision, supporting accurate positioning and smooth marking in dim and dark working scenarios.

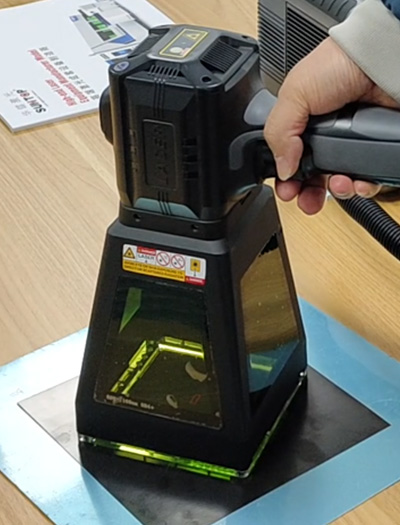

Dual Power Long Endurance:

Adopts large-capacity lithium battery for 6-8 hours long working time, supports plug-in and rechargeable dual modes, and allows charging while marking for non-stop production.

Computer-free Intelligent Operation:

Independent touch LCD screen with built-in parameter templates, no computer connection required, easy for beginners to operate without professional skills.

Portable Design:

Lightweight and easy to carry, suitable for outdoor, on-site and large irregular workpiece marking.

Permanent & High-quality Marking:

Produces clear, uniform, scratch-resistant and fade-free marking effects, ideal for product branding, coding and batch identification.

Wide Application Compatibility:

Works perfectly on various metal materials and partial non-metal materials, meeting diversified marking demands for multiple industries.

FAQ

1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For further discussion, it is better to contact us with WhatsApp / WeChat / email / phone, in case of any delays.

2. What kind of display we provide?
We have laser marking machine / laser welding machine / laser cutting machine / laser cleaning / CO2 laser cutting and engraving machine / laser accessories for you choose.

3. How about the warranty?
We have 2 years warranty and lifelong maintenance

4. What is your terms of delivery?
We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.

5. What is the upgrade point of this new handheld laser marker?

This upgraded version adds intelligent distance sensing function, built-in fan lighting and safety protective cover. It solves the problems of inaccurate focusing, dark operation difficulty and insufficient safety protection of traditional handheld laser markers, achieving more accurate, safer and more convenient marking.

6. Does this laser marker need a computer to work?

No computer required. It is equipped with an independent touch LCD screen and built-in operation system. Users can edit patterns, adjust parameters and complete marking directly on the device, which is simple and efficient.

7. How long is the battery working time?

Equipped with 15000mA large-capacity lithium battery, it supports 6-8 hours of continuous marking after full charge. It also supports plug-in power supply and charging while marking to realize uninterrupted work.

8. How does the distance sensing function work?

The intelligent distance sensing system can automatically detect and match the optimal focusing distance. It effectively corrects marking deviation caused by manual shaking, uneven surfaces or curved workpieces, ensuring consistent and high-precision marking results every time.

9. What is the function of fan lighting and protective cover?

The built-in fan lighting provides clear vision for dark and dim working environments to ensure accurate alignment. The protective cover effectively blocks laser radiation and processing dust, greatly improving overall operation safety.

10. Is it suitable for outdoor and on-site mobile marking?

A7: Yes. Adopting lightweight handheld design, easy to carry. It is perfectly suitable for outdoor construction, large workpieces, irregular products and various on-site mobile marking scenarios.

11. Are the marking results durable?

Yes. The laser marking is clear, delicate, uniform and scratch-resistant. It features anti-fading and wear-resistant performance, realizing permanent marking for product coding, logo branding and batch identification.

Related Products

Case and Success Stories

Related News

content is empty!

Technical Specifications Table
Laser	Fiber Laser Generator (Second Generation)	Positioning method	Red light positioning and focusing
The output power	depends on the purchased model	Number of lines of engraved characters	Any row within the effective marking range
Marking range	70×70mm / 100×100mm (optional)	Printing speed	800 characters (related to material and printing content)
Deflection mirror	High-precision dual dimensional scanning system	Font	Standard character libraries for Chinese, English, numbers, traditional Chinese, etc.
Laser wavelength	1064nm	File format	BMP, DXF, PNG、JPEG、PLT、XLSX
Focus lens	1300mm	Barcode	CODE 2-Of-5 Interleaved、CODE39、CODE128、QR、Codabar、CODE93、UPC-A、UPC-E、EAN-14、ITF-14、EAN128 and so on
Marking speed	≤7000mm/s	Power supply	110V/220V AC Lithium battery pack: 20W/30W: 216Wh 50W: 324Wh
Master control	Integrated motherboard, 8-inch capacitor fully integrated screen	Overall power consumption	145-250W
Operating system	Linux system	Operating temperature of the whole machine	0-40℃
Marking and engraving type	Dot matrix and vector all-in-one machine	The whole machine weight	20W/30W: 6-6.8KG, 50W: 8-8.8KG
Line width	0.03mm	Packaging box specifications	20W/30W: 525 × 423 × 310 mm 50W: 525 × 420 × 340mm
Repeat positioning accuracy	0.01mm	Packaging + machine weight	20W/30W: 8-10KG, 50W: 10-12KG
