Battery Powered Handheld Laser Engraver

This battery-powered handheld laser engraver features cordless portable design and intelligent distance sensing. Equipped with cooling fan lighting and protective cover for safer operation. It supports precise marking and etching on various metal and non-metal materials, perfectly catering to diverse personalized customization and industrial lightweight processing needs.
※ Product Model: ST-FL20H/ST-FL30H/ST-FL50H
※ Laser power: 20W/30W/50W
※ Working area: 70*70mm/110*110mm (optional)
Availability:
Quantity:

PDF Export

Rechargeable Handheld Laser Marking Machine with Distance Sensing, Fan Lighting & Protective Cover

Our battery-powered handheld laser engraver breaks the limit of wired power supply, delivering true wireless portability for on-site marking and engraving. Ergonomic lightweight structure allows effortless single-hand operation, greatly improving working flexibility for scattered processing scenarios.


Built-in intelligent distance sensing system effectively avoids marking failure caused by incorrect focal length. The integrated cooling fan with auxiliary lighting ensures stable long-time operation, while the matched safety protective cover blocks laser radiation to protect operators during daily use.


This versatile fiber laser marker performs excellently on metals and multiple non-metal materials. Suitable for logo engraving, serial number marking and pattern customization, it is an ideal cost-effective laser tool for industrial workshops, small businesses and personalized custom services.

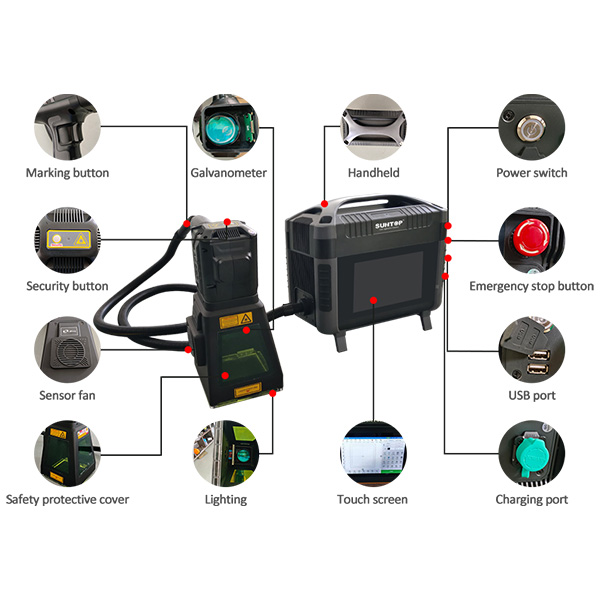

Product Features

Concealed Field Lens Design

Concealed Field Lens Design

The upgraded concealed structure prevents accidental collision and contact, providing comprehensive protection for the field lens and reducing daily wear and tear.

Ergonomic Handheld Head

Designed with an ergonomic grip and anti-slip rubber surface. Weighs merely 0.8kg with a compact size, enabling fatigue-free single-hand operation for long working hours.

Handheld head

Smart Touch Screen

Intelligent Touch Screen

Independent smart touch screen supports direct content editing and parameter adjustment. PC-free operation simplifies the marking process and improves overall work efficiency.

External Dual USB Ports

Equipped with dual USB interfaces to support multiple file format import and data reading. Convenient for quick content replacement and customized marking tasks.

External Dual USB Port

Dual Power System

Flexible Dual Power System

Comes with a built-in high-capacity rechargeable battery for wireless outdoor use. It also supports plug-in power supply to meet continuous long-time industrial processing demands.

Efficient Built-in Air Cooling System

Adopts optimized air cooling structure to accelerate heat dissipation. Stable temperature control protects core optical parts and effectively prolongs the machine’s service lifespan.

Built-in air cooling

Advantages of Handheld Laser Marking

1. Intelligent Distance Sensing Marking: Automatically senses and adjusts the focusing distance. It effectively prevents blurry and offset patterns caused by hand shaking or uneven curved surfaces, delivering stable and ultra-precise marking results.


2. Three-round Safety Protection: Featured multi-layer safety design with a dedicated protective cover to block laser radiation and dust. It lowers potential operational hazards and fully complies with industrial safety specifications.


3. Dark Environment Adaptability: Integrated fan lighting offers a bright viewing field. It helps users complete accurate positioning and flawless marking even in dim or dark working environments.


4. Dual Power & Long Endurance: Powered by high-capacity lithium battery to support 6 to 8 hours of long-duration wireless operation. Dual power modes including plug-in and rechargeable types allow charging while working to achieve uninterrupted production.


5. Computer-free Intelligent Operation: Equipped with an independent LCD touch screen and abundant preset parameter templates. Extra PC connection is not needed, enabling novice users to finish marking tasks easily without professional techniques.


6. Ultra-portable Structure: Adopts lightweight and compact overall design for easy carrying. It is perfectly applicable to outdoor operation, on-site marking and large irregular workpieces that cannot be fixed.


7. Permanent & Premium Marking Quality: Creates crisp, uniform and delicate marks with outstanding scratch resistance and fade-proof performance, suitable for product branding, anti-counterfeiting coding and batch product identification.


8. Extensive Application Compatibility: Compatible with most metal materials and multiple non-metal materials. It satisfies diversified personalized customization and industrial marking needs across various industries.

FAQ

1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For further discussion, it is better to contact us with WhatsApp / WeChat / email / phone, in case of any delays.


2. What kind of display we provide?
We have laser marking machine / laser welding machine / laser cutting machine / laser cleaning / CO2 laser cutting and engraving machine / laser accessories for you choose.


3. How about the warranty?
We have 2 years warranty and lifelong maintenance


4. What is your terms of delivery?
We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.


5. Is this laser engraver wireless?

Yes. This device adopts a built-in high-capacity lithium battery to support cordless wireless marking. It also supports plug-in power supply mode, realizing switchable dual power options to adapt to different working scenarios.


6. Do I need a computer to operate the machine?

No computer required. Equipped with an independent intelligent touch screen and built-in mainstream marking templates. Users can edit texts, patterns and adjust parameters directly on the device; external files can be imported via dual USB ports effortlessly.


7. How long can the battery last for a full charge?

A fully charged battery supports 6-8 hours of continuous wireless operation under normal working conditions. The machine allows charging while working, effectively achieving non-stop production for long-term tasks.


8. What is the function of intelligent distance sensing?

The built-in distance sensing system can automatically identify and match the optimal focal length. It solves blurry and offset marking problems caused by hand shaking or uneven/curved workpieces, ensuring consistent and high-precision marking effects every time.


9. Is it safe to use for daily operation?

Absolutely. The machine adopts three-round safety protection design. The matched protective cover can block laser radiation and dust. Meanwhile, the concealed field lens design can prevent lens collision damage, meeting standard industrial safety operation requirements.


10. Why does the device come with fan lighting?

The integrated cooling fan with auxiliary lighting provides clear vision for positioning and marking. Apart from adapting to dark working environments, the air cooling system accelerates heat dissipation to stabilize laser performance and extend the service life of optical components.


11. Is the machine easy to carry?

The handheld head only weighs 0.8kg with an ergonomic anti-slip grip design. The compact and lightweight structure allows single-hand operation and easy carrying, ideal for outdoor work, on-site marking and large irregular workpieces that cannot be placed on a fixed workbench.


12. Are the engraved marks durable?

All laser marking results are integrated with the workpiece surface, featuring high definition, uniform texture, scratch resistance and fade resistance. The permanent marking is perfect for product logos, serial numbers, QR codes and batch industrial identification.

|

 Distance Sensor

The machine is safer to use, as the laser is only emitted when within the safe focal range and in contact with the material being marked

Easy connection

Easy connection

Plug and work, save time and effort

Sense of distance

Sense of distance

Precision capture and grasp marking objects, escorting the safety of marking

Simple control

Simple control

One click to start the fan

Surging air volume

Surging air volume

Quick exhaust smoke and dust, Protect the lens, Extend lens working life


|

 Functions of the Protective Cover

Optional combination

Fan function

Fan function

Remove dust, protect the field lens

Transparent protective lens

Transparent protective lens

Three-sided transparent protective lens, protection level OD4t

Lighting function

Lighting function

Improve marking efficiency

Marking of distance sensing

Marking of distance sensing

Only when the marking distance is correct, the machine will emit light normally


|

 Independent Dedicated Control System

Linux system
Extra-large color touchscreen


Linux system

Equipped with 8-core processor, high security level; stable performance and fast response.


Extra-large color touchscreen

8-inch fully laminated LCD screen, one-button trigger; one machine can be used for multiple purposes, and hardware diversification is compatible.


Supports multiple language modes

English, German, French, Spanish, Japanese, Korean, Russian, Arabic, Portuguese, Turkish, Vietnamese, and others.


|

 Multimodal working mode

Battery with removable design, with 2 batteries, easy unlimited battery life


15000mA capacity battery 15000mA capacity battery

Get rid of the socket, offline marking.

Marking while charging

Marking while charging

Direct power cord use, charging while marking

Fast power change

Fast power change

Supports battery swap and separate charging

Plug and Play

Plug and Play

Plug in and use immediately


|

 Various Flexible Options

Various Flexible Options

Technical Specifications Table

Laser

Fiber   Laser Generator (Second Generation)

Positioning   method

Red   light positioning and focusing

The   output power

depends   on the purchased model

Number   of lines of engraved characters

Any   row within the effective marking range

Marking   range

70×70mm   / 100×100mm (optional)

Printing   speed

800   characters (related to material and printing content)

Deflection   mirror

High-precision   dual dimensional scanning system

Font

Standard   character libraries for Chinese, English, numbers, traditional Chinese, etc.

Laser   wavelength

1064nm

File   format

BMP,   DXF, PNG、JPEG、PLT、XLSX

Focus   lens

1300mm

Barcode

CODE   2-Of-5 Interleaved、CODE39、CODE128、QR、Codabar、CODE93、UPC-A、UPC-E、EAN-14、ITF-14、EAN128   and so on

Marking   speed

≤7000mm/s

Power   supply

110V/220V   AC

Lithium   battery pack: 20W/30W: 216Wh

50W: 324Wh

Master   control

Integrated   motherboard, 8-inch capacitor fully integrated screen

Overall   power consumption

145-250W

Operating   system

Linux   system

Operating   temperature of the whole machine

0-40℃

Marking   and engraving type

Dot   matrix and vector all-in-one machine

The   whole machine weight

20W/30W:   6-6.8KG, 50W: 8-8.8KG

Line   width

0.03mm

Packaging   box specifications

20W/30W:   525 × 423 × 310 mm

50W:   525 × 420 × 340mm

Repeat   positioning accuracy

0.01mm

Packaging   + machine weight

20W/30W:   8-10KG, 50W: 10-12KG

|

 Applied Materials

- Suitable for marking metals (stainless steel, brass, iron, aluminum, etc.), plastics, rubber, painted glass, painted label paper, etc.

30W Handheld Laser Marking Machine
30W Handheld Laser Marking Machine
30W Handheld Laser Marking Machine
30W Handheld Laser Marking Machine
30W Handheld Laser Marking Machine
30W Handheld Laser Marking Machine
30W Handheld Laser Marking Machine
30W Handheld Laser Marking Machine
30W Handheld Laser Marking Machine
30W Handheld Laser Marking Machine


- Supports various marking contents: text (different font files can be added by yourself), patterns, QR codes, bar codes, excel files, etc.

30W Handheld Laser Marking Machine
30W Handheld Laser Marking Machine
30W Handheld Laser Marking Machine
30W Handheld Laser Marking Machine
30W Handheld Laser Marking Machine


- It also supports marking of vector graphics such as PLT/JPG/DXF/BMP.

30W Handheld Laser Marking Machine
30W Handheld Laser Marking Machine
30W Handheld Laser Marking Machine
30W Handheld Laser Marking Machine
30W Handheld Laser Marking Machine

|

 Application Industries

Widely used in electronics, jewelry, automotive, communication products, cell phone buttons, plastic translucent buttons, jewelry products, keychains, electronic components, integrated circuits (IC), electrical appliances, fasteners cookware, stainless steel products and other industries.


30W Handheld Laser Marking Machine
30W Handheld Laser Marking Machine
30W Handheld Laser Marking Machine
30W Handheld Laser Marking Machine
30W Handheld Laser Marking Machine
30W Handheld Laser Marking Machine
30W Handheld Laser Marking Machine
30W Handheld Laser Marking Machine
30W Handheld Laser Marking Machine
