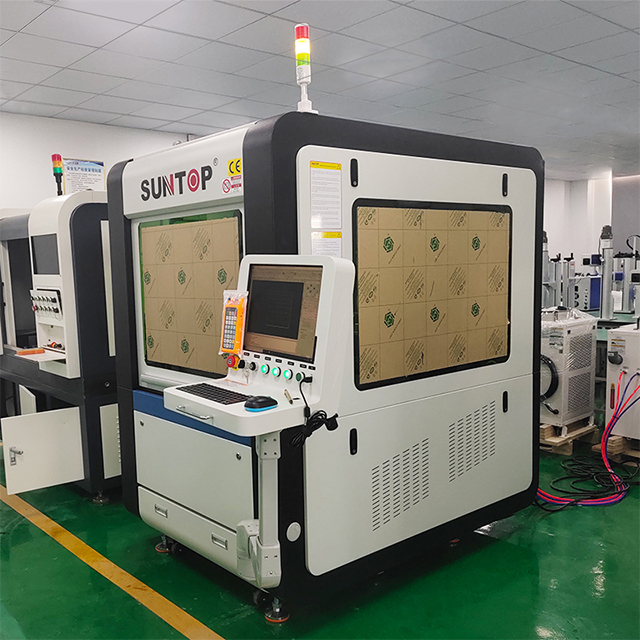

Laser Cutting Machine for Jewelry

High degree of automation, fast cutting speed, high production efficiency, short product production cycle, no matter it is simple or complex parts, laser can be used to realize a rapid prototyping cutting. It is conducive to the production of various types of small batches of products and the production of large batches of products.
Product Model: ST-FC6060/ST-FC6040/ST-FC1390
Laser power: 1000W, 1500W, 2000W, 3000W, 4000W
Working area: 600*600mm (600*400mm/1300*900mm)
Availability:
Quantity:

PDF Export

Product Parameters       Samples       Video

laser cutting machine for jewelry features-Suntop


Features of laser cutting machine for jewelry

1. Fully enclosed design, with laser protection function, in line with European CE standards.

2. Adopt imported servo motor or linear motor, high-precision grinding screw and CNC numerical control system, with fast speed, high precision and low maintenance rate.

3. Non-contact processing, small thermal impact, minimal local deformation of the workpiece, and no mechanical deformation.

4. Professional laser cutting automatic programming software, with manual or automatic nesting function.

5. The sensor-type cutting head is not affected by the flatness of the material, and can automatically jump to the cutting height according to the unevenness of the material to achieve the best cutting effect.


Details of laser cutting machine for jewelry

1. This machine adopts marble precision platform, gantry double-drive integrated closed structure, which has good rigidity, shock resistance and high-speed stability.

2. Adopt imported servo motor or linear motor, high-precision grinding screw and CNC numerical control system, with fast speed, high precision and low maintenance rate.

3. The precision special cutting head is used to ensure small kerf, high precision and smooth cutting surface without burrs.

4. Equipped with professional laser cutting automatic programming software, it has the function of manual or automatic typesetting and nesting.

5. Using the famous fiber laser, strong beam stability, the most cost-effective, the best quality, long service life (100,000 hours no problem).

6. The high-speed motion axis can move back and forth, left and right, and move and cut according to the length of the product material. It has scalability, fast and stable operation, and a large moving range.


Advantages of laser cutting machine for jewelry

1. High cutting precision, suitable for cutting precision accessories and fine cutting of various craft words and paintings.

2. The cutting speed is fast, more than 100 times that of wire cutting

3. Small heat-affected zone, not easy to deform. The cutting seam is smooth and beautiful, and no post-processing is required.

4. Energy saving and environmental protection, the photoelectric conversion rate can reach more than 30%, and the power consumption is low.

5. Low production cost, no need for molds, no tool wear, less material waste, and low labor costs.

6. Stable performance and low cost of use.


Laser cutting machine for jewelry application

Application materials

Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy,  titanium alloy, galvanized steel, pickle plate, aluminum-plating, zinc plate, metallic copper, brass, silver, gold and other kinds of metals.


Application industry

Suitable for gold and silver jewelry, trinkets, auto parts, high-precision instruments, hardware products, precision machinery, sheet metal industry, aviation, aerospace, ships, metallurgical equipment, elevators, household appliances, gift crafts, tool processing, decoration, advertising , metal external processing and other manufacturing and processing industries.


Parameters of laser cutting machine for jewelry

Model

ST-FC6060/ST-FC6040/ST-FC1390

Table Max. cutting size

600*600mm/600*400mm/1300*900mm

Laser power

1000W, 1500W, 2000W, 3000W, 4000W

Cutting thickness

0.5-20mm (depend on the actual laser power)

Repeat positioning accuracy

±0.01mm/m

Maximum operating speed

40m/min

Laser type

Fiber Laser

Laser source

Raycus Brand (MAX, IPG can be choosed)

Cooling mode

Water Cooling

Maximum acceleration

0.5G

Laser wavelength

1064nm

Transmission

High precision screw guide transmission

Graphic format supported

AI, PLT, DXF, BMP, DST, DWG, DXP

Working voltage

220V±10%, 50-60Hz / 380V±10%, 50-60HZ

Applicable material

All metal (stainless steel, brass, aluminum, titanium steel, etc.)

Machine weight

1300KG (depending on actual model)

Machine dimension (L*W*H)

1650*1360*1880mm (depending on actual model)


laser cutting machine for jewelry samples-Suntop
