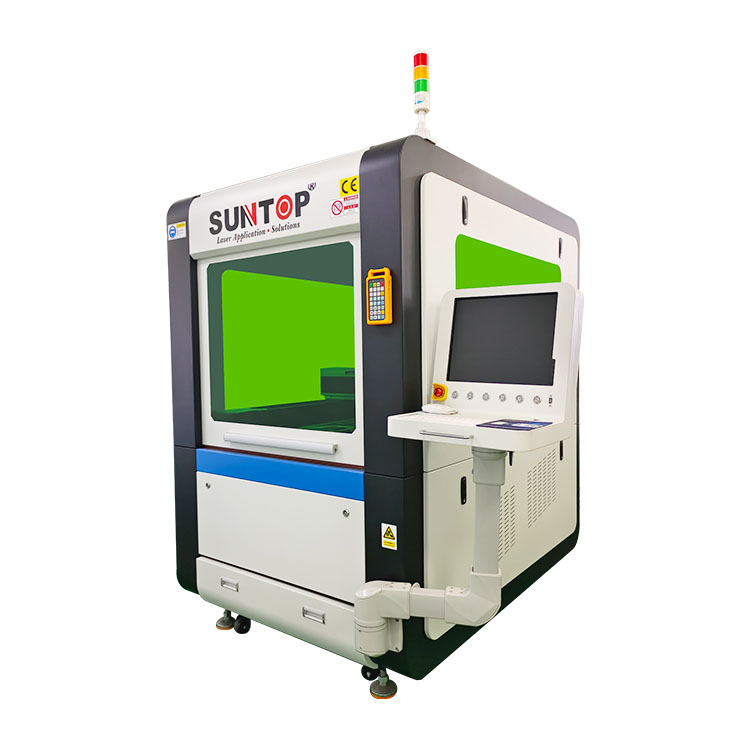

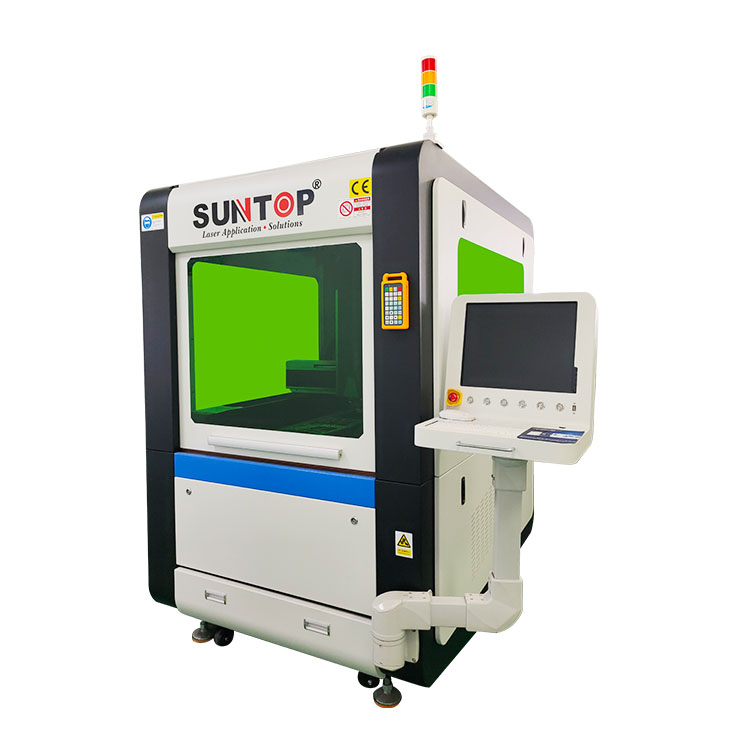

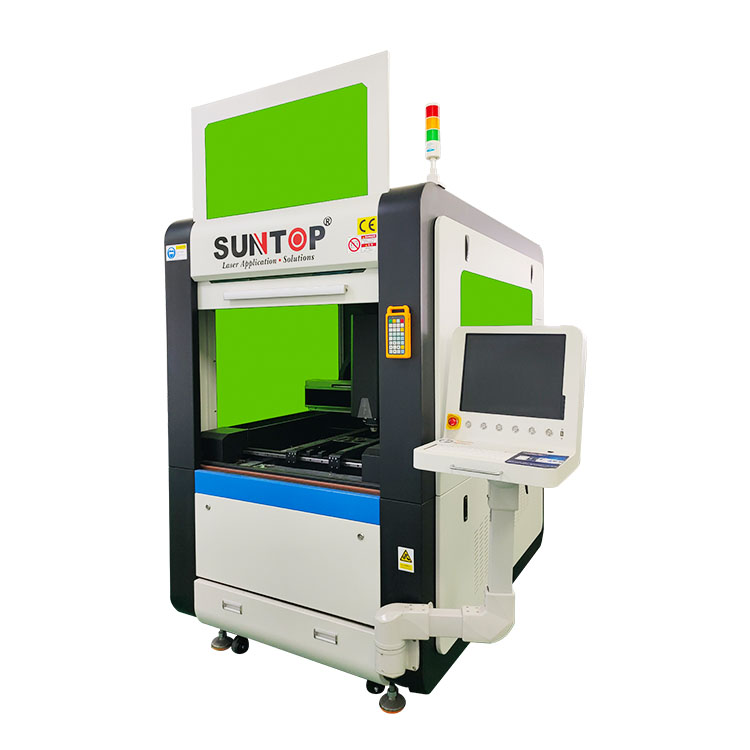

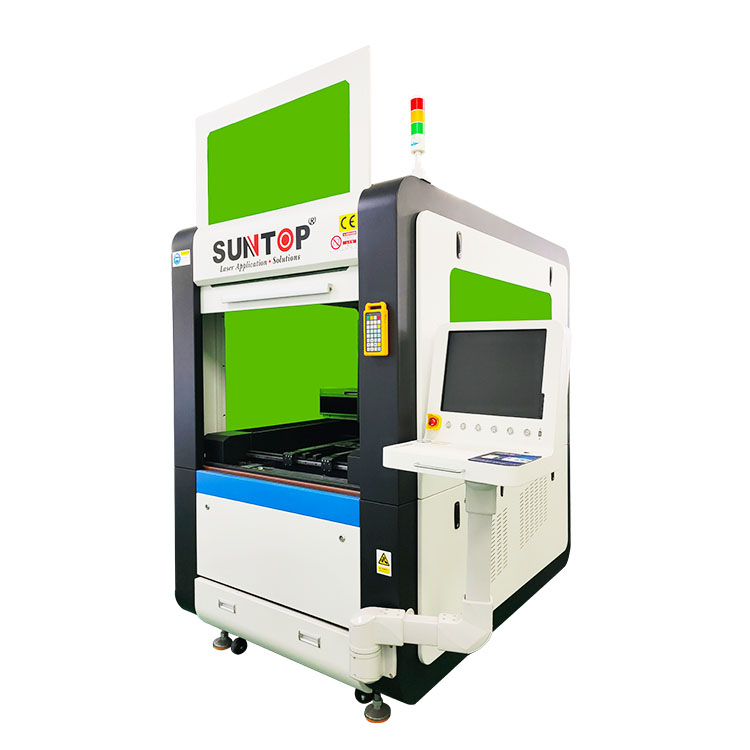

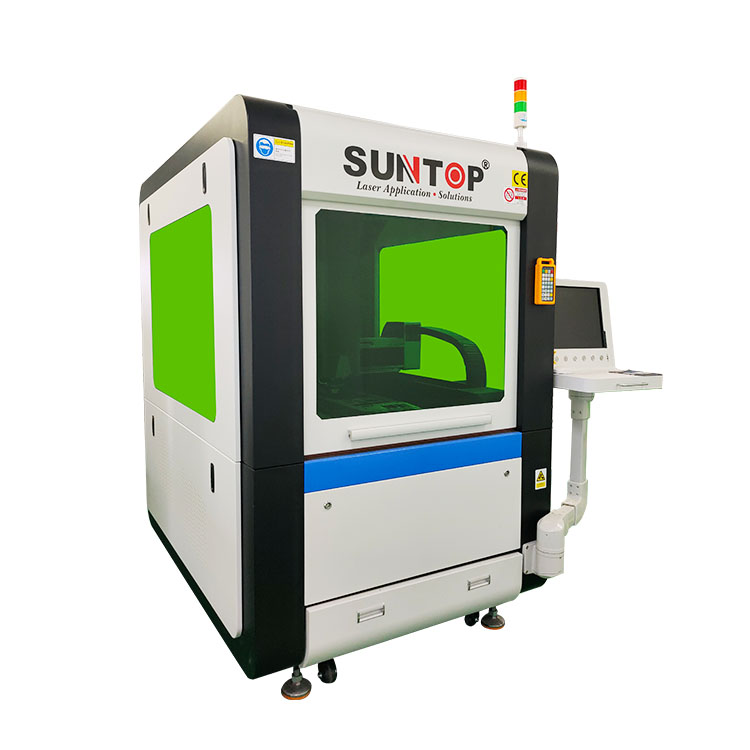

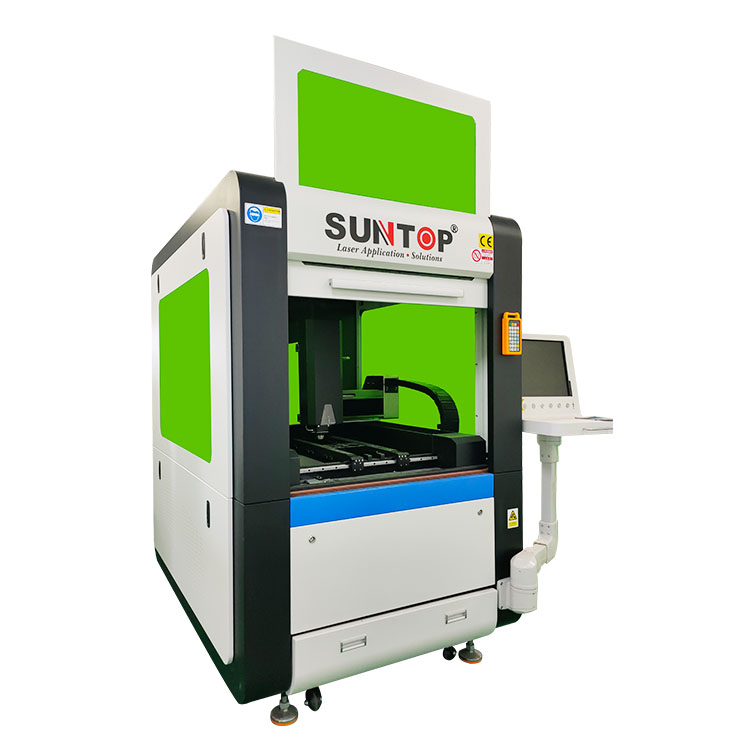

Jewelry Laser Cut

Jewelry precision cutting machine, used for fast and precise laser cutting of gold, silver and other materials; high degree of automation, fast cutting speed, high production efficiency, short product production cycle, no matter it is simple or complex parts, can be realized once with laser Rapid prototyping cutting.
Product Model: ST-FC6060/ST-FC6040/ST-FC1390
Laser power: 1000W, 1500W, 2000W, 3000W, 4000W
Working area: 600*600mm (600*400mm/1300*900mm)
Availability:
Quantity:

PDF Export

Product Parameters       Samples       Video

jewelry laser cut features-Suntop


Features of jewelry laser cut

1. Fully enclosed design, with laser protection function, in line with European CE standards.

2. Adopt imported servo motor or linear motor, high-precision grinding screw and CNC numerical control system, with fast speed, high precision and low maintenance rate.

3. Non-contact processing, small thermal impact, minimal local deformation of the workpiece, and no mechanical deformation.

4. Professional laser cutting automatic programming software, with manual or automatic nesting function.

5. The sensor-type cutting head is not affected by the flatness of the material, and can automatically jump to the cutting height according to the unevenness of the material to achieve the best cutting effect.


Details of jewelry laser cut

1. This machine adopts marble precision platform, gantry double-drive integrated closed structure, which has good rigidity, shock resistance and high-speed stability.

2. Adopt imported servo motor or linear motor, high-precision grinding screw and CNC numerical control system, with fast speed, high precision and low maintenance rate.

3. The special precision laser cutting head is used to ensure small kerf, high precision and smooth cutting surface without burrs.

4. Imported fiber laser is adopted, which has strong beam stability, good cutting quality and long service life, and there is no problem in using it for 100,000 hours.

5. It adopts three-dimensional high-speed motion axis, which can move back and forth, left and right, and move and cut according to the length of the product material. It has scalability, fast and stable operation, and a large moving range.


Advantages of jewelry laser cut

1. High precision, fast speed, narrow kerf, small heat-affected zone, smooth cutting surface without burrs.

2. Good processing flexibility, can process arbitrary graphics, and can also cut special-shaped materials such as pipes.

3. Low maintenance cost, photoelectric conversion efficiency of more than 30%, energy saving and electricity saving, saving operating costs, and achieving the highest production efficiency.

4. It has red light indication and pre-running function to ensure that the fiber laser cutting machine can find the accurate cutting position.

5. The design of the protective cover is environmentally friendly and beautiful. The green glass cover window filters the laser beam and is safe for eyes.


Jewelry laser cut application

Application materials

Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy,  titanium alloy, galvanized steel, pickle plate, aluminum-plating, zinc plate, metallic copper, brass, silver, gold and other kinds of metals.


Application industry

Applicable to gold jewelry, gold and silver jewelry, high-precision instruments, auto parts, hardware products, precision machinery, sheet metal industry, metal cabinets, aviation, aerospace, ships, metallurgical equipment, elevators, household appliances, gift crafts, tool processing , decorations, advertisements, metal external processing and other manufacturing and processing industries.


Parameters of jewelry laser cut

Model

ST-FC6060/ST-FC6040/ST-FC1390

Table Max. cutting size

600*600mm/600*400mm/1300*900mm

Laser power

1000W, 1500W, 2000W, 3000W, 4000W

Cutting thickness

0.5-20mm (depend on the actual laser power)

Repeat positioning accuracy

±0.01mm/m

Maximum operating speed

40m/min

Laser type

Fiber Laser

Laser source

Raycus Brand (MAX, IPG can be choosed)

Cooling mode

Water Cooling

Maximum acceleration

0.5G

Laser wavelength

1064nm

Transmission

High precision screw guide transmission

Graphic format supported

AI, PLT, DXF, BMP, DST, DWG, DXP

Working voltage

220V±10%, 50-60Hz / 380V±10%, 50-60HZ

Applicable material

All metal (stainless steel, brass, aluminum, titanium steel, etc.)

Machine weight

1300KG (depending on actual model)

Machine dimension (L*W*H)

1650*1360*1880mm (depending on actual model)


jewelry laser cut samples-Suntop
