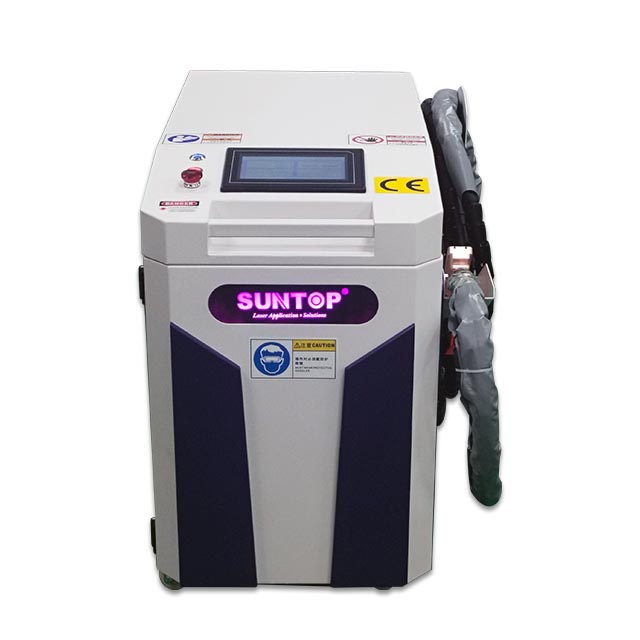

Rust Removing Lazer

Adopt laser, laser optical system and control system composition, realize handheld laser cleaning, equipment is easy to install, manipulate and realize automation. It is easy to operate, turn on the power and clean without chemicals, media, dust and water, it can automatically focus, fit to the surface and clean the surface with high cleanliness, it can remove resin, oil, stain, dirt, rust, coating, plating and paint from the surface of the object.
Product Model: ST-FC1000H/ST-FC1500H/ST-FC2000H
Laser power: 1000W/1500W/2000W
Working area: 170*170mm/250*250mm/300*300mm
Availability:
Quantity:

Details       Product Parameters       Samples       Video

Rust removing lazer features-Suntop

Features of rust removing lazer

1. Integrated design, reasonable structure, dustproof, good heat dissipation, effectively prolong the service life of machine parts.

2. Laser cleaning machine produced by CW continuous high power fiber laser through unique coupling and control technology.

3. High cleaning efficiency, adapt to a variety of complex environments, to achieve a long time continuous cleaning operations.

4. Lightweight hand-held gun head design, with high tolerance depth of focus, to achieve a key operation.

5. Simple operation, power on, handheld or with robot to achieve automated cleaning.

6. By adjusting the laser process parameters, it can effectively remove the contaminants without damaging the surface of the substrate and make the surface as new again.


Details of rust removing lazer

1. Laser cleaning head

Light weight only 0.7KG, flexible and convenient to clean metal parts of any shape, with a wide cleaning width, up to 300mm. Equipped with a safety monitoring system.

2. Operation interface

Advanced resistive touch screen with higher sensitivity, intelligent control, supports multiple languages (English, Spanish, German, Italian, French, Russian, Turkish, etc.)

3. Laser source

We use a customized 45um core diameter cleaning fiber laser with a lifespan of 100,000 hours and maintenance-free.

4. Water chiller

Double circulating water cooling makes the laser source and cleaning head cool better, and the temperature control sensor adopts imported brands.

5. Cleaning connection fiber

The cable distance from the laser cleaning head to the machine is 10 meters, and there is no need to move the machine when laser welding the workpiece.

6. Wide range of cleaning

The maximum cleaning area is 300*300mm, and the efficiency is high.

Rust removing lazer details-Suntop


Advantages of rust removing lazer

1. The cleaning effect is good, no abrasive and non-contact, no thermal effect, no mechanical force on the object to be cleaned, no damage to the surface of the object to be cleaned.

2. The eliminated waste is solid powder, small in size, easy to store, and basically does not pollute the environment.

3. Can remove various types of pollutants on the surface of various materials and achieve a cleanliness that cannot be achieved by conventional cleaning. It can selectively clean the pollutants on the material surface without damaging the material surface.

4. Stable performance, service life up to 10 years, low operating cost, fast speed, high efficiency, time and labor saving.

5. Can be adjusted at any time, no need to fix the work station, free and flexible, suitable for a variety of work environment scenarios of cleaning.


Cleaning ability (only for reference)

Cleaning surface

1000W

1500W

2000W

Floating embroidery (20um)

10m⊃3;/h

15m⊃3;/h

20m⊃3;/h

Paint (120um)

4m⊃3;/h

6m⊃3;/h

8m⊃3;/h

Rusting (100um)

2.5m⊃3;/h

4m⊃3;/h

5m⊃3;/h


Rust removing lazer safety features

ST-FC1000H/1500H/2000H is a Class IV laser system and routine precautions are required for the safe operation of the equipment.

Built-in features include:

● Key switch control of laser source and Emergency-stop button ensure deliberate operation.

● Fiber laser interlock verifies integrity of laser delivery to the cleaning gun.

● Laser clean gun trigger, enable and then fire, for intentional operation(Double pulling the trigger before the light comes out).

Rust removing lazer application

Application materials

Suitable for removing resin, paint, oil stains, stains, dirt, rust, coatings, etc. from the surface of objects.


Application industry

Widely used in automobile manufacturing, mould, cultural relic restoration, aerospace, shipbuilding, 3C electronics, medical equipment, rail transit, steel manufacturing, military equipment, various steel, iron, aluminum materials and other industries.


Parameters of rust removing lazer

Model

ST-FC1000H

ST-FC1500H

ST-FC2000H

Power

1000W

1500W

2000W

Power consumption

3000W

4500W

6000W

Max. cleaning width

170*170mm

250*250mm

300*300mm

Laser wavelength

1064nm

Operation mode

Handheld

Power adjustment range (%)

10-100 (Gradient adjustable)

Cleaning head weight

0.7Kg

Delivery cable length

10M (can be customized)

Input power

220V±10% 50-60HZ

Cooling system

Water Cooled with automatic pumping function

Machine weight

220KG

230KG

280KG

Machine size

935*720*1248mm

1500*880*1160mm


Rust removing lazer samples-Suntop
