Handheld Laser Welder for Brass

Handheld laser welding is mainly composed of laser, welding system, handheld laser gun and cooling system. It is a new type of welding method with good beam quality, fiber optic output and high electro-optical conversion efficiency, etc. It is mainly for welding of thin-walled materials and precision parts, and can realize spot welding, butt welding, stack welding and sealing welding.
Product Model: ST-FW1500H/ST-FW2000H/ST-FW3000H
Laser power: 1500W/2000W/3000W
Single maximum welding thickness: 0.5-8mm
Availability:
Quantity:

Details       Product Parameters       Samples       Video

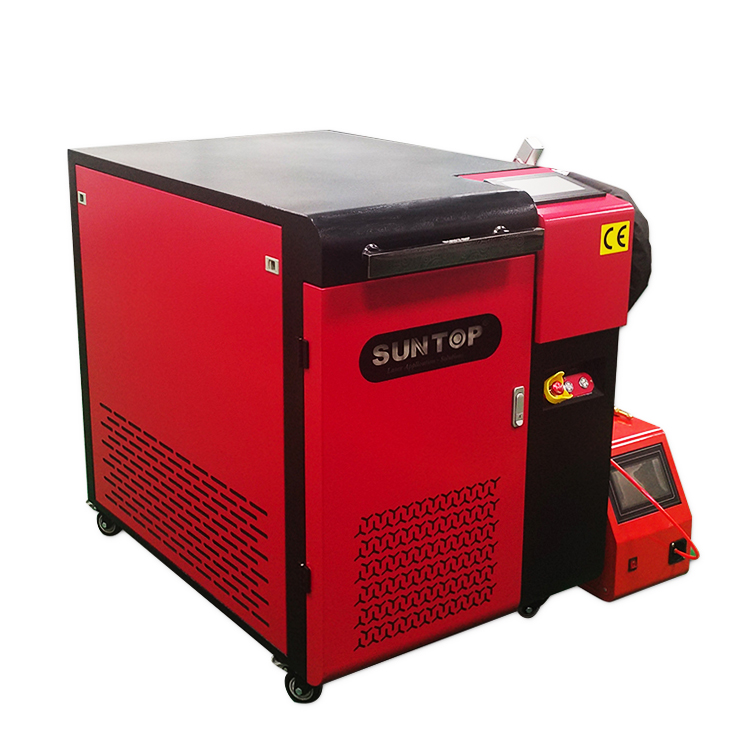

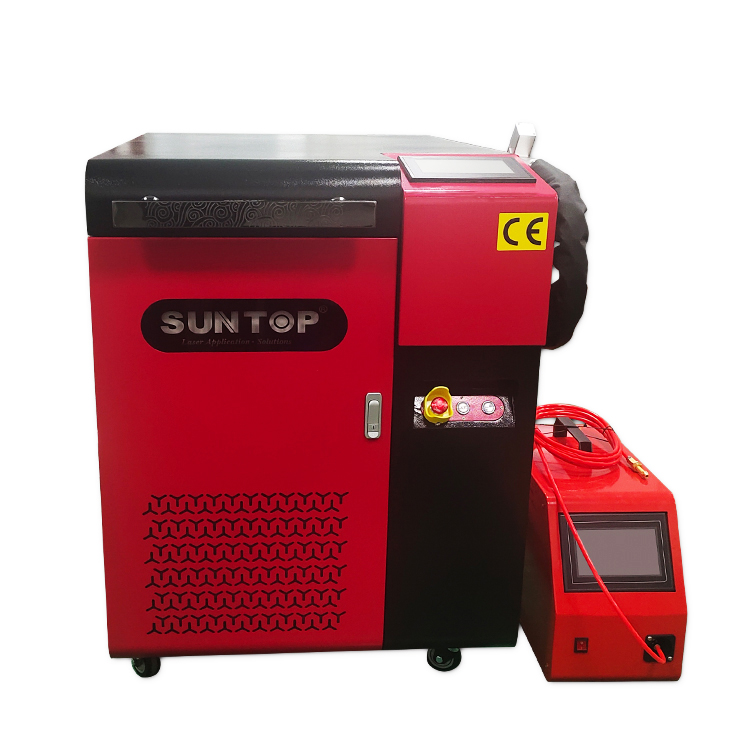

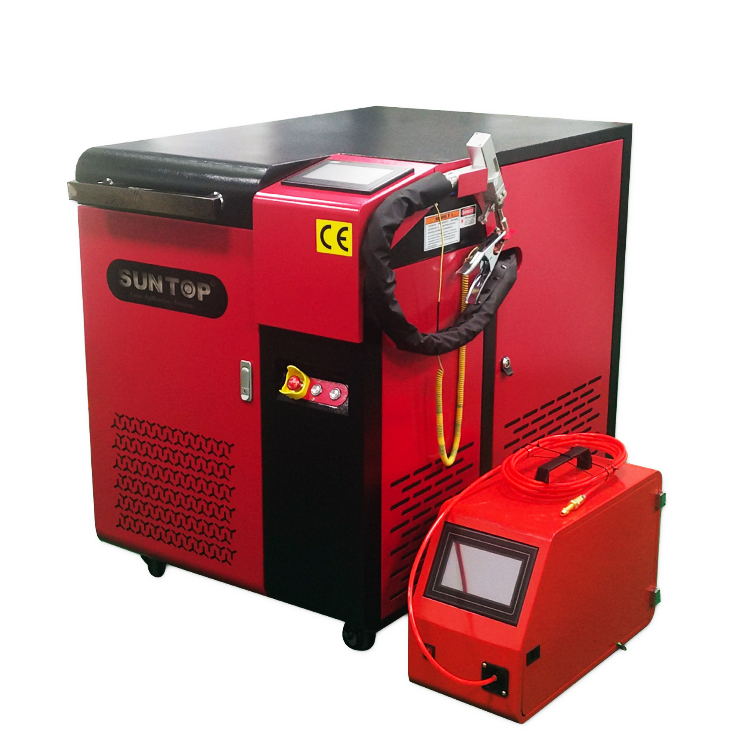

handheld laser welder for brass features-Suntop


Features of handheld laser welder for brass

1. Using infrared positioning to verify the position of the welding head and verify the position of the welding process. More accurate welding position, smooth and beautiful weld seam, easy to grind and polish, no treatment or just a simple treatment process after welding.

2. 360° micro welding without dead angle, small spot, high power density, high positioning accuracy after laser beam focus, can be used for assembly welding of small and micro size workpieces, and realize automatic mass production.

3. Equipped with 10m imported optical fiber, it can be very flexible and convenient for outdoor welding.

4. self-developed handheld swing welding method, light and flexible, can meet multi-angle and multi-position welding.

5. Adopt high precision touch capacitive screen wire feeder, 220V drive, more powerful wire feed, no wire jamming.

6. Suntop's patented technology water circulation protection system and auxiliary gas detection effectively extends the life of the laser lens and prevents damage to optical components caused by Improper operation.


Details of handheld laser welder for brass

1. Laser welding head

Light weight only 0.8KG, flexible and convenient to weld any shape of metal parts, adjustable welding seam width, can carry out 10 meters long distance welding. Equipped with safety temperature monitoring system.

2. Operation interface

Multi-language intelligent control panel, flexible adjustment of welding parameters, multi-group welding parameter library, light output cumulative timing, etc.

3. Automatic wire feeding system

Touch screen design, automatic wire filling, fully digital design, supporting stainless steel and aluminum wire of 0.8mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm diameter.

4. Laser Source

We use customized fiber with minimum core diameter of 20um for deeper penetration, laser life up to 100,000 hours, maintenance-free, with Bluetooth capability.

5. Water Cooler

Double circulation water cooling makes the laser source and weld head cooler, temperature control sensor adopts imported brand.

6. Welding connection fiber

10 meters long fiber optic cable built-in design, effectively avoid damage to the fiber and the problems caused by moisture, greatly improving the service life of the laser device.


handheld laser welder for brass details-Suntop


Advantages of handheld laser welder for brass

1. The operation is flexible and simple, and there is no technical threshold requirement. General workers can work on the job after a short training, which can meet multi-angle and multi-position welding.

2. The welding speed is fast, the weld seam is smooth and beautiful, and there is no need for secondary grinding or less follow-up grinding after welding.

3. A variety of welding processes, such as spot welding, seam welding, lap welding, flat welding, inner fillet welding, outer fillet welding, ring welding, overhead welding, etc.

4. The station can be adjusted at any time, no need for a fixed station, free and flexible, suitable for welding in various working environments.

5. Low cost of use, power consumption, gas consumption, lenses, etc. are all low-cost consumption.

6. The welding affected area is small, which will not cause deformation and blackening, and the welding depth is large, the welding is firm, and the melting is sufficient.



Single side weld thickness

Maximum melting

1500W

2000W

3000W

Stainless steel (mm)

0.5-4

0.5-5/6

0.5-7

Mild steel (mm)

0.5-4

0.5-6

0.5-7/8

Aluminum (mm)

0.5-3

0.5-4

0.5-6

Brass/copper (mm)

0.5-1.5

0.5-2

0.5-3

Galvanized sheet (mm)

0.5-3

0.5-4

0.5-6

Iron (mm)

0.5-4

0.5-6

0.5-7/8

Remark: Double weld thickness can be achieved if the material is welded from both sides in two times


Handheld laser welder for brass safety features

ST-FW1500H/2000H/3000H is a Class IV laser system and routine precautions are required for the safe operation of the equipment.

Built-in features include:

● Key switch control of laser source and Emergency-stop button ensure deliberate operation.

● Fiber laser interlock verifies integrity of laser delivery to the welding gun.

● Laser weld gun trigger, enable and then fire, for intentional operation.

● Part contact electrical interlock turns off the laser power if the welding head is not in contact with the welded parts.

Operators must wear all recommended personal protective equipment (PPE), including laser safety glasses, laser and heat resistant gloves, hats, leather aprons, etc., and other laser and heat resistant clothing.


Handheld laser welding and argon arc welding comparison

1. Energy consumption comparison: compared with traditional arc welding, handheld laser welding machine saves about 80% to 90% of electrical energy, and processing costs can be reduced by about 30%.

2. Comparison of welding effect: Laser handheld welding can complete the welding between metal and dissimilar metal. Fast speed, small deformation, small heat-affected zone. The welding seam is beautiful, flat, without/less porosity and no pollution. Handheld laser welding machine can perform tiny open parts and precision welding.

3. Comparison of subsequent processes: Handheld laser welding with low heat input and small deformation of the workpiece can result in a beautiful welded surface without or with only a brief treatment (depending on the welded surface effect requirements). Handheld laser welding machine can greatly reduce the huge polishing and leveling process consuming labor costs.


Handheld laser welder for brass application

Application materials

It can be used for welding stainless steel, carbon steel, copper, aluminum, gold, chromium, silver, titanium, nickel and other metals or alloys. It can also be used for various welding between different materials, including copper – brass, titanium-molybdenum, titanium- gold, nickel-copper, etc.


Application industry

Widely used in sheet metal welding (stainless steel, carbon steel), sheet metal, molds, chassis, water tanks, kitchen and bathroom products, hardware accessories, billboards, door and window frames, household appliances, handicrafts, household items, auto parts and many other industries.


Parameters of aluminum laser welding

Model

ST-FW1500H

ST-FW2000H

ST-FW3000H

Max. output laser power (W)

1500

2000

3000

Welding gun weight

0.8

0.8

0.75

Max. welding thickness (mm)

≤3

≤5

≤8

Max. welding seam width (mm)

5

5

8

Laser type

Fiber laser (Suntop custom 20um welding exclusive)

Laser detection method

Bluetooth wireless connection, Mobile App Monitoring

Control panel language support

English, Spanish, German, French, Turkish, Italian, Russian, Vietnamese, Thai, Korean, Japanese, etc.

Laser wavelength (nm)

1064+5

Suitable welding materials

Carbon steel, stainless steel, aluminum, galvanized sheet metal, brass, iron and other metal materials

Adapted welding methods

Spot welding, overlap welding, splice welding, fillet welding, lap welding etc..

Laser power adjustment range (%)

10-100

Cooling method

Advanced water-cooling, dual temperature control and automatic control

Welding aiming preview method

Built-in Red-Light pointer

Protection systems

Air pressure sensor and solenoid valve control

Length of fiber optic cable (meter)

Standard 10 (can be customized 15)

Welding shielding gas

Argon or nitrogen (air pressure approx. 6-8 bar)

Working environment

Temperature 5-45 °C /humidity 10-90%

Other optional support functions

Cleaning + cutting

Cleaning + cutting

Cleaning + cutting + weld bead cleaning

Max. Cutting thickness (mm)

1.2

1.5

2

Max. cleaning width (mm)

40

40

120

Automatic wire feeder type

(Universal with TIG wire)

Single wire feed

Single wire feed

Support both the double wire feed and single wire feed

Solid wire type (SS, Iron, AL, Brass)

0.8, 1.0, 1.2, 1.6

0.8, 1.0, 1.2, 1.6

0.8, 1.0, 1.2, 1.6, 2.0, 2.5

Temperature control monitoring alarm

Yes

Yes

Yes

Main machine consumables

Laser protective lenes, welding nozzles, welding wires

Machine size (MM)

686*425*611

750*1080*1000

750*1080*1000

Machine net weight (KG)

110

220

240

Power supply requirement

110V / 220V±10%, single phase

380V±10%, three phase

Total power consumption (Maximum)

3500W

4500W

7000W
