Portable Luggage Handheld Laser Rust Remover

This portable luggage handheld laser rust remover features an integrated trolley suitcase design for easy transportation. Equipped with air-cooled pulsed fiber laser, it quickly clears rust, paint, oxide and oil from metal surfaces without abrasives or chemical solvents.
※ Product model: ST-BL200H/ST-BL300H/ST-BL500H
※ Laser power: 200W/300W/500W (other power can be customized)

Availability:

Quantity:



Inquire PDF Export

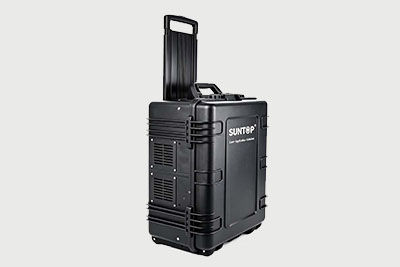

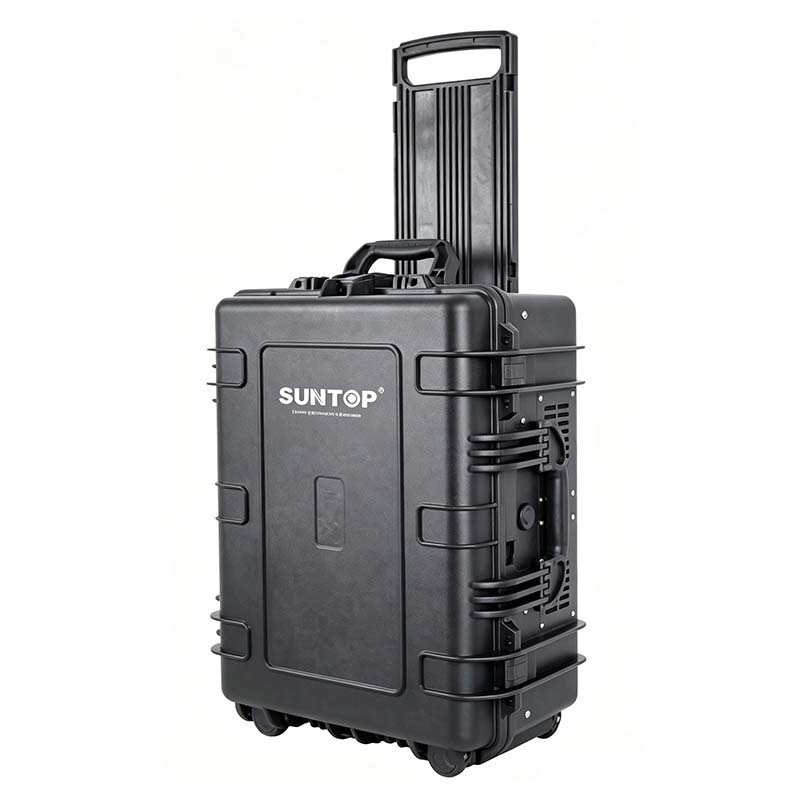

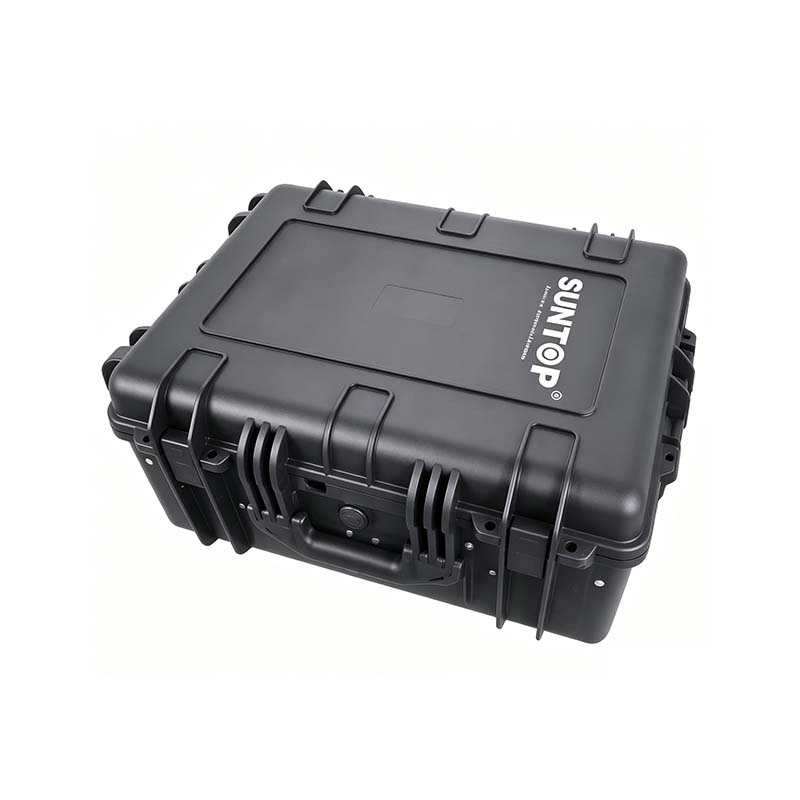

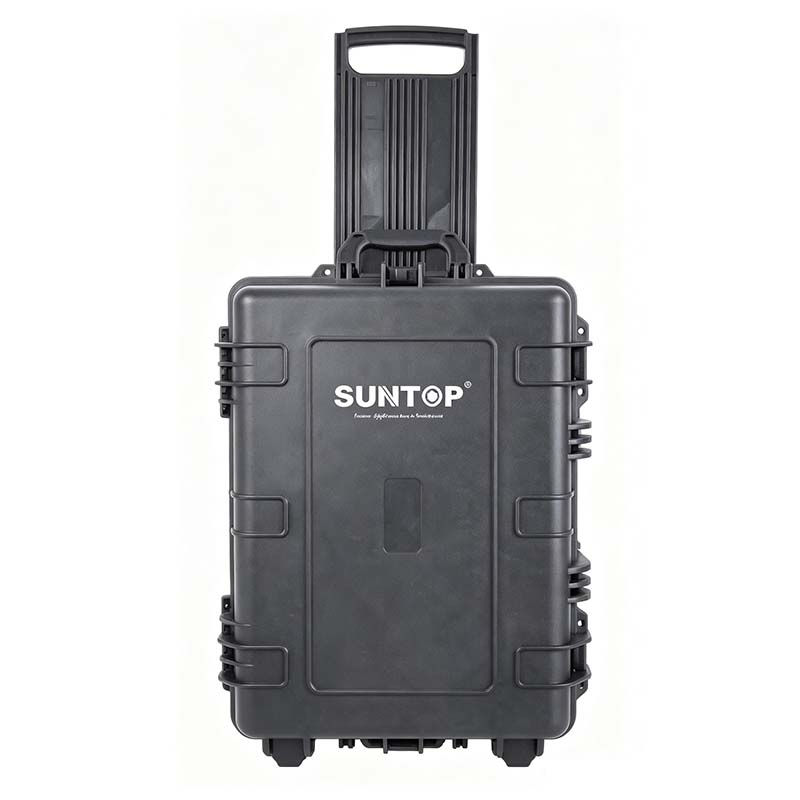

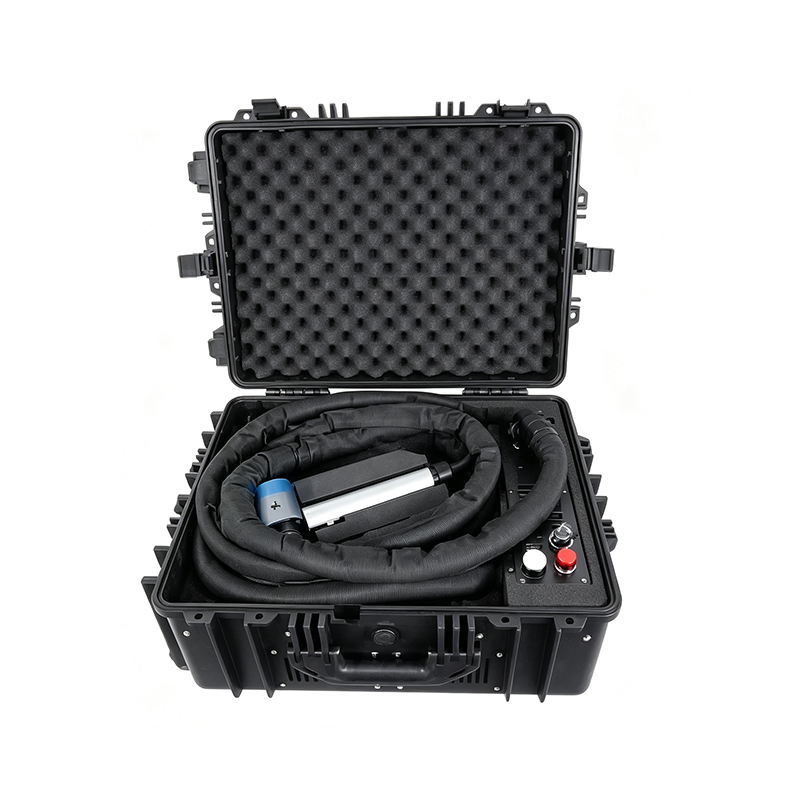

The suitcase-style handheld laser rust removal machine features an integrated, portable case design with built-in retractable wheels, making it easy to transport and move. It is ideal for on-site cleaning operations in outdoor locations, construction sites, and equipment facilities. The device is equipped with an air-cooled pulsed fiber laser source, eliminating the need for an external large-scale chiller unit, and can be quickly put into operation as soon as it is turned on.

Utilizing high-energy lasers for non-contact cleaning, it efficiently removes rust, old paint, scale, oil stains, and plating from metal surfaces without damaging the base material. It produces no chemical waste, is environmentally friendly, requires no consumables, and offers lower long-term operating costs.

The handheld operating head is flexible and lightweight, suitable for cleaning a wide variety of workpieces such as pipes, molds, steel structures, and automotive parts. With a low learning curve, it is widely used in the automotive repair, shipbuilding, metalworking, and engineering maintenance industries.

Product Technical Features

1. Integrated laser head & operation screen design, supporting up to 12 light output modes

2. Stable cleaning system with nearly zero maintenance demand

3. Precise selective cleaning for designated areas and sizes

4. Simple operation, ready to work after power-on; compatible with handheld use or robotic arm automatic cleaning

5. Multilingual support: built-in Chinese, English, German, with custom language available

6. Lightweight whole machine, total weight only 30kg, easy to transport

7. Non-contact cleaning mode, no consumables, no damage to base material, eco-friendly

8. Equipped with dust filter structure, safer and more environmentally friendly

Advantages of Laser Cleaning

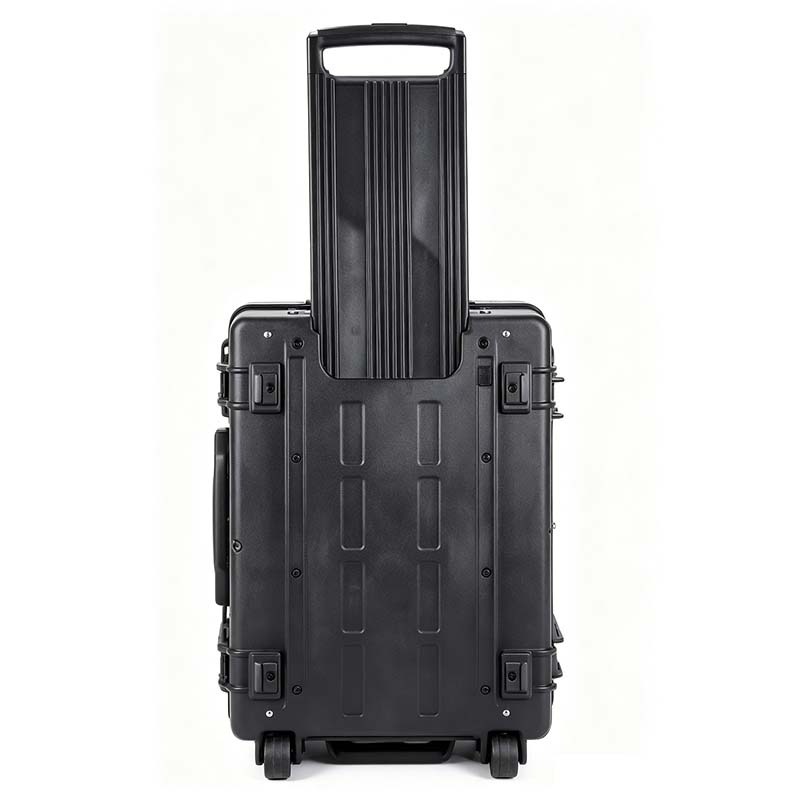

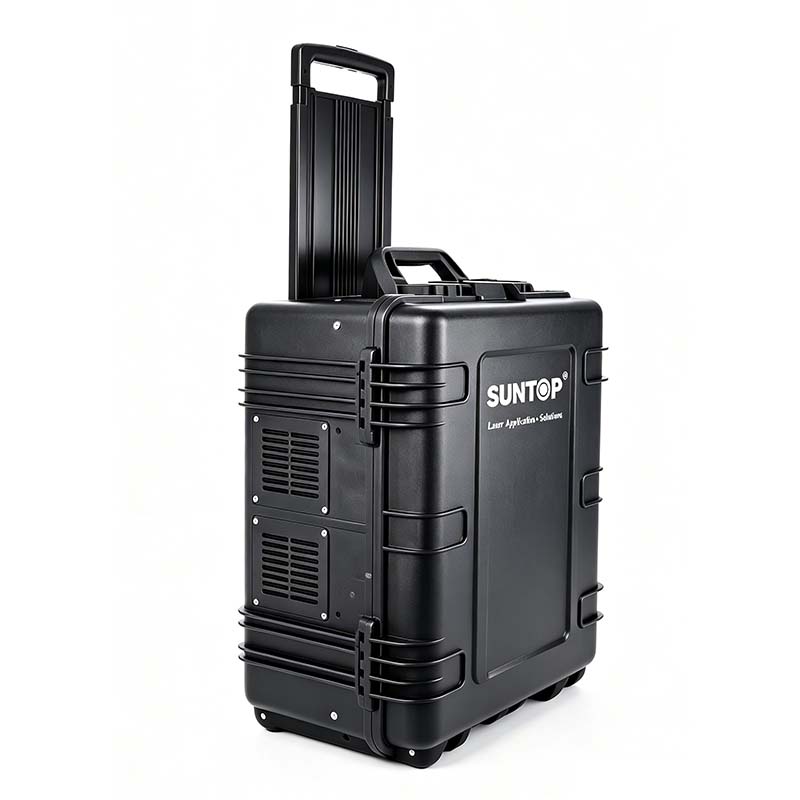

1. The unit features a compact, integrated carry-on case design with a retractable handle and wheels, making it lightweight and convenient for outdoor on-site operations.

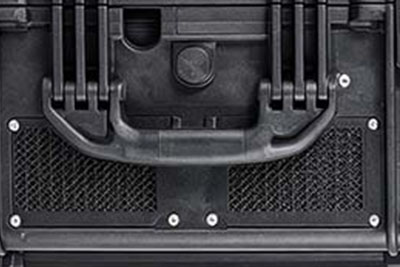

2. The integrated air-cooled design eliminates the need for an external chiller; the unit is ready to use immediately upon startup.

3. High cleaning precision, supporting targeted, selective rust removal, paint stripping, and oxide layer removal.

4. The control panel is integrated with the laser head, offering multiple power output modes for convenient adjustment.

5. The equipment operates stably, is easy to maintain, and has low long-term operating costs.

6. Easy to use—it can be operated manually or paired with a robotic arm for automated cleaning.

FAQ

1. How can i place an order?

Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.

For further discussion, it is better to contact us with WhatsApp / WeChat / email / phone, in case of any delays.

2. What kind of display we provide?

We have laser marking machine / laser welding machine / laser cutting machine / laser cleaning / CO2 laser cutting and engraving machine / laser accessories for you choose.

3. How about the warranty?

We have 2 years warranty and lifelong maintenance.

4. What is your terms of delivery?

We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.

5. How much does the entire unit weigh, and is it convenient for on-site work?

The entire unit weighs only 30 kg. It comes in a wheeled carry-on case that can be pushed or pulled by a single person, making it ideal for outdoor field operations.

6. Does it need to be used with a chiller?

It features an air-cooled design and does not require an external chiller; simply plug it in to start using it.

7. Will cleaning damage the base material of the workpiece?

Non-contact laser cleaning allows for precise, targeted treatment without damaging the base material and requires no consumables.

8. Does the user interface support multiple languages?

It features built-in multilingual support to meet the operational needs of customers worldwide.

9. What types of surface contaminants can it remove?

It can remove rust, paint, oil stains, graffiti, mold buildup, and various other contaminants.

10. Is daily maintenance of the equipment troublesome?

The system operates stably, requiring minimal daily maintenance.

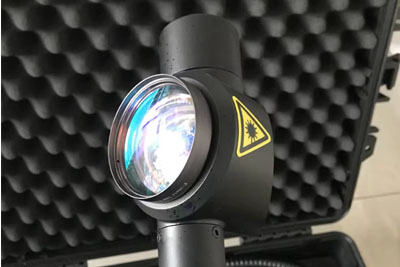

| 10mm technical Parameters Of Two dimensional Cleaning Laser Head

Basic Specifications Of Equipment

interface type	QCS (D17) /QCS (D20)
power range	≤500W
laser wavelength	1064nm
working distance	F160/F210/F254/F330/F420
protective lens	D43*T2
cooling method	natural cooling
scanning speed	10000mm/s
Scan width	10‑300mm
Weight of laser head	800g

| Technical Parameters

Indicator/Model	unit	ST-BL200H	ST-BL300H	ST-BL500H
M² Typical Value		< 5
Output cable length	m	5
Average output power	W	> 200	> 300	> 500
Maximum pulse energy	mJ	2/5	2/5/15	2/5/15
Adjustable frequency range	kHz	1‑3000	1‑3000	1‑3000
pulse width	ns	13‑500
Output power instability	%	< 5
cooling method		air cooling
supply voltage	V	48V
Maximum Power Consumption	W	< 768	< 1200	< 1440
Supply current	A	> 16	> 25	> 30
center wavelength	nm	1064
Basic Specifications Of Equipment
project	requirement			remark

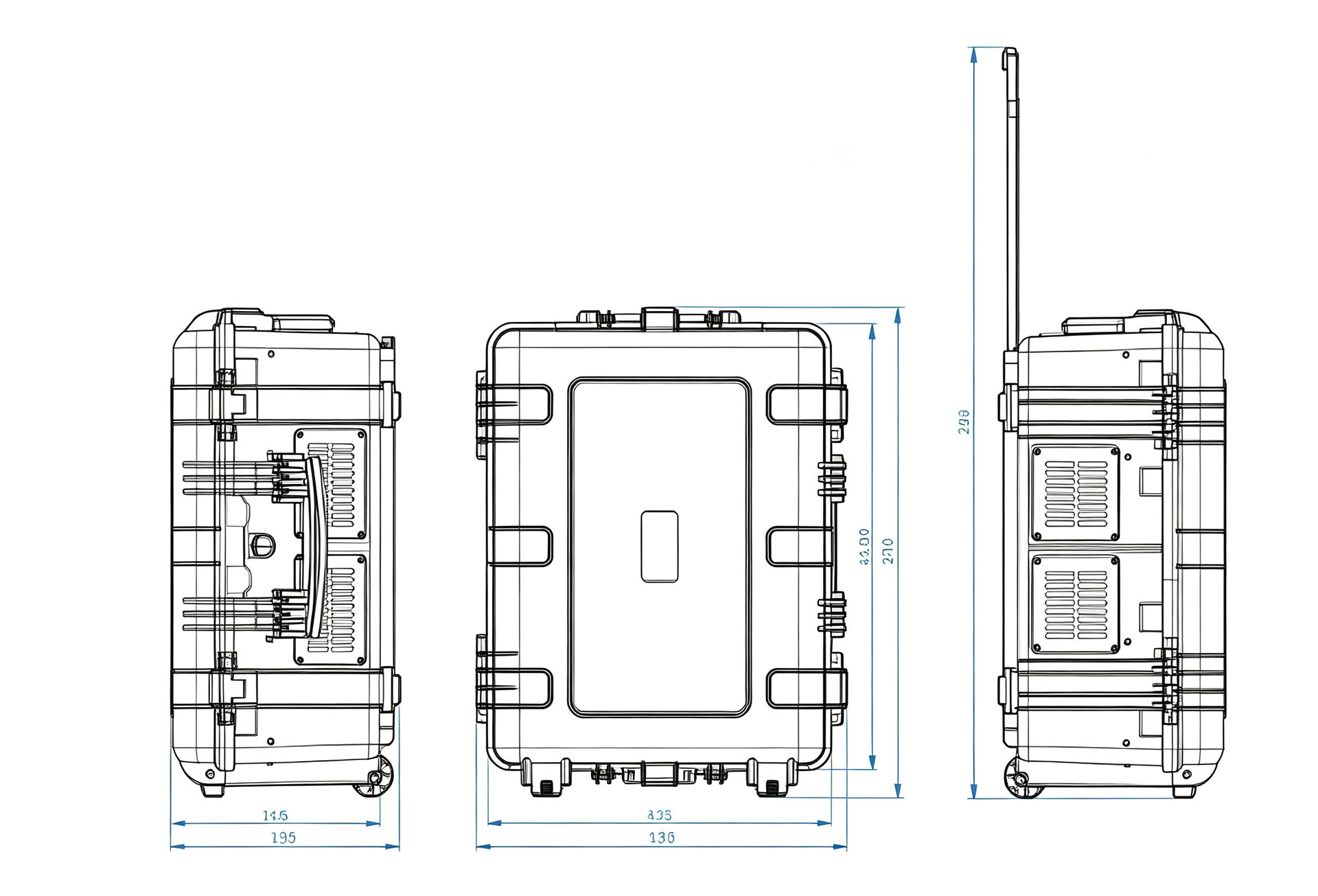

Overall dimensions of the equipment	622mmL435mmW266mmH
Overall weight of the equipment	30kg (according to configuration)
Exterior color	black
Total machine power	800/1100/1700W
