The high-efficiency air-cooled 3D fiber laser engraving machine is an innovative engraving device designed to meet the needs of modern industry and creative design. Utilizing advanced air-cooling technology, it eliminates the complexity of traditional water-cooling systems, enabling simple and efficient operation while ensuring stability and reliability during extended use. Its compact design saves space and facilitates flexible use in various working environments.

Its powerful 3D laser engraving capabilities allow for intricate and complex pattern engraving on a variety of materials, including metals and plastics. Whether for product labeling in the manufacturing industry, decorative art, or personalized gift customization, this machine delivers high-precision and high-quality engraving results. Its user-friendly interface and rapid response mechanism ensure easy operation even for beginners, improving productivity and facilitating creative realization.

With its outstanding performance and diverse application potential, the high-efficiency air-cooled 3D fiber laser engraving machine is the ideal choice for businesses looking to stand out in a competitive market. Whether for small-batch customization or large-scale production, this engraving machine provides a high-value solution.

Product Technical Features

1. Equipped with professional 3D scanning lens and automatic control system.

2. Adopt multi-axis dynamic zoom technology to track the focus of deep curves in real time. It can complete flexible and diverse processing requirements, such as curved surface marking, deep engraving and large flat marking.

3. Using 3D fine marking system software, it can meet various manual carving needs, such as relief patterns, deep carvings, negative carvings, etc., which improves the three-dimensional beauty of details.

4. With the function of three-dimensional curved surface three-dimensional marking, it can focus on fine light spots within the relative height standard of 0~60mm dimensional tolerance, and symmetrically mark. Marking of irregular products such as curved surfaces, slopes, steps, spheres, cylinders, cones, etc. without zooming.

5. The processing format is large, and the marking range can be adjusted according to the specific processing requirements, and there is no defocusing during the whole processing process.

6. Support 3D model import, 2D graphics can be directly wrapped or projected on the built-in public surface.

Advantages of 3D Laser Engraving

● High-efficiency air-cooling system: Utilizing advanced air-cooling technology, it ensures the stability and reliability of the equipment during long-term operation, avoiding the maintenance costs and complexity of traditional water-cooling systems.

● High-precision engraving: Powerful 3D laser engraving capabilities enable the creation of intricate and complex patterns, suitable for metals and plastics, meeting diverse engraving needs.

● Flexible operation: The compact design facilitates use in various working environments and features a user-friendly interface, allowing even beginners to quickly learn and improve work efficiency.

● Space-saving: The compact design saves space, making it ideal for small workshops and creative studios.

● Fast processing: High-efficiency laser engraving significantly shortens production cycles, helping businesses respond faster in a competitive market.

● Durable and long-lasting: Fiber laser technology offers a long lifespan, reducing the frequency of maintenance and parts replacement, lowering long-term operating costs for users.

FAQ

1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For further discussion, it is better to contact us with WhatsApp / WeChat / email / phone, in case of any delays.

2. What kind of display we provide?
We have laser marking machine / laser welding machine / laser cutting machine / laser cleaning / CO2 laser cutting and engraving machine / laser accessories for you choose.

3. How about the warranty?
We have 2 years warranty and lifelong maintenance.

4. What is your terms of delivery?
We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.

5. How much maintenance does the equipment require?

Thanks to advanced air-cooling technology, this equipment is relatively easy to maintain. Regularly clean the optical path and laser lenses to maintain the engraving effect, and check the machine's operating status.

6. Is professional training required to operate this engraving machine?

The equipment is designed to be user-friendly, allowing even beginners to quickly get started. We also provide detailed operation manuals and training materials to ensure users can use the equipment safely and efficiently.

7. What are the engraving speed and precision like?

The high-efficiency air-cooled 3D fiber laser engraving machine boasts high engraving speed and excellent precision, enabling complex and detailed engraving effects and ensuring the quality and consistency of the finished product.

8. Is this equipment suitable for small-batch production?

Yes, this laser engraving machine is ideal for small-batch production and personalized customization, enabling rapid response to market demands and flexible handling of different production tasks.

9. Can I design patterns on this machine?

This engraving machine is compatible with various design software, allowing users to create and import patterns as needed, achieving diverse engraving effects.

3D dynamic focusing fiber laser marking machine Fiber laser source-Suntop

Fiber laser source

Good beam quality, stable performance, long service life (100,000 hours), and maintenance-free. MAX, Raycus, JPT and other brands can choose.

3D digital scanning head

SINO-GALVO oscilloscope scanning head, high speed and accurate marking. XYZ three axes, irregular / surface marking, Z axis can be flexible automatic movement.

50w Laser Marking Machine 3D digital scanning head-Suntop

Permanent Laser Marking Professional 3D galvanometer-Suntop

Professional 3D galvanometer

Variable focal length, precise control of focal position, ensure focal size and spot quality to realize the engraving of irregular products.

Double red light preview

Help to find the focal distance quickly, no need to use ruler, just check whether the red dots and red lines on the surface of the product to be marked overlap.

3D dynamic focusing fiber laser marking machine Double red light preview-Suntop

3d Fiber Laser Metal Engraving Machine Built-in air cooling-Suntop

Built-in air cooling

With built-in air cooling design, the heat dissipation performance is better, can effectively extend the service life of optical components.

Aluminum table

The worktable is made of thick aluminum plate, which is very stable. The positioning holes with threads are neatly arranged for easy and accurate positioning.

3D dynamic focusing fiber laser marking machine Aluminum table-Suntop

3D dynamic focusing fiber laser marking machine Control system-Suntop

Control system

BJJCZ control card adopts EZCAD software, which is easy to operate and powerful. Compatible with Windows XP /7/8/10.

Safety protection

Equipped with an emergency stop button, which can quickly cut off the power supply, and the laser protection cover can be customized as needed to ensure safe operation.

3D dynamic focusing fiber laser marking machine Safety protection-Suntop

Laser Power	30W	50W	60W	100W
Model	ST-FL30-3D	ST-FL50-3D	ST-FL60-3D	ST-FL100-3D
Max Marking Range	110110/175175 /30030/600600 /800*800mm
Laser Wavelength	1064nm
Pulse Energy	1MJ
Repetitive Frequency	30K-500KHZ
Indicator Laser	Red light 655nm/output 1.0mW
Minimum Line Width	0.03mm
Marking Speed	≤10000m/s
Operating System	Windows XP/7/8/10
Font Support	Ture type, AUTOCAD Single line font, custom
One-dimensional Barcode	CODE39/CODE128/ITF/CODABAR/EAN/UPC
Two-dimensional Barcode	QR/PDF417/Data matrix (ECC200) etc.
File	PLT/DXF/DWG/SVG/STL/BMP/JPG/JPEG/PNG
Environmental Requirements	Temperature: 10-35℃, Humidity: 5-75%
Optional Accessories to Purchase	D80 Rotating Shaft/D57 Small Chuck/2D Table (X.Y direction)/Cutting Fixture
Power supply	220V±10%, 50/60 Hz
Net Weight (KG)/ Gross Weight	140KG / 168KG
Machine Dimension	10508001200mm (LWH)

|

Applied Materials

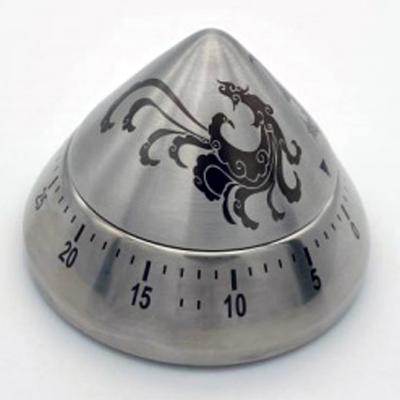

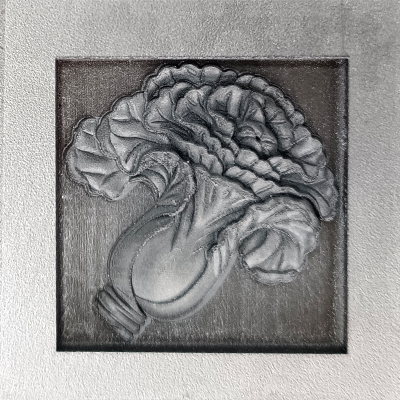

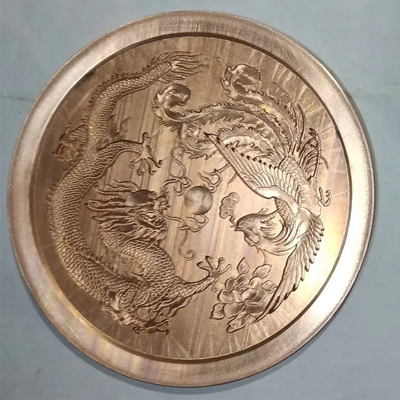

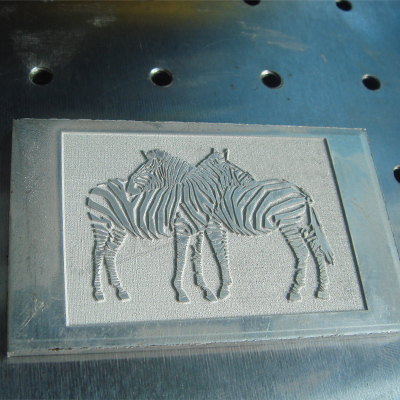

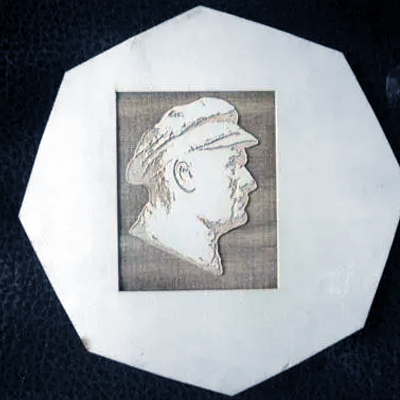

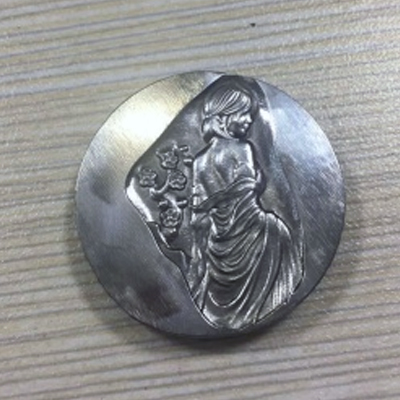

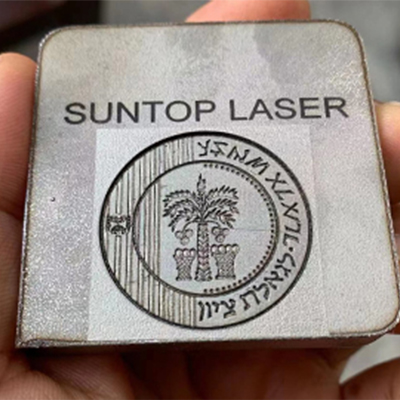

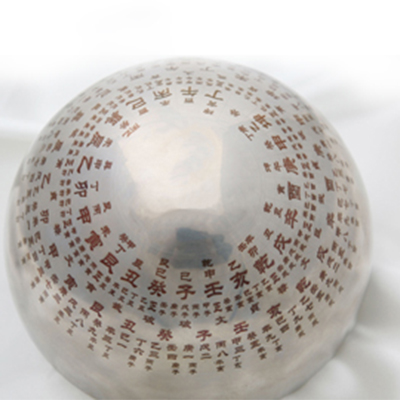

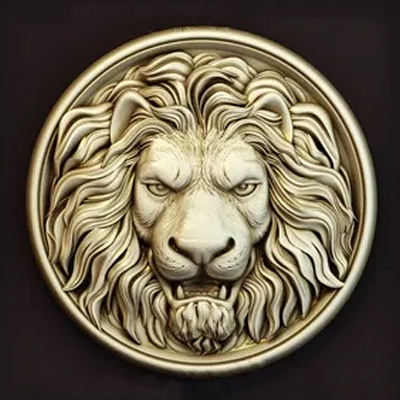

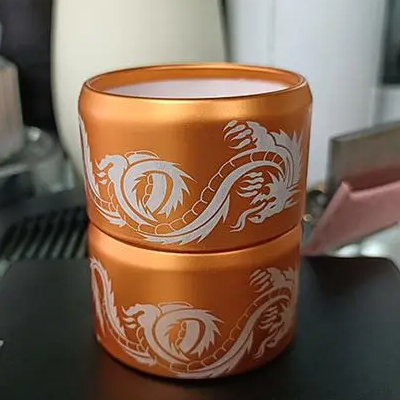

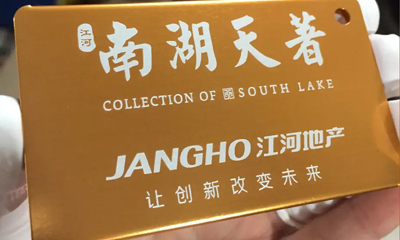

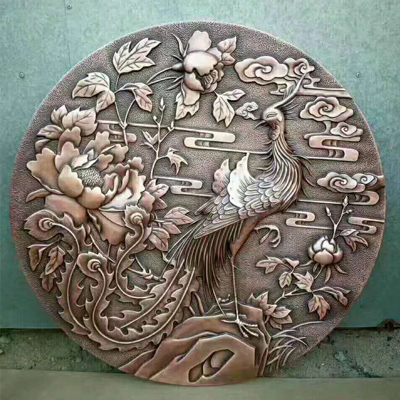

Suitable for working with most metal marking applications such as Gold, Silver, Stainless Steel, Brass, Aluminum, Steel, Iron Titanium etc., and can also mark on many nonmetal materials, such as ABS, Nylon, PES, PVC etc.

High-efficiency air-cooled laser engraving machine

|

Application Industries

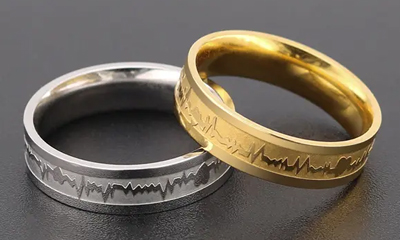

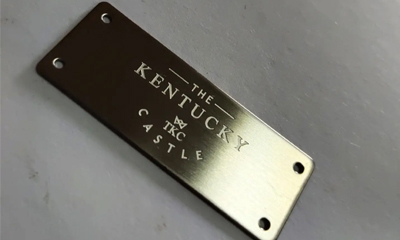

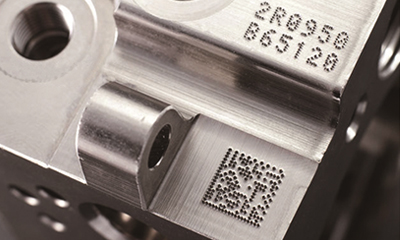

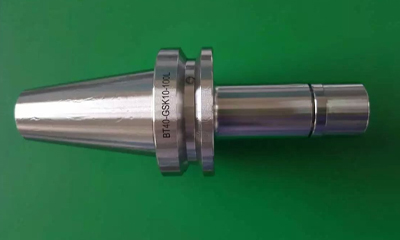

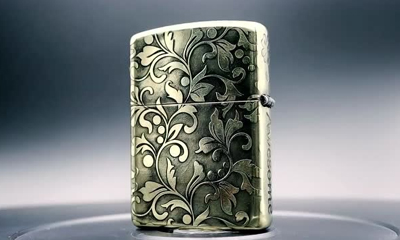

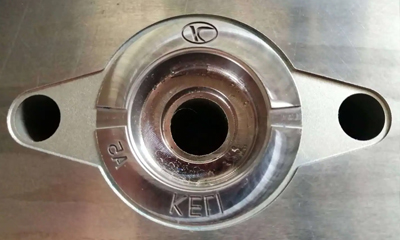

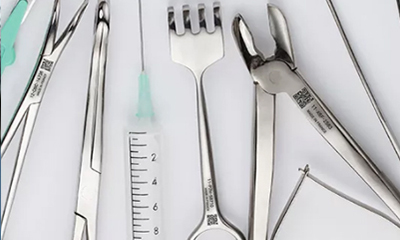

Widely used in 3C, automotive, electronic instruments, computer parts, industrial bearings, clocks and watches, electronic and communication products, home appliances, hardware tools, molds, wire and cable, food packaging, medical equipment and other industries.

High-efficiency Air-cooled Laser Engraving Machine
