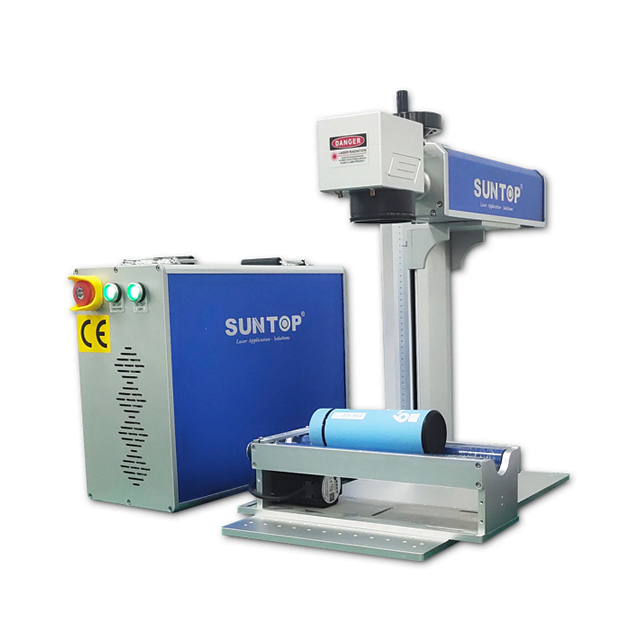

Portable Laser Marking Machine

Portable laser marking machine is small in size, easy to carry, low in cost of use, maintenance-free, no consumables, plug and play. The marking effect is high precision, high definition, uniform, beautiful appearance, stable performance, and a long service life of up to 10 years.
Product Model: ST-FL20P/ST-FL30P/ST-FL50P/ST-FL60P
Laser power: 20W/30W/50W/60W
Working area:110*110mm/150*150mm/200*200mm/300*300mm/450*450mm
Availability:
Quantity:

PDF Export

Details       Product Parameters       Samples       Video

portable laser marking machine features-Suntop

Features of portable laser marking machine

1. One-piece integrated design, better meet the user's industrial production needs, small size, high space utilization.

2. The equipment adopts air-cooling technology, without the support of water-cooling system, and has a longer service life.

3. The electro-optical conversion efficiency is very high, reaching more than 30%, the use cost is low, and the power and energy are saved.

4. The red light positioning system is adopted, which is convenient for positioning and has high positioning accuracy.

5. The working speed is fast, which is 2-3 times that of the traditional one. The beam quality is good, the light spot is small, and the marking line width is extremely narrow, which can meet different marking needs.

6. This machine can be equipped with other optional accessories according to the customer's actual product laser marking requirements, such as rotating device, 2D/3D worktable, pen turntable and other fixtures.


Details of portable laser marking machine

1. Laser source

Suntop's customized pulsed MAX. Lasers with wider adjustable pulse widths from which can achieve the different marking effects with perfect quality.

2. High quality galvanometer

The high-speed digital galvanometer scanning head has good running stability and high positioning accuracy, which can realize high-speed marking and high precision.

3. F theta lens

The use of quartz high-transparency coating field lens greatly improves the light-gathering ability of the edge beam, high light transmittance, and good marking effect.

4. Control panel

BJJCZ brand original EZCAD control system has the characteristics of high stability, easy operation and good performance.

5. All-aluminum operating table

The all-aluminum operating table is selected, the porous position is flexibly positioned, and the processing direction is flexibly adjustable.

portable laser marking machine details-Suntop


Advantages of portable laser marking machine

1. Small size, easy to move, save space, suitable for laser marking in various scenes.

2. Non-contact processing, no damage to products, no tool wear, good marking quality.

3. Simple operation, plug and play, low cost, no consumables.

4. The marked text, pattern and other information are clear and permanent, without fading or falling off.

5. Other optional accessories can be selected according to the customer's actual product laser marking requirements, such as rotating device, 2D/3D workbench, pen turntable and other fixtures.

6. Suntop fiber laser marking machine has undergone strict aging test before leaving the factory, 24 hours continuous output of laser beam, ensuring 100% machine stability.

Portable laser marking machine application

Application materials

Suitable for working with most metal marking applications such as Gold, Silver, Stainless Steel, Brass, Aluminium, Steel, Iron Titanium etc, and can also mark on many nonmetal materials,such as ABS, Nylon, PES, PVC etc.


Application industry

Metals, alloy, oxide, ABS, epoxy resin, printing ink, etc, which are widely applying for electronics, jewelry, automobiles, communication products, phone keys, plastic translucent keys, jewelry products, key chain, electronic components, integrated circuits (IC), electrical appliances, buckles cookware, stainless steel products and other industries.


Parameters of portable laser marking machine

Laser Power

20W

30W

50W

60W

Model

ST-FL20P

ST-FL30P

ST-FL50P

ST-FL60P

Max Marking Range

110*110mm  /150*150mm

200*200mm

300*300mm

450*450mm

Depth of Single Marking

0.01mm

0.03mm

0.06mm

0.07mm

Same pattern marking efficiency

10s

7 s

4s

3s

Whole Machine Power

600W/h

800W/h

1000W/h

11000W/h

Laser Type

Fiber Laser

Laser Source

MAX Brand ( Raycus can choose )

Control Software

EZCAD

Cooling Mode

Air Cooling

Working Accuracy

±0.002MM

Marking Speed

0-7000mm/s

Repetition Frequency

20-100KHz

Laser Wavelength

1064nm

Minimum Font for Marking

0.15mm

Working Voltage

220V±10%  50/60 Hz

Graphic Format Supported

AI, PLT, DXF, BMP, DST, DWG, DXP

Applicable Material

All metal (Stainless steel, Carbon steel, Brass,etc.) and some plastic(ABS, PVC,PES, ETC.)

Spare Parts Come with the Machine

Protective glasses, Metal business card, Foot switch, Hex socket wrench, Power cord

Optional Accessories to Purchase

D80 Rotating Shaft/ D57 Small Chuck/2D Table (X.Y direction)/ Cutting Fixture

Net Weight (KG)/ Gross Weight

38KG / 50KG

Machine Dimension

420*300*550mm (L*W*H)


portable laser marking machine samples-Suntop
