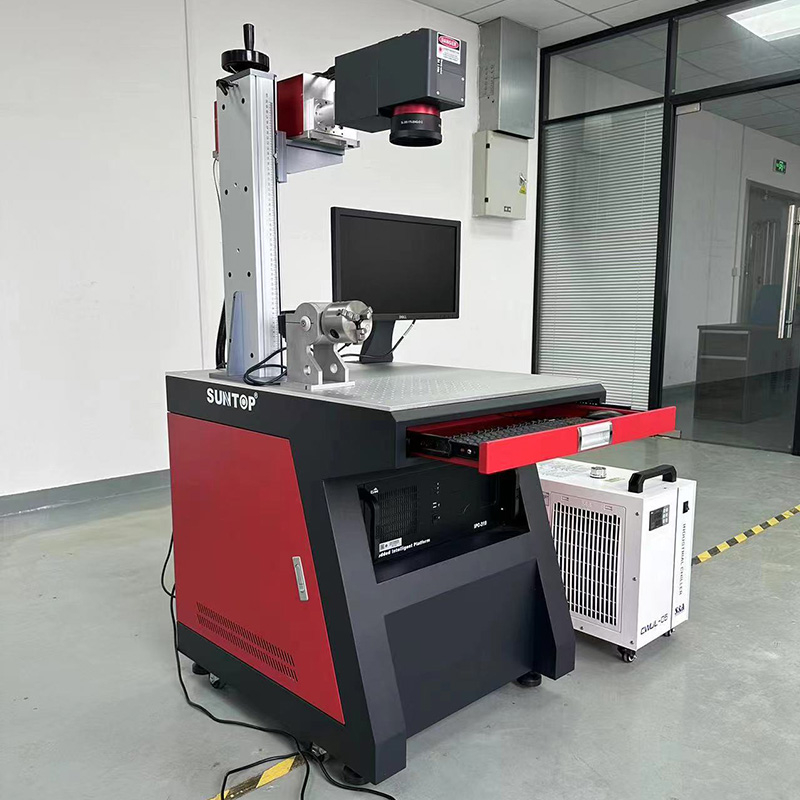

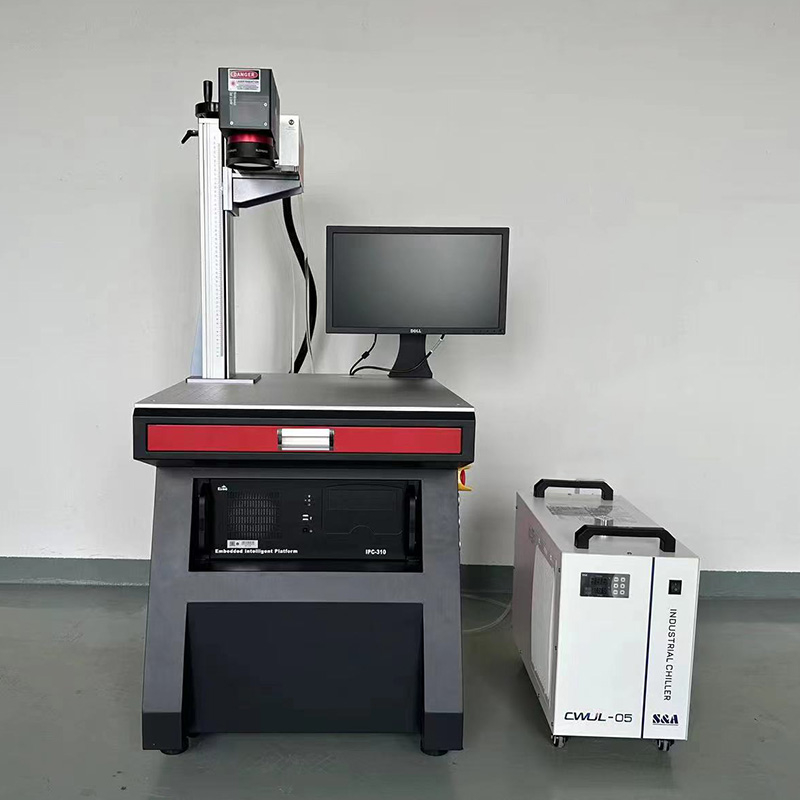

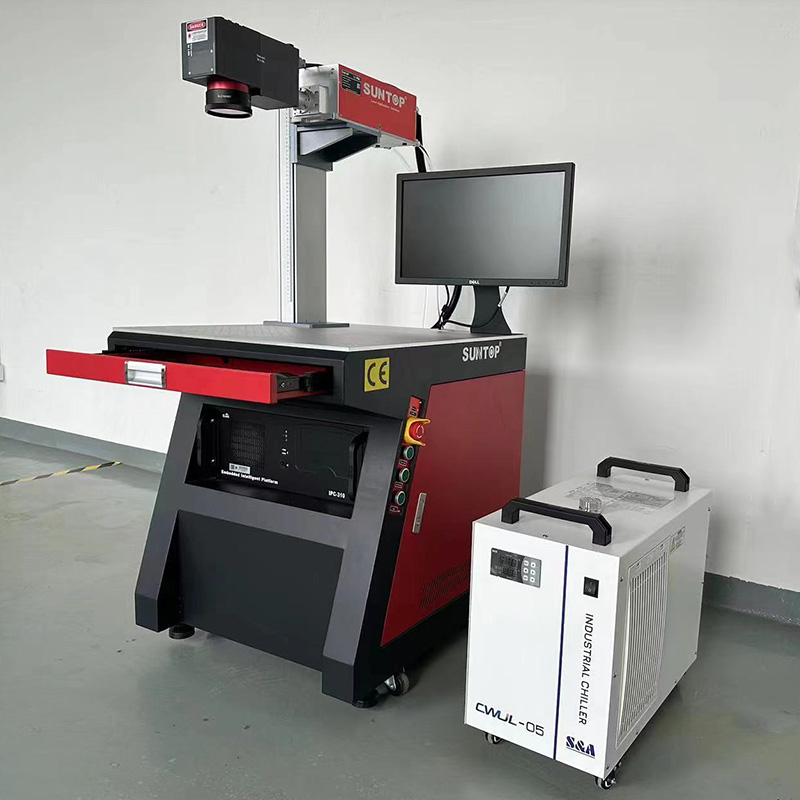

Lasermarks

It uses high-quality core components and is equipped with a high-speed, high-precision 3D galvanometer scanner, as well as 3D-specific software and control systems. These high-quality configurations ensure that the system can perform ultra-fine machining of any curved surface parts.
Product Model: ST-UV03/05/10/15/20-3D
Laser power: 3W/5W/10W/15W/20W
Working area: 110*110mm-180*180mm
Availability:
Quantity:

Details        Product Parameters        Samples       Video

Lasermarks features-Suntop


Features of lasermarks

● Subvert the traditional two-dimensional marking mode, to achieve all-round marking, can be engraved bevel, cylinder, cone, sphere and other different 3D shapes.

● Automatically calculates radian and automatically adjusts focus for marking multi-level large format, 3D curved surfaces and more.

● Adopt multi-axis dynamic zoom technology to track deep curve focus in real time.

● Adopt 3D fine marking system software to meet various manual carving needs such as relief, deep carving, negative carving, etc., and enhance the three-dimensional beauty of details.

● With three-dimensional surface three-dimensional marking function, to ensure a fine focus spot within the height range of 0-150mm, consistent marking effect.


Details of lasermarks

1. Brand laser

Raycus/JPT/MAX/IPG brand laser, stable performance, high photoelectric conversion efficiency, and no maintenance of the laser and beam transmission system, can save a lot of maintenance costs and time.

2. 3D scanning head

High-precision laser scanning head, fast and clear, high stability. It can mark any curved surface, arc surface, high and low surface with a height difference of 20mm.

3. 3D galvanometer

Efficient and stable, precise control of the focal length position, suitable for various large-format, complex curve.

4. Industrial control computer

Easy to operate, with high anti-magnetic, dustproof, impact resistance and strong anti-interference ability, can work continuously for a long time.


Lasermarks details-Suntop


Advantages of lasermarks

● High quality light source, good quality of light spot, uniform optical power density, stable output optical power, can realize precision processing.

● High marking speed, high efficiency, stable performance,  low power consumption.precise marking &engraving.

● Non-contact marking.Heat affected area is very small, no heating effect, material will not be burned or deformed.

● high electro-optical conversion rate of more than 30%, no power coupling loss, energy saving and power saving.

● Integrated structure, maintenance-free, no consumables, saving operating costs.

● 3D uv laser marking machine can work with production line to feed and discharge materials automatically.


Application materials of lasermarks

It is suitable for almost all materials. Widely used in metal (all metals such as iron, copper, aluminum, magnesium, zinc, etc.), glass, crystal, PCB, plastic, fiber, paper, paint, silicon wafer, LCD, polyamide, wire, plug and other polymer materials.


Application industry of lasermarks

Especially suitable for the high-end market of ultra-fine processing, skin care cosmetics, medical drugs, food, silicon wafer micro-hole, blind hole processing, glass products, metal products, plastic buttons, electronic components, gifts, communication equipment, building materials, etc.


Parameters of lasermarks

Model

ST-UV03/05/10/15/20-3D

Laser Power

3W/5W/10W/15W/20W

Max. marking range

110*110mm-180*180mm

Laser Type

UV laser

Laser source

GAIN (JPT and other brand optional)

Control Software

EZCAD

Cooling Mode

Water Cooling

Beam diameter

≤ 10mm

Working Accuracy

±0.002MM

Marking Speed

1-12000mm/s

Repetition Frequency

20-100KHz

Laser Wavelength

355nm

Minimum Font for Marking

0.01mm

Working Voltage

220V±10% 50/60 Hz

Graphic Format Supported

AI, PLT, DXF, BMP, DST, DWG, DXP

Spare Parts Come with the Machine

Protective glasses, Metal business card,   Foot switch, Hex socket wrench,

Power cord

Optional Accessories to Purchase

D80 Rotating Shaft/ D57 Small Chuck/2D   Table (X.Y direction)/ Cutting Fixture

Net Weight (KG)/ Gross Weight

170KG / 195KG

Packaging Dimension

880mm*780mm*1750mm (L*W*H)



Lasermarks samples-Suntop
