Mini laser marking machine has the characteristics of small and portable, multi-material applicability, low power and low energy consumption, high efficiency, etc. It is suitable for some small-scale and personalized marking needs, and is a flexible and convenient laser marking equipment. ※ Product Model: ST-RFL20H ※ Laser power: 20W/30W ※ Working area: 70*70mm/110*110mm (optional)
1. The whole machine is integrated structure, small size, light weight, easy to carry.
2. Built-in touch screen display, more convenient operation, no need for computer.
3. Self-designed handle, weighing only 0.9kg, can be moved freely for marking, not limited by space, and can be easily marked under various working conditions.
4. High efficiency of electro-optical conversion, using cold air cooling, good quality output beam, long service life.
5. Stable output power, 24 hours continuous operation, low cost of use, no consumables, plug and play design.
6. Processing speed is 2-3 times of traditional laser marking machine, excellent beam quality, small spot, narrow marking line width, suitable for fine marking.

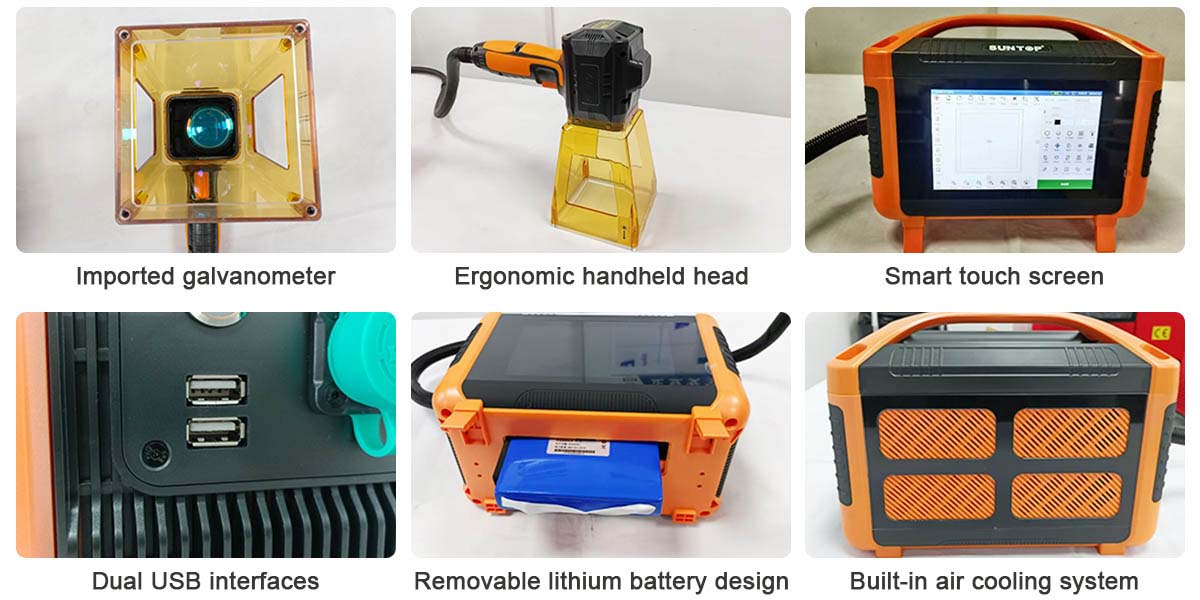

Details of laser marking machine mini
1. Imported galvanometer
Utilizing imported motors for marking, this machine offers high precision, fast speed, and a good marking effec.
2. Ergonomic handheld head
Adopts ergonomic design, rubberized and anti-slip technology, weighs only 0.8kg, compact and light.
3. Smart touch screen
No need for a computer, you can edit the marking content on the touch screen, which is very convenient to use.
4. Dual USB interfaces
Supports multiple file formats, import and read.
5. Removable lithium battery design
Battery/plug-in dual-use scenarios with no limitations.
6. Built-in air cooling system
Better heat dissipation performance, effectively extending the life of optical components.
Advantages of laser marking machine mini
● Compact and portable: small in size, easy to carry and move, suitable for temporary or small batch marking processing in different places.
● Simple operation: It has a simple and easy-to-understand operation interface, users can get started quickly, and no professional operation skills are required.
● Low power and low energy consumption: Due to their small size, mini laser marking machines usually have lower power and energy consumption, saving energy and reducing operating costs.
● Personalized customization: Suitable for small-scale, personalized customization marking needs, and can achieve some unique marking effects and designs.
● High efficiency: Although it is a mini device, mini laser marking machines usually have high-efficiency processing capabilities and can quickly complete precise marking tasks.
Handheld marking head
● High-quality galvanometer, field mirror and imported laser marking head, which greatly improves the beam quality, making the marking effect better and the quality higher.
● Equipped with intelligent red light positioning system, double insurance, hard-core positioning, stable performance.
● One-button trigger marking, the handle is equipped with a marking button, which can be moved anytime and anywhere, saving time and effort.
● Original optical cable overcomes the limitation of workbench space, and can realize outdoor marking and long-distance marking; adjust the position at any time, free and flexible, suitable for marking in various working environment scenes.
Touch screen
● Linux system
Equipped with 8-core processor, high security level; stable performance and fast response.
● Large color touch screen
8-inch fully laminated LCD screen, one-button trigger; one machine can be used for multiple purposes, and hardware diversification is compatible.
Application materials of laser marking machine mini
Suitable for working with most metal marking applications such as Gold, Silver, Stainless Steel, Brass, Aluminium, Steel, Iron Titanium etc, and can also mark on many nonmetal materials,such as ABS, Nylon, PES, PVC etc.
Application industry of laser marking machine mini
Metals, alloy, oxide, ABS, epoxy resin, printing ink, etc, which are widely applying for electronics, jewelry, automobiles, communication products, phone keys, plastic translucent keys, jewelry products, key chain, electronic components, integrated circuits (IC), electrical appliances, buckles cookware, stainless steel products and other industries.
Parameters of laser marking machine mini
Laser
Fiber laser generator
Positioning method
Red light positioning
Output power
20W / 30W
Number of lines of engraved characters
Any line within the effective marking range
Marking range
70×70mm / 100×100mm (optional)
Printing speed
800 characters (related to material and printing content)
Deflection mirror
High-precision 3D scanning system
Font
Chinese, English, numbers, traditional Chinese and other standard fonts
