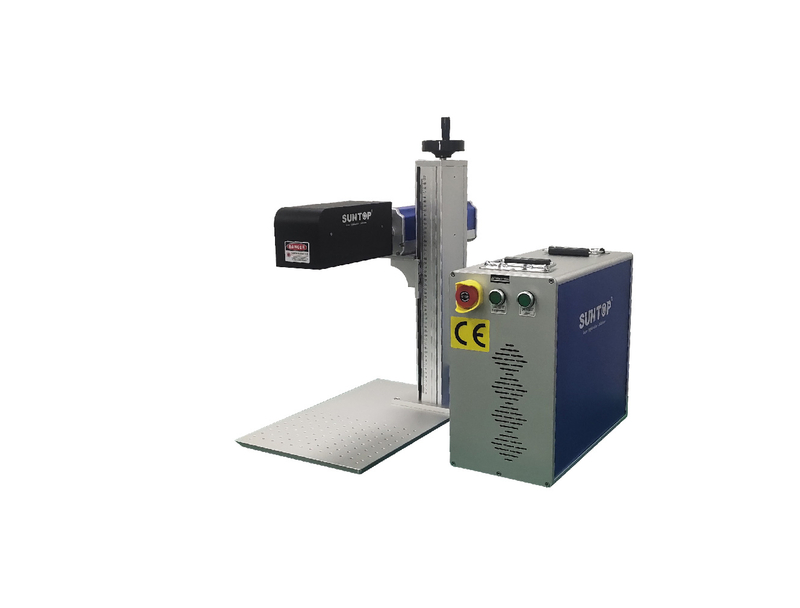

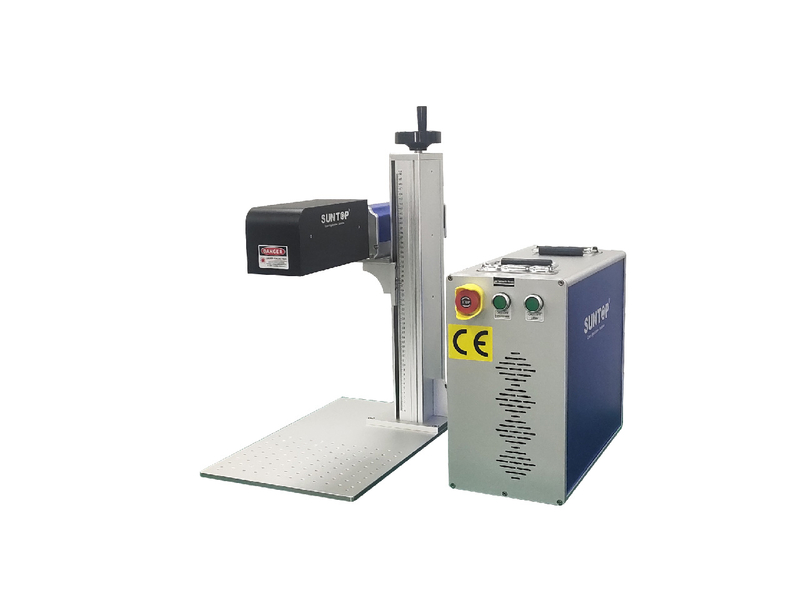

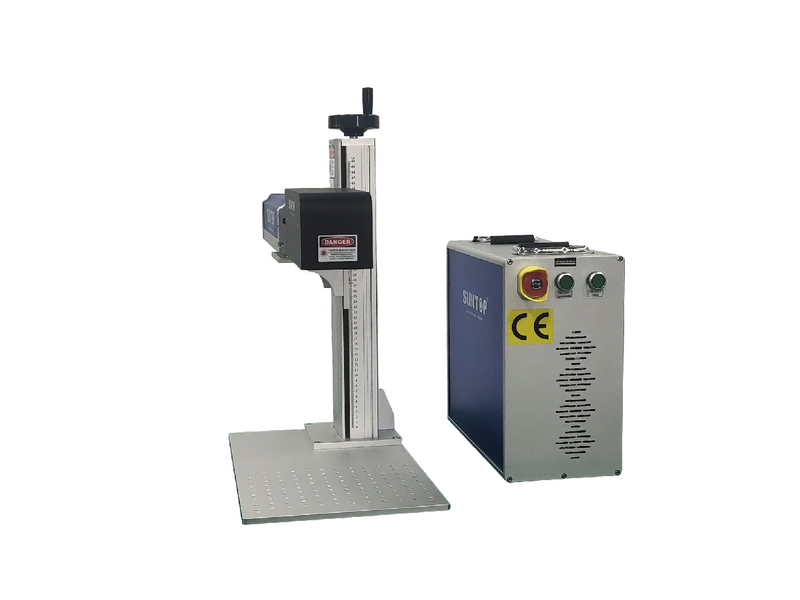

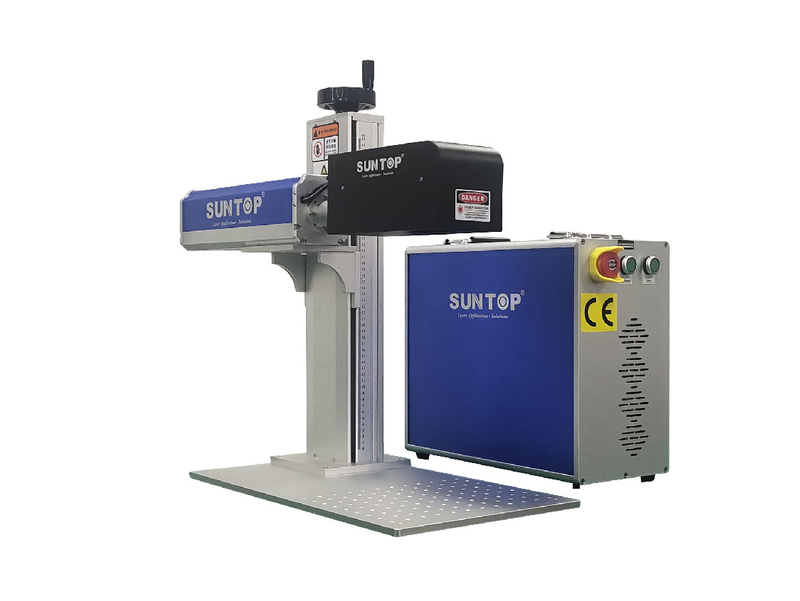

Laser Marking Carbide

The characteristics and advantages of laser marking cemented carbide include strong wear resistance, good deformation resistance, strong corrosion resistance, good thermal conductivity, excellent cutting performance, good high temperature stability, customizability and good laser marking effect, etc. It is suitable for various applications requiring high hardness, high wear resistance and high temperature stability. It is a high-quality engineering material.
Product Model: ST-FL30P-3D/ST-FL50P-3D/ST-FL60P-3D/ST-FL100P-3D
Laser power: 30W/50W/60W/100W
Working area: 110*110mm/150*150mm/200*200mm/300*300mm
Availability:
Quantity:

Details        Product Parameters        Samples       Video

laser marking carbide features-Suntop


Features of laser marking carbide

1. Equipped with professional 3D scanning lens and automatic control system.

2. With three-dimensional surface three-dimensional marking function, to ensure a fine focus spot within the height range of 0-150mm, consistent marking effect.

3. With large format marking function, the maximum marking area reaches 800*800mm, breaking through the traditional fiber marking area limitation.

4. Advanced digital three-axis dynamic focusing technology, fast marking speed, high real-time zoom control and uniform focusing spot.

5. Modular design, compatible with domestic and international mainstream fiber lasers, strong product applicability.

6. Powerful software, can import the graphics output of mainstream 3D design software, and can carry out simple 3D graphics editing, with 2D graphics to 3D function, simple and convenient operation.


Details of laser marking carbide

1. Brand laser

Raycus/JPT/MAX/IPG brand laser, stable performance, high photoelectric conversion efficiency, and no maintenance of the laser and beam transmission system, can save a lot of maintenance costs and time.

2. 3D scanning head

High-precision laser scanning head, fast and clear, high stability. It can mark any curved surface, arc surface, high and low surface with a height difference of 20mm.

3. 3D galvanometer

Efficient and stable, precise control of the focal length position, suitable for various large-format, complex curve.

4. Industrial control computer

Easy to operate, with high anti-magnetic, dustproof, impact resistance and strong anti-interference ability, can work continuously for a long time.


laser marking carbide details-Suntop


Advantages of laser marking carbide

1. The spot quality is good, the focused spot is small, and the energy density is high, which is suitable for precise and fine marking.

2. The infrared focusing system does not need to measure the focal length, which makes the work more convenient.

3. Fast marking speed, high precision, clear and permanent, no fading, no falling off, not easy to be copied and changed.

4. The performance of the whole machine is stable, no consumables, low cost of use, and maintenance-free.

5. Cooperate with 3D data processing and CCD image alignment function to achieve the best surface marking effect.

6. Applicable to various graphic surfaces, three-dimensional graphics such as plane (incline, step difference), cylinder, cone, spherical surface and arbitrary curved surface.


Application materials of laser marking carbide

Suitable for working with most metal marking applications such as Gold, Silver, Stainless Steel, Brass, Aluminium, Steel, Iron Titanium etc, and can also mark on many nonmetal materials,such as ABS, Nylon, PES, PVC etc.


Application industry of laser marking carbide

Suitable for 3C, automotive, electronic instruments, computer parts, industrial bearings, clocks and watches, electronic and communication products, home appliances, hardware tools, molds, wire and cable, food packaging, medical equipment and other industries.


Parameters of laser marking carbide

Laser Power

30W

50W

60W

100W

Model

ST-FL30P-3D

ST-FL50P-3D

ST-FL60P-3D

ST-FL100P-3D

Max Marking Range

110*110mm  /150*150mm

200*200mm

300*300mm

300*300mm

Depth of Single Marking

0.01mm

0.03mm

0.06mm

0.08mm

Same pattern marking efficiency

10s

7 s

4s

2s

Whole Machine Power

600W/h

800W/h

1000W/h

12000W/h

Laser Type

Fiber Laser

Laser Source

MAX Brand(Raycus can choose )

Control Software

EZCAD

Cooling Mode

Air Cooling

Working Accuracy

±0.002MM

Marking Speed

0-7000mm/s

Repetition Frequency

20-100KHz

Laser Wavelength

1064nm

Minimum Font for Marking

0.15mm

Working Voltage

220V±10%  50/60 Hz

Graphic Format Supported

AI, PLT, DXF, BMP, DST, DWG, DXP

Applicable Material

All metal (Stainless steel, Carbon steel, Brass,etc.) and some plastic(ABS, PVC,PES, ETC.)

Spare Parts Come with the Machine

Protective glasses, Metal business card, Foot switch, Hex socket wrench, Power cord

Optional Accessories to Purchase

D80 Rotating Shaft/ D57 Small Chuck/2D Table (X.Y direction)/ Cutting Fixture

Net Weight (KG)/ Gross Weight

38KG / 50KG

Machine Dimension

420*300*550mm (L*W*H)



laser marking carbide samples-Suntop
