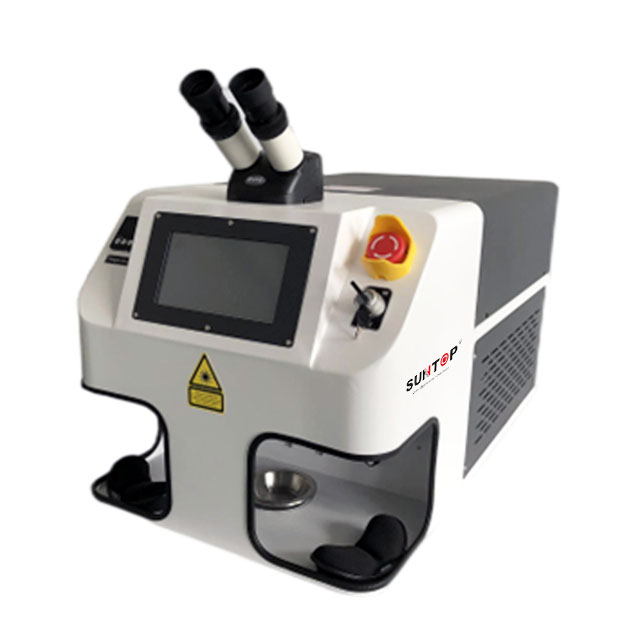

Jewelry Laser Welding

Jewelry laser spot welding machine is a special equipment specializing in the pores, sandy eyes, and point welding of gold and silver jewelry. Dot welding technology in laser welding is widely used. During the laser welding process, the surface of the processing part is heated, which is transmitted to the internal and spread of the material. Then it controls the width, energy, peak power, and repeat frequency of the laser pulse to melt the workpiece to form a specific melting pool. Due to its unique advantages, it has been successfully applied in the processing of gold and silver jewelry and micro -and small parts of welding.
Product Model: ST-WY150
Laser power: 150W
Availability:
Quantity:

Details       Product Parameters       Samples       Video

jewelry laser welding features-Suntop


Features of jewelry laser welding

1. Laser beam can achieve time and energy, which can be processed at the same time, and the welding speed is significantly improved. The processing is completed efficiently and high -quality in a short period of time.

2. The parameter can be adjusted (such as energy, pulse width, frequency, and diameter of light spots), which can achieve welding of different requirements.

3. Use an automatic shading device to protect the eyes of the operator at work.

4. Ceramic laser cavity adopts imported brands, stable and reliable, corrosion resistance, high temperature resistance.

5. The unique YAG crystal cooling method improves the quality of beam and the life of the lamp.

6. 24 -hour work continuously, the performance of the whole machine is stable.


Details of jewelry laser welding

1. Observation microscope

Adopt China's top high precision microscope (10×/20x) for precise positioning and welding process.

2. Control screen

Built-in touch screen control system with high sensitivity and easy parameter setting. Users can set different parameters (current, frequency, pulse...) according to different materials .

3. Laser optical path

Adopt the British imported brand optical cavity, used to protect the laser source and prolong the service life. Beijing famous brand crystal rod, durable and not easy to damage. 5.

4. Laser xenon lamp

Adopt the top brand original xenon lamp in China.

Lifespan: 8 million times, for example, working 8 hours a day, a lamp can be used for 6-12 months.

Xenon lamp is the power source of the laser, when the xenon lamp is used up, replace it with a new one.

5. Joystick

When the user performs welding work, he can also adjust the position of the cursor and set parameters by moving the joystick. (Emergency top/joystick/brightness)

6. Air duct

Continuous output stability to prevent oxidation and blackening of the product during welding, and flexible all-round adjustment of the blowing pipe.

7. Heat dissipation port

There is an exhaust fan at the back to effectively prevent the machine from overheating due to prolonged use.


jewelry laser welding details-Suntop


Advantages of jewelry laser welding

1. Adopt the latest European portable mini design, scientific and streamlined mechanical structure, high-grade alloy chassis, anti-static, rust-proof, easy to move and space-saving.

2. Large internal space, convenient to place tools and fixtures. 3.

3. LED light adjustable brightness, can more clearly observe the welding area, 360 ° all-round lighting, let you work more easily. 4.

4. Easy to clean the working area, easy to collect the welding chips

5. Professional laser welding software, powerful and easy to learn and use, simple training can be on the job.

6. Fast speed, high efficiency, large depth, small deformation, small heat-affected zone, high welding quality, no pollution, high efficiency and environmental protection.


Jewelry laser welding application

Application materials

Mainly used for hole filling spot welding of gold and silver ornaments, also can be used for cold welding of high alloy steel, hot forged high alloy steel, nickel tool steel, high-grade steel, copper alloy, beryllium copper, high toughness aluminum alloy, gold, silver and other metal materials.


Application industry

Widely used in jewelry, jewelry, golf head, aluminum alloy denture, optical communication devices, electronic components, batteries, medical machinery, watch and clock precision parts, fiber optic coupling devices, glasses, IT products, digital communication products, precision parts, hardware metal parts, automotive, military and other industries.


Parameters of jewelry laser welding

Model

ST-WY150

Max. laser power

150W

Laser wavelength

1064nm

Total power consumption

5KW

Pulse energy

50J

Laser focus

110mm

Laser pulse repeatable frequency

≤0.1-20Hz

Observation system

Microscope 10X or CCD camera

Cooling

Internal water cooled

Water T.M Protection

10-30 degree

Laser pulse width

≤20ms

Laser protection gas

Argon

Controls

Touch screen or joystick

Power supply

AC220V±10%,50/60Hz

Dimension

900*500*600mm

Net weight/gross weight

80KG/100KG


jewelry laser welding samples-Suntop
