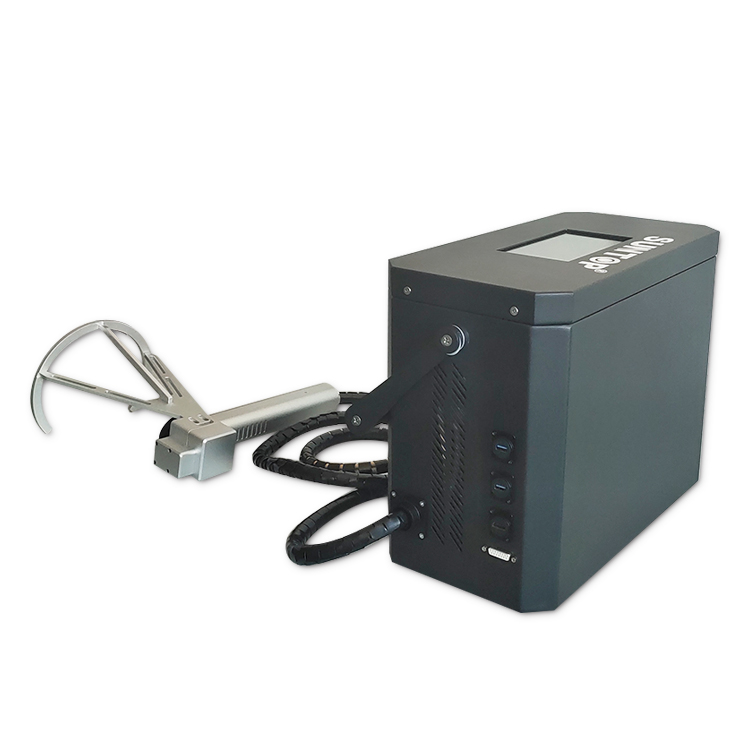

The machine is equipped with our self-developed handheld scanning technology, which facilitates multi-angle marking in a small working environment and is suitable for large equipment and heavy workpieces, such as large metal pipes, car frames, etc. The marking content only needs to be edited on the computer, the handheld marking head is aligned with the marking position and the switch is pressed to achieve rapid marking. ※ Product Model: ST-RFL20H ※ Laser power: 20W/30W ※ Working area: 70*70mm/110*110mm (optional)
1. Built-in touch screen display, more convenient operation, no computer required.
2. Self-designed handle, weighing only 0.9kg, can move and mark freely without space restrictions, and can easily mark in various working conditions.
3. Red light preview, used to preview the marking position, it is easier and more accurate to find the laser focus.
4. The electro-optical conversion efficiency is very high, reaching more than 30%, the use cost is low, and the power is saved. The power of the whole machine is only 600W/h.
5. Good quality, the marked text, pattern and other information are clear and permanent, without fading or falling off.
6. Using optical fiber output, the processing speed is fast, which is 2-3 times that of traditional marking machines.
7. Suntop fiber laser marking machines have undergone strict aging tests before leaving the factory, and they output laser beams continuously for 24 hours to ensure 100% machine stability.
Details of handheld laser marker
1. Imported galvanometer
Utilizing imported motors for marking, this machine offers high precision, fast speed, and a good marking effec.
2. Ergonomic handheld head
Adopts ergonomic design, rubberized and anti-slip technology, weighs only 0.8kg, compact and light.
3. Smart touch screen
No need for a computer, you can edit the marking content on the touch screen, which is very convenient to use.
4. Dual USB interfaces
Supports multiple file formats, import and read.
5. Removable lithium battery design
Battery/plug-in dual-use scenarios with no limitations.
6. Built-in air cooling system
Better heat dissipation performance, effectively extending the life of optical components.
Handheld marking head
● High-quality galvanometer, field mirror and imported laser marking head, which greatly improves the beam quality, making the marking effect better and the quality higher.
● Equipped with intelligent red light positioning system, double insurance, hard-core positioning, stable performance.
● One-button trigger marking, the handle is equipped with a marking button, which can be moved anytime and anywhere, saving time and effort.
● Original optical cable overcomes the limitation of workbench space, and can realize outdoor marking and long-distance marking; adjust the position at any time, free and flexible, suitable for marking in various working environment scenes.
Independent dedicated control system
● Linux system
Equipped with 8-core processor, high security level; stable performance and fast response.
● Large color touch screen
8-inch fully laminated LCD screen, one-button trigger; one machine can be used for multiple purposes, and hardware diversification is compatible.
Multimodal working mode
Battery with removable design, with 2 batteries, easy unlimited battery life
15000mA high capacity battery
Get rid of the socket, offline marking
Marking and charging at the same time
Direct power cord use, charging while marking
Fast power change
Supports swap mode, battery removed for charging
Plug and Play
Plug in and use immediately
Handheld laser marker application
Application materials
Suitable for working with most metal marking applications such as Gold, Silver, Stainless Steel, Brass, Aluminium, Steel, Iron Titanium etc, and can also mark on many nonmetal materials,such as ABS, Nylon, PES, PVC etc.
Application industry
Widely used in many industries such as machinery manufacturing, electronic appliances, optical communication devices, lithium-ion batteries, mobile phone parts, auto parts, medical equipment, precision machinery, integrated circuits, instrumentation, computer manufacturing, gold and silver jewelry, craft gifts, clothing and accessories.
Parameters of handheld laser marker
Laser
Fiber laser generator
Positioning method
Red light positioning
Output power
20W / 30W
Number of lines of engraved characters
Any line within the effective marking range
Marking range
70×70mm / 100×100mm (optional)
Printing speed
800 characters (related to material and printing content)
Deflection mirror
High-precision 3D scanning system
Font
Chinese, English, numbers, traditional Chinese and other standard fonts
1. Built-in touch screen display, more convenient operation, no computer required.
2. Self-designed handle, weighing only 0.9kg, can move and mark freely without space restrictions, and can easily mark in various working conditions.
3. Red light preview, used to preview the marking position, it is easier and more accurate to find the laser focus.
4. The electro-optical conversion efficiency is very high, reaching more than 30%, the use cost is low, and the power is saved. The power of the whole machine is only 600W/h.
5. Good quality, the marked text, pattern and other information are clear and permanent, without fading or falling off.
6. Using optical fiber output, the processing speed is fast, which is 2-3 times that of traditional marking machines.
7. Suntop fiber laser marking machines have undergone strict aging tests before leaving the factory, and they output laser beams continuously for 24 hours to ensure 100% machine stability.
Details of handheld laser marker
1. Imported galvanometer
Utilizing imported motors for marking, this machine offers high precision, fast speed, and a good marking effec.
2. Ergonomic handheld head
Adopts ergonomic design, rubberized and anti-slip technology, weighs only 0.8kg, compact and light.
3. Smart touch screen
No need for a computer, you can edit the marking content on the touch screen, which is very convenient to use.
4. Dual USB interfaces
Supports multiple file formats, import and read.
5. Removable lithium battery design
Battery/plug-in dual-use scenarios with no limitations.
6. Built-in air cooling system
Better heat dissipation performance, effectively extending the life of optical components.
Handheld marking head
● High-quality galvanometer, field mirror and imported laser marking head, which greatly improves the beam quality, making the marking effect better and the quality higher.
● Equipped with intelligent red light positioning system, double insurance, hard-core positioning, stable performance.
● One-button trigger marking, the handle is equipped with a marking button, which can be moved anytime and anywhere, saving time and effort.
● Original optical cable overcomes the limitation of workbench space, and can realize outdoor marking and long-distance marking; adjust the position at any time, free and flexible, suitable for marking in various working environment scenes.
Independent dedicated control system
● Linux system
Equipped with 8-core processor, high security level; stable performance and fast response.
● Large color touch screen
8-inch fully laminated LCD screen, one-button trigger; one machine can be used for multiple purposes, and hardware diversification is compatible.
Multimodal working mode
Battery with removable design, with 2 batteries, easy unlimited battery life
15000mA high capacity battery
Get rid of the socket, offline marking
Marking and charging at the same time
Direct power cord use, charging while marking
Fast power change
Supports swap mode, battery removed for charging
Plug and Play
Plug in and use immediately
Handheld laser marker application
Application materials
Suitable for working with most metal marking applications such as Gold, Silver, Stainless Steel, Brass, Aluminium, Steel, Iron Titanium etc, and can also mark on many nonmetal materials,such as ABS, Nylon, PES, PVC etc.
Application industry
Widely used in many industries such as machinery manufacturing, electronic appliances, optical communication devices, lithium-ion batteries, mobile phone parts, auto parts, medical equipment, precision machinery, integrated circuits, instrumentation, computer manufacturing, gold and silver jewelry, craft gifts, clothing and accessories.
Parameters of handheld laser marker
Laser
Fiber laser generator
Positioning method
Red light positioning
Output power
20W / 30W
Number of lines of engraved characters
Any line within the effective marking range
Marking range
70×70mm / 100×100mm (optional)
Printing speed
800 characters (related to material and printing content)
Deflection mirror
High-precision 3D scanning system
Font
Chinese, English, numbers, traditional Chinese and other standard fonts
