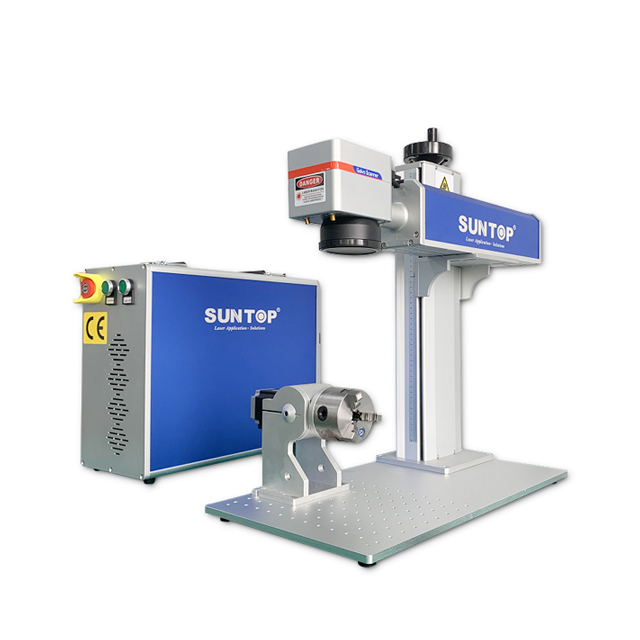

Color Laser Engraving Machine

With the advanced mopa laser, pulse duration, pulse frequency and pulse energy can be adjusted almost independently of each other, thus providing a high degree of flexibility. Basic marking, stainless steel coloring, anodized aluminum blackening, and high contrast marking of various other metals (e.g. nickel alloy, steel, titanium) can be performed without damaging the material surface.
Product Model: ST-FL20
Laser power: 20W
Working area:110*110mm/150*150mm

Product Parameters       Samples       Video

Color laser engraving machine features-Suntop

Features of color laser engraving machine

1. Using advanced mopa laser, pulse duration, pulse frequency and pulse energy can be adjusted almost independently of each other, thus providing a high degree of flexibility.

2. Pulse duration is variable, with long and short pulses adjustable from 4 to 200 ns; pulse frequency ranges from 1.6 kHz to 1 MHz.

3. Air-cooling technology is used, which does not require the support of water-cooling system and has a longer service life.

4. Built-in red light for previewing the label position and finding the laser focus more easily and accurately.

5. Adopt high speed scanning oscillator, small size, fast speed and good stability, which can realize high speed and high precision laser marking, and the text image will not be deformed for a long time.

6. Widely used, mainly in stainless steel color marking, aluminum oxide blackening, stripping anode, stripping coating, etc.

Details of color laser engraving machine

1. Laser source

Using Mopa laser, it has a larger pulse width adjustment range and faster response speed. Frequency adjustable range up to 1-4000KHz.

2. High quality galvanometer

The high-speed digital galvanometer scanning head has good running stability and high positioning accuracy, which can realize high-speed marking and high precision.

3. F theta lens

Smart F theta lens, through which the fiber laser beam is focused to the workpiece surface, the energy is sufficient.

4. Control panel

BJJCZ brand original EZCAD control system has the characteristics of high stability, easy operation and good performance.

Color laser engraving machine details-Suntop

Advantages of color laser engraving machine

1. long service life of fiber laser, stable laser output power, high reliability.

2. the marking will not fade due to environmental relations (touch, acid and alkaline gas, high and low temperature, etc.), with high anti-counterfeiting.

3. exquisite marking effect, beautiful technology, high precision, can enhance the product grade, enhance the added value of the product. 5.

4. low cost of use, no consumables, no pollution, energy saving and environmental protection, in line with European environmental standards.

5. high electro-optical conversion rate, no power coupling loss, no consumables, saving operating costs for customers.

6. Various auxiliary fixtures can be provided according to the actual needs of customers, such as rotating device, 2D/3D work surface, pen turntable and other fixtures.

Color laser engraving machine application

Application materials

Suitable for working with most metal marking applications such as Gold, Silver, Stainless Steel, Brass, Aluminium, Steel, Iron Titanium etc, and can also mark on many nonmetal materials,such as ABS, Nylon, PES, PVC etc.

Application industry

Widely used in 3C electronics, medical devices, auto parts, electronic components, integrated circuits (IC), instruments, electrical appliances, hardware products, building materials, glasses and clocks, jewelry and ornaments, craft gifts and other industries.

Parameters of color laser engraving machine

Laser Power




Max Marking Range

110*110mm  /150*150mm

Depth of Single Marking


Same pattern marking efficiency


Whole Machine Power


Laser Type

Fiber Laser

Laser Source


Control Software


Cooling Mode

Air Cooling

Working Accuracy


Marking Speed


Repetition Frequency


Laser Wavelength


Minimum Font for Marking


Working Voltage

220V±10%  50/60 Hz

Graphic Format Supported


Applicable Material

All metal (Stainless steel, Carbon steel, Brass,etc.) and some plastic(ABS, PVC,PES, ETC.)

Spare Parts Come with the Machine

Protective glasses, Metal business card, Foot switch, Hex socket wrench, Power cord

Optional Accessories to Purchase

D80 Rotating Shaft/ D57 Small Chuck/2D Table (X.Y direction)/ Cutting Fixture

Net Weight (KG)/ Gross Weight

38KG / 50KG

Machine Dimension

420*300*550mm (L*W*H)
