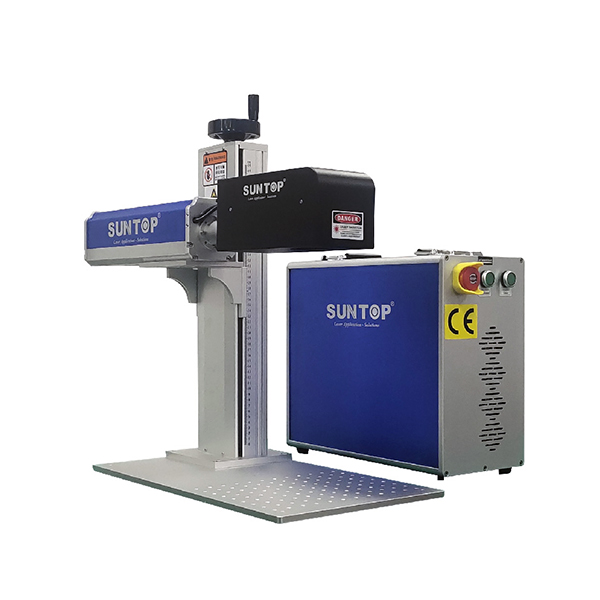

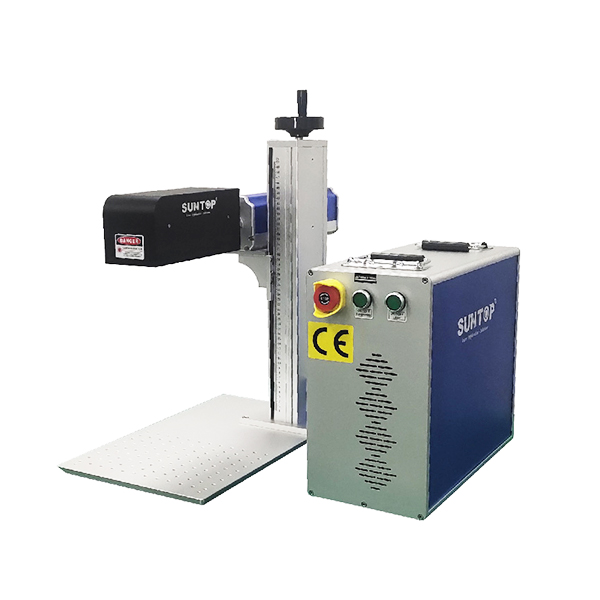

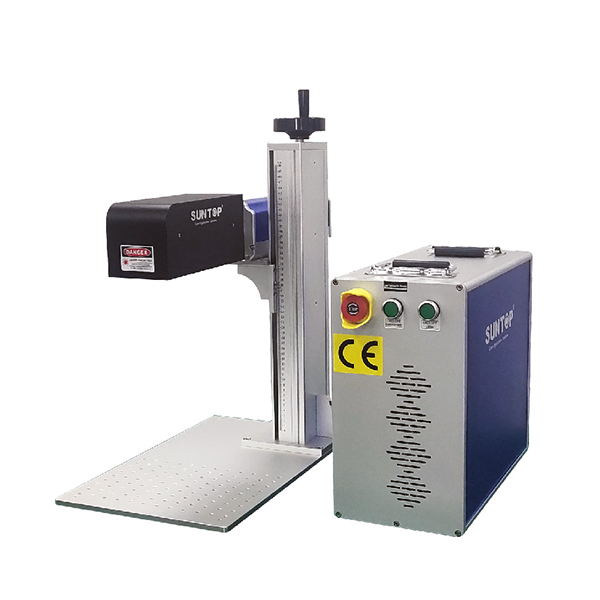

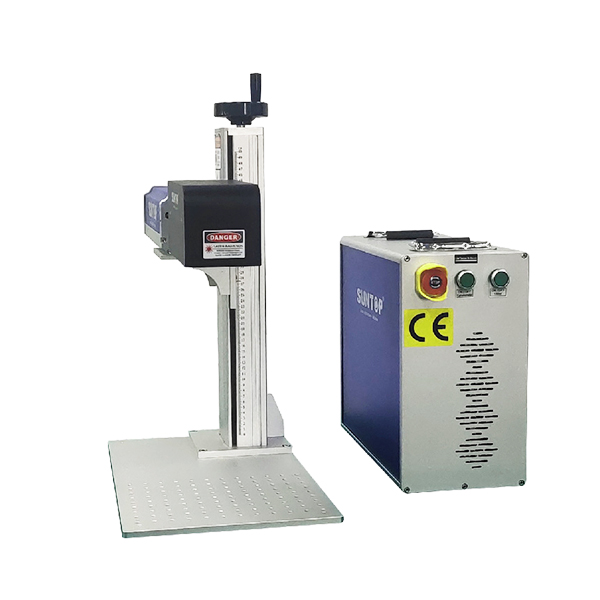

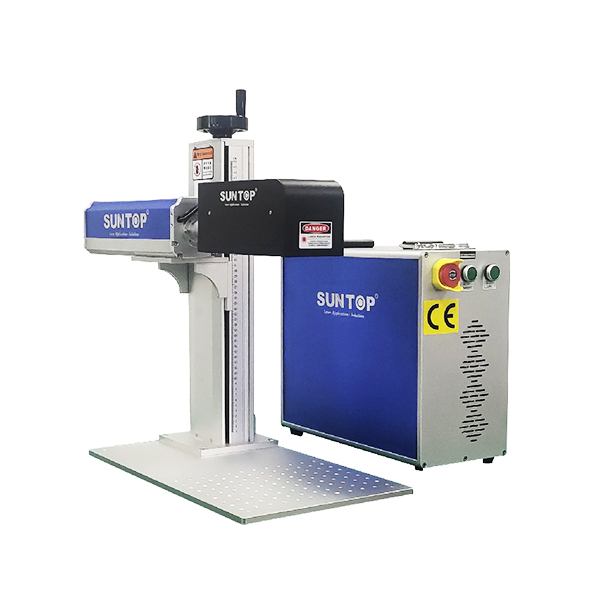

30w Fiber Laser Marking Machine

3D fiber laser marking machine uses fiber laser to output laser, and then realizes marking function through high-speed scanning galvanometer system. High electro-optical conversion efficiency, small size of the whole machine, good output beam quality and high reliability.
Product Model: ST-FL30P-3D/ST-FL50P-3D/ST-FL60P-3D/ST-FL100P-3D
Laser power: 30W/50W/60W/100W
Working area: 110*110mm/150*150mm/200*200mm/300*300mm

Details       Product Parameters       Samples       Video

30w fiber laser marking machine features-Suntop

Features of 30w fiber laser marking machine

1. Equipped with professional 3D scanning lens and automatic control system.

2. Adopt multi-axis dynamic zoom technology to track the focus of deep curves in real time. It can complete flexible and diverse processing requirements, such as curved surface marking, deep engraving and large flat marking.

3. Using 3D fine marking system software, it can meet various manual carving needs, such as relief patterns, deep carvings, negative carvings, etc., which improves the three-dimensional beauty of details.

4. With the function of three-dimensional curved surface three-dimensional marking, it can focus on fine light spots within the relative height standard of 0~60mm dimensional tolerance, and symmetrically mark. Marking of irregular products such as curved surfaces, slopes, steps, spheres, cylinders, cones, etc. without zooming.

5. The processing format is large, and the marking range can be adjusted according to the specific processing requirements, and there is no defocusing during the whole processing process.

6. Software powerful, can import the mainstream three-dimensional design software output graphics, and can be simple three-dimensional graphics editing, with two-dimensional graphics to three-dimensional function, simple and convenient operation.

7. Support X, Y, Z axis control, automatic processing control.

Details of 30w fiber laser marking machine

1. Fiber laser source

Good beam quality, stable performance, long service life (100,000 hours), and maintenance-free. MAX, Raycus, JPT and other brands can choose.

2. 3D digital scanning head

Famous brand SINO-GALVO oscilloscope scanning head, high speed and accurate marking.

XYZ three axes, irregular / surface marking, Z axis can be flexible automatic movement.

3. Professional 3D galvanometer

Variable focal length, precise control of focal position, ensure focal size and spot quality to realize the engraving of irregular products.

4. Double red light preview

Help to find the focal distance quickly, no need to use ruler, just check whether the red dots and red lines on the surface of the product to be marked overlap.

5. Control panel

BJJCZ brand original EZCAD control system has the characteristics of high stability, easy operation and good performance.

30w fiber laser marking machine details-Suntop

Advantages of 30w fiber laser marking machine

1. The spot quality is good, the focused spot is small, and the energy density is high, which is suitable for precise and fine marking.

2. The infrared focusing system does not need to measure the focal length, which makes the work more convenient.

3. Fast marking speed, high precision, clear and permanent, no fading, no falling off, not easy to be copied and changed.

4. The performance of the whole machine is stable, no consumables, low cost of use, and maintenance-free.

5. Cooperate with 3D data processing and CCD image alignment function to achieve the best surface marking effect.

6. Applicable to various graphic surfaces, three-dimensional graphics such as plane (incline, step difference), cylinder, cone, spherical surface and arbitrary curved surface.

30w fiber laser marking machine application

Application materials

Suitable for working with most metal marking applications such as Gold, Silver, Stainless Steel, Brass, Aluminium, Steel, Iron Titanium etc, and can also mark on many nonmetal materials,such as ABS, Nylon, PES, PVC etc.

Application industry

Suitable for 3C, automotive, electronic instruments, computer parts, industrial bearings, clocks and watches, electronic and communication products, home appliances, hardware tools, molds, wire and cable, food packaging, medical equipment and other industries.

Parameters of 30w fiber laser marking machine

Laser Power










Max Marking Range

110*110mm  /150*150mm




Depth of Single Marking





Same pattern marking efficiency


7 s



Whole Machine Power





Laser Type

Fiber Laser

Laser Source

MAX Brand(Raycus can choose )

Control Software


Cooling Mode

Air Cooling

Working Accuracy


Marking Speed


Repetition Frequency


Laser Wavelength


Minimum Font for Marking


Working Voltage

220V±10%  50/60 Hz

Graphic Format Supported


Applicable Material

All metal (Stainless steel, Carbon steel, Brass,etc.) and some plastic(ABS, PVC,PES, ETC.)

Spare Parts Come with the Machine

Protective glasses, Metal business card, Foot switch, Hex socket wrench, Power cord

Optional Accessories to Purchase

D80 Rotating Shaft/ D57 Small Chuck/2D Table (X.Y direction)/ Cutting Fixture

Net Weight (KG)/ Gross Weight

38KG / 50KG

Machine Dimension

420*300*550mm (L*W*H)

30w fiber laser marking machine samples-Suntop
