Laser Leather Cutting Machine

Our leather laser cutting machine is designed for efficient and precise leather processing, enabling rapid cutting and engraving of various leather materials. Utilizing advanced laser technology, the machine ensures smooth edges and exquisite details, making it ideal for the personalized design needs of industries such as fashion, handbags, and footwear. Its user-friendly interface and high performance allow every artisan to easily realize their creative vision.
Product model: ST-CC6040/9060/1390/1325
Laser power: 60W/80W/100W/130W/150W/180W/200W (optional)
Working area: 600*400/900*600/1300*900/*2500mm (optional)

Availability:

Quantity:



Inquire PDF Export

Our leather laser cutting machine is designed for efficient and precise leather processing. Utilizing advanced laser technology, it can rapidly cut and engrave various types of leather materials. This equipment not only ensures smooth cut edges and clear details but also meets the needs of personalized designs, making it widely used in the fashion, handbag, footwear, and other craft industries.

Furthermore, the leather laser cutting machine features a user-friendly interface and robust software support, supporting the import of multiple file formats, simplifying the design and production process. Whether for mass production or small-batch customization, this equipment can complete tasks efficiently, improving overall production efficiency while reducing material waste.

With its superior performance and reliability, our leather laser cutting machine is the ideal choice for professional leather goods manufacturers and designers, helping users achieve advanced leather craftsmanship and creative designs.

Product Technical Features

1. Adopt the third generation highly intelligent control system, automatic control, high positioning accuracy and smooth forming edges.

2. Imported linear guide rails and high-speed stepper motors and drivers have stable performance, high precision, and smooth cutting edges without ripples.

3. Using imported lasers and optical devices, the spot quality is good, the output power is stable, and the maintenance cost is low.

4. It adopts high-precision and high-speed belt transmission, with stable high speed, low running resistance, low noise and long service life.

5. Equipped with a laser protective cover. When the machine cover is opened, the machine stops working to prevent the machine and laser from causing accidental harm to the operator and protect the operator's safety.

6. The honeycomb working surface has high flatness, is not easily deformed, and is durable.

7. Double-head and multi-head cutting systems can be selected according to customer requirements to improve production efficiency, reduce production costs, and support customization.

8. Suntop Fiber Laser Marking Machine is subjected to strict ageing tests and continuous 24-hour laser beam output before leaving our factory to ensure 100% machine stability.

Advantages of CO2 Laser Cutting

● High-precision cutting: Utilizes advanced laser technology to ensure smooth edges and perfect details, meeting complex design requirements.

● Fast and efficient: Rapid cutting and engraving significantly improves production efficiency, suitable for both large-volume and small-batch customization.

● Versatile material application: Capable of handling various leather materials, flexibly adapting to the needs of different industries, such as fashion, handbags, and footwear.

● Environmentally friendly operation: The laser cutting process is pollution-free, reducing environmental impact and meeting modern environmental protection requirements.

● Intelligent design: Supports importing multiple file formats, with a user-friendly interface that is easy to learn and suitable for all types of users.

● Reduced material waste: Precise cutting technology maximizes material utilization, reducing production costs and improving economic efficiency.

FAQ

1. How can i place an order?

Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.

For further discussion, it is better to contact us with WhatsApp / WeChat / email / phone, in case of any delays.

2. What kind of display we provide?

We have laser marking machine / laser welding machine / laser cutting machine / laser cleaning / CO2 laser cutting and engraving machine / laser accessories for you choose.

3. How about the warranty?

We have 2 years warranty and lifelong maintenance.

4. What is your terms of delivery?

We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.

5. What types of leather materials is this equipment suitable for processing?

This equipment can process a variety of leather materials, including natural leather, synthetic leather, and suede, meeting the needs of different projects.

6. Is professional training required to operate this equipment?

Although the equipment is designed to be user-friendly, it is recommended that operators receive basic training to ensure optimal cutting results and safe operation.

7. What are the speed and precision of the laser cutting?

The leather laser cutting machine provides fast and high-precision cutting, effectively meeting the needs of industrial production and personalized customization.

8. Is post-processing required after cutting?

The edges after laser cutting are usually smooth, requiring no additional post-processing, saving time and costs.

9. What are the equipment maintenance requirements?

Equipment maintenance is relatively simple, mainly including regularly cleaning the laser lens, checking the cooling system, and keeping the work area clean.

10. What design file formats can I use?

It supports a variety of common file formats, such as DXF, AI, and PDF, facilitating the import of design files.

CO2 Laser Cutting And Engraving Machine CO2 Laser Head-Suntop

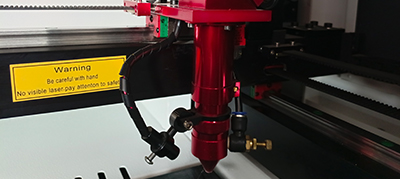

CO2 Laser Head

Choose a high-precision CO2 laser head with red dot positioning. The cutting head always follows the material and keeps the position of the cutting point constant. The laser head is also fitted with an air tube that blows out an air stream that not only blows away air but also cools the lens and the surface of the object.

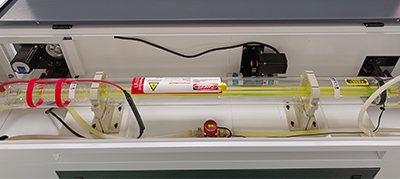

CO2 Laser Tube

The CO2 laser tube is a powerful laser generator that produces a high-powered laser beam for engraving and cutting a variety of materials. It is known for its durability and accuracy, and is relatively easy to operate and maintain.

CO2 Laser Cutting And Engraving Machine CO2 Laser Tube-Suntop

CO2 Laser Cutting And Engraving Machine HIWIN Guide Rail-Suntop

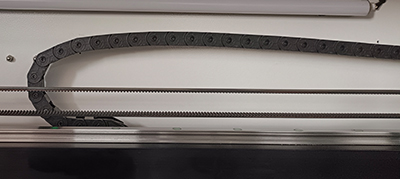

HIWIN Guide Rail

Adopting Taiwan HIWIN linear guide rail, it has fast running speed, high positioning accuracy and longer service life, which improves the engraving and cutting accuracy and ensures precise processing results.

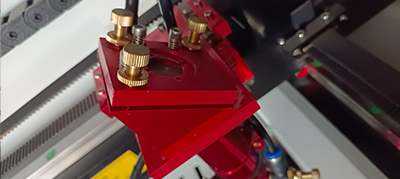

Mirror and Lens

Adopting foreign imported focusing lens and reflector, which makes the equipment produce smaller light spot, high efficiency, good stability and stronger cutting ability; with 45° mirror adjustment, it is easy to find the center of the lens and find the correct focal length. Suitable for various environments with high precision and speed.

CO2 Laser Cutting And Engraving Machine Mirror and Lens-Suntop

CO2 Laser Cutting And Engraving Machine Ruida Controller-Suntop

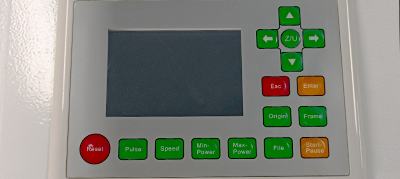

Ruida Controller

Ruida Controlle is a powerful and multi-functional controller for laser engraving and cutting machine. It not only supports USB cable computer control, but also supports USB disk offline control. It also has good resistance to high voltage and static electricity.

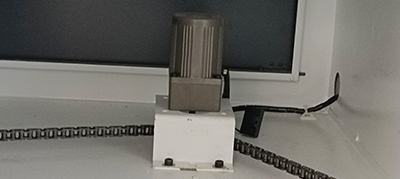

Stepper Motor Control System

Choose the powerful and reliable stepper motor to ensure the normal operation of the machine. Digital timing, analog control of laser power, small error, high repeatability, maintenance-free. Ensure the possibility of realizing extremely precise positioning, and the mobile positioning mechanism runs smoothly. Low noise, not easy to heat, safe and reliable.

CO2 Laser Cutting And Engraving Machine Stepper Motor Control System-Suntop

CO2 Laser Cutting And Engraving Machine Industrial Chiller-Suntop

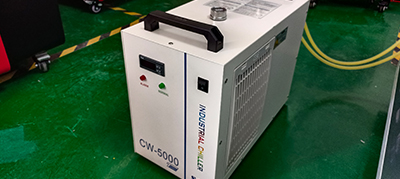

Industrial Chiller

CW-5000 water chiller has temperature display, which can prevent overheating burnout and interruption of water circulation. The industrial water chiller ensures heat dissipation from the core optical path components so that the CO2 laser cutter can provide consistent cut quality. It also improves throughput by reducing CO2 laser cutting machine downtime.

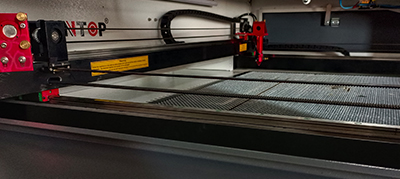

Shanghai Fulong Belt

Adopting Fulong brand nylon belt with high abrasion resistance, good stability, good torsion resistance, low elongation and low noise.

CO2 Laser Cutting And Engraving Machine Shanghai Fulong Belt-Suntop

CO2 Laser Cutting And Engraving Machine Honeycomb Table-Suntop

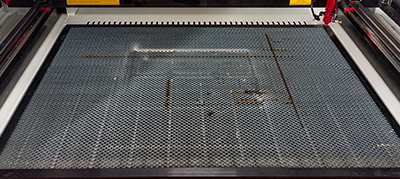

Honeycomb Table

Honeycomb table makes the airflow smoother and the cutting surface more even, with good support performance of small holes, solid structure, no deformation during machining, and small workpieces can be placed on the table for machining. The honeycomb design helps reduce noise and vibration during cutting.

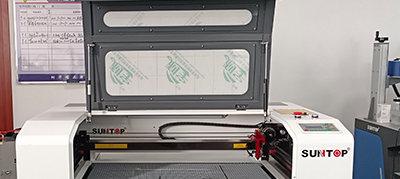

Laser Protection Cover

When the cover of the machine is opened, the machine stops working, preventing the machinery and laser from causing accidental injury to the operator. Ensures that the operator will not be injured by the laser beam and protects the operator's safety.

CO2 Laser Cutting And Engraving Machine Laser Protection Cover-Suntop

CO2 Laser Cutting And Engraving Machine Collection Drawer-Suntop

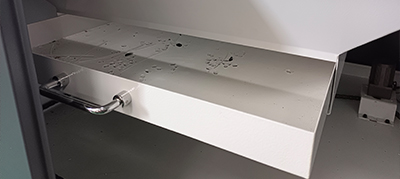

Collection Drawer

Convenient for collecting and accessing cuttings. Easy to clean up cutting waste and flying dust.

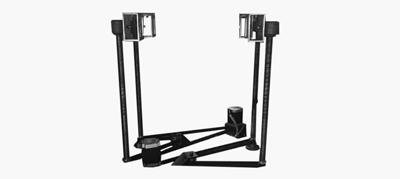

Motorized Lifting Table

The motorized lifting table can be customized upon request. It is mainly used to adjust the height of the material to maintain the most suitable distance between the cutting head and the surface of the material to ensure the cutting effect.

CO2 Laser Cutting And Engraving Machine Motorized Lifting Table-Suntop

CO2 Laser Cutting And Engraving Machine Rotary Axis Device-Suntop

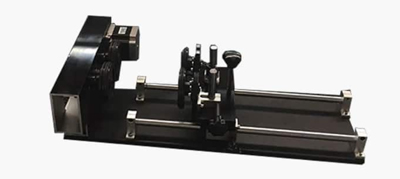

Rotary Axis Device

The rotary axis device can be selected according to requirements, which is used to clamp and rotate cylindrical objects to realize the rotary cutting of materials. The device consists of a motor, drive shaft and chuck.

Materials type	40W	60W	80W	100W	120W	150W	200W
Wood	3mm	7mm	10mm	12mm	13mm	15mm	18mm
Plywood	2mm	6mm	10mm	12mm	13mm	15mm	18mm
Leather	1mm	3mm	4mm	5mm	6mm	7mm	10mm
Acrylic	2mm	10mm	13mm	15mm	17mm	16mm	20mm
PVC	1mm	3mm	4mm	5mm	6mm	7mm	8mm
Plastic (easy to melt)	1mm	2mm	3mm	4mm	5mm	6mm	8mm
Rubber	2mm	3mm	4mm	5mm	6mm	7mm	10mm
Crystal/Jade/Stone/Marble/Medal	Only for engraving
Clothing（fabric，wool）	2mm	3mm	4mm	5mm	6mm	8mm	10mm
Bamboo Works	1mm	3mm	4mm	5mm	6mm	7mm	10mm

Model	ST-CC6040	ST-CC9060	ST-CC1390	ST-CC1325
Working area	600*400mm	900*600mm	1300*900mm	1300*2500mm
Laser power	60W/80W/100W/130W/150W/180W/200W (optional)
Laser type	Hermetic and detached Co2 laser tube
Control configuration	DSP
Cooling mode	Water cooling and protection system
Position system	Red dot
Max moving speed	1500mm/s
Laser energy control	1-100℅ set by hand or software
Locating precision	<0.01 mm
Min shaping character	Character: 33 mm, letter: 22 mm
Worktable	Electric up and down table, with the first layer Honeycomb table and the second Aluminum knife table (Two layers) for different kinds of materials cutting
Resolution ratio	≦4500 dpi
Power supply	AC220±10℅ 50 HZ, AC110±10℅ 50 HZ
System environment	Windows 7/Windows 10, 32bits or 64 bits
Limit switch	Induction metal limit switches for accurate positioning of X and Y positions
Motion control mode	Precision linear guide
Air pressure control	There is a device to adjust the air pressure at the cutting head
Dimensions(package)	1530850800mm	160011401300mm	20501480 1280mm	320021501800mm
Gross weight	150KG	306Kg	420KG	500KG

Materials type	40W	60W	80W	100W	120W	150W	200W
Wood	3mm	7mm	10mm	12mm	13mm	15mm	18mm
Plywood	2mm	6mm	10mm	12mm	13mm	15mm	18mm
Leather	1mm	3mm	4mm	5mm	6mm	7mm	10mm
Acrylic	2mm	10mm	13mm	15mm	17mm	16mm	20mm
PVC	1mm	3mm	4mm	5mm	6mm	7mm	8mm
Plastic (easy to melt)	1mm	2mm	3mm	4mm	5mm	6mm	8mm
Rubber	2mm	3mm	4mm	5mm	6mm	7mm	10mm
Crystal/Jade/Stone/Marble/Medal	Only for engraving
Clothing（fabric，wool）	2mm	3mm	4mm	5mm	6mm	8mm	10mm
Bamboo Works	1mm	3mm	4mm	5mm	6mm	7mm	10mm

Model	ST-CC6040	ST-CC9060	ST-CC1390	ST-CC1325
Working area	600*400mm	900*600mm	1300*900mm	1300*2500mm
Laser power	60W/80W/100W/130W/150W/180W/200W (optional)
Laser type	Hermetic and detached Co2 laser tube
Control configuration	DSP
Cooling mode	Water cooling and protection system
Position system	Red dot
Max moving speed	1500mm/s
Laser energy control	1-100℅ set by hand or software
Locating precision	<0.01 mm
Min shaping character	Character: 33 mm, letter: 22 mm
Worktable	Electric up and down table, with the first layer Honeycomb table and the second Aluminum knife table (Two layers) for different kinds of materials cutting
Resolution ratio	≦4500 dpi
Power supply	AC220±10℅ 50 HZ, AC110±10℅ 50 HZ
System environment	Windows 7/Windows 10, 32bits or 64 bits
Limit switch	Induction metal limit switches for accurate positioning of X and Y positions
Motion control mode	Precision linear guide
Air pressure control	There is a device to adjust the air pressure at the cutting head
Dimensions(package)	1530850800mm	160011401300mm	20501480 1280mm	320021501800mm
Gross weight	150KG	306Kg	420KG	500KG
