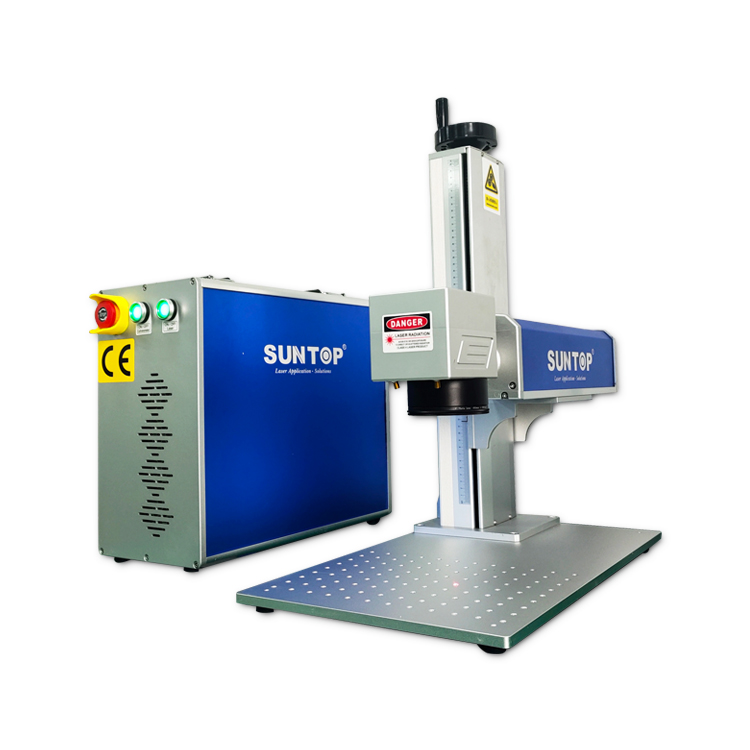

Laser Engraving Gun

The fiber laser is used to output laser, and permanent marks are made on various material surfaces. The marking speed is fast, no wear, high precision, wear resistance, clear marks, etc., can achieve precise control, and the service life is as long as 100,000 hours. No consumables, maintenance-free, low cost of use.
Product Model: ST-FL20P/ST-FL30P/ST-FL50P/ST-FL60P
Laser power: 20W/30W/50W/60W
Working area:110*110mm/150*150mm/200*200mm/300*300mm/450*450mm
Availability:
Quantity:

Product Parameters       Samples       Video

Laser engraving gun machine features-Suntop

Features of laser engraving gun

1. Using the world's top imported fiber laser, the performance is stable, and the life of the core components can reach 100,000 hours.

2. Built -in red light, which is used to preview the label position, which is easier and more accurate to find the laser focus.

3. Adopt high-precision brand wavelength F-theta lenses, which can achieve high-speed and high-precision laser marks, and the text and images have not deformation for a long time.

4. Using air -cooled technology, no need to support the water cooling system, and the service life is longer.

5. Various auxiliary fixtures can be provided according to the actual needs of the customer, such as rotating devices, 2D/3D work tables, and pen -style turntables.


Details of laser engraving gun

1. Laser source

Using the famous brand Raycus, MAX, IPG and other fiber laser, spot quality, stable output power, service life of up to 100,000 hours, a wide range of power options.

2. High quality galvanometer

The high-speed digital galvanometer scanning head has good running stability and high positioning accuracy, which can realize high-speed marking and high precision.

3. F theta lens

Smart F theta lens, through which the fiber laser beam is focused to the workpiece surface, the energy is sufficient.

4. Control panel

Original EZCAD control system of the BJJCZ brand has high stability, fast data processing, high precision, and supports high-speed and high-precision marking functions.

Laser engraving gun details-Suntop


Advantages of laser engraving gun

1. Integrated modular design, convenient maintenance, compact machines, saving space; with advanced optimization design and unique graphic path optimization technology.

2. No consumable, exemption, low use cost, energy saving, the entire machine power is only 500W.

3. High marking accuracy, fast speed, clear, uniform, permanent, non -fading.

4. The marking speed is 2-3 times the traditional marking machine, which is high.

5. Continuously work for 24 hours to effectively improve production efficiency and adapt to various working environments.

6. Can be integrated on the production line, marking production date, S/N, etc.


Laser engraving gun application

Application materials

Suitable for working with most metal marking applications such as Gold, Silver, Stainless Steel, Brass, Aluminium, Steel, Iron Titanium etc, and can also mark on many nonmetal materials,such as ABS, Nylon, PES, PVC etc.


Application industry

Widely used in electronic components, hardware tool products, electrical products, daily consumer goods, sensors, auto parts, 3C electronics, handicrafts, precision instruments, gift ornaments, medical equipment, high and low voltage electrical appliances, bathroom industry, battery industry, IT industry and other fields.


Parameters of laser engraving gun

Laser Power

20W

30W

50W

60W

Model

ST-FL20P

ST-FL30P

ST-FL50P

ST-FL60P

Max Marking Range

110*110mm  /150*150mm

200*200mm

300*300mm

450*450mm

Depth of Single Marking

0.01mm

0.03mm

0.06mm

0.07mm

Same pattern marking efficiency

10s

7 s

4s

3s

Whole Machine Power

600W/h

800W/h

1000W/h

11000W/h

Laser Type

Fiber Laser

Laser Source

MAX Brand ( Raycus can choose )

Control Software

EZCAD

Cooling Mode

Air Cooling

Working Accuracy

±0.002MM

Marking Speed

0-7000mm/s

Repetition Frequency

20-100KHz

Laser Wavelength

1064nm

Minimum Font for Marking

0.15mm

Working Voltage

220V±10%  50/60 Hz

Graphic Format Supported

AI, PLT, DXF, BMP, DST, DWG, DXP

Applicable Material

All metal (Stainless steel, Carbon steel, Brass,etc.) and some plastic(ABS, PVC,PES, ETC.)

Spare Parts Come with the Machine

Protective glasses, Metal business card, Foot switch, Hex socket wrench, Power cord

Optional Accessories to Purchase

D80 Rotating Shaft/ D57 Small Chuck/2D Table (X.Y direction)/ Cutting Fixture

Net Weight (KG)/ Gross Weight

38KG / 50KG

Machine Dimension

420*300*550mm (L*W*H)


Laser engraving gun samples-Suntop
