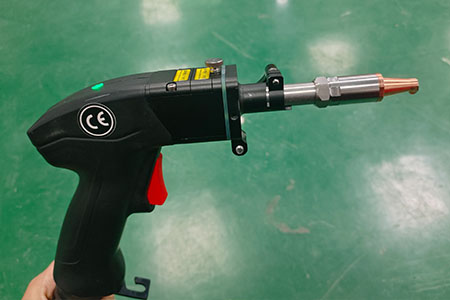

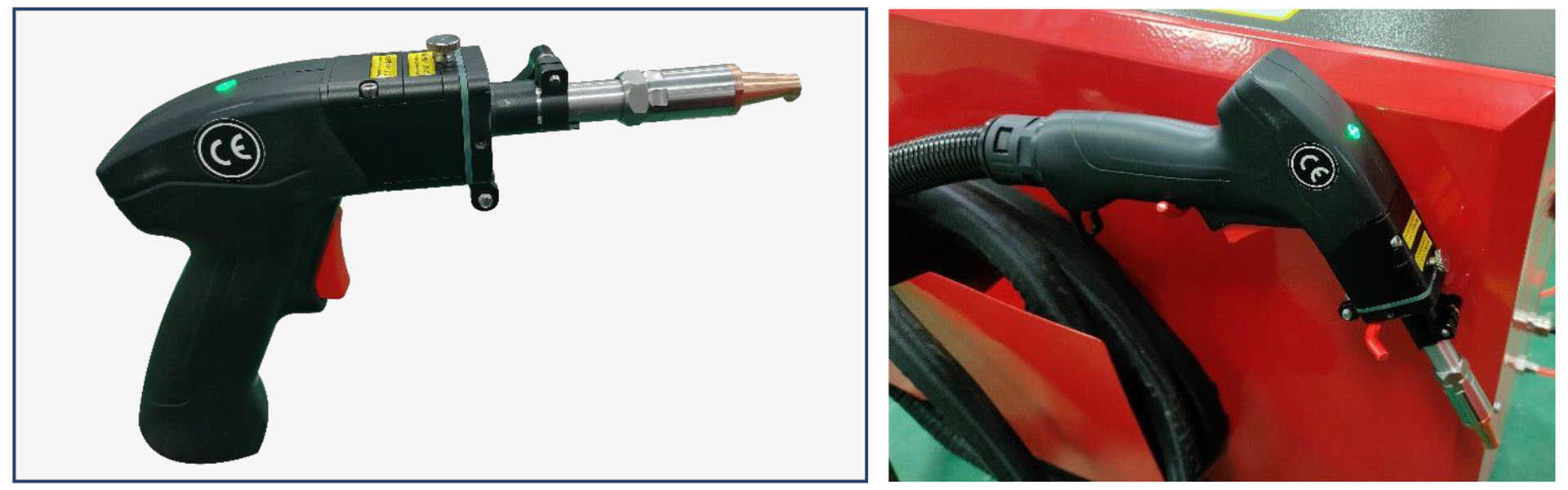

Handheld Laser Head
● Modular Design: Features an integrated structure combining fiber-output laser modules, control systems, and welding gun heads for high integration.
● Stable Gas Path Design: Optimized gas path structure ensures long-term continuous and stable operation of the laser head.
● Maintenance-Friendly Structure: Quick-release design for the gun body facilitates routine maintenance and component replacement.
● Multi-Layer Safety Protection: Built-in real-time motor position monitoring and optical path protection functions support rapid fault diagnosis.

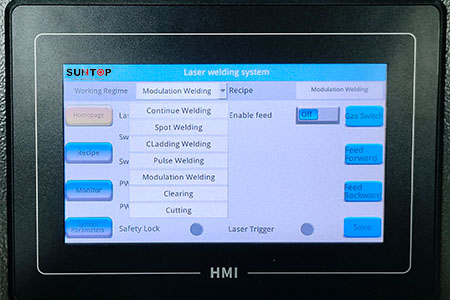

● Multi-Function Integration: Supports five welding modes including continuous welding, spot welding, and fish scale welding, with expandable capabilities for cleaning and cutting functions.

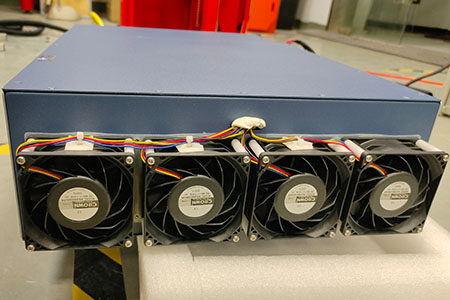

● Efficient Cooling System: Features air-cooled heat dissipation with integrated temperature control and stall protection.
|

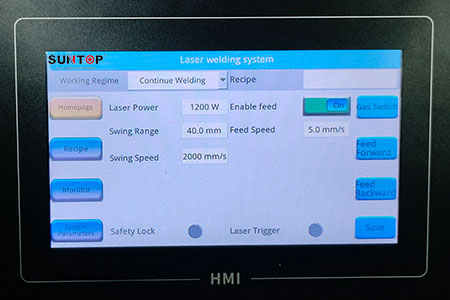

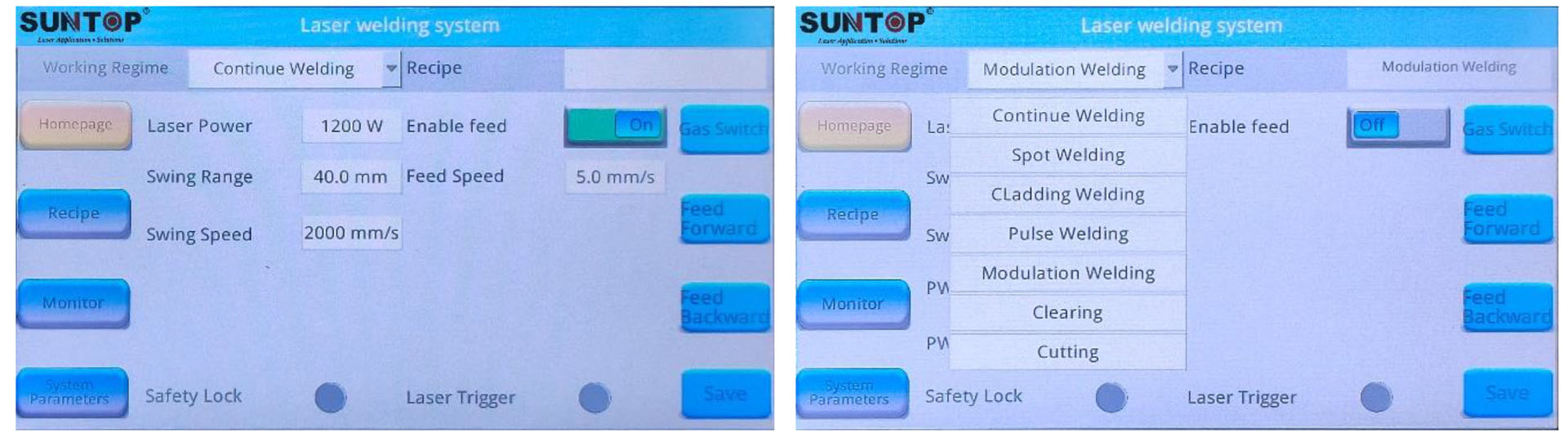

Touch Screen
● Process Management: Supports custom process names and one-click recall of different parameter schemes.
● Real-time Monitoring: Visual interface displays welding data in real time, providing clear visibility of operational status.
● Simplified Setup: Intuitive interface with straightforward parameter configuration lowers operational barriers.
● Function Integration: Unified control of galvanometer steering, wire feeding, and gas management through a single interface.
● High Compatibility: Supports multiple laser brands and external devices, with remote communication interfaces (e.g., RS232/RS485).
● Safety Alerts: Real-time system status feedback including fault diagnostics and protective function notifications.
|

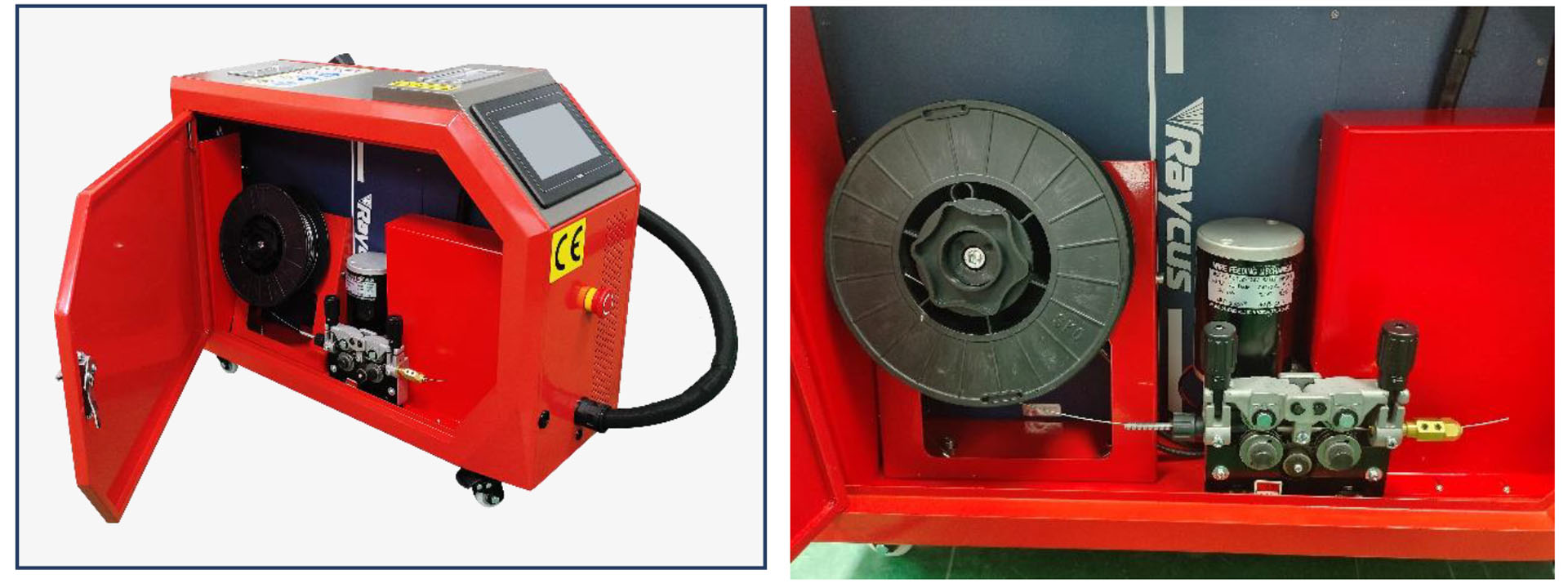

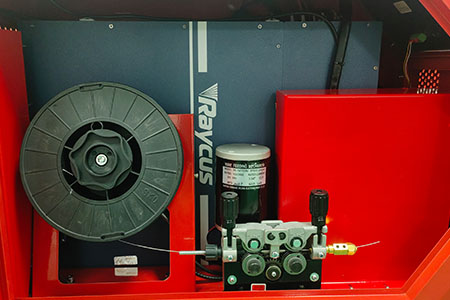

Wire Feeder
● Centralized Control: Integrated management with the welding torch, supporting one-touch wire feed/retraction for effortless operation.
● Broad Compatibility: Compatible with wire feeders and laser welding systems from various brands, offering strong integration capabilities.
● Motor Drive: On-board DC brushed motor drive supports pulse direction control for stepper/servo systems.
● Effortless Wire Break Handling: Supports 0.6-1.6mm wire specifications with simple and efficient wire break processing.
● Remote Integration: Enables coordinated control with external devices via communication interfaces (e.g., RS485).
● Multi-Function Integration: Supports five welding modes including continuous welding, spot welding, and fish scale welding, with expandable capabilities for cleaning and cutting functions.
● Efficient Cooling System: Features air-cooled heat dissipation with integrated temperature control and stall protection.

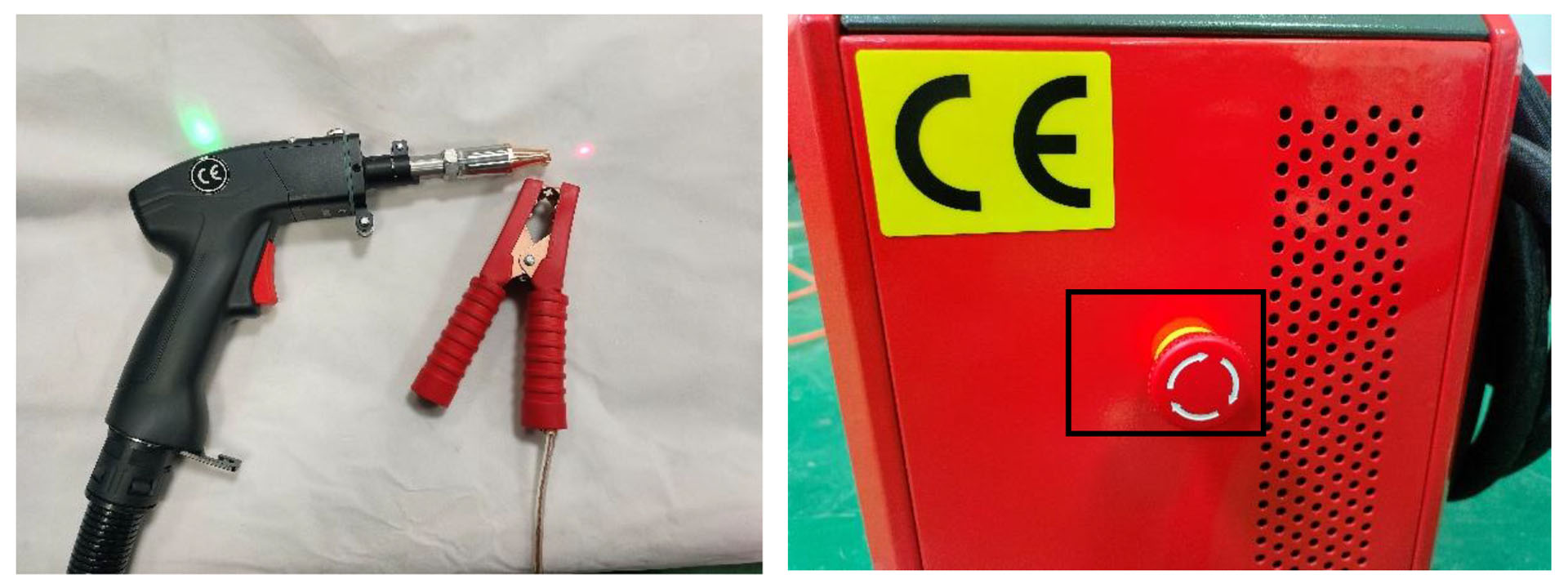

| Safety Features
ST-FWA1250H is a Class lV laser system and routine precautions are required for the safe operation of the equipment.
BUILT-IN FEATURES INCLUDE:
● Key switch control of laser source and Emergency-stop button ensure deliberate operation
● Fiber laser interlock verifies integrity of laser delivery to the welding gun
● Laser weld gun trigger, enable and then fire, for intentional operation
● Part contact electrical interlock turns off the laser power if the welding head is not in contact with the welded parts
Operators must wear all recommended personal protective equipment (PPE),including laser safety glasses, laser and heat resistant gloves, hats, leather aprons, etc., and other laser and heat resistant clothing.
