Inner Glass Engraver Laser UV 3D

3D UV Laser Marking Machine is an advanced laser marking device engineered for high-precision, high-quality marking applications. Utilizing ultraviolet laser technology, it delivers clear, permanent markings on diverse materials including plastics, glass, and metals. With its robust three-dimensional marking capabilities, users can effortlessly process complex surfaces and three-dimensional shapes to meet personalized customization requirements.
※ Product model: ST-UV03/05/10/15/20-3D
※ Laser power: 3W/5W/10W/15W/20W
※ Working area: 110*110-180*180mm

Availability:

Quantity:



Inquire PDF Export

Product Description

Details Product Parameters Samples Video

Product Introduction

3D UV Laser Marking Machine is an advanced laser marking device engineered to meet high-precision and high-quality marking demands. Its core capabilities include producing clear, permanent laser markings on diverse materials, featuring three-dimensional marking capabilities to handle complex shapes and curved surfaces, perfectly adapting to various product design requirements. This equipment excels at marking intricate patterns, text, QR codes, and barcodes, ensuring aesthetically pleasing and easily identifiable results.

Widely adopted across electronics, medical devices, consumer goods, and packaging industries, this machine excels in markets demanding high standards and personalized customization. As demand for individualized and small-batch production grows, the 3D UV Laser Marking Machine plays an increasingly vital role in enhancing product quality, reducing production costs, and strengthening brand identity. Its outstanding performance enables it to stand out in competitive markets, delivering top-tier solutions that empower businesses to gain a competitive edge.

Product Technical Features

3D UV Laser Marking Machine adopts UV laser technology, which has the advantages of short wavelength, high energy and clear image. The UV laser can realize efficient marking of various materials, and at the same time, it has the feature of not easy to produce thermal influence, which ensures the quality and accuracy of marking.

1. Good beam quality and smaller focal spot for ultra-fine marking.

2. Subvert the traditional two-dimensional marking mode, to achieve all-round marking, can be engraved bevel, cylinder, cone, sphere and other different 3D shapes.

3. Automatically calculates radian and automatically adjusts focus for marking multi-level large format, 3D curved surfaces and more.

4. Adopt multi-axis dynamic zoom technology to track deep curve focus in real time.

5. Dynamic axes coordinately adjust the focus and adjust the light spot in real time to ensure the uniformity and consistency of the light spot and achieve higher accuracy.

6. 3D dynamic focusing system, can realize deep carving, relief carving, curved surface accurate laser carving, light spot delicate, uniform and consistent, the effect is more beautiful, more efficient.

7. Suntop Fiber Laser Marking Machine is subjected to strict ageing tests and continuous 24-hour laser beam output before leaving our factory to ensure 100% machine stability.

Product Details

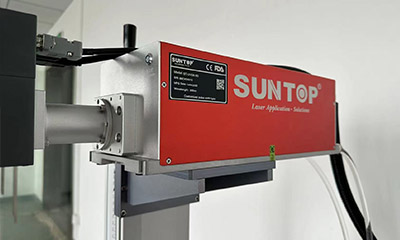

3D UV Laser Marking Machine Laser source-Suntop

Laser source

Adopt famous brand UV laser with good beam quality, stable performance, high photoelectric conversion efficiency and maintenance-free.

3D Galvo head

High-precision scanning head, good stability, high positioning accuracy. It can mark without distortion on uneven and complex surfaces, 3D surfaces, slanted surfaces, step surfaces, conical surfaces and other workpieces.

3D UV Laser Marking Machine High quality galvo head-Suntop

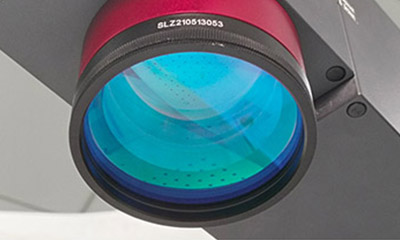

3D UV Laser Marking Machine F theta lens-Suntop

F theta lens

Intelligent F-theta lens, the fiber laser beam is focused to the surface of the workpiece through the lens, and the energy is sufficient, high light transmittance, and good marking effect.

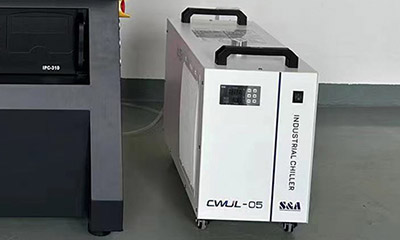

Water cooling system

Water cooling system is adopted to accelerate heat dissipation. Protect the host computer to ensure the machine runs for a long time.

3D UV Laser Marking Machine Water cooling system-Suntop

UV Laser Marking Plastics Control panel-Suntop

Control panel

BJJCZ brand original EZCAD control system has the characteristics of high stability, easy operation and good performance.

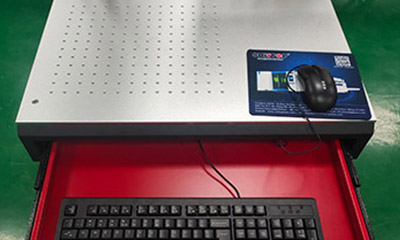

Flexible workbench

With a positioning hole, the positioning is convenient and fast, and the position is adjustable.

3D UV Laser Marking Machine Flexible workbench-Suntop

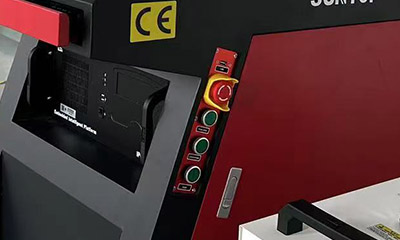

3D UV Laser Marking Machine Safety protection-Suntop

Safety protection

The equipment is equipped with an emergency stop button to ensure that the power supply can be quickly cut off in the event of an abnormality. The laser protection cover can be customized according to needs to ensure the safety of operators during use.

Marking software

User interface: Software interface is user-friendly and easy to use. Compatibility: Supports multiple file formats, such as DXF, AI, PLT, etc., for easy design import.

UV Laser Marking Plastics Marking software-Suntop

Advantages of UV Laser Engraving

1. High Precision and High Resolution

The 3D UV laser marking machine employs advanced laser technology to achieve extremely precise marking with meticulous detail, making it ideal for accurate engraving of intricate patterns and small fonts. This high resolution ensures even minute letters and details remain clearly visible, meeting diverse design requirements.

2. 3D Marking Capability

This equipment features 3D marking functionality, enabling engraving on irregular curved surfaces and complex shapes. This overcomes the limitations of traditional laser marking machines in such applications. Such flexibility enhances its applicability across diverse product designs and materials.

3. Wide Material Compatibility

The 3D UV laser marker can mark diverse materials including plastics, metals, glass, and ceramics. This broad applicability meets the needs of clients across industries such as electronics, medical devices, automotive, and consumer goods.

4. Eco-Friendly and Pollution-Free

The UV laser marking process generates minimal heat, preventing material deformation or damage while reducing waste. This makes 3D UV laser marking machines more environmentally friendly, aligning with modern manufacturing's sustainability requirements.

5. User-Friendly Operation and Intelligence

Equipped with advanced control software, the 3D UV laser marking machine offers intuitive design and operation. Users simply input patterns or text, and the machine rapidly completes marking automatically, significantly boosting production efficiency.

6. Durable and Long-lasting Marking Effects

UV laser marking produces marks with excellent abrasion resistance and weather resistance, maintaining clarity over extended periods without fading or wear. This feature is particularly suitable for products requiring high durability, such as medical devices and industrial equipment.

7. Rapid Production Cycle

This equipment enables swift marking, substantially shortening production cycles and making it suitable for small-batch and customized production. This allows businesses to respond quickly to market changes and meet customer demands with greater flexibility.

3D UV laser marking machines provide efficient, precise marking solutions for various industries, helping businesses enhance product quality and market competitiveness. Click here to contact Suntop Laser now for more information on laser marking

Product Specification

Model	ST-UV03/05/10/15/20-3D
Laser Power	3W/5W/10W/15W/20W
Max. marking Range	110110mm-180180mm
Laser Type	UV laser
Laser Source	GAIN (JPT and other brand optional)
Control Software	EZCAD
Cooling Mode	Water Cooling
Beam Diameter	≤ 10mm
Working Accuracy	±0.002MM
Marking Speed	1-12000mm/s
Repetition Frequency	20-100KHz
Laser Wavelength	355nm
Minimum Font for Marking	0.01mm
Working Voltage	220V±10%, 50/60 Hz
Graphic Format Supported	AI, PLT, DXF, BMP, DST, DWG, DXP
Optional Accessories to Purchase	D80 Rotating Shaft/D57 Small Chuck/2D Table (X.Y direction)/Cutting Fixture
Net Weight (KG)/ Gross Weight	170KG / 195KG
Packaging Dimension	880mm780mm1750mm (LWH)

What Materials Can be Engraved?

It is suitable for almost all materials. Widely used in metal (all metals such as iron, copper, aluminum, magnesium, zinc, etc.), glass, crystal, PCB, plastic, fiber, paper, paint, silicon wafer, LCD, polyamide, wire, plug and other polymer materials.

UV Laser Marking Plastics samples1-Suntop

UV Laser Marking Plastics samples2-Suntop

UV Laser Marking Plastics samples3-Suntop

UV Laser Marking Plastics samples4-Suntop

UV Laser Marking Plastics samples5-Suntop

UV Laser Marking Plastics samples6-Suntop

UV Laser Marking Plastics samples7-Suntop

UV Laser Marking Plastics samples8-Suntop

UV Laser Marking Plastics samples9-Suntop

UV Laser Marking Plastics samples10-Suntop

UV Laser Marking Plastics samples11-Suntop

UV Laser Marking Plastics samples12-Suntop

UV Laser Marking Plastics samples13-Suntop

UV Laser Marking Plastics samples14-Suntop

UV Laser Marking Plastics samples15-Suntop

UV Laser Marking Plastics samples16-Suntop

UV Laser Marking Plastics samples17-Suntop

UV Laser Marking Plastics samples18-Suntop

What is Laser Engraving Used For?

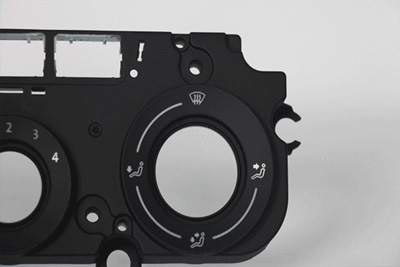

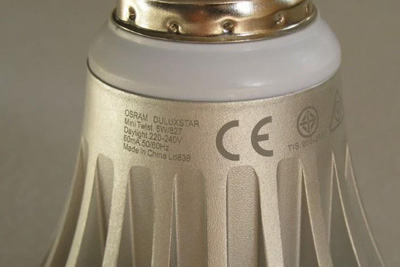

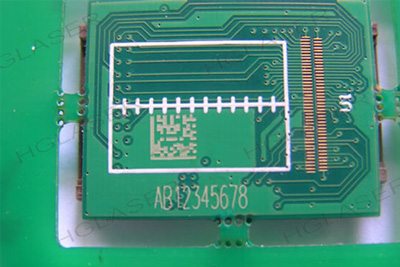

Widely used in precision molds, home appliances, communication products, electronic components, automotive parts, computer parts, machinery and hardware, 3C electronics, medical equipment, packaging bottles and cans and many other industries.

Laser Engraving Video

FAQ

1. How can i place an order?

Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.

For further discussion, it is better to contact us with WhatsApp / WeChat / email / phone, in case of any delays.

2. What kind of display we provide?

We have laser marking machine / laser welding machine / laser cutting machine / laser cleaning / CO2 laser cutting and engraving machine / laser accessories for you choose.

3. How about the warranty?

We have 2 years warranty and lifelong maintenance.

4. What is your terms of delivery?

We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.

5. How precise is its marking accuracy?

The 3D UV laser marking machine offers exceptional marking precision, typically achieving an accuracy of ±0.01 mm. This ensures clear reproduction of intricate patterns and fine details, making it ideal for small fonts and delicate designs.

6. Is operating a 3D UV laser marking machine complicated?

Operating a 3D UV laser marking machine is straightforward. The equipment typically features a user-friendly software interface. Users simply upload design files, set parameters, and the machine automatically completes the marking process.

7. Is the maintenance and upkeep of this equipment difficult?

Maintenance for 3D UV laser marking machines is relatively simple, requiring only periodic cleaning of the laser optical path and routine equipment upkeep. Manufacturers usually provide detailed user manuals and technical support to assist with daily maintenance.

8. How efficient is production with this equipment?

Thanks to its rapid marking capability, the 3D UV laser marking machine significantly boosts production efficiency. Its fast marking speed and high automation allow users to complete more tasks in less time.

9. How durable are the marking results?

Markings produced by 3D UV laser marking machines are highly durable, featuring excellent abrasion resistance and weather resistance. They resist fading or wear, making them ideal for applications requiring high durability.

10. Can I customize markings?

Yes, 3D UV laser marking machines are well-suited for small-batch and personalized customization. Users can upload various designs as needed to achieve unique marking effects, meeting specific product customization requirements.
