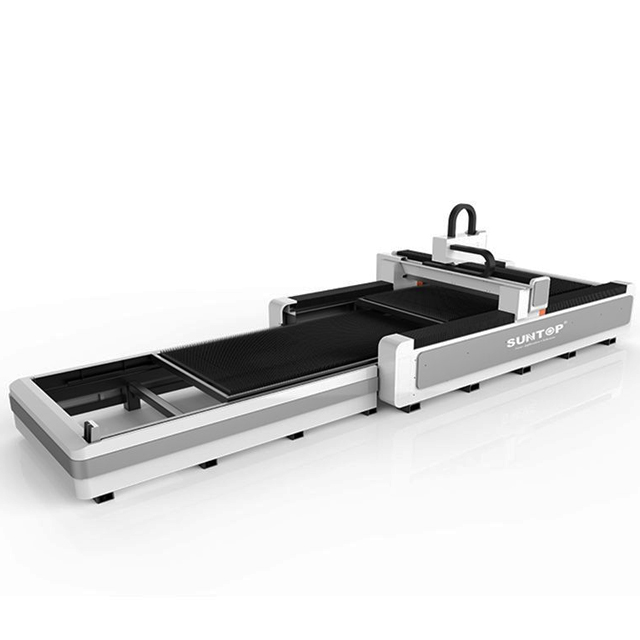

Fiber Laser Cutting Machine

Dual exchange platform fiber laser cutting machine, equipped with special exchange platform as standard, fast exchange speed, convenient loading and unloading, plate cutting and loading and unloading can be carried out at the same time, high processing efficiency, low operating cost, it is a very cost-effective plate laser cutting special The equipment is suitable for enterprises with large processing volume and continuous operation of equipment, and is the first choice for processing and manufacturing enterprises.
Product Model: ST-FC3015C/ST-FC4020C/ST-FC6015C/ST-FC6020C
Laser power: 1000W-20KW
Working area: 1500*3000mm (4000*2000mm, 6000*1500mm, 6000*2000mm)

Details        Product Parameters        Samples       Video

fiber laser cutting machine for metal sheet features-Suntop

Features of fiber laser cutting machine

1. This machine adopts the upper and lower exchange platforms to load, unload and cut plates at the same time, which greatly improves the work efficiency.

2. High-speed parallel exchange platform, double worktables can be exchanged at the same time, the transmission mode is stable and reliable, the exchange time is shortened, and the frequency converter is good.

3. Imported transmission mechanism and servo motor, high cutting precision.

4. Special software can design or process graphics or text in real time. Flexible and easy to operate.

5. Automatic tracking, automatic search, automatic nesting, double the efficiency, and achieve a smooth and beautiful cutting surface.

6. The exchange structure of the workbench and the height design of the saw teeth enable the machine to be equipped with an automatic sheet metal loading and unloading system.

Details of fiber laser cutting machine

1. Heavy machine tools

The whole machine adopts a thick carbon steel structure, and the weight of a single machine tool reaches 4 tons. The hollow structure of the high-power machine effectively reduces the heating area during laser cutting. The machine tool will not be deformed during long-term use, and at the same time it ensures good cutting accuracy and greatly improves the stability of the machine tool. It will not be deformed after at least 20 years of use.

2. The third generation aviation aluminum alloy gantry

Manufactured using aerospace standards, extruded by 4300 tons of pressure. After aging treatment, its strength can reach 6061T6, which is the highest strength among all gantry frames. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, oxidation resistance, low density, and greatly improved processing speed.

3. Suntop patented cardan shaft drive exchange platform

Good synchronous performance, large switching torque, strong anti-overload ability, long-term reliable operation without failure. Equipped with a high-power mid-mounted 3KW motor, with a braking system and a hard-tooth surface reducer, high torque output, symmetrical 80mm diameter cardan shaft torque transmission, and a double 16mm chain drag table.

4. French Schneider original MCB relay

Each control circuit is controlled independently, and multiple Schneider air circuit breakers are used to avoid strong electric interference. Industrial-grade industrial control host, the software system runs stably and smoothly without crashing.

5. Suntop laser cutting head lift (Z axis)

The closed module is fully sealed and protected, which effectively prevents cutting dust and smoke from entering the module, avoiding and reducing failures. Ball screw and linear guide rail are integrated inside, with high integration, small size and high running accuracy.

Advantages of fiber laser cutting machine

1. Independent high and low double worktables, the exchange speed is fast, and the exchange can be completed within 10S, saving loading and unloading time.

2. Equipped with Raycus fiber laser as standard, the cost of operation and maintenance is low, and the long-term return on investment and rapid income can be realized.

3. High precision, fast speed, narrow incision, minimum heat-affected zone, smooth cutting surface without burrs.

3. Non-contact cutting, the cutting edge is less affected by heat, basically no thermal deformation of the workpiece occurs, and no secondary processing is required.

4. Save cost, maximize the use of materials, no need for molds.

5. Special software can design or process graphics or text in real time. Flexible and easy to operate.

Fiber laser cutting machine application

Application materials

Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy,  titanium alloy, galvanized steel, pickle plate, alumina-plating, zinc plate, metallic copper, brass and other kinds of metals.

Application industry

Sheet metal processing, advertising signs production, high and low voltage electrical cabinet production, mechanical parts kitchen utensils, automobile, machinery, metal products, saw blades, electrical parts, optical industry, spring, board, kettle, medical microelectronics, hardware, knife measuring tools and other metal processing industry.

Parameters of fiber laser cutting machine



Laser power


Table Max. cutting size

1500*3000mm (4000*2000mm, 6000*1500mm, 6000*2000mm)

Laser wavelength


Transmission system

Double rack & pinion and servo drive


High precision screw guide transmission

Maximum speed


Repeat positioning accuracy


X.Y axis location accuracy


X.Y axis repeat location accuracy


X.Y axis max moving speed

30m/min (also according to kind of materials and thickness)

Cooling mode

Water Cooling

Maximum acceleration


Power consumption


Working environment

0-45℃ ,Humidity ≤ 80%, non-condensing

Graphic format supported


Working voltage

Three phase 380V/50Hz or 60Hz

Machine weight


Machine volume


fiber laser cutting machine for metal sheet smaples-Suntop
