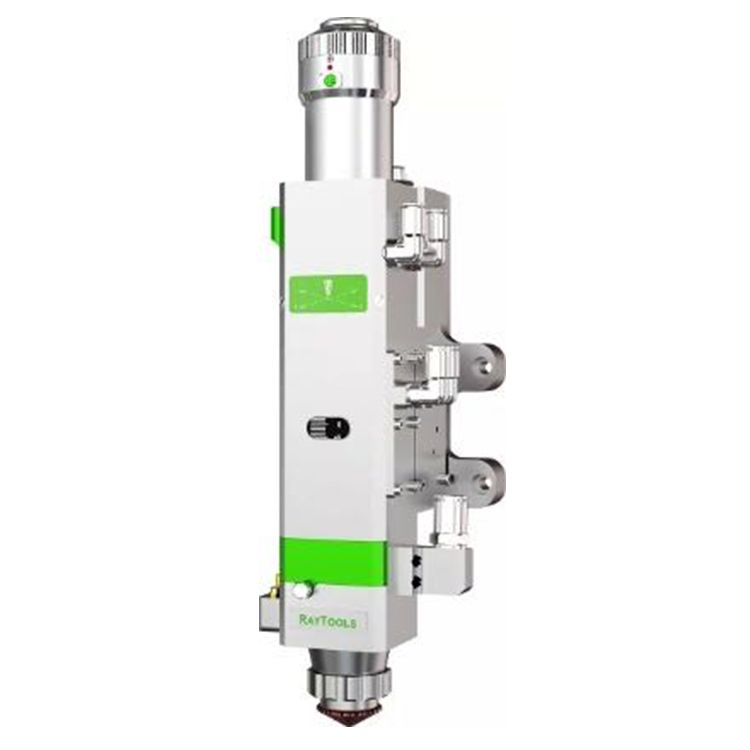

Raytools Fiber Laser Cutting Head

RAYTOOLS is an auto-focus fiber optic cutting head. It has an external servo motor built-in drive unit, which drives the focus mirror to automatically change its position within about 22mm through a linear mechanism. Users can set continuous focus through the program to complete fast piercing of thick plates and automatic cutting of plates of different thickness and materials.

Raytools fiber laser cutting head features-Suntop

Features of raytools fiber laser cutting head

● Optimized optical configuration and smooth and efficient airflow design significantly improve cutting quality and efficiency.

● Auto focus, reducing manual intervention, adjustment accuracy 0.05mm.

● Collimation with extra protection lens to effectively protect the collimation lens.

The drawer-type lens holder makes protecting the lens quicker and easier.

● A wide range of fiber interfaces, including QBH and QCS, are available to accommodate a wide range of mainstream lasers.

Raytools fiber laser cutting head details-Suntop

Advantages of raytools fiber laser cutting head

1. Efficient cooling

Both the collimating mirror and the focusing mirror group have a cooling structure, and at the same time, the nozzle cooling airflow is increased to effectively protect the nozzle and ceramic body, and delay the continuous working time.

2. Auto focus

Automatic focusing, reducing human intervention, focusing speed 10m/min, repeatability 50um.

3. Portable and efficient

Weighing only 5.6kg, compact structure, reducing the mechanical requirements of the machine tool.

4. Large aperture

Clear aperture 35mm, effectively reducing stray light interference, ensuring cutting quality and service life.

5. High withstand power

With D37 optical lens group, the power can withstand up to 6KW, and the cutting of thick plates is more handy.

6. Fast perforation, high-speed cutting

The cutting speed is fast, the effect is good, and the work efficiency is greatly improved.

Parameters of raytools fiber laser cutting head

Laser head

Rated power

Up to 4KW

Focal length


Clear aperture


Nozzle diameter


Nozzle Specifications

Single layer, composite, porous, shower type, customized

Cutting pressure


Focus range





Collimation focal length


Clear aperture


Fiber optic interface


Height sensor

Sensing distance range (recommended 1mm)



Automatic calibration

Reaction time


Temperature stability


Power requirements


Output (linear curve or optimized curve)

0~10V analog

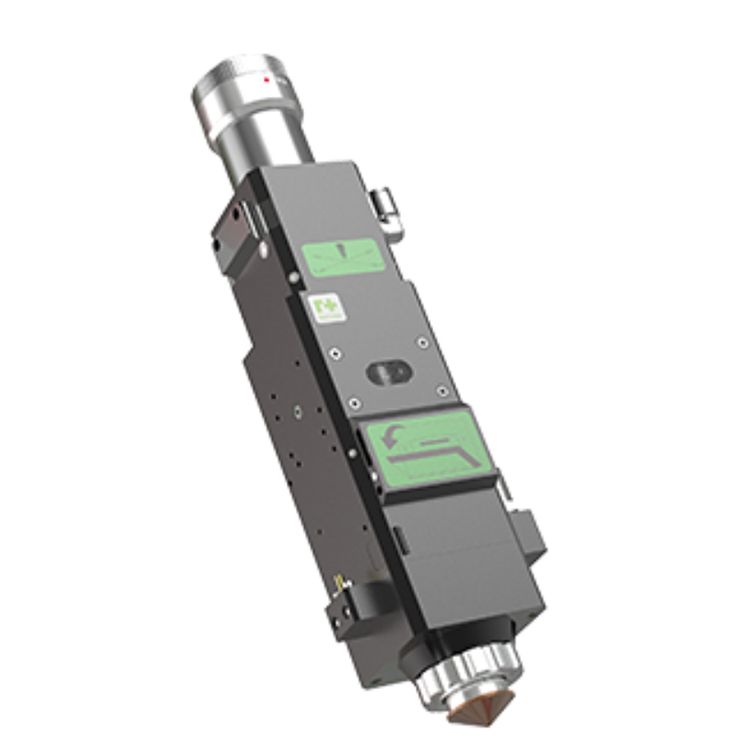

Raytools fiber laser cutting head samples-Suntop
