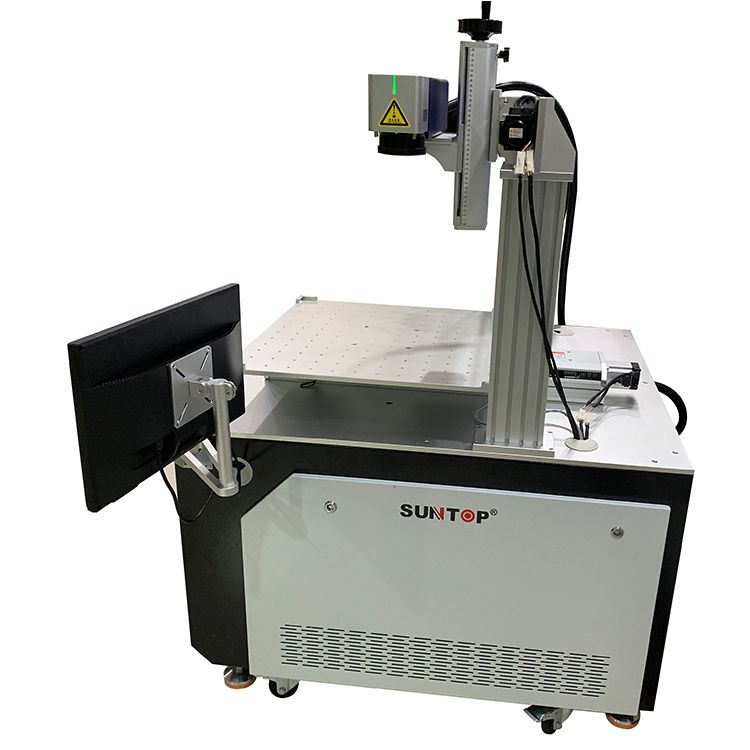

Big Marking Range Laser Marking Machine (ST-FL50BF)

Customized fiber laser processing size up to 600*600mm, machine with X and Y axis for high precision splitted marking, laser power can be equipped 30W,50W or 60W. Suitable for steel panel or decorative patterns of one-time marking.

Product Details          Product Parameters         Samples         Video

Big Marking Range Laser Marking Machine Machine Main Features

※, Machine table with X and Y axis high precision servo motors from which can achieve the large size splitted marking and engraving on big size sheet metals.

※, Machine adopt the top brand RAYCUS or IPG fiber laser Generator which lifetime up to 100,000 hours, machine no need maintenance and no need consumable parts.

※, Machine adopt the original control EZCAD control card and software which support the 2D and rotary marking, secondary development functons etc.

※,SUNTOP LASER the machine's galvanometer with two built-in red lights from which is easy to find the laser focus, in order to ensure the long-term running stability of our fiber laser marking machine, our galvanometer has to pass a strict three-steps testing before installed to the machine, this is an very important aspect that is easily overlooked by buyers, this as shown in the figure below:

※, This customized big marking size laser marking machine adopt the high precision famous brand wavelength F-theta lens which can achieve the high-speed and high precision laser marking, long time use without text and image distrotion

※, Machine can be equipped with other optional accessories, for example the rotary device, 2D/3D working table, pen rotary disc and other kinds of fixtures according to customer's actual products laser marking requirements.

Suntop Laser big marking range fiber laser marking machine application materials

Fiber laser marking machine is suitable for working with most metal marking applications such as Gold, Silver, Stainless Steel,

Brass, Aluminium, Steel, Iron Iitanium etc, and can also mark on many nonmetal materials,such as  ABS,  Nylon, PES, PVC etc.

Suntop Laser big marking range fiber laser marking machine application industries

Sheet metal panels, black coating aluminium panels, alloy, oxide, ABS, epoxy resin, printing ink, etc, which are widely applying for electronics, jewelry, automobiles, communication products, phone keys, plastic translucent keys, jewelry products, key chain, electronic components, integrated circuits (IC), electrical appliances, buckles cookware, stainless steel products and other industries.

Technical parameters of our big marking size fiber laser marking machine

Laser type

Fiber laser

Laser power

30W/50W (optional)

Machine Model


Laser Wavelength


Max.static marking area


Max.stroke range of table X and Y

600*600mm (other size can be customized)

Marking Depth


Marking Speed


Minimum Line Width


Minimum Character


Repeated Precision


Life-span of Fiber Laser Module

100,000 hours

Beam Quality

M2 <1.5

Focus Spot Diameter


Output Power of Laser

10%~100% continuously to be adjusted

System Operation Environment

Windows XP / W7/WIN10--32/64bits

Cooling Mode

Air cooling--Built-in

Temperature of Operation Environment


Power Input

220V / 50HZ or 110V / 60HZ, single phase

Power Requirement


Communication Interface


Machine Dimension/after package


Net Weight/gross weight

330kg / 400kg


Rotary Device, Moving Table, other customized Automation

Customized fiber laser marking machine with X and Y axis samples-Suntop
